MOSAIC 2X4 Full Kit

The Aladdin MOSAIC 2×4 RGBWW Full Kit is a professional-grade, high-output flexible LED lighting solution built for film, broadcast, virtual production, photography, and creative lighting applications. Featuring a 350 W RGBWW foldable panel with excellent color accuracy and smart connectivity, this full kit includes all essential accessories — from power supply and frame to wired dimmer with wireless/DMX control and a hard travel case — making it ready for immediate use on professional sets and locations.

Key Features (Point-Wise)

• 350 W RGBWW LED Panel: Powerful flexible LED panel designed to deliver broad, full-spectrum illumination with rich RGB plus white output.

• High Color Accuracy: Exceptional color rendering with CRI and TLCI over 95 for faithful reproduction of skin tones and accurate colors in professional video/film applications.

• Wide Color Temperature Range: Adjustable from ~2200 K up to 12000 K, allowing warm to cool color tuning and creative lighting effects.

• Broad Beam Angle: ~140° beam spread provides even, wide coverage without hotspots — ideal for key, fill, or background lighting.

• Foldable & Portable Design: The panel folds compactly for easy transport and setup; panel only dimensions: 55 × 110 cm and folded: 40 × 50 cm with lightweight build (~2.2 kg).

• Flexible LED Panel Mounting: Innovative flexible design offers creative mounting options on irregular surfaces, ceilings, frames, and more.

• Advanced Connectivity & Control: Integrated support for DMX512, LumenRadio wireless DMX, and Bluetooth app control via the free Aladdin app — enabling wired and wireless adjustment of intensity and color.

• Smooth Dimming: 1 %–100 % dimming allows precise brightness control without color shift.

• MOSAIC Plug System: Standardized MOSAIC connections support wired dimmers, extension cables, and future accessories for modular setups.

• Replaceable LED Compounds: Fast-changeable LED segments allow repair or service without entire panel replacement (supported by service tutorials).

• Comprehensive Accessories: Kit includes frame, diffuser, grid, cables, wired dimmer, and mounting components for professional rigging flexibility.

What’s Included

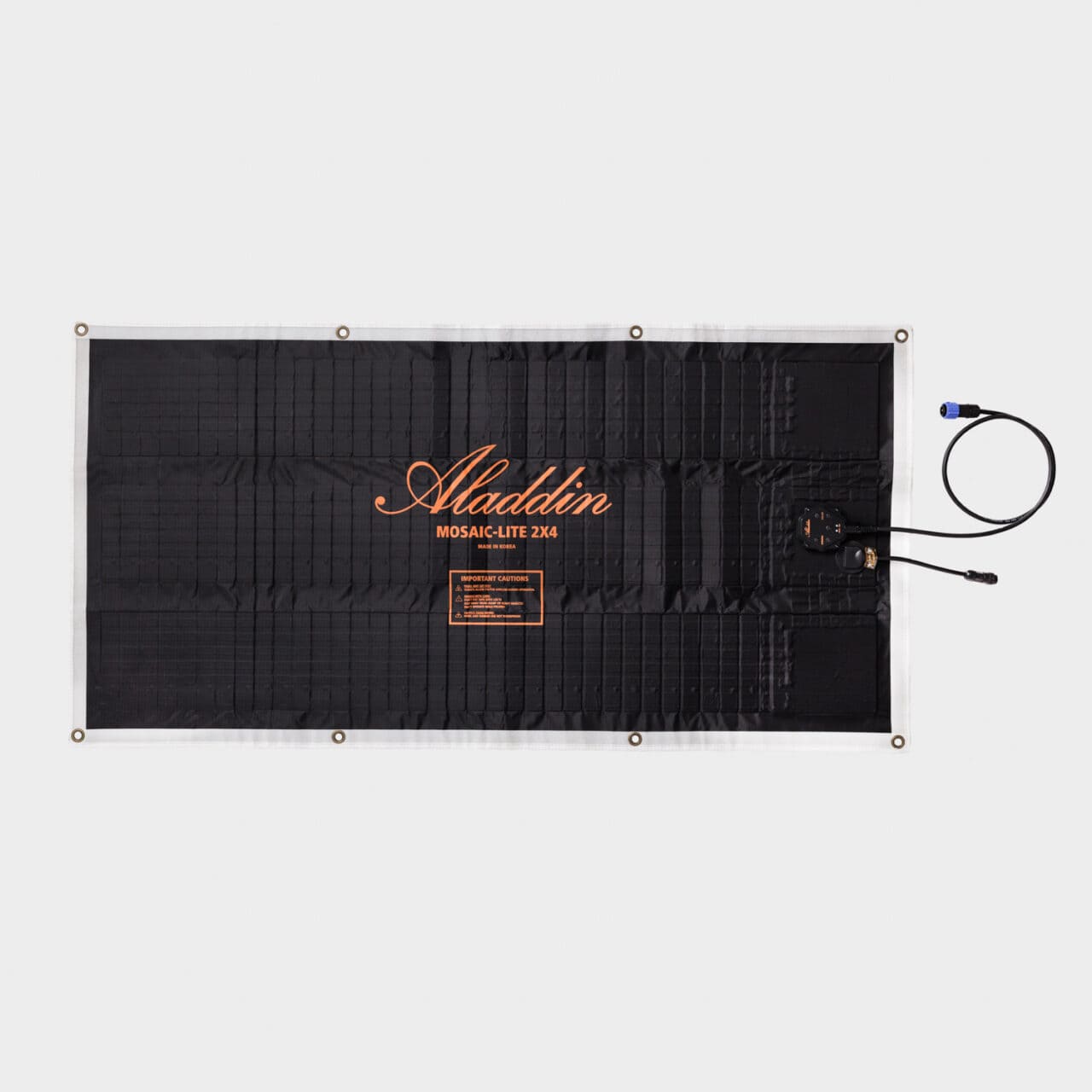

• 1 × MOSAIC 2×4 LED Panel (350 W RGBWW)

• 1 × MOSAIC 350 W Power Supply

• 1 × Power Supply Holder

• 1 × Power Supply Extension Cable (2 m / 6 ft)

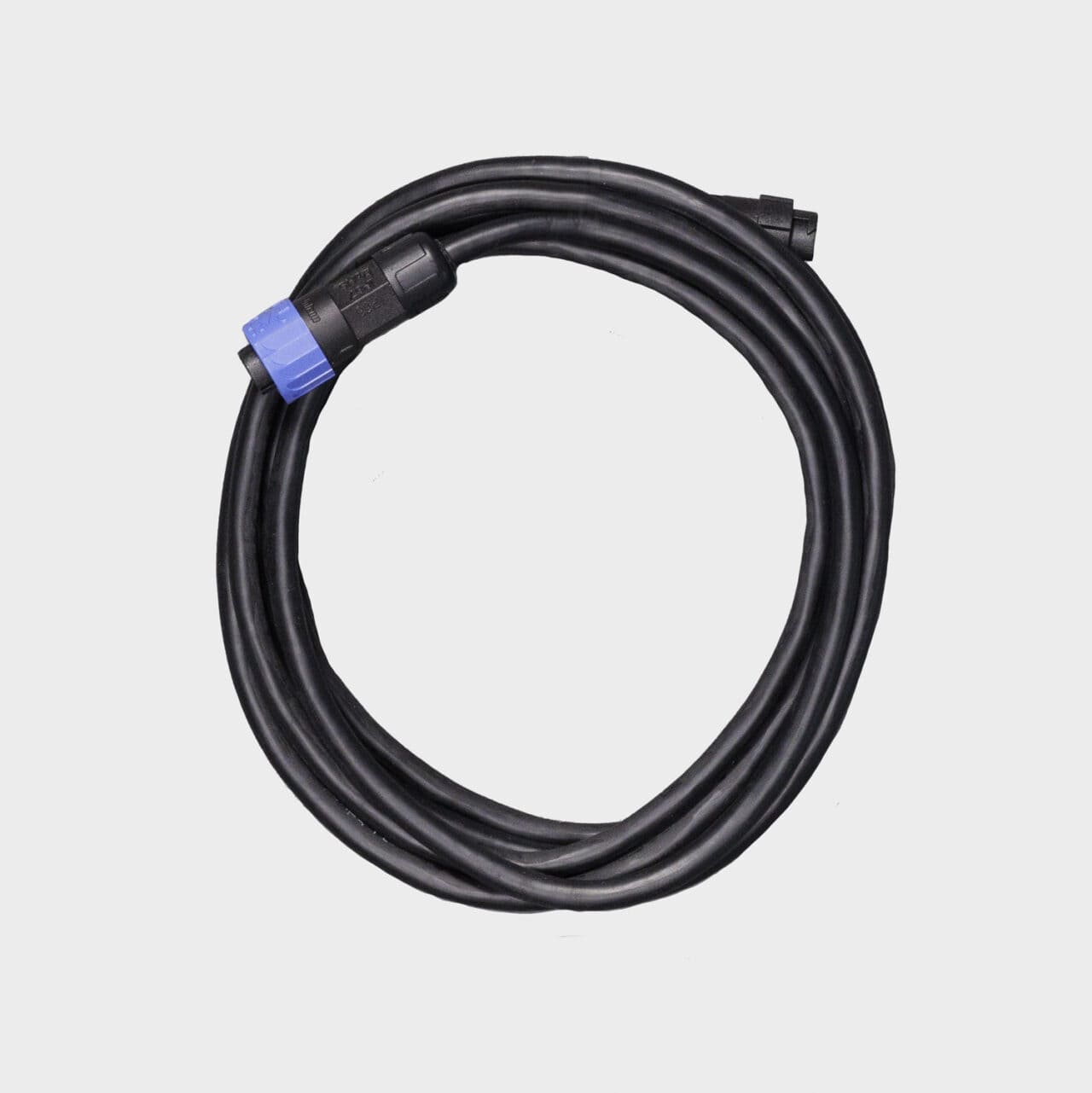

• 1 × MOSAIC Basic Cable (3 m / 9.8 ft)

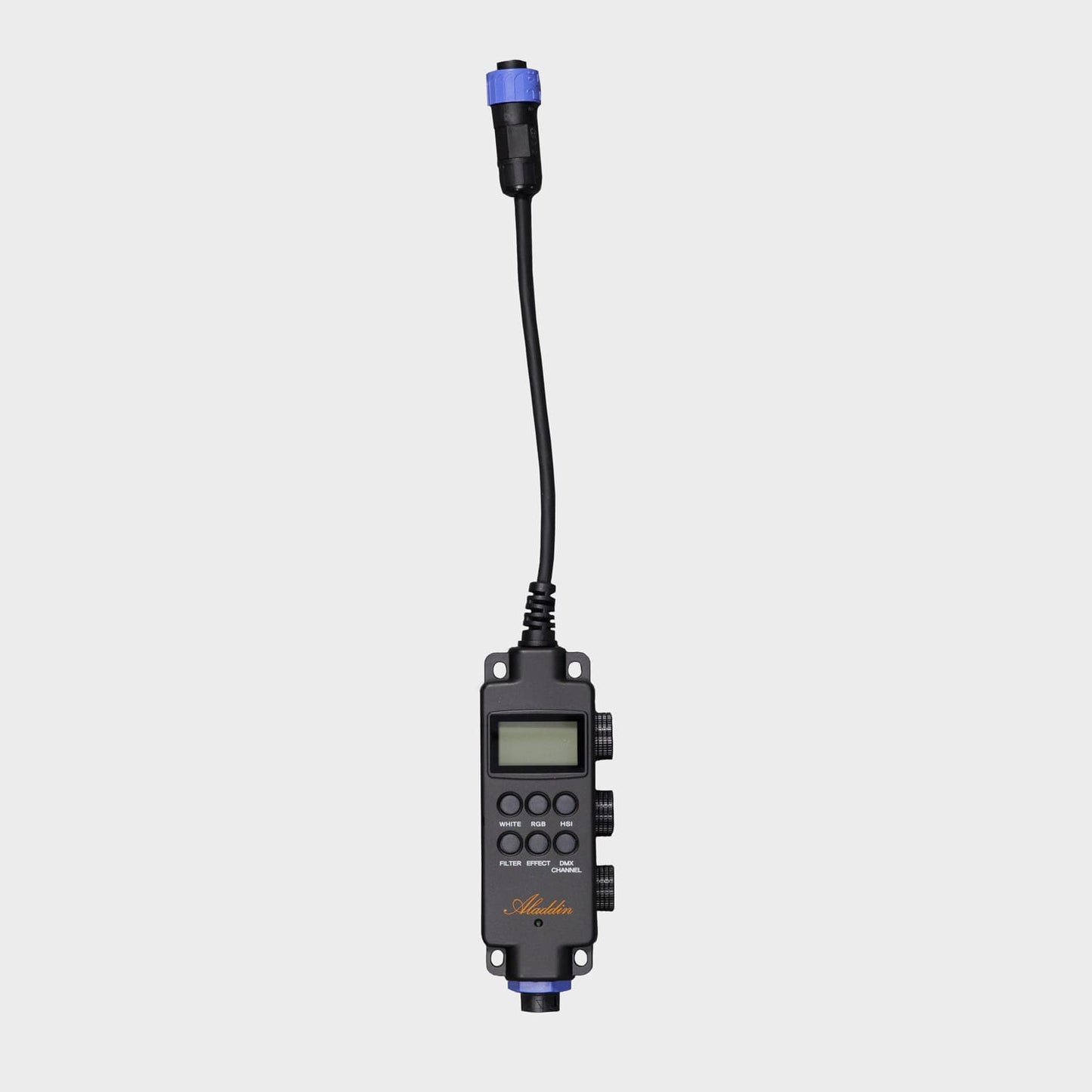

• 1 × MOSAIC Wired Dimmer (with DMX & built-in LumenRadio)

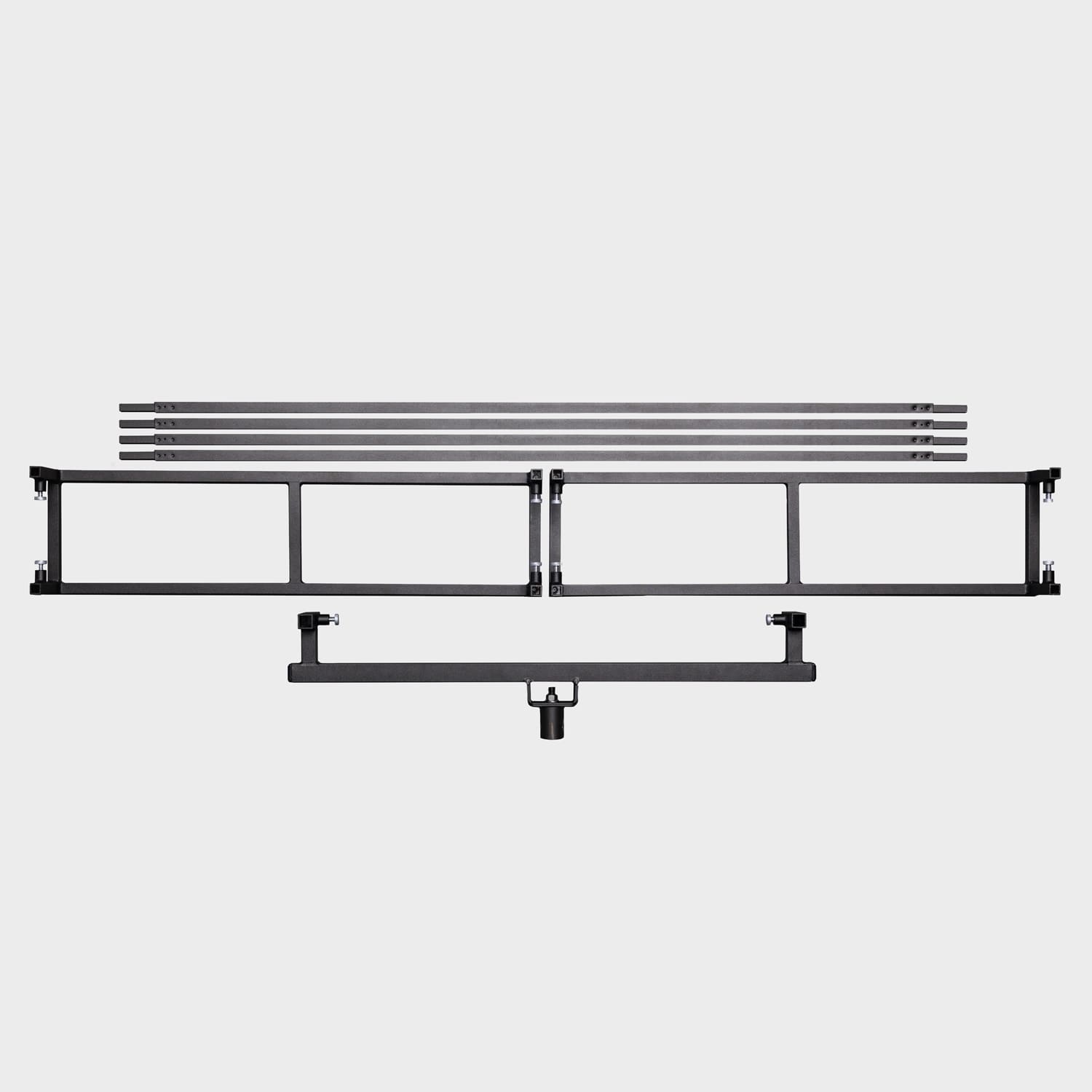

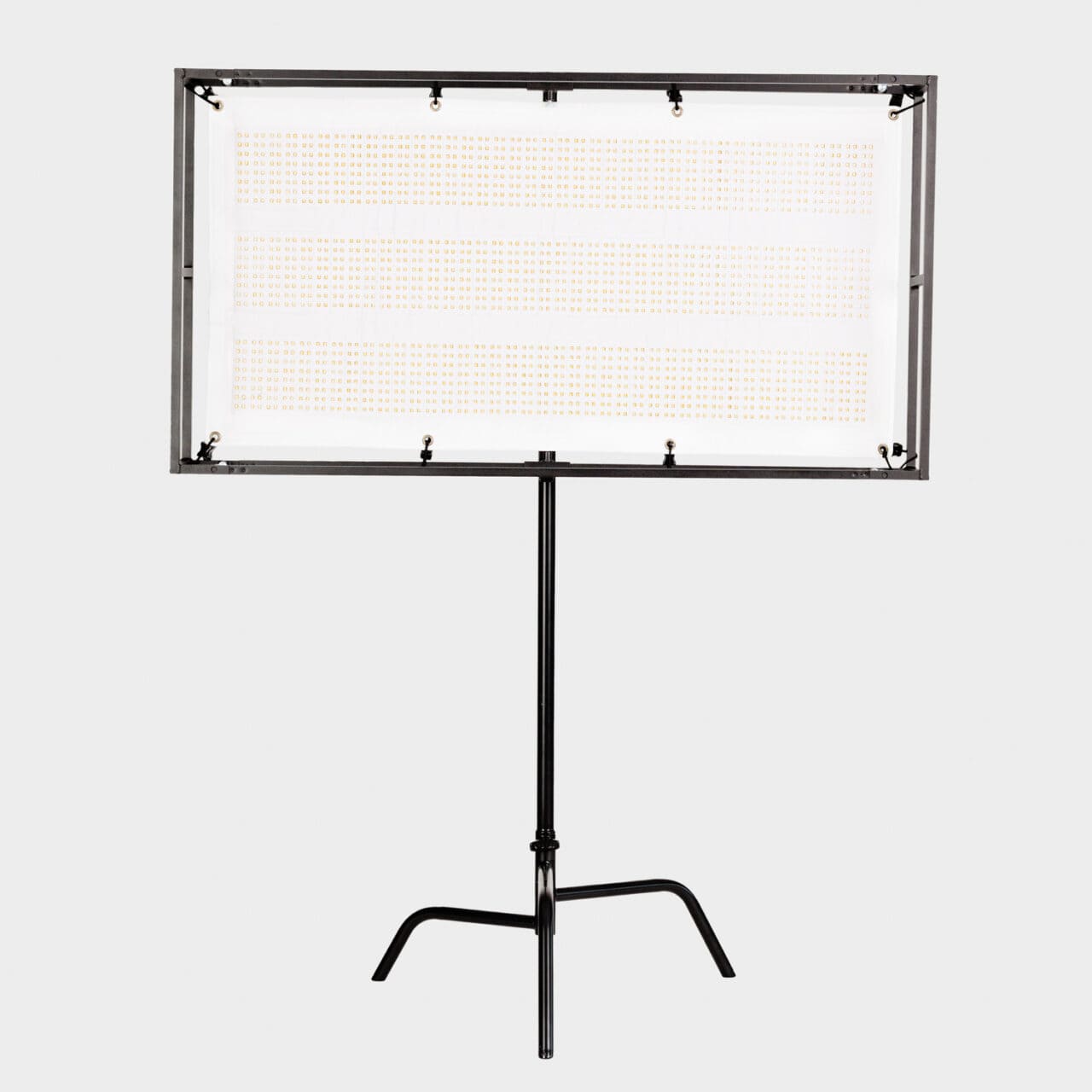

• 1 × MOSAIC 2×4 Frame

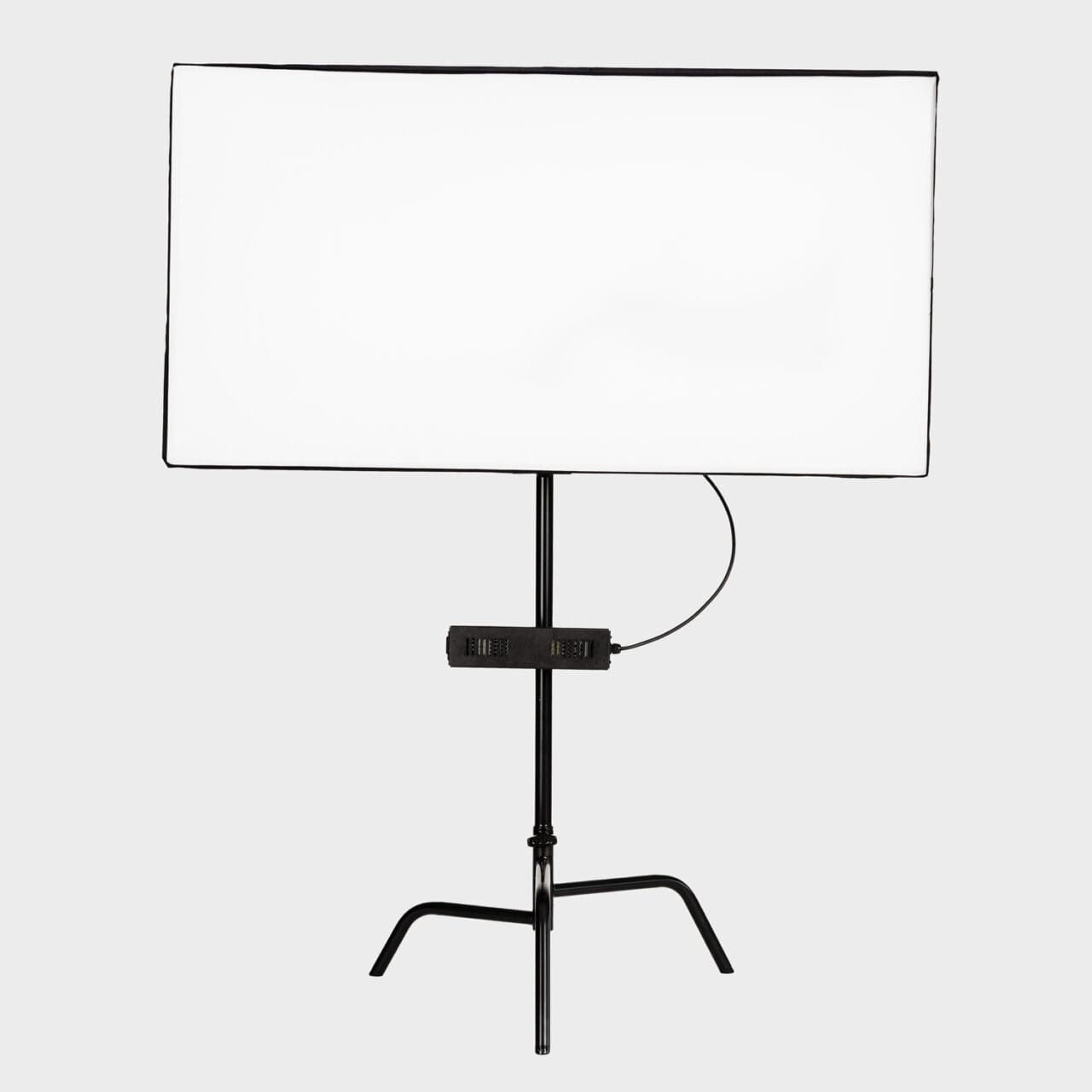

• 1 × MOSAIC 2×4 Diffuser for Frame

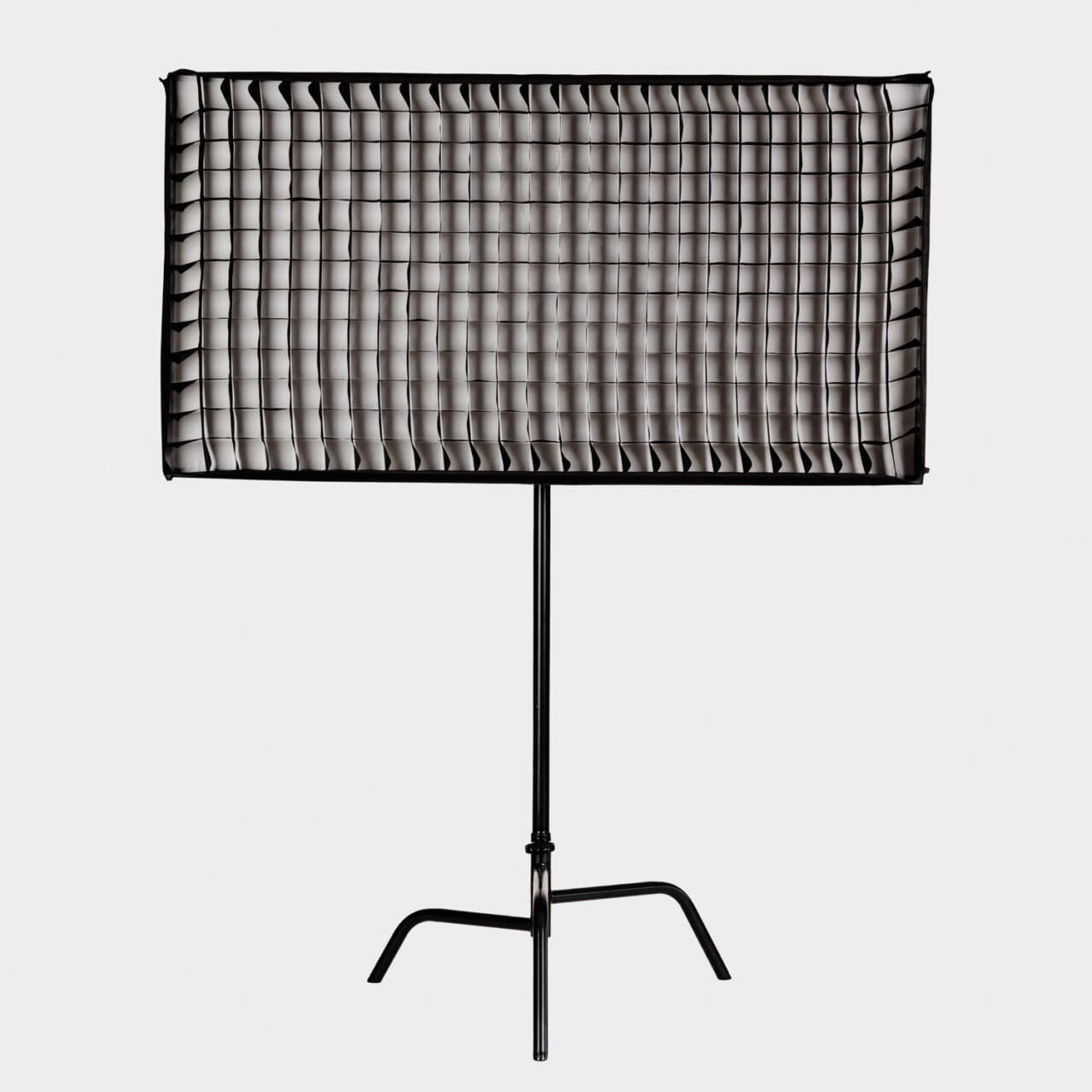

• 1 × MOSAIC 2×4 Grid for Frame

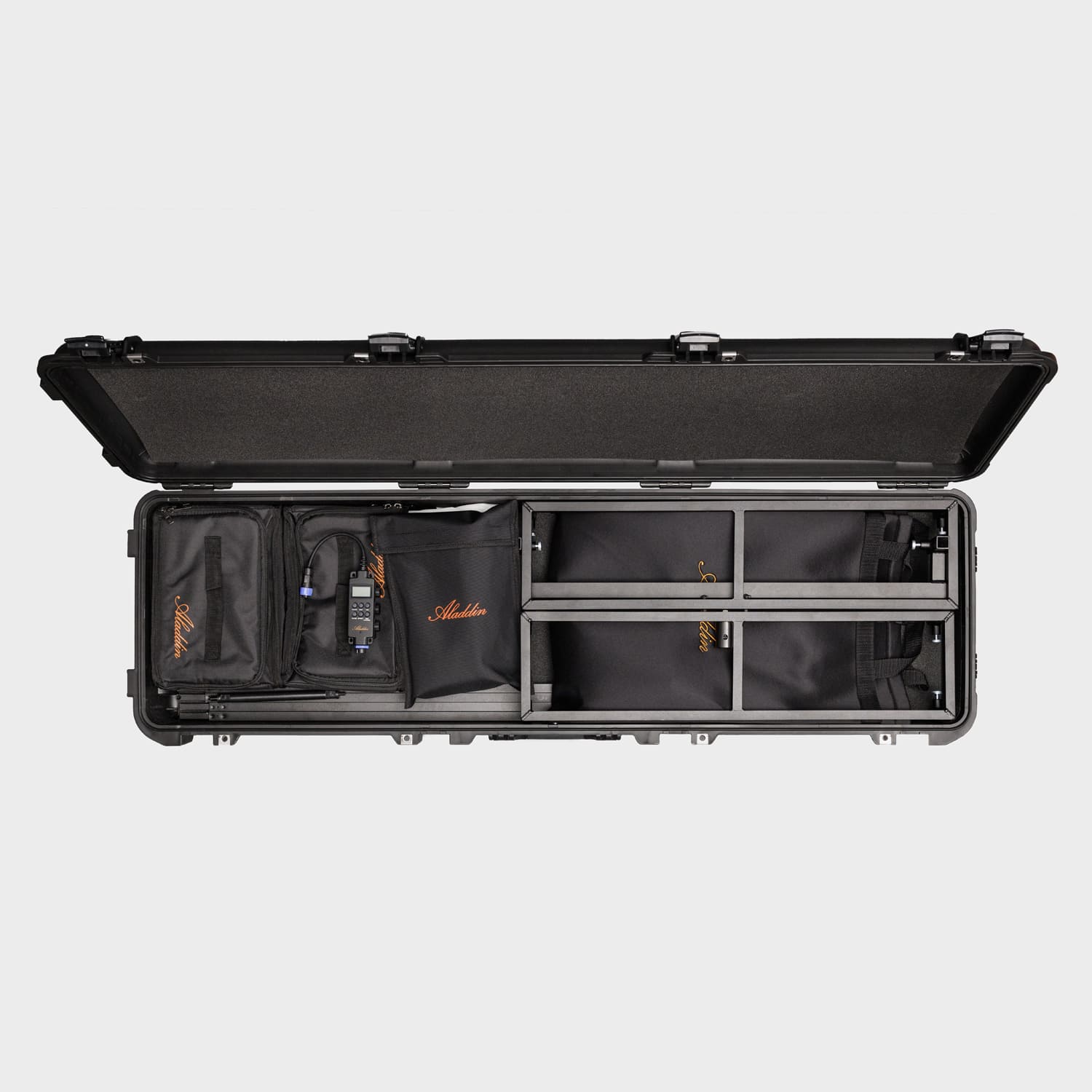

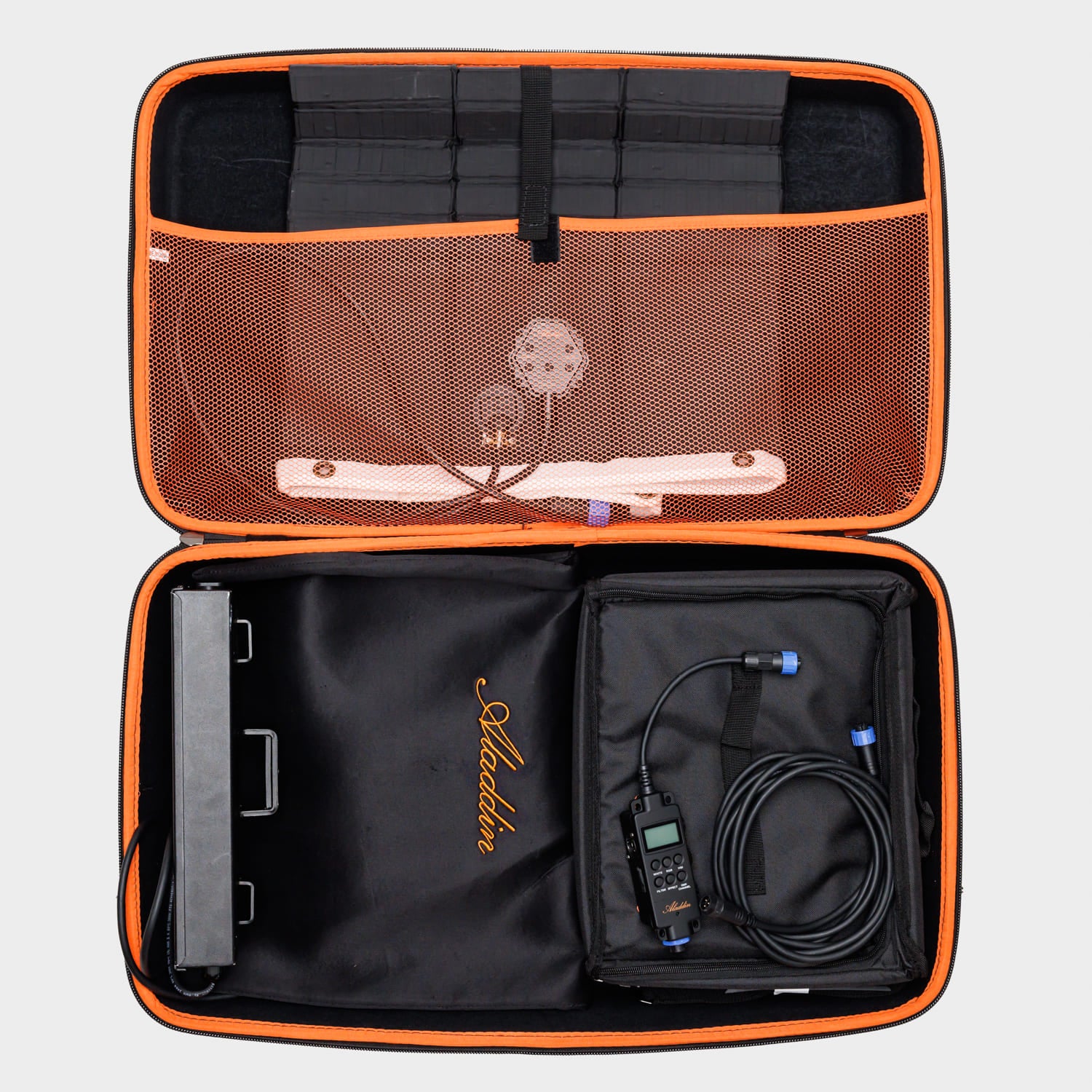

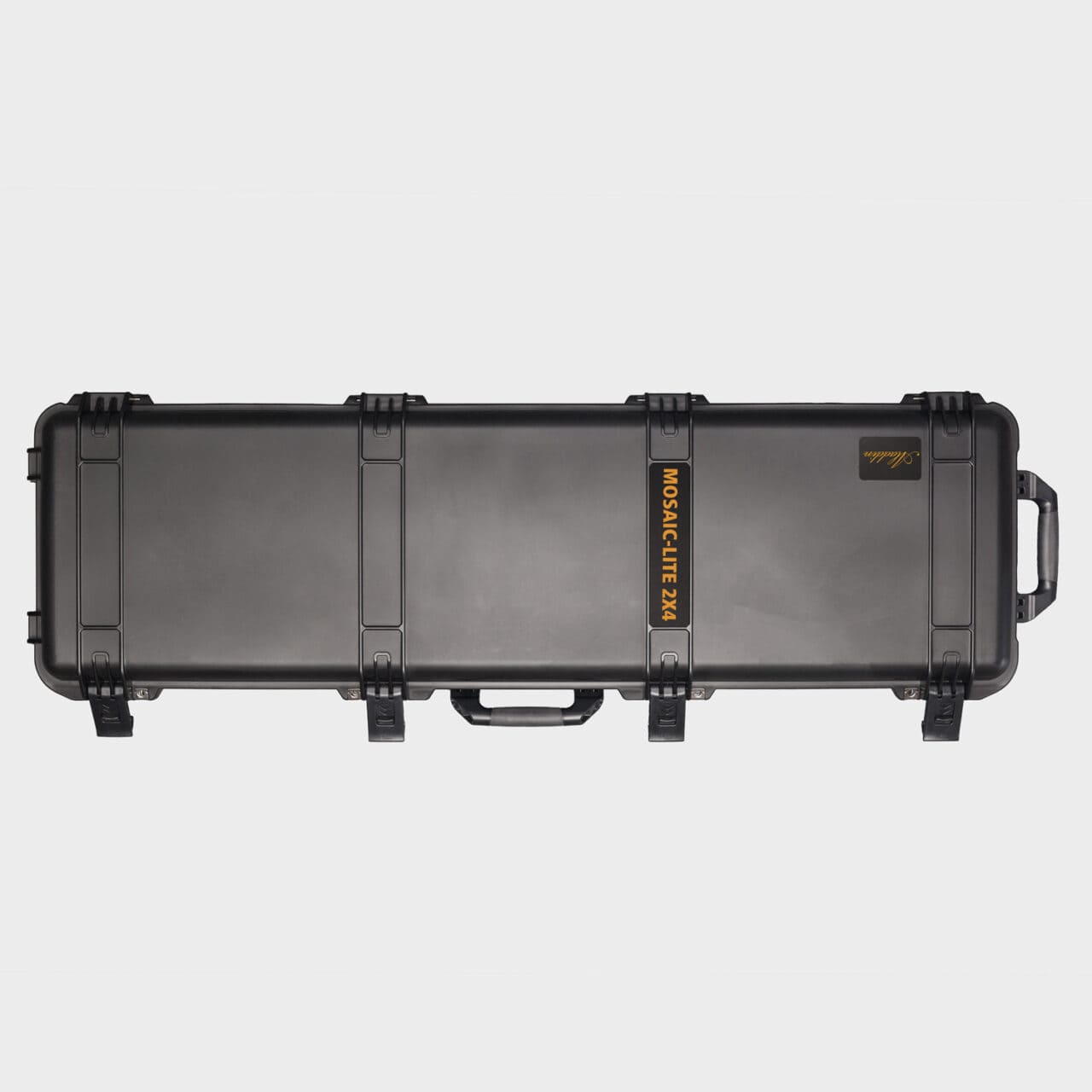

• 1 × MOSAIC Hard Case

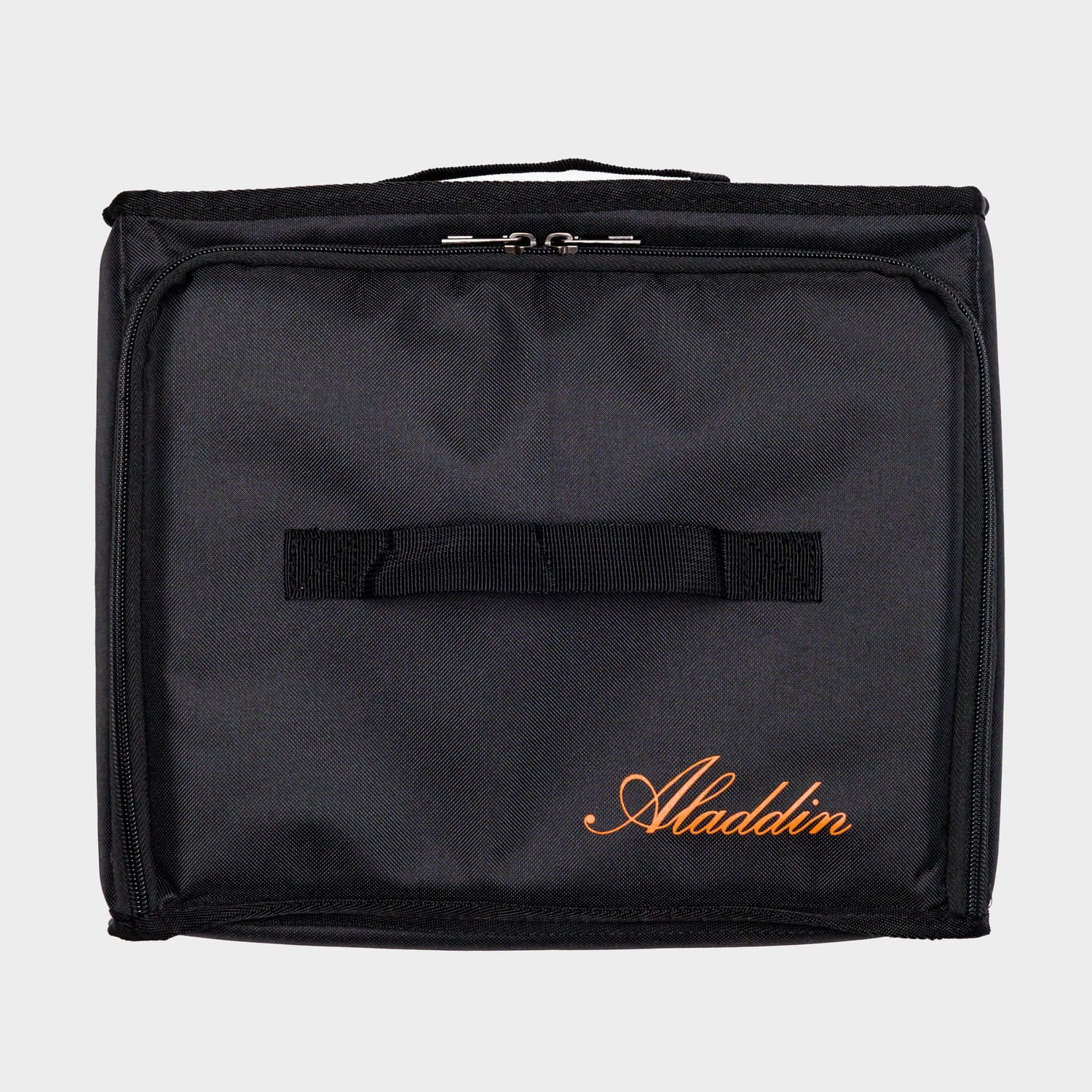

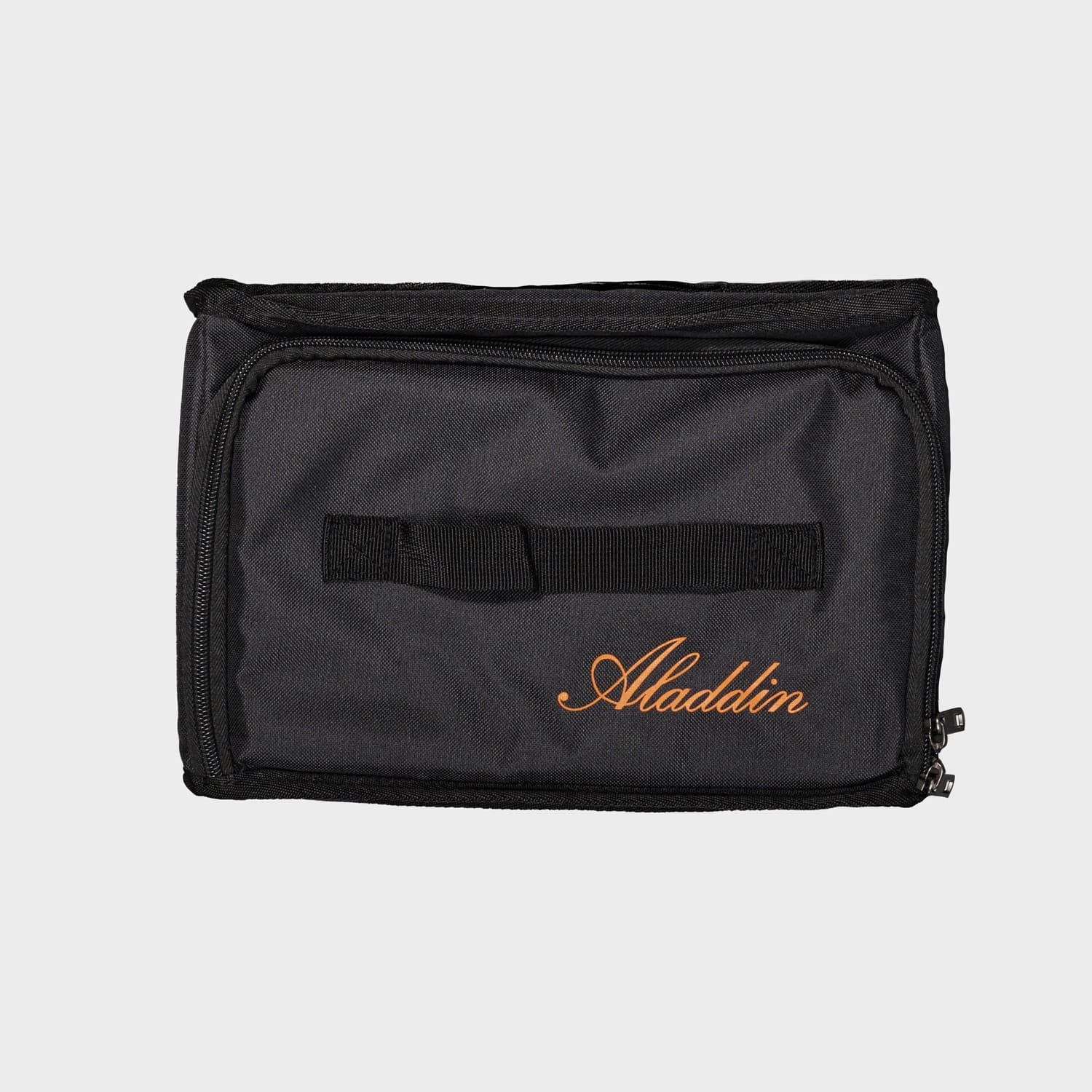

• 1 × Small Inner Bag

• 16 × Aladdin Cube (Bungee Ball)

Technical Highlights (Quick Reference)

• Light Source: 350 W RGBWW LED panel

• Color Accuracy: CRI ≥ 95 / TLCI ≥ 95

• Beam Angle: ~140°

• Color Temperature Range: ~2200 K – 12000 K

• Dimming Range: 1 % – 100 %

• Connectivity: DMX512 / LumenRadio Wireless / Bluetooth

• Input Voltage: AC/DC 100–240 V / 48 V

• Panel Size: 55 × 110 cm; folded 40 × 50 cm

• Panel Weight: ~2.2 kg

• Frame Dimensions: ~68 × 110 × 17 cm

• Full Kit in Case: ~45 × 136 × 19 cm; ~17 kg
