MOSIAC TUBE 8 KIT

Description

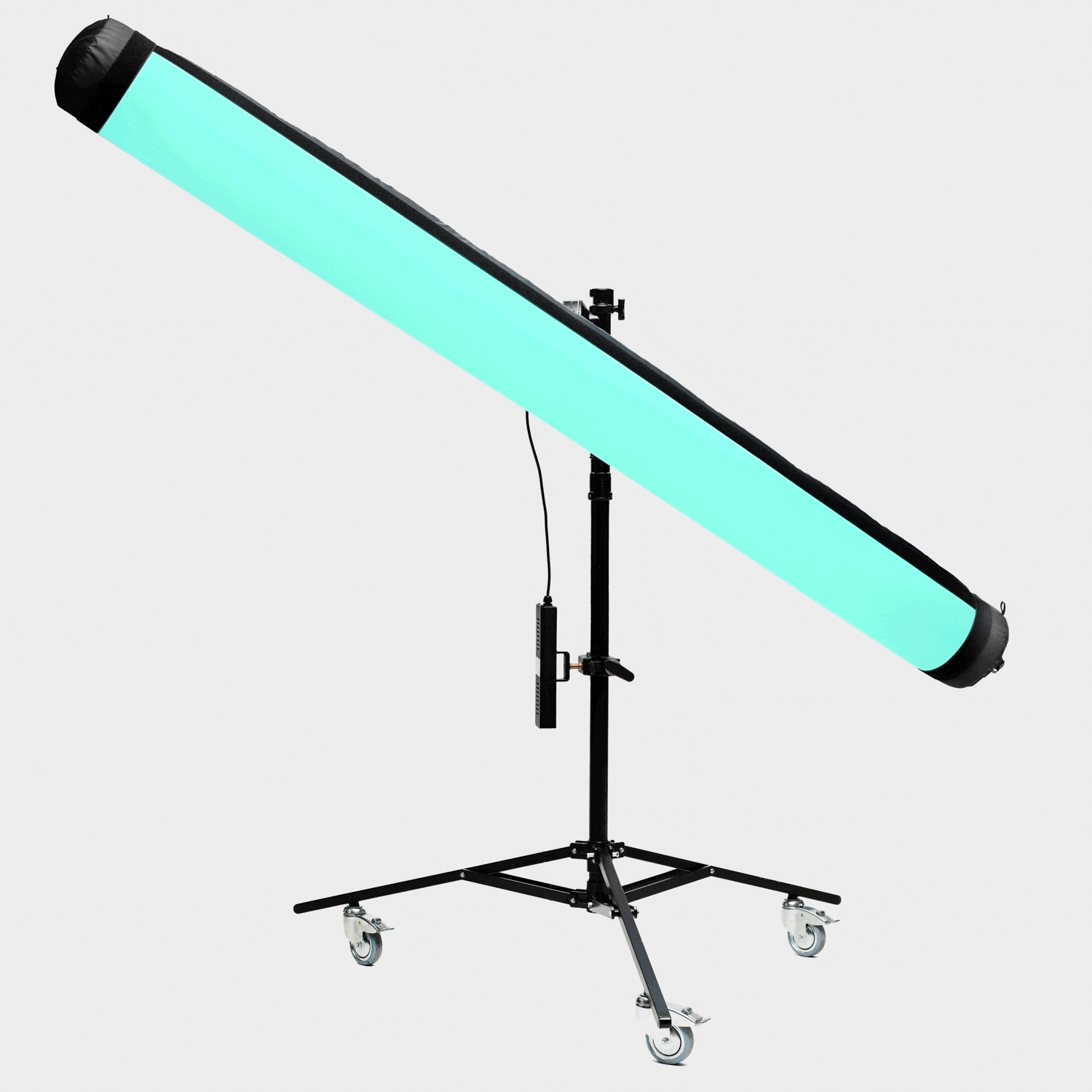

The Aladdin MOSAIC TUBE 8 KIT is a 200 W RGBWW inflatable LED tube lighting system designed for professional film, video, photography, broadcast, and creative lighting applications. With a flexible and lightweight inflatable tube form factor, it delivers broad, even full-color illumination, high color accuracy, and versatile control options. This complete kit includes the LED tube, power and control accessories, air pump, mounting hardware, and hard carry case — providing everything needed for fast setup and reliable performance on set or location.

Key Features (Point-Wise)

• High-Output 200 W RGBWW LED Light Source: Delivers powerful, full-spectrum RGBWW lighting suitable for key, fill, and ambient illumination in professional productions.

• Wide Color Temperature Range (2200 K–12000 K): Supports warm to cool lighting and creative color effects to match ambient conditions or design intent.

• High Color Rendering: Excellent CRI 95 and TLCI 95 ensures accurate and natural color reproduction, ideal for cinematography and photography.

• Broad Beam Angle (~140°): Provides even, soft, and wide illumination that reduces hotspots and delivers smooth coverage across scenes.

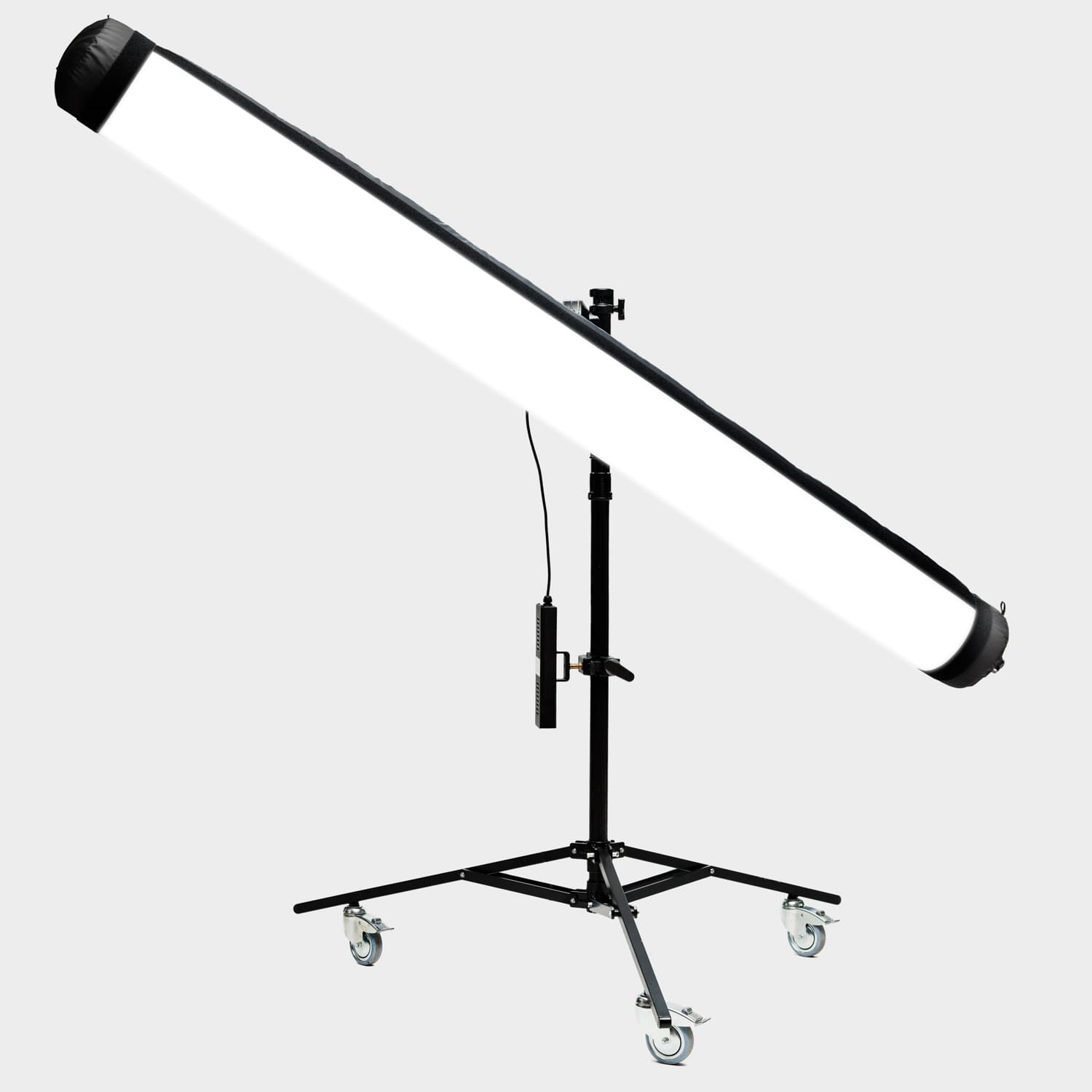

• Inflatable, Flexible Tube Design: The 8 ft (~240 cm) tube inflates easily with the included air pump and offers creative mounting options thanks to its lightweight, flexible structure.

• Multiple Control Options: Compatible with wired dimmer (included), DMX512, built-in LumenRadio wireless, and Bluetooth control via the free Aladdin app for flexible lighting control.

• Smooth Dimming: Full 1 %–100 % dimming range allows precise brightness adjustments without color shift.

• Modular MOSAIC System: MOSAIC plug standard enables use with additional Aladdin accessories such as extension cables, alternative controllers, and future modules.

• Lightweight and Portable: Weighs approximately 2 kg for panel and 2.3 kg for air tube, making it easy to transport, rig, and reposition on set or location.

• Easy Setup & Rigging: Quick inflation and simple mounting hardware make setup efficient, even in tight or unconventional spaces.

What’s Included

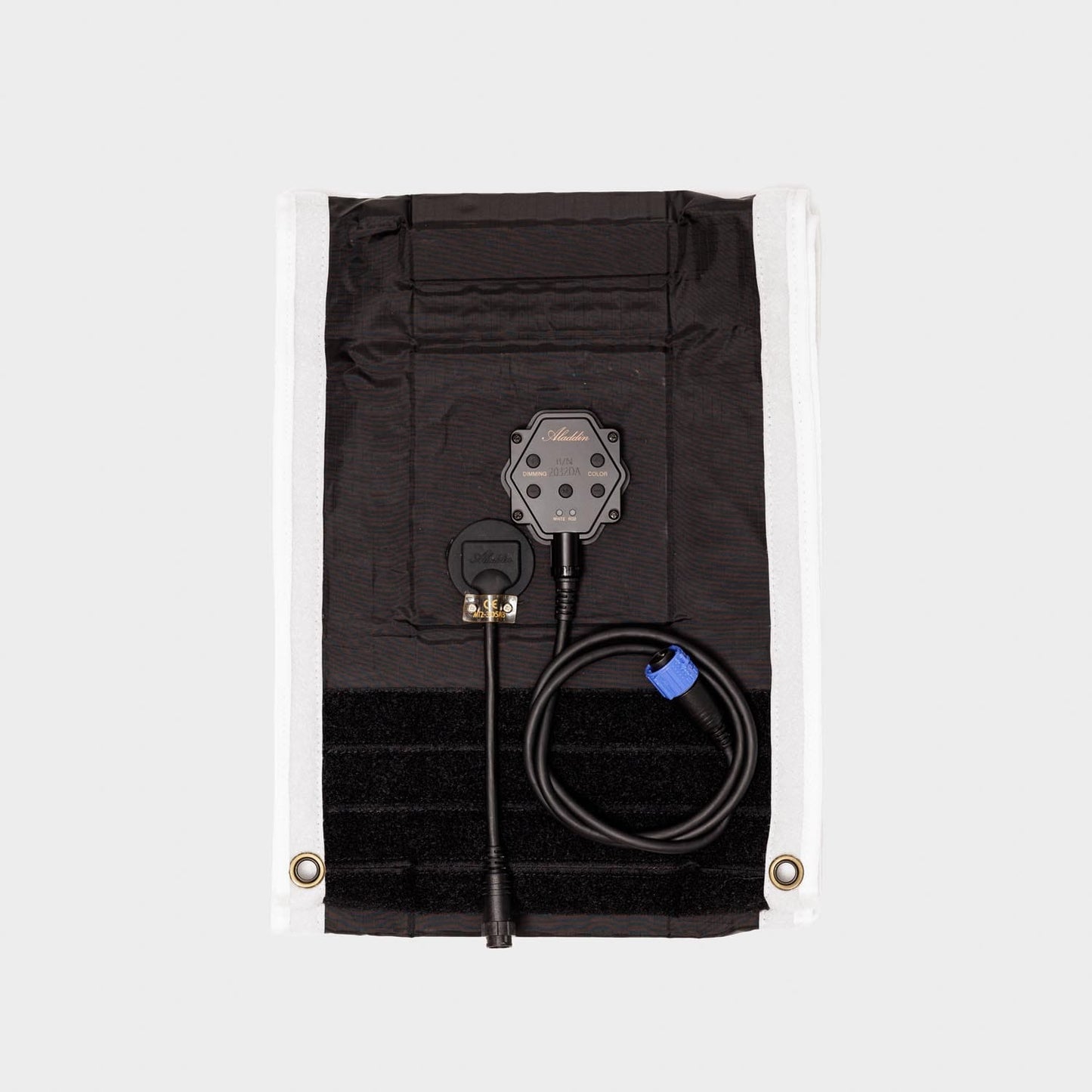

• 1 × Tube 8 LED Panel (200 W RGBWW)

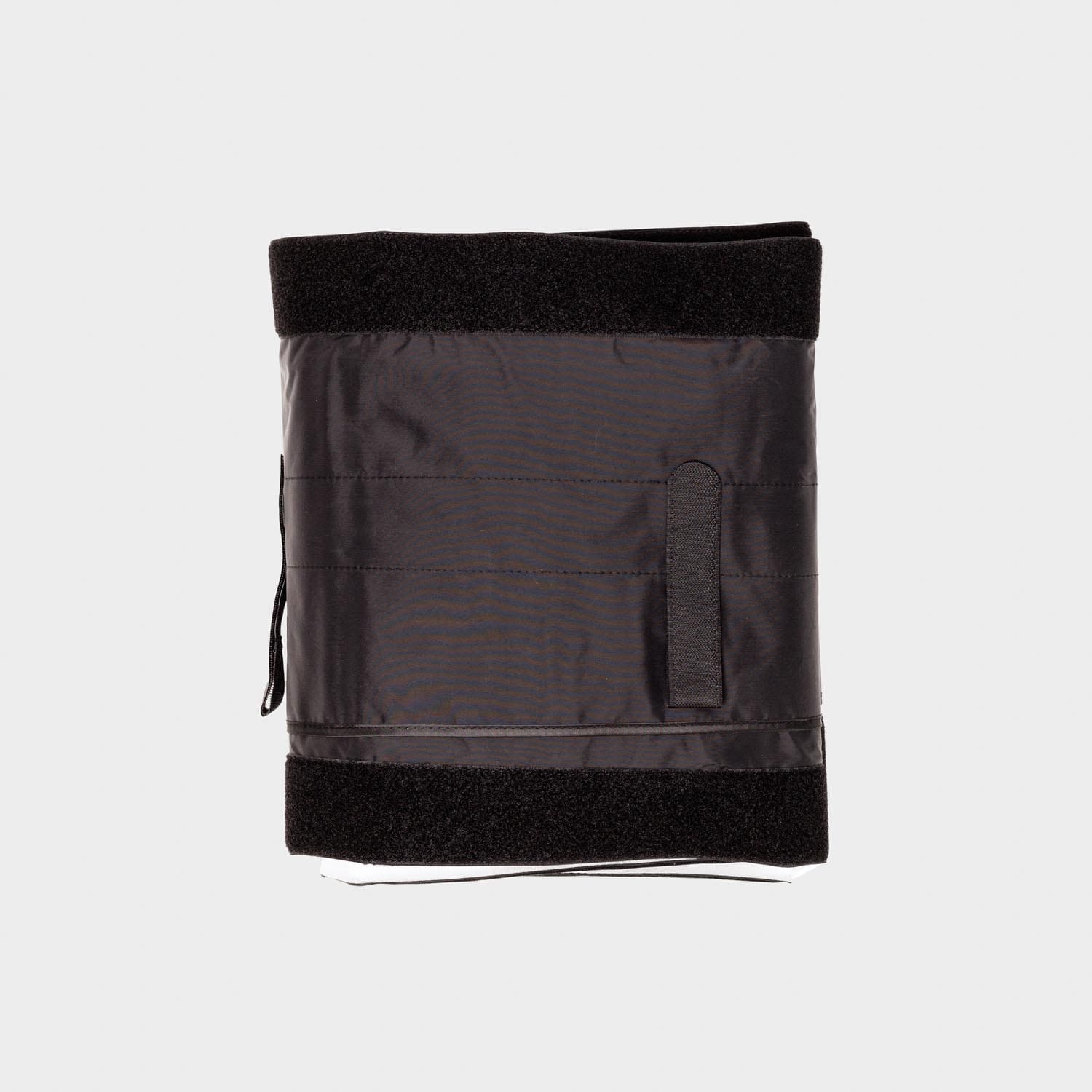

• 1 × Air Tube 8 with Skirt

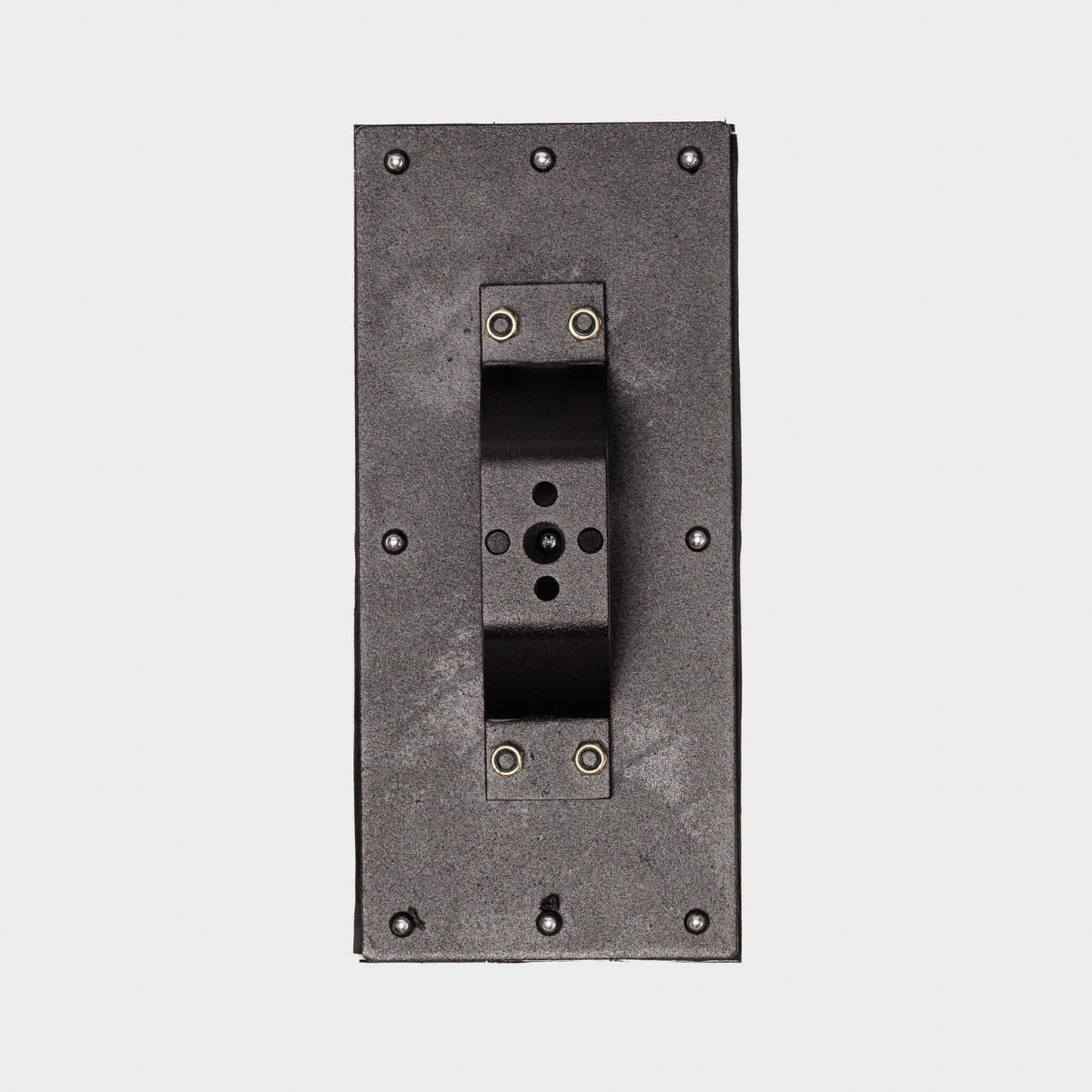

• 1 × Mounting Plate

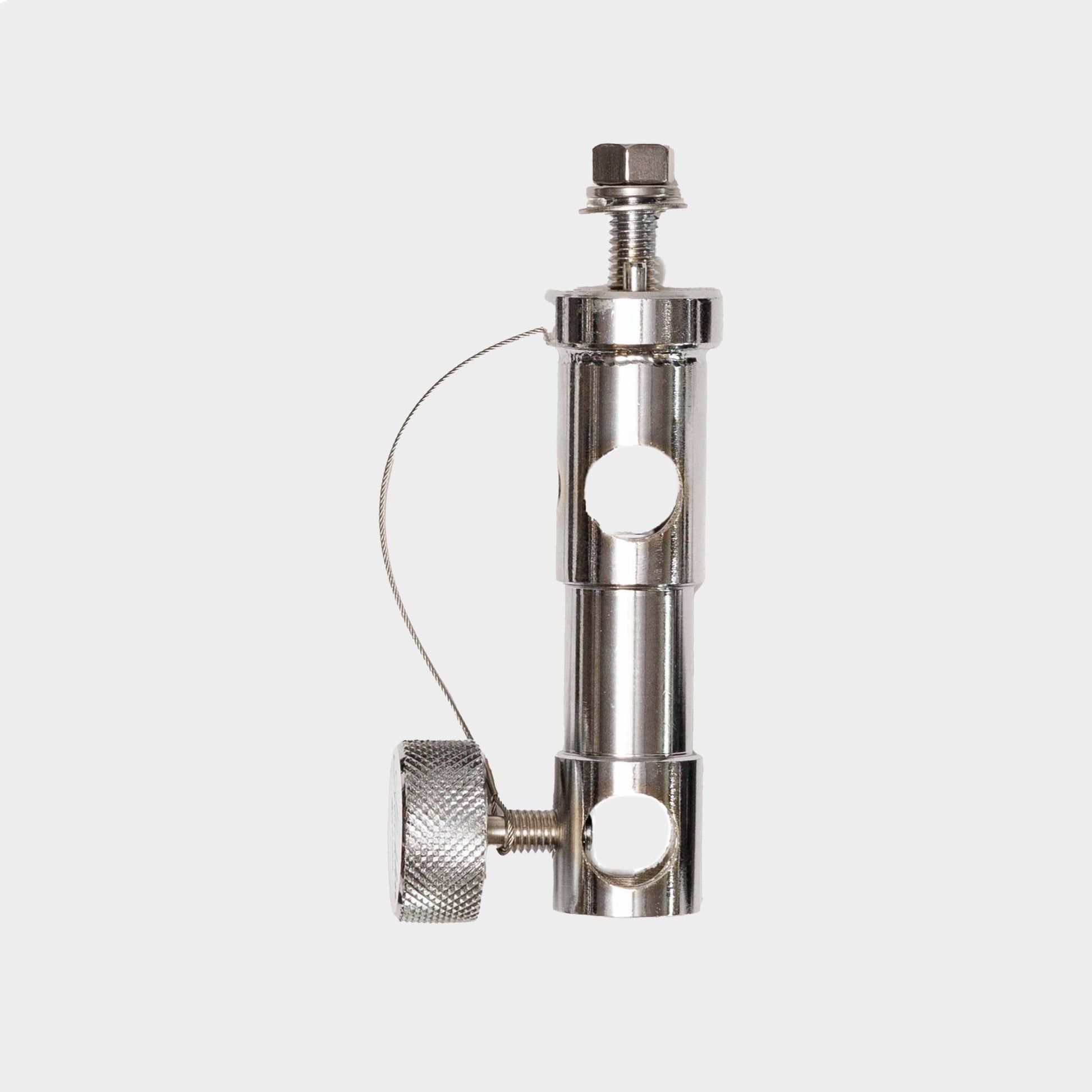

• 1 × Stand Adapter

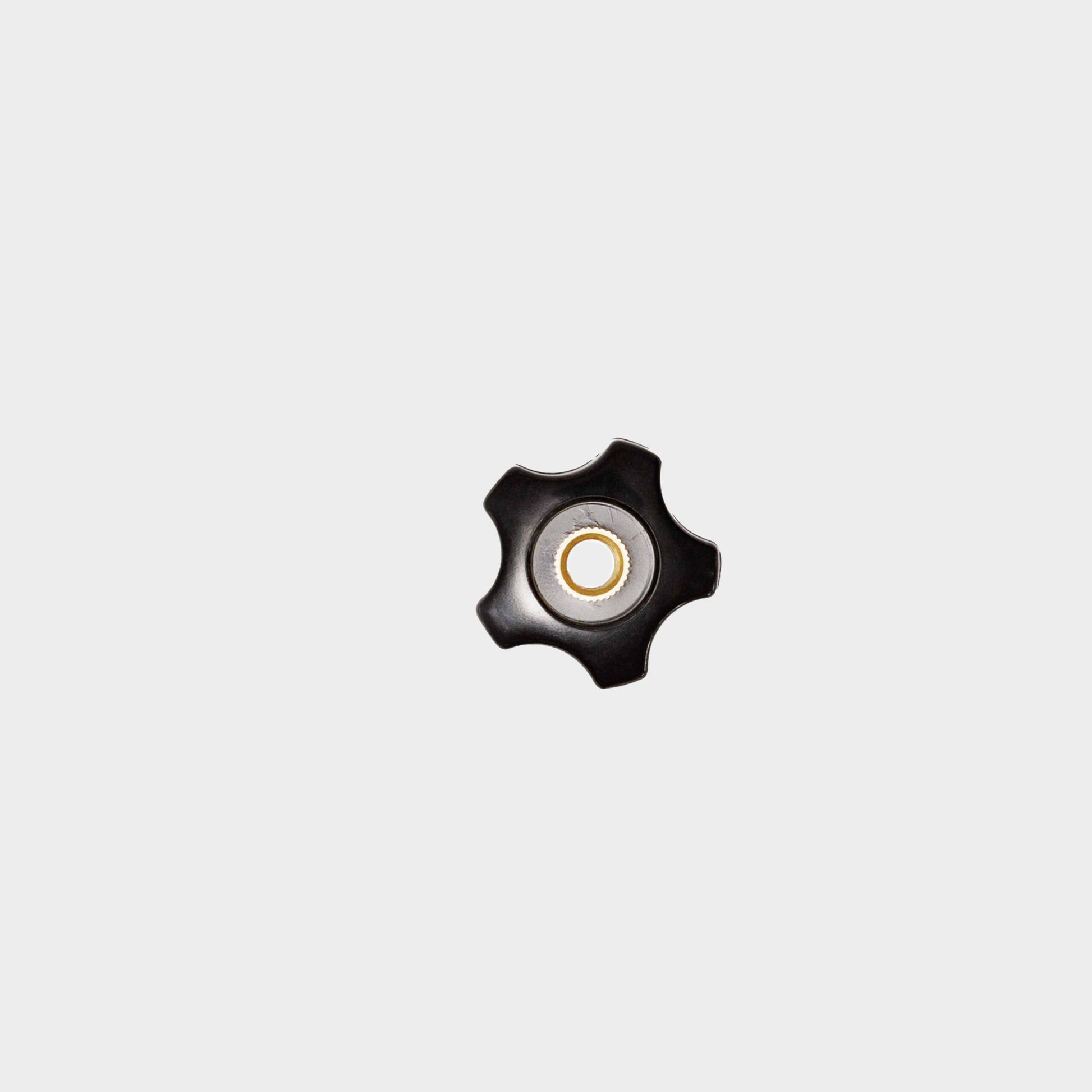

• 1 × Stand Adapter Knob

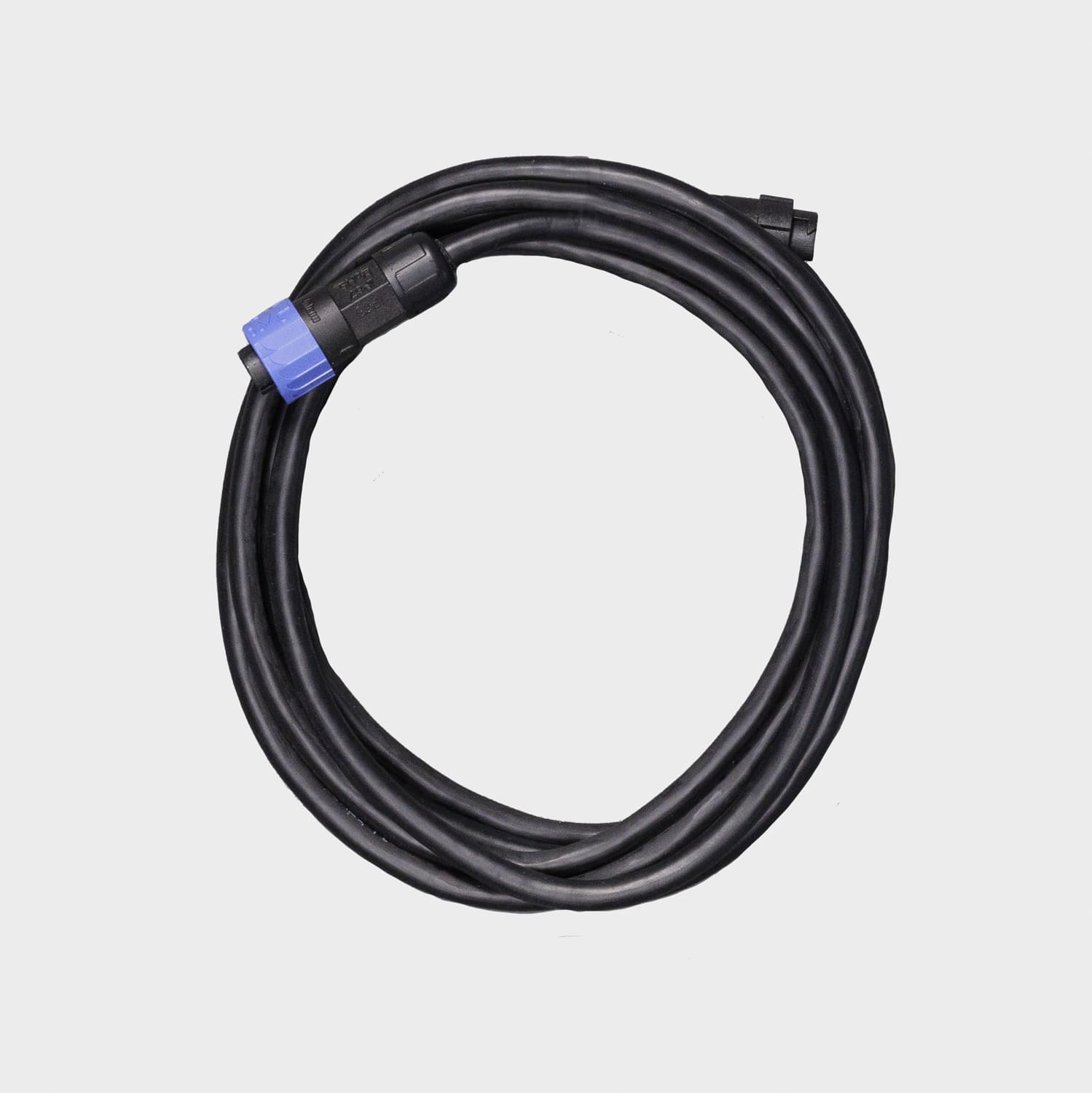

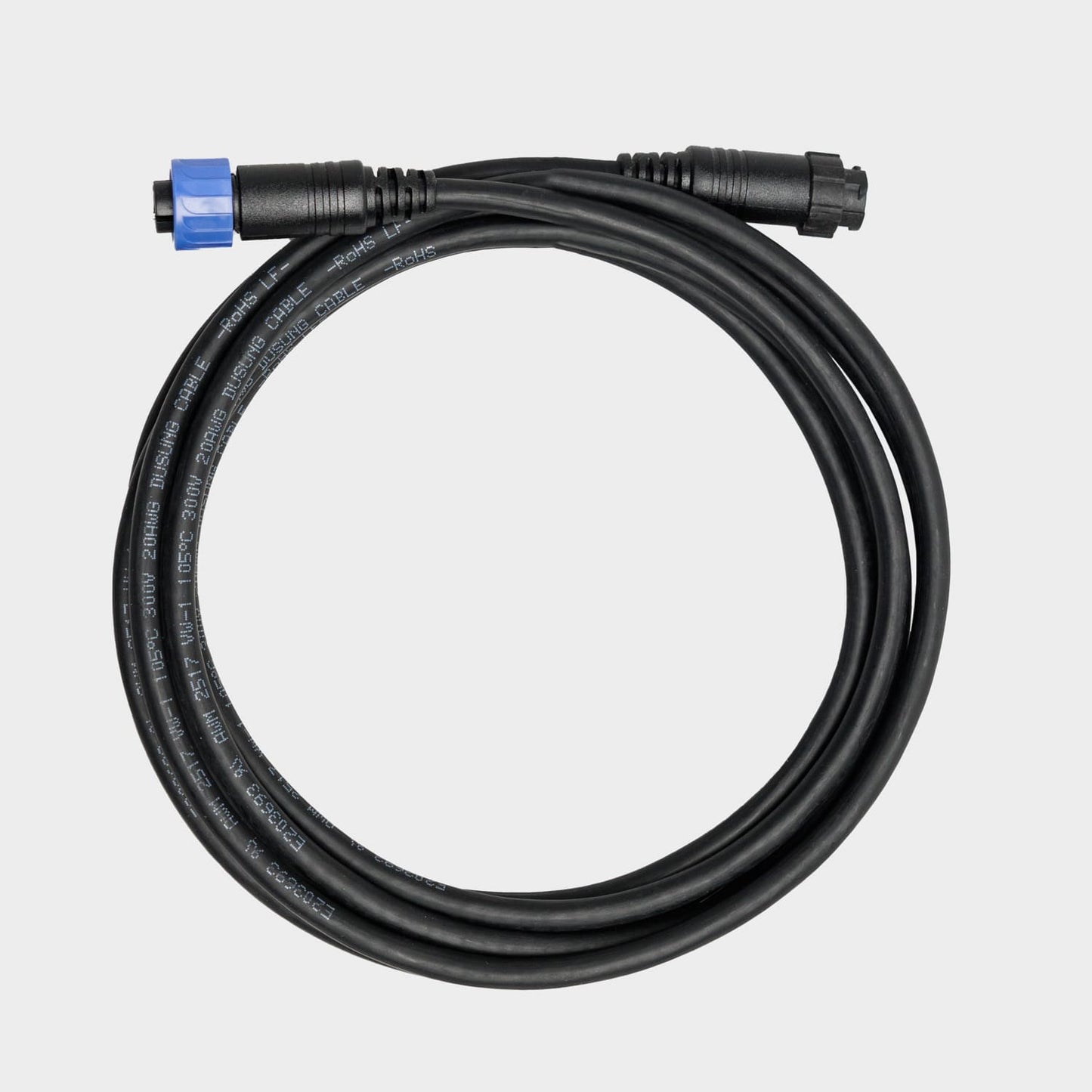

• 1 × Extension Cable (Power)

• 1 × Extension Cable (Wired Dimmer)

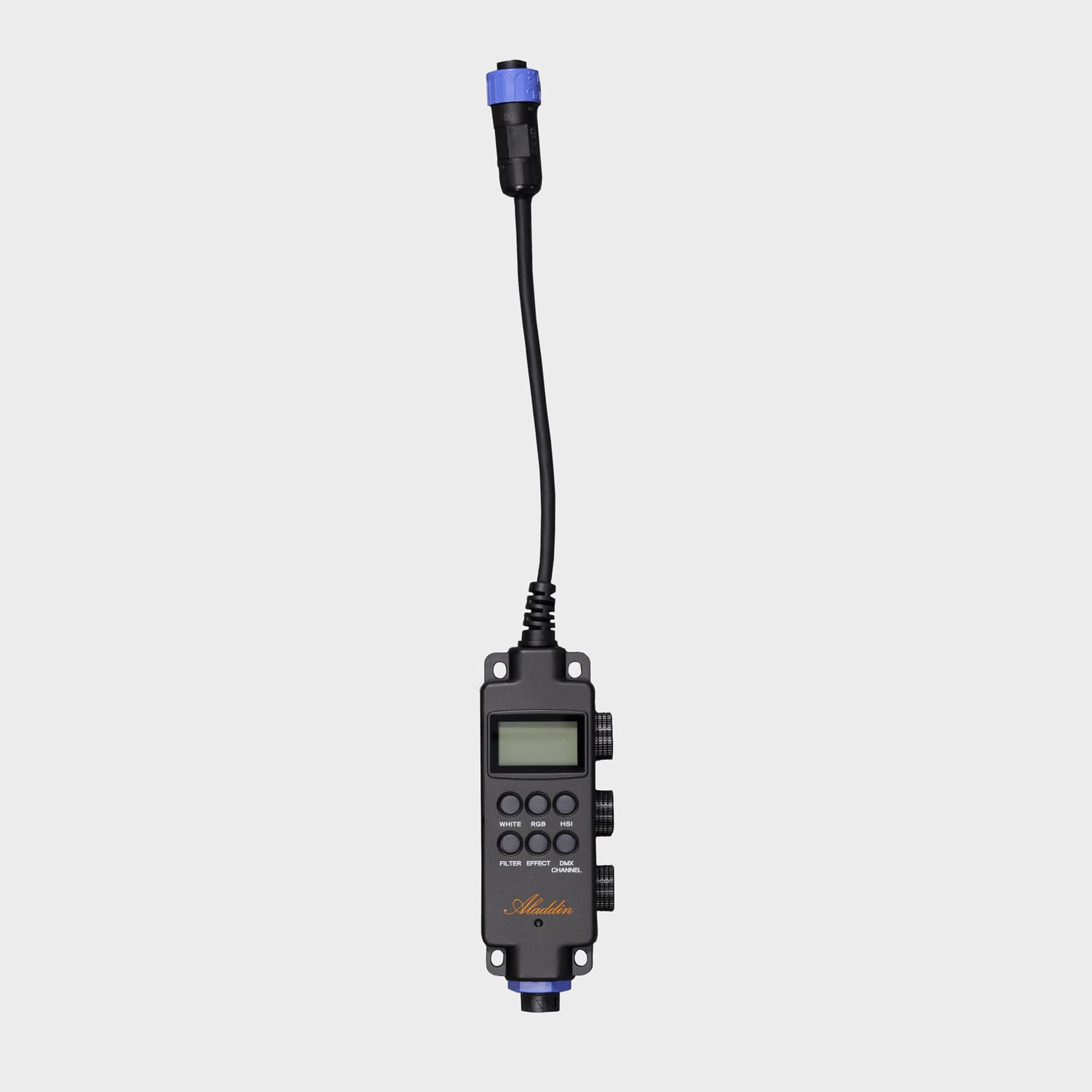

• 1 × MOSAIC Wired Dimmer (WDIM)

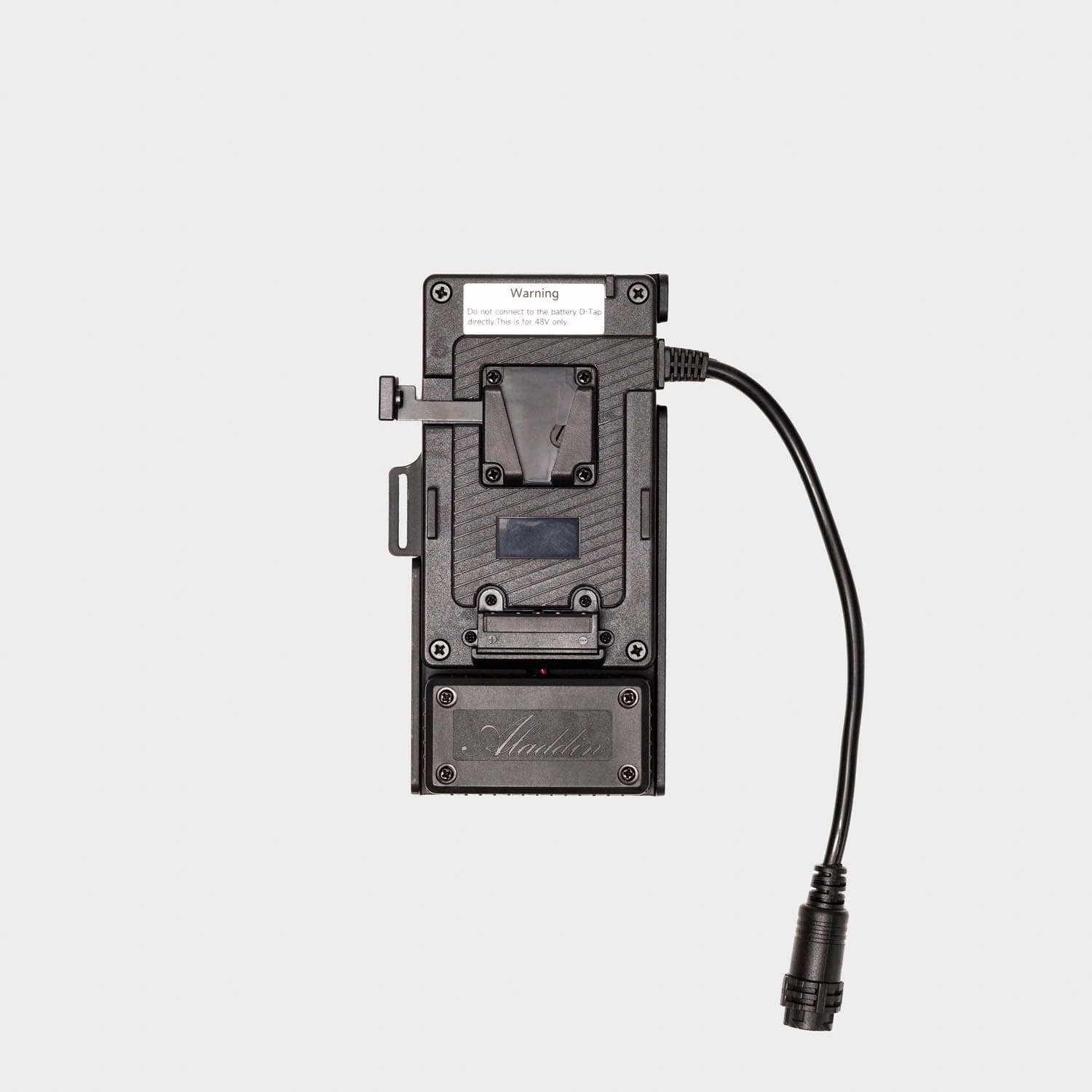

• 1 × V-Mount Plate

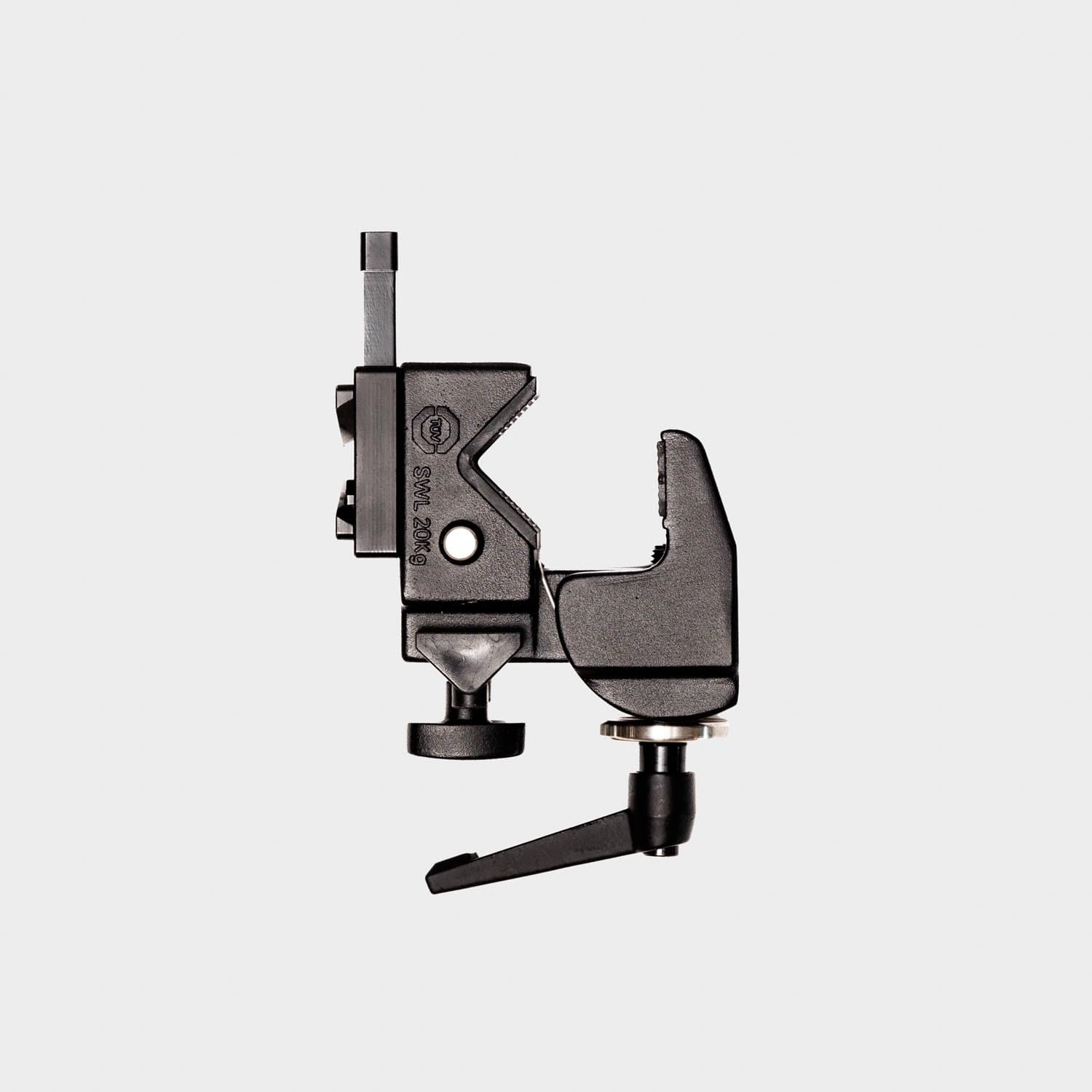

• 1 × V-Mount Clamp

• 1 × V-Mount Holder

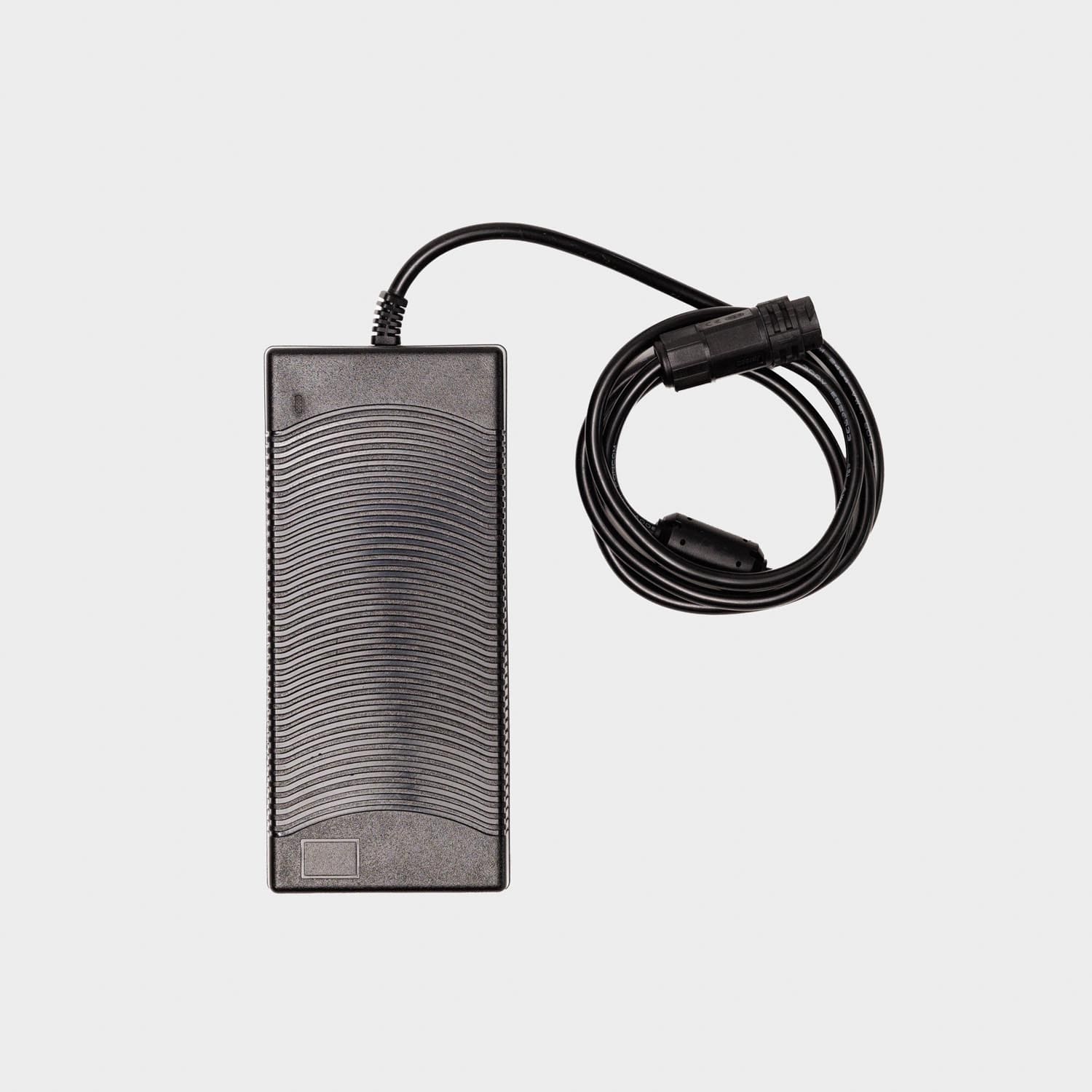

• 1 × AC Adapter

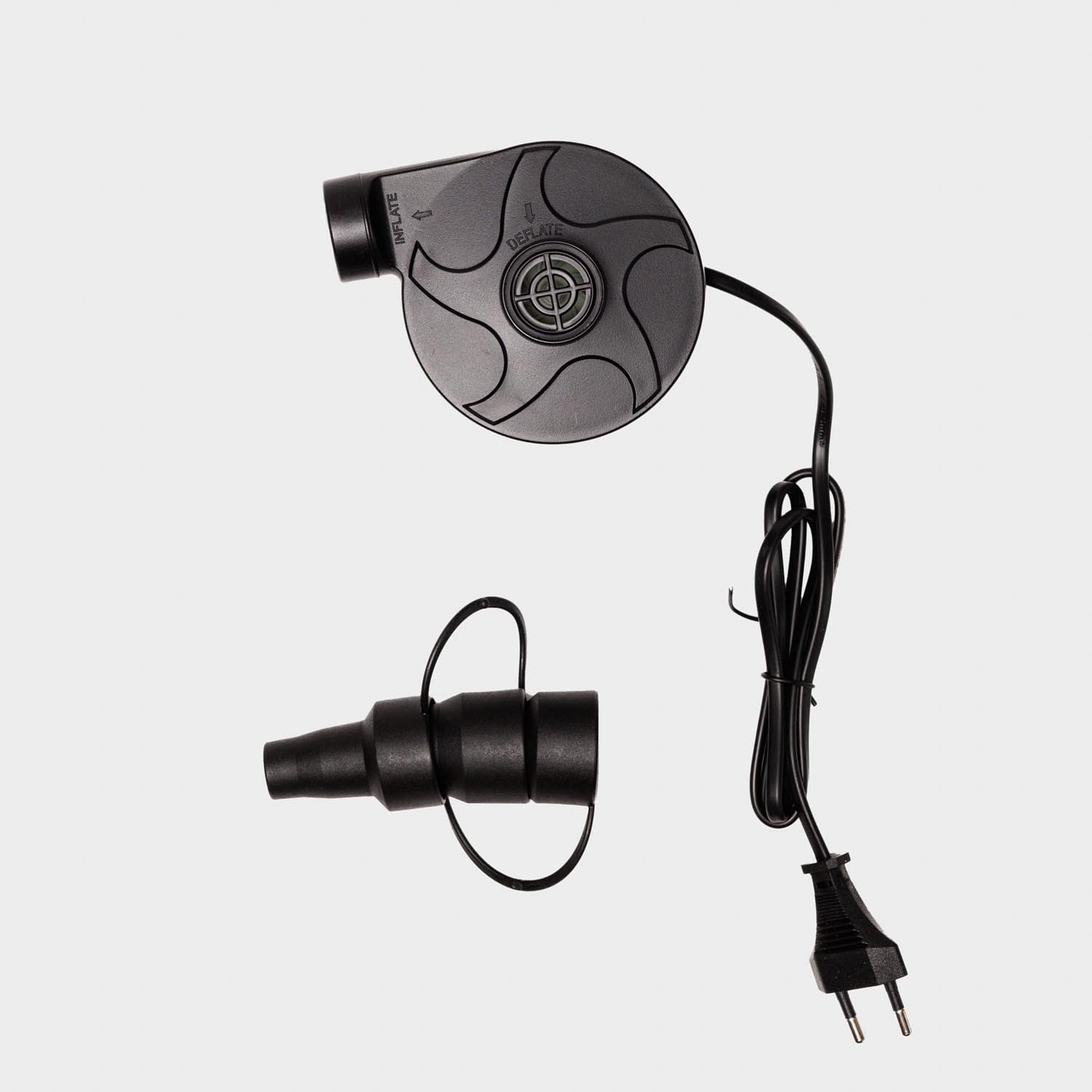

• 1 × Air Pump

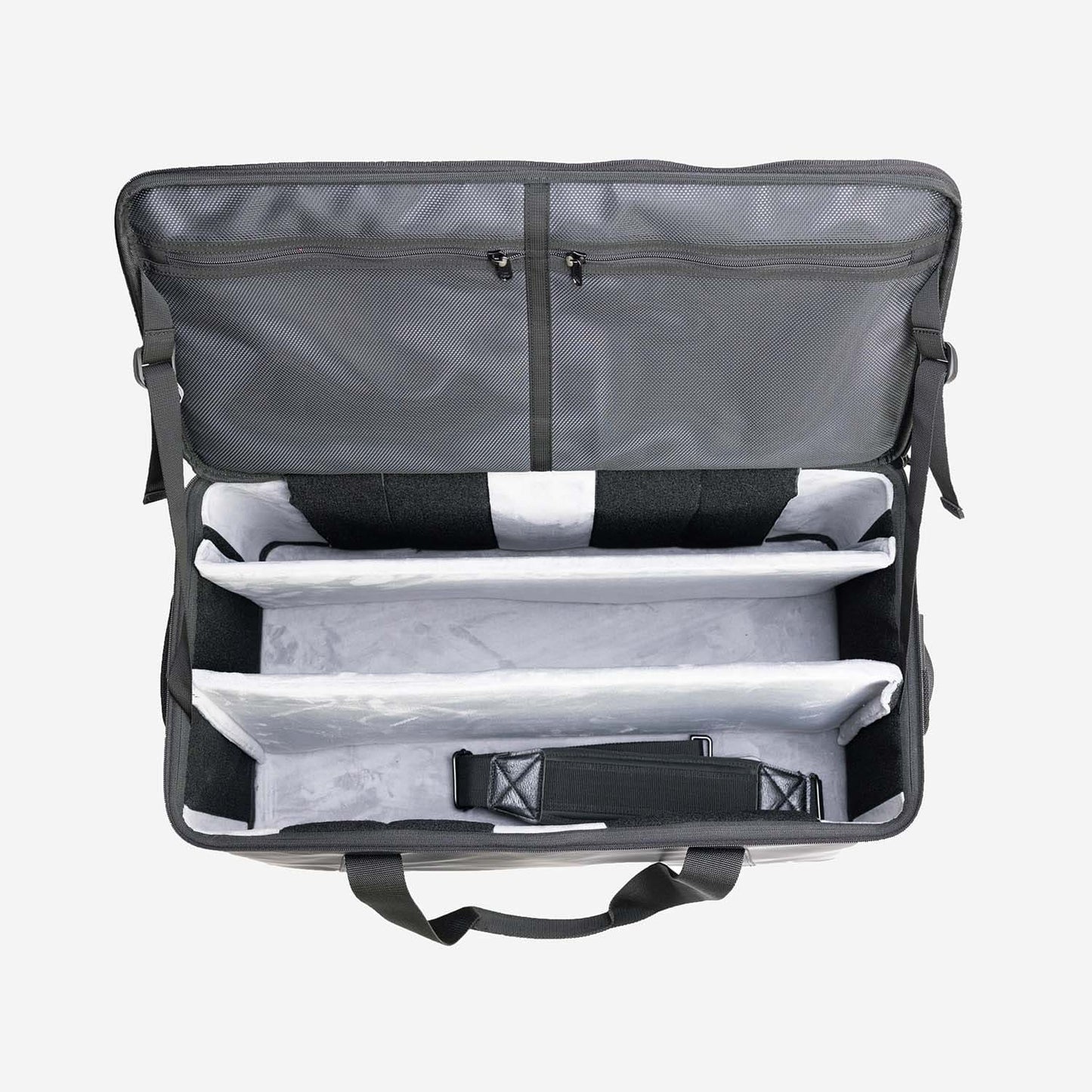

• 1 × Hard Case for Transport & Storage

Technical Highlights (Quick Reference)

• Light Source: 200 W RGBWW LEDs

• Color Temperature: 2200 K – 12000 K

• Color Accuracy: CRI ≥ 95 / TLCI ≥ 95

• Beam Angle: ~140°

• Dimming Range: 1 % – 100 %

• Control: Wired dimmer, DMX512, LumenRadio, Bluetooth

• Input Voltage: AC/DC 100–240 V / 14.8 V

• Size: ~8 ft length | Ø 20 cm

• LED Panel Weight: ~2 kg

• Air Tube Weight: ~2.3 kg
