MOSAIC 4X4 Full Kit

Description

The Aladdin MOSAIC 4×4 RGBWW Full Kit is a professional-grade, high-output flexible LED lighting system designed for film, broadcast, virtual production, photography, and creative lighting applications. Featuring a 600 W RGBWW foldable panel with high color accuracy and a comprehensive accessory kit — including power supply, frame, diffuser, grid, wired dimmer with wireless/DMX control, hard case, and rigging accessories — it delivers broad, even, customizable illumination for demanding production environments.

Key Features (Point-Wise)

• High-Output RGBWW LED Panel: Delivers 600 W LED power with RGBWW output for rich, full-spectrum lighting and high brightness.

• Wide Color Range: Adjustable color temperature from ~2200 K to 12 000 K, enabling flexible matching to ambient light or creative color effects.

• High Color Accuracy: Exceptional CRI and TLCI over 95 ensures true-to-life color rendering and faithful skin tones for professional imaging.

• Wide Beam Angle: Approximately 140° beam spread provides even, broad coverage without hotspots.

• Foldable & Portable Design: The 110 × 110 cm panel folds down to 40 × 50 cm for easy transport and versatile mounting options.

• Robust Control Options: Supports DMX512, LumenRadio wireless, and Bluetooth control — compatible with the free Aladdin app for direct phone adjustments.

• Smooth Dimming: 1 %–100 % dimming capability allows precise intensity control without color shift.

• Comprehensive Kit: Includes essential accessories like power supply, power supply holder, extension and basic cables, wired dimmer, frame with diffuser and grid, hard travel case, and rigging items.

• Mosaic Plug System: Standardized connections allow seamless integration with Aladdin MOSAIC accessories, including dimmers and frames.

• LED Compound Serviceability: Fast-changeable LED compounds allow LED repairs or replacements without changing the entire panel (supported by tutorials and service networks).

What’s Included

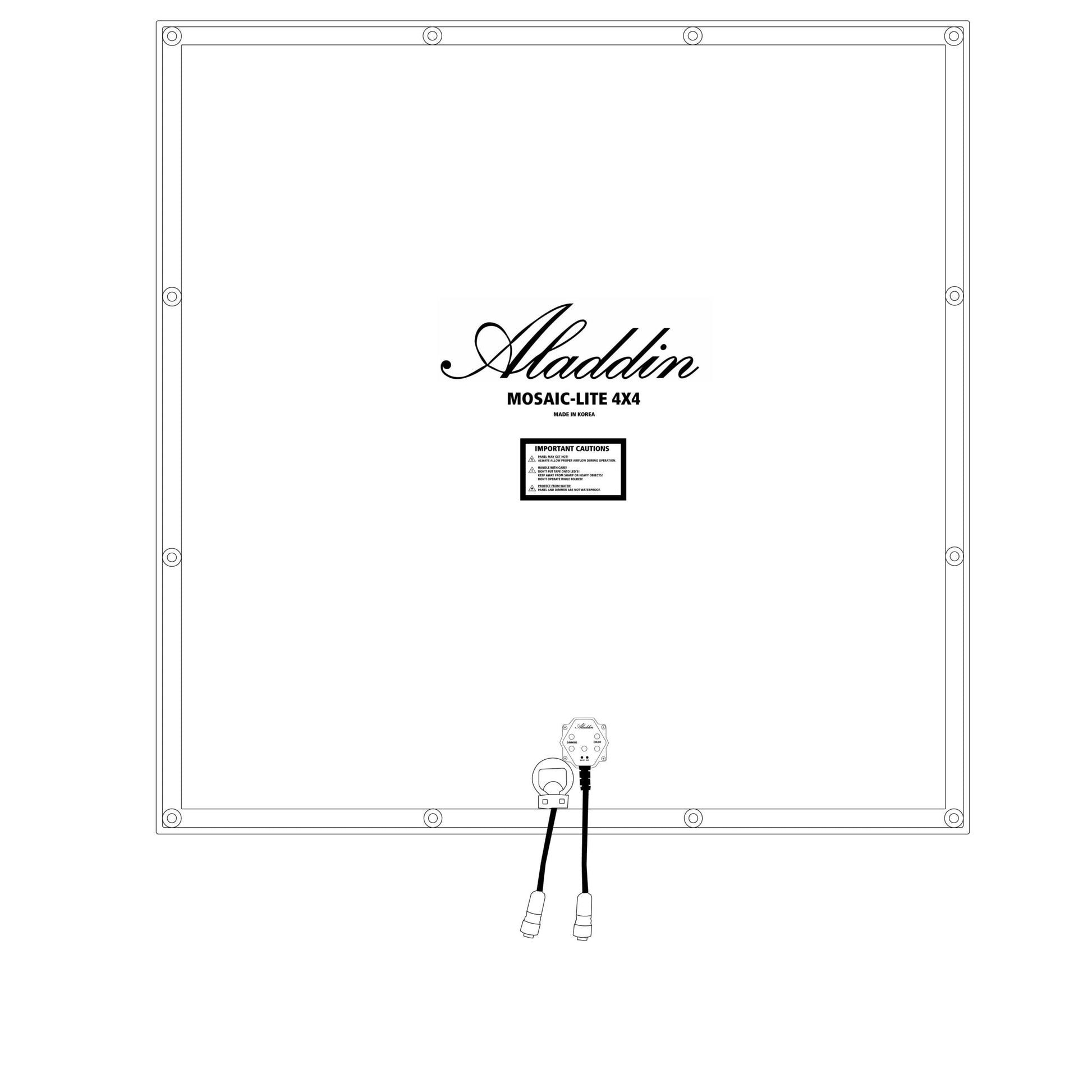

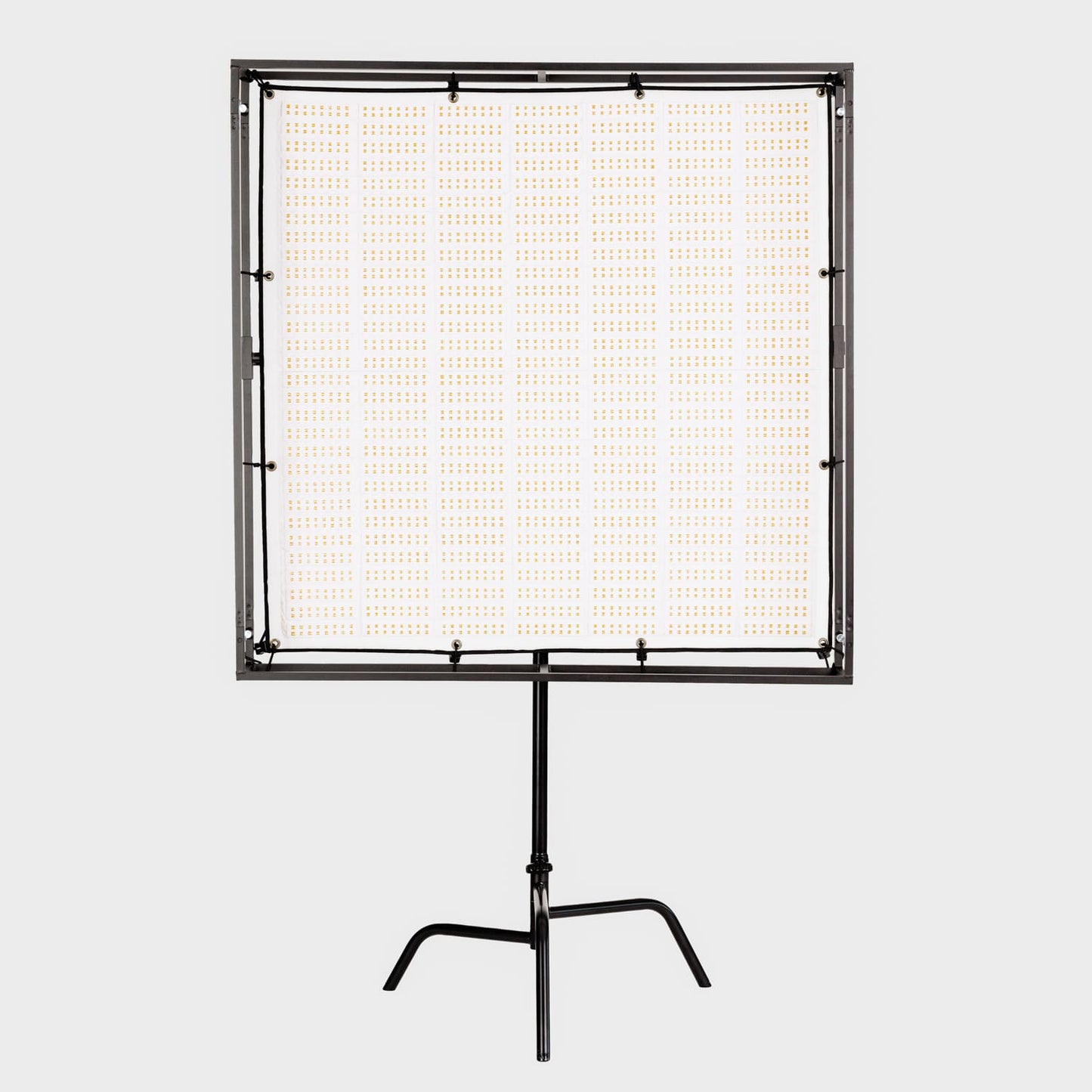

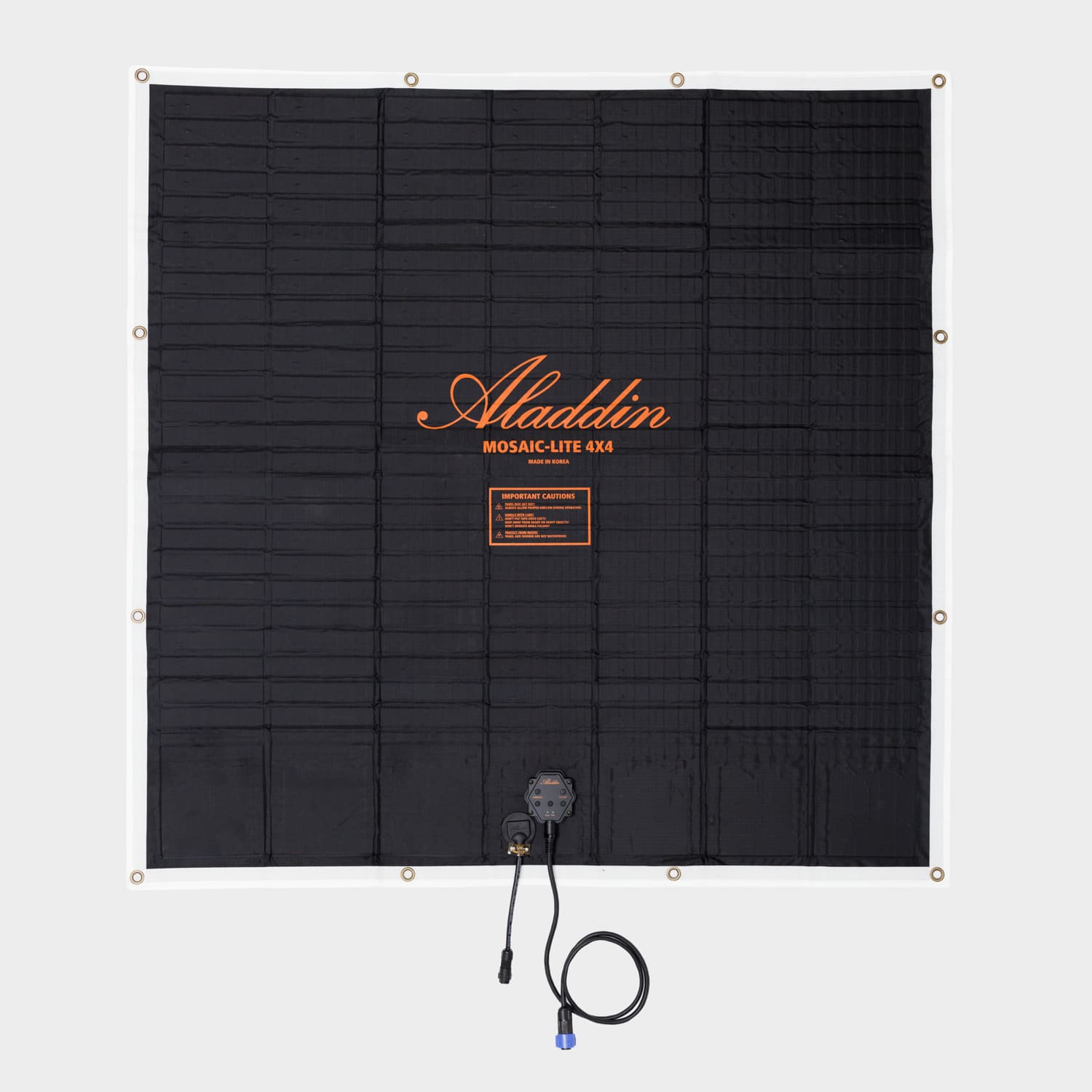

• 1 × MOSAIC 4×4 LED Panel (600 W RGBWW)

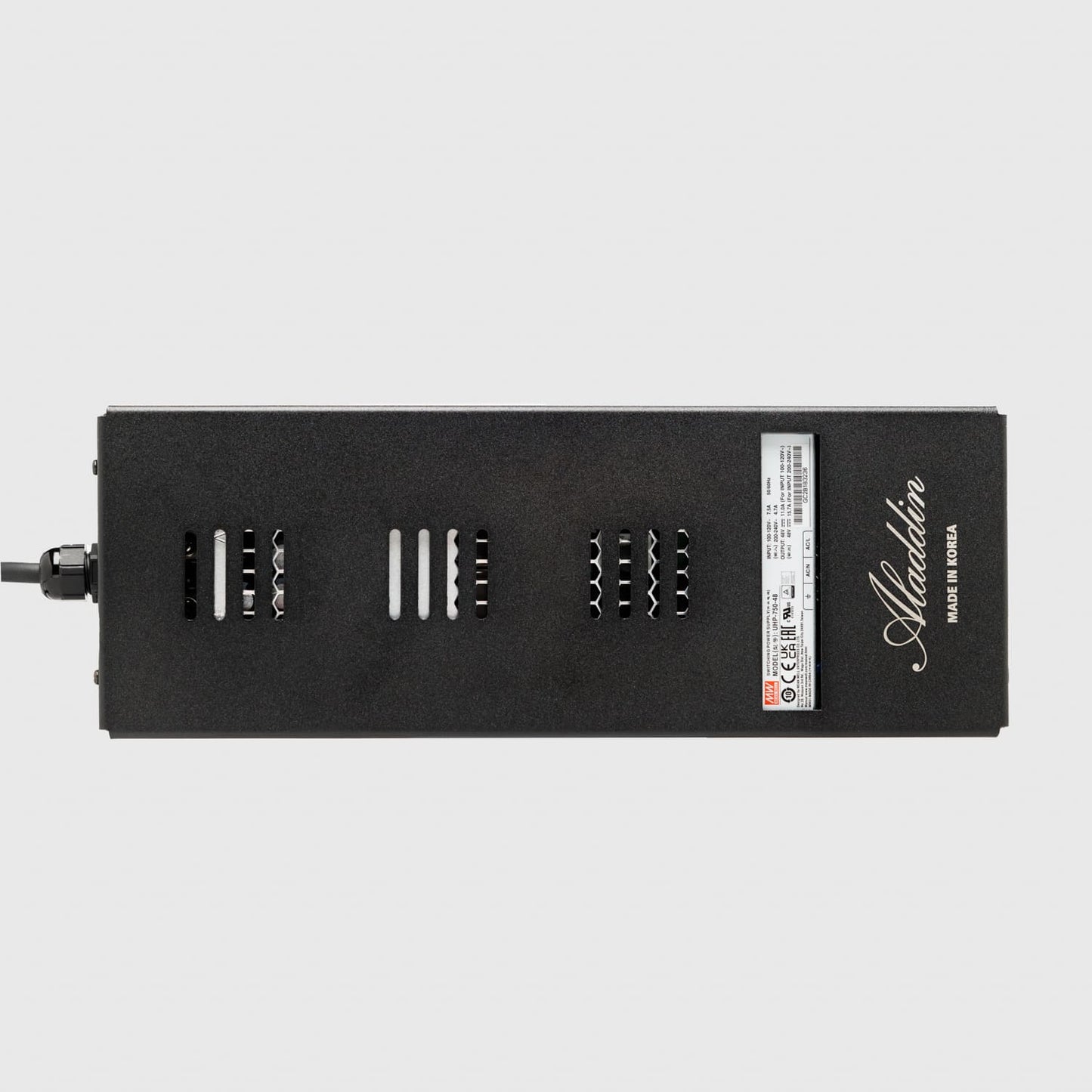

• 1 × MOSAIC 600W Power Supply

• 1 × MOSAIC Power Supply Holder for M-600-ACDC

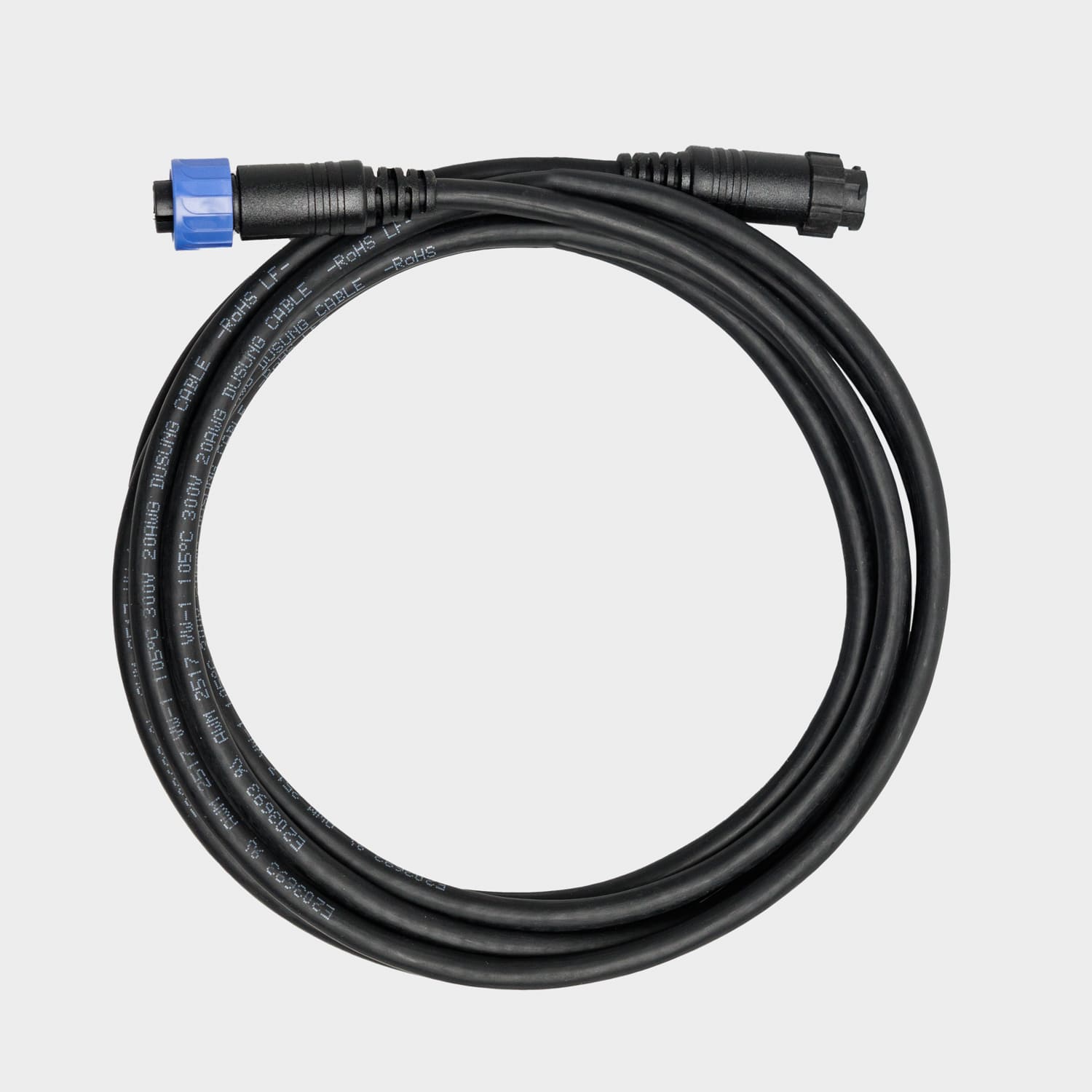

• 1 × Power Supply Extension Cable (2 m / 6 ft)

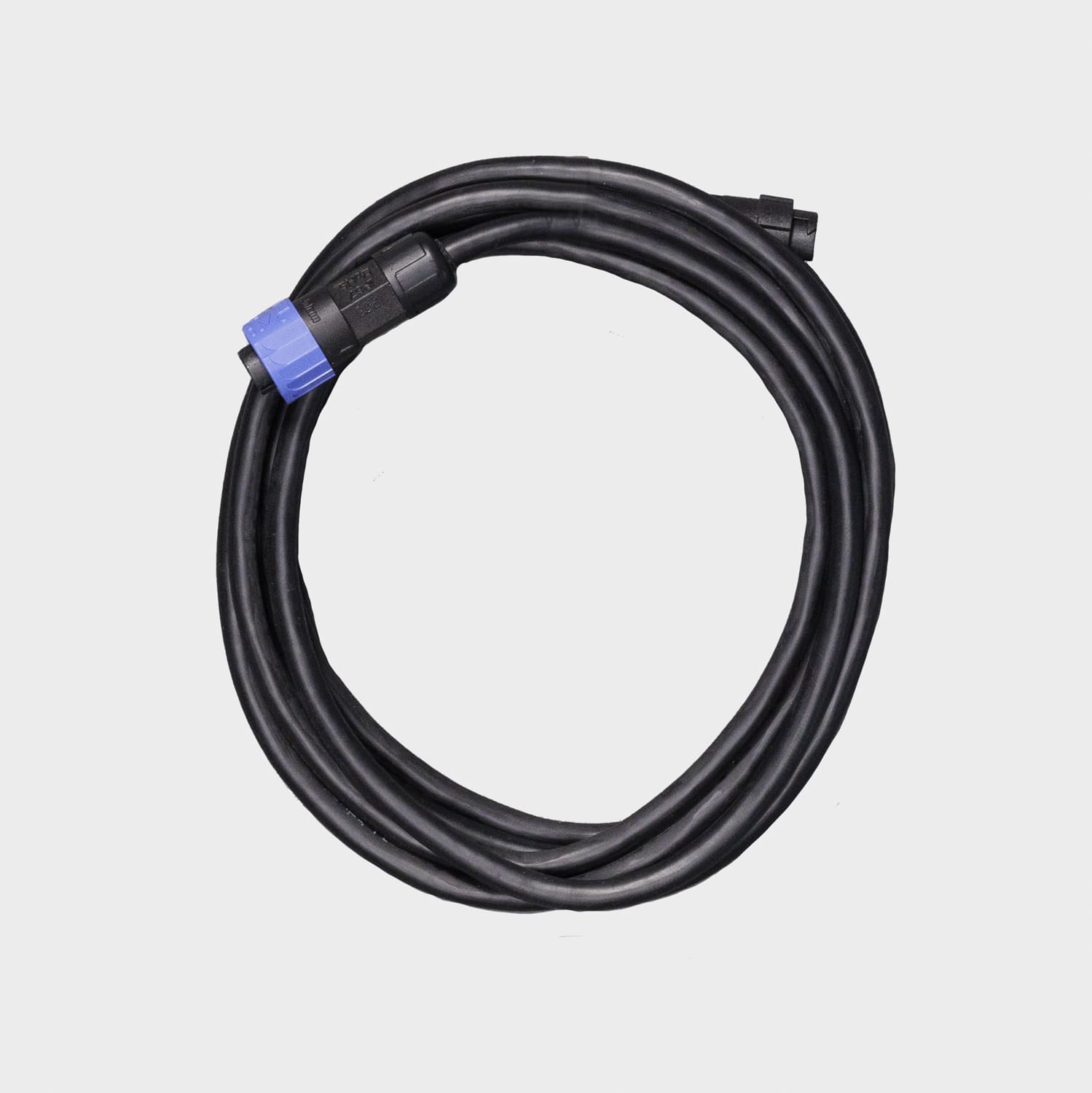

• 1 × MOSAIC Basic Cable (3 m / 9.8 ft)

• 1 × MOSAIC Wired Dimmer Cable (3 m / 9.8 ft)

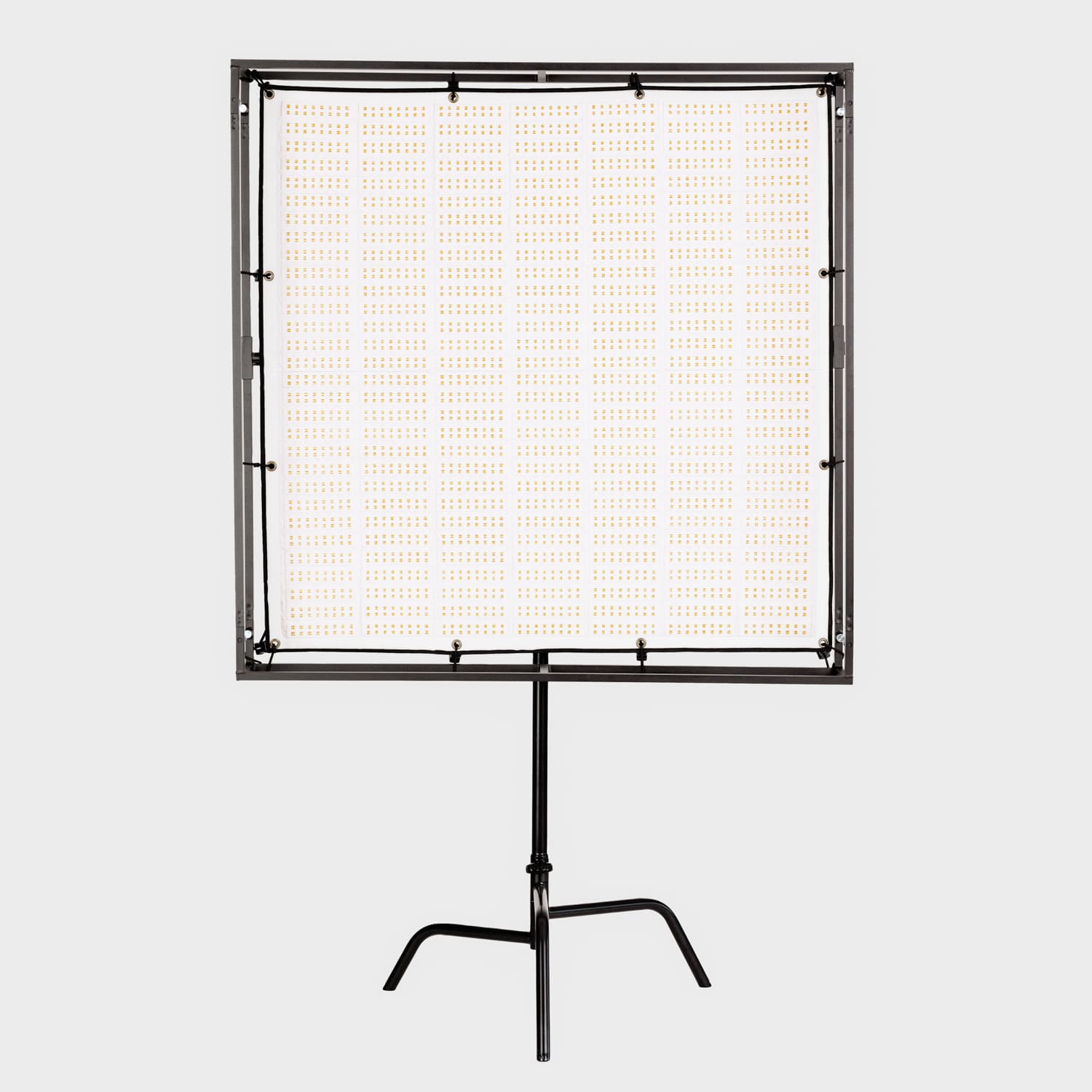

• 1 × MOSAIC 4×4 Frame

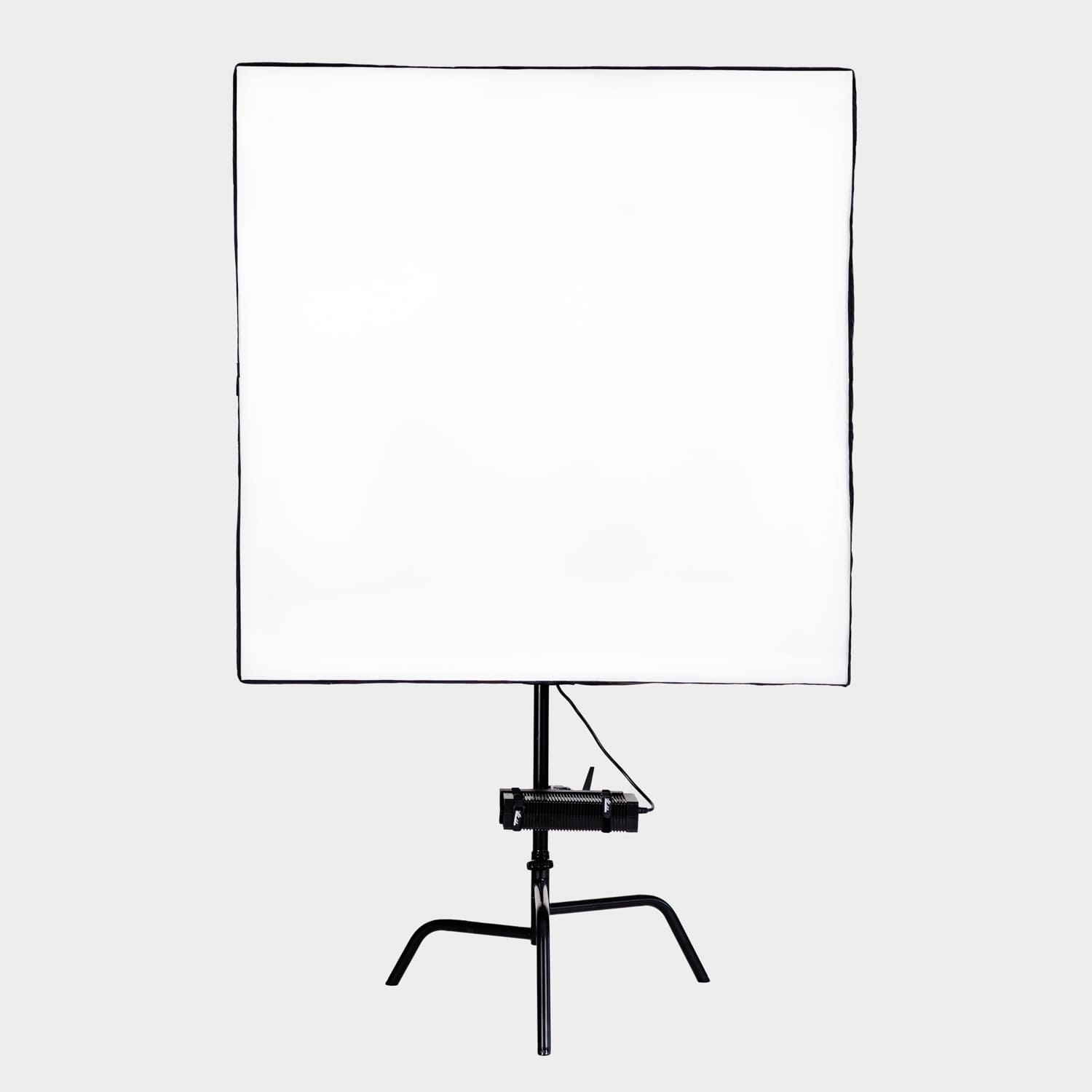

• 1 × MOSAIC 4×4 Diffuser for Frame

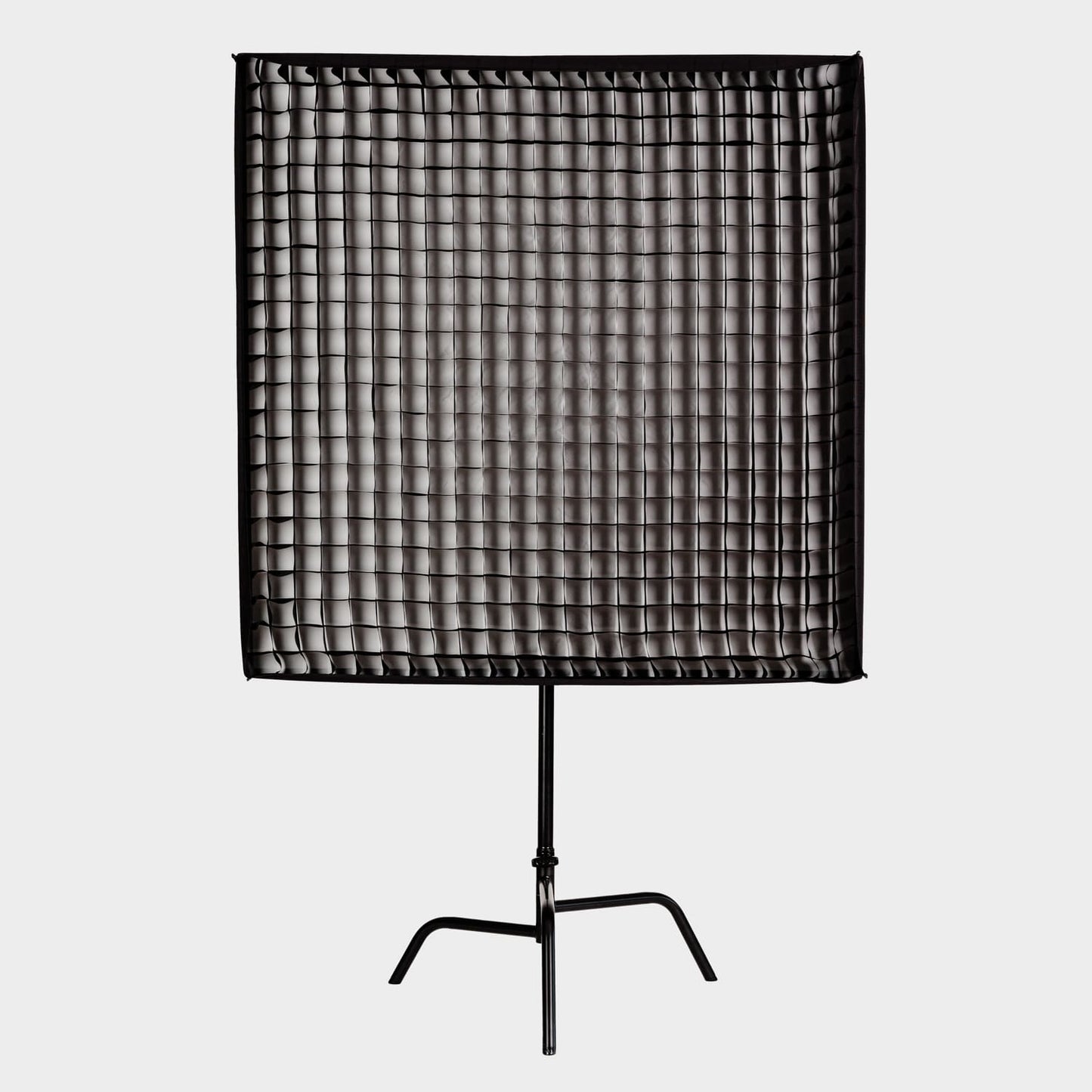

• 1 × MOSAIC 4×4 Grid for Frame

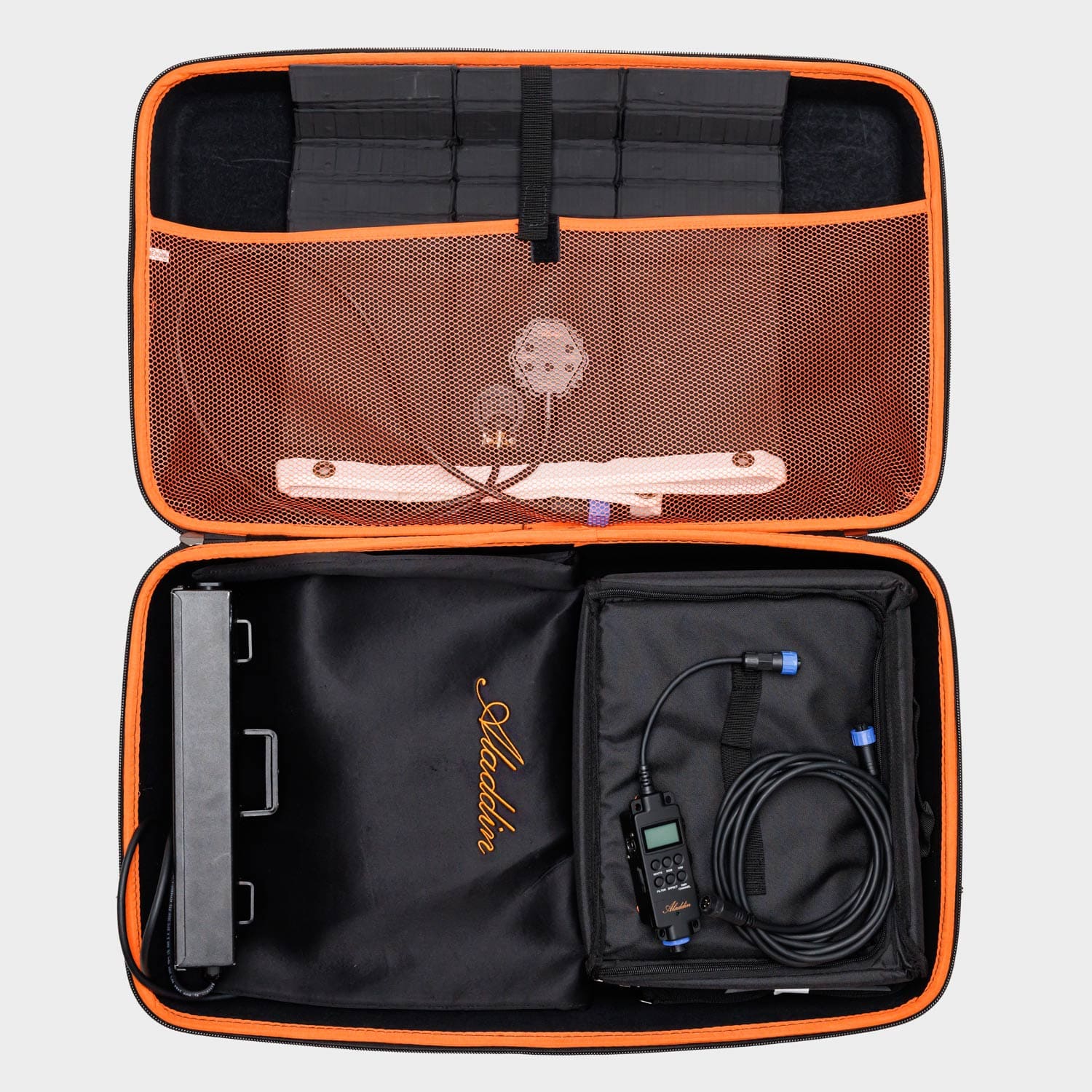

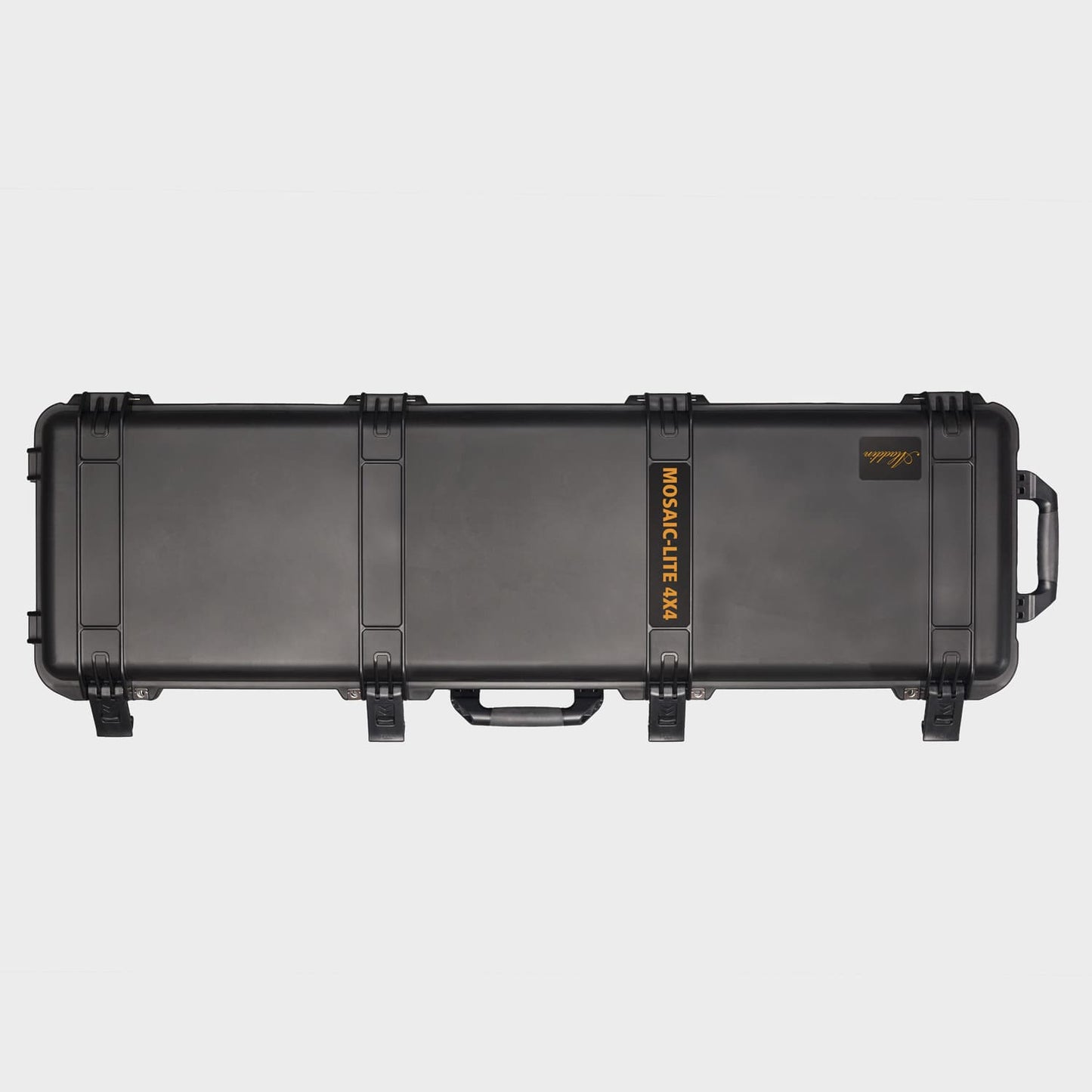

• 1 × MOSAIC Hard Case

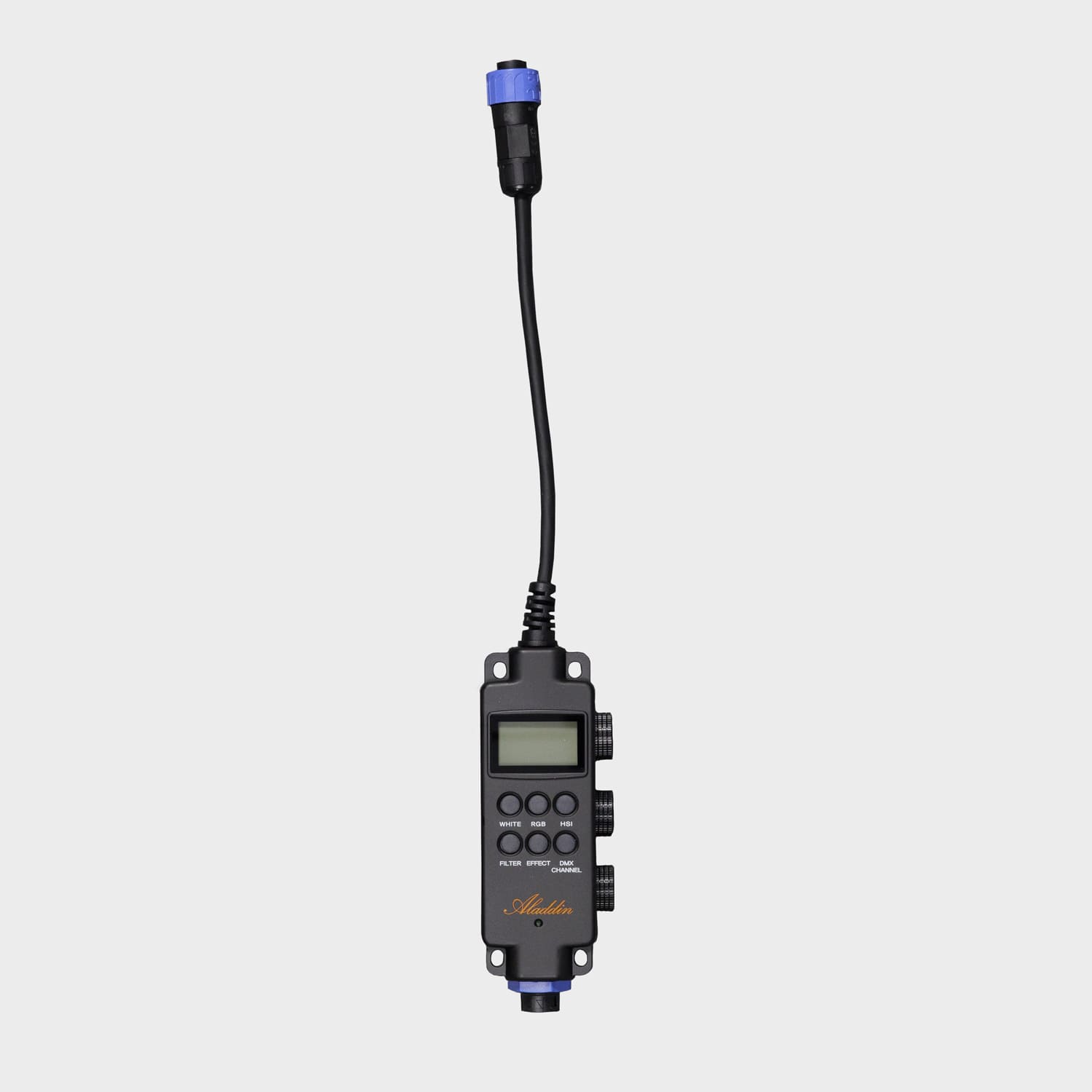

• 1 × MOSAIC Wired Dimmer with DMX & Wireless Support

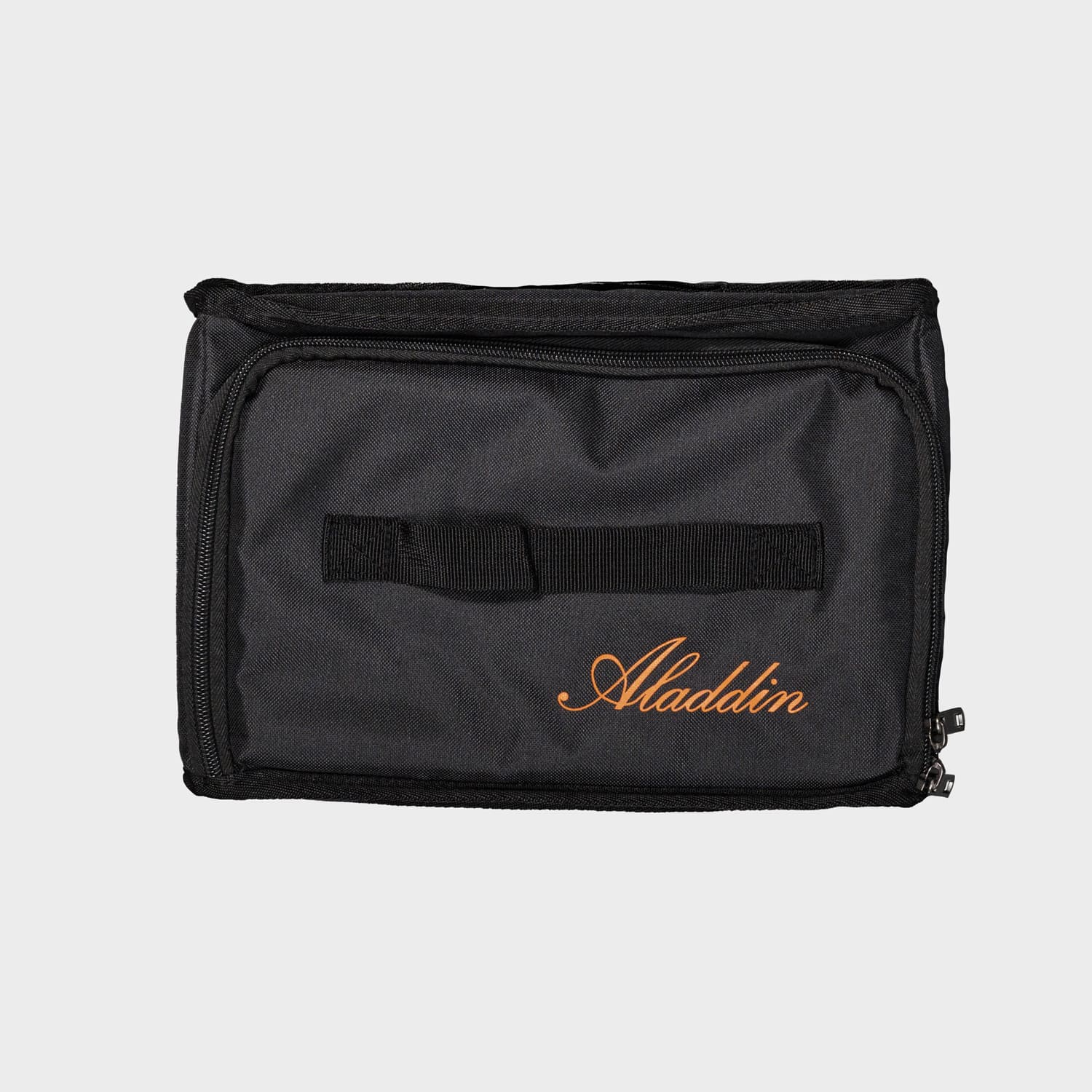

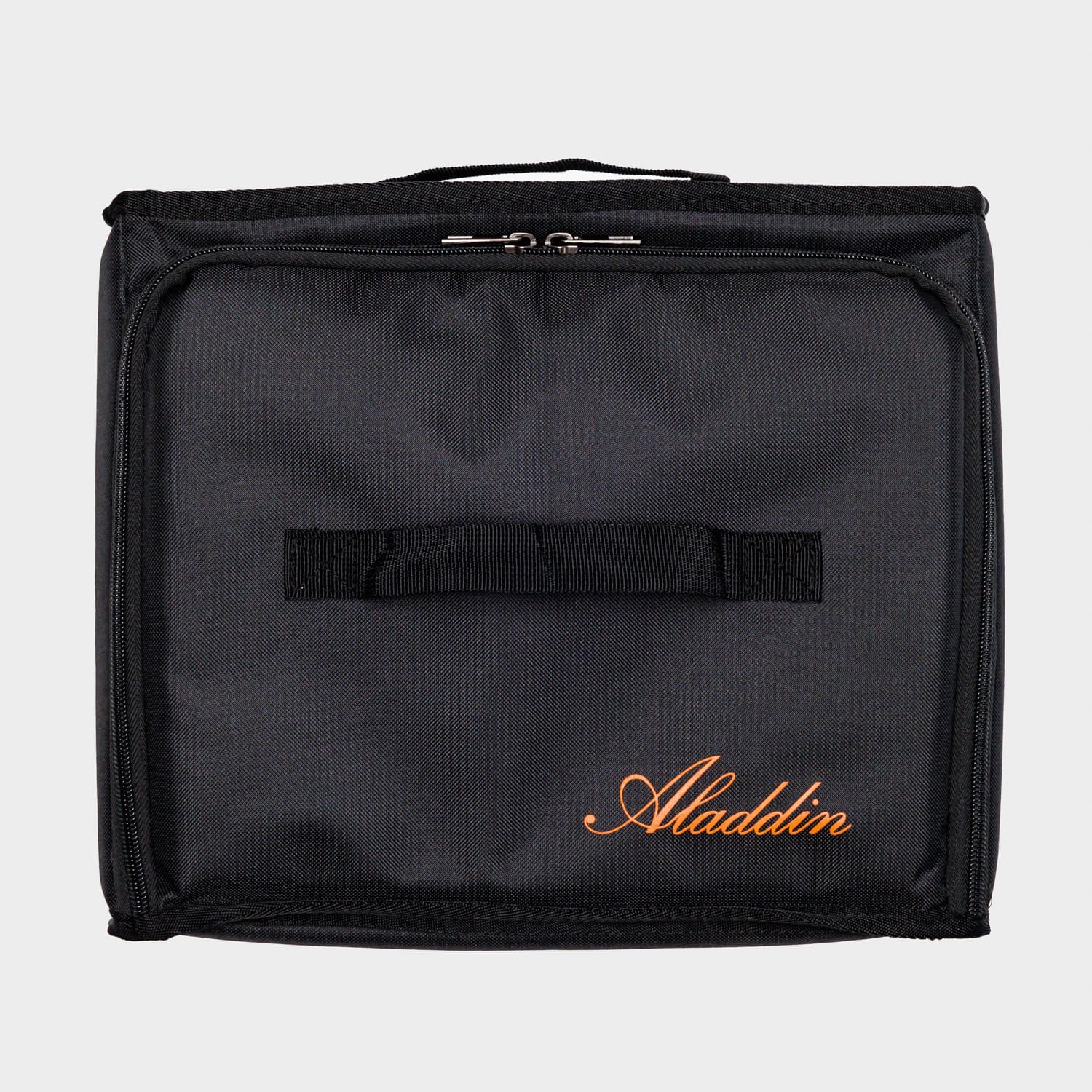

• 2 × Inner Bag (Small)

• 16 × Aladdin Cube (Bungee Ball)

Technical Highlights

• Light Source: 600 W RGBWW LEDs

• CRI / TLCI: ≥ 95

• Beam Angle: ~140°

• Color Temperature Range: 2200 K – 12000 K

• Panel Dimensions: 110 × 110 cm (folds to ~40 × 50 cm)

• Panel Weight: Approx. 4 kg

• Frame Dimensions: 115 × 116 × 17 cm

• Full Kit (Case): 45 × 136 × 19 cm; ~20.5 kg

• Power Input: AC/DC 100–240 V / panel 48 V

• Control: DMX / LumenRadio / Bluetooth

• Dimming Range: 1 % – 100 %
