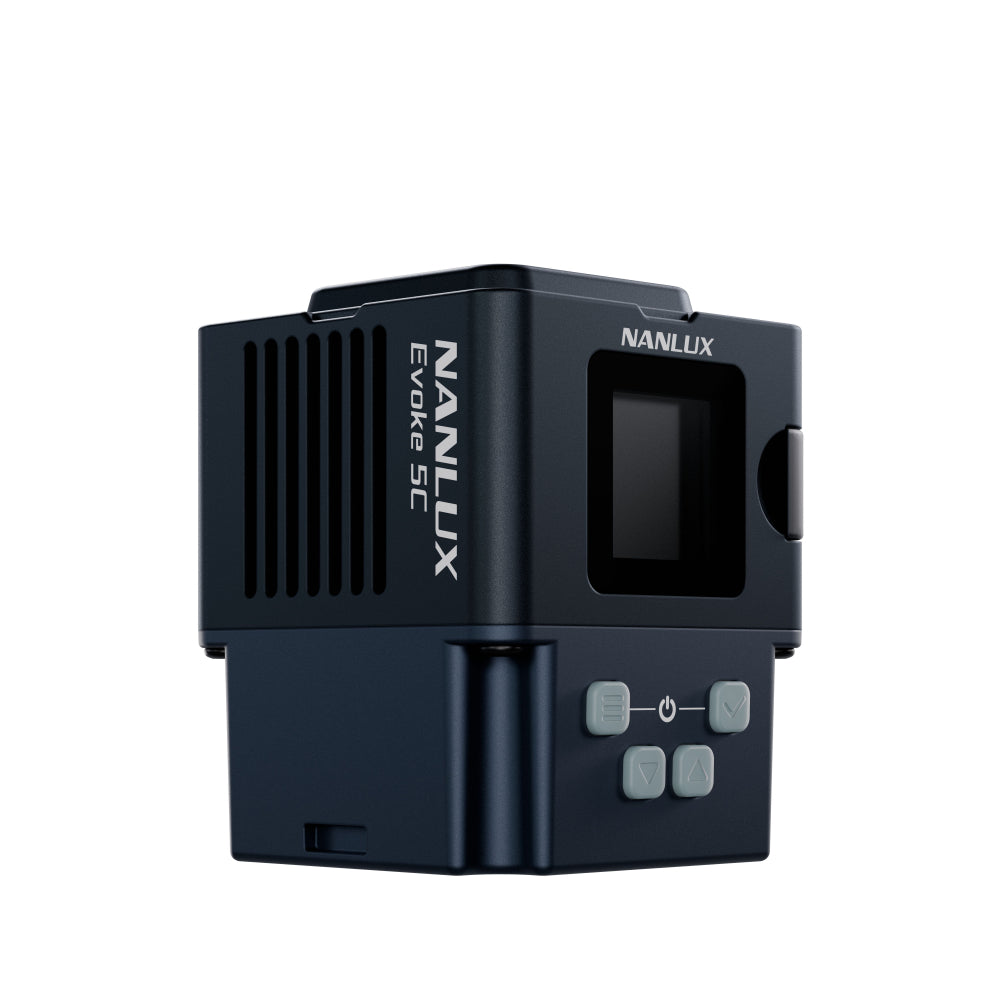

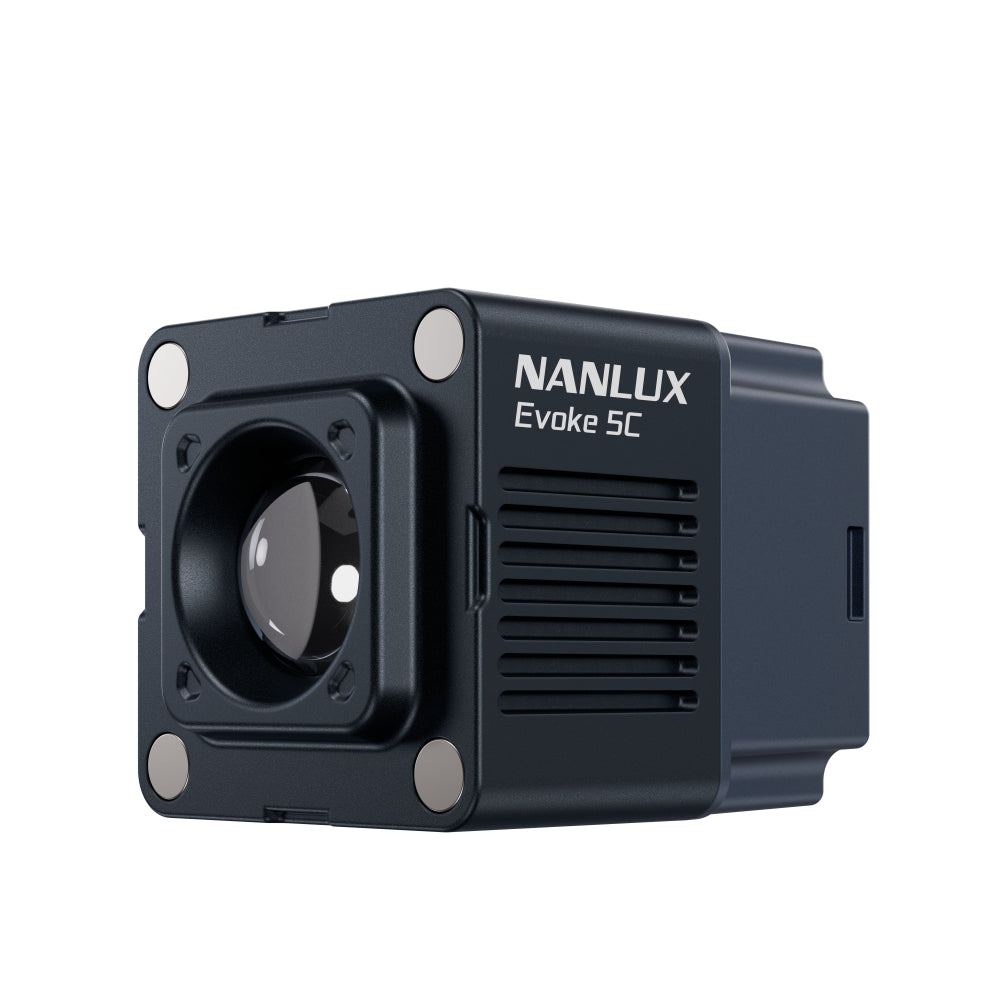

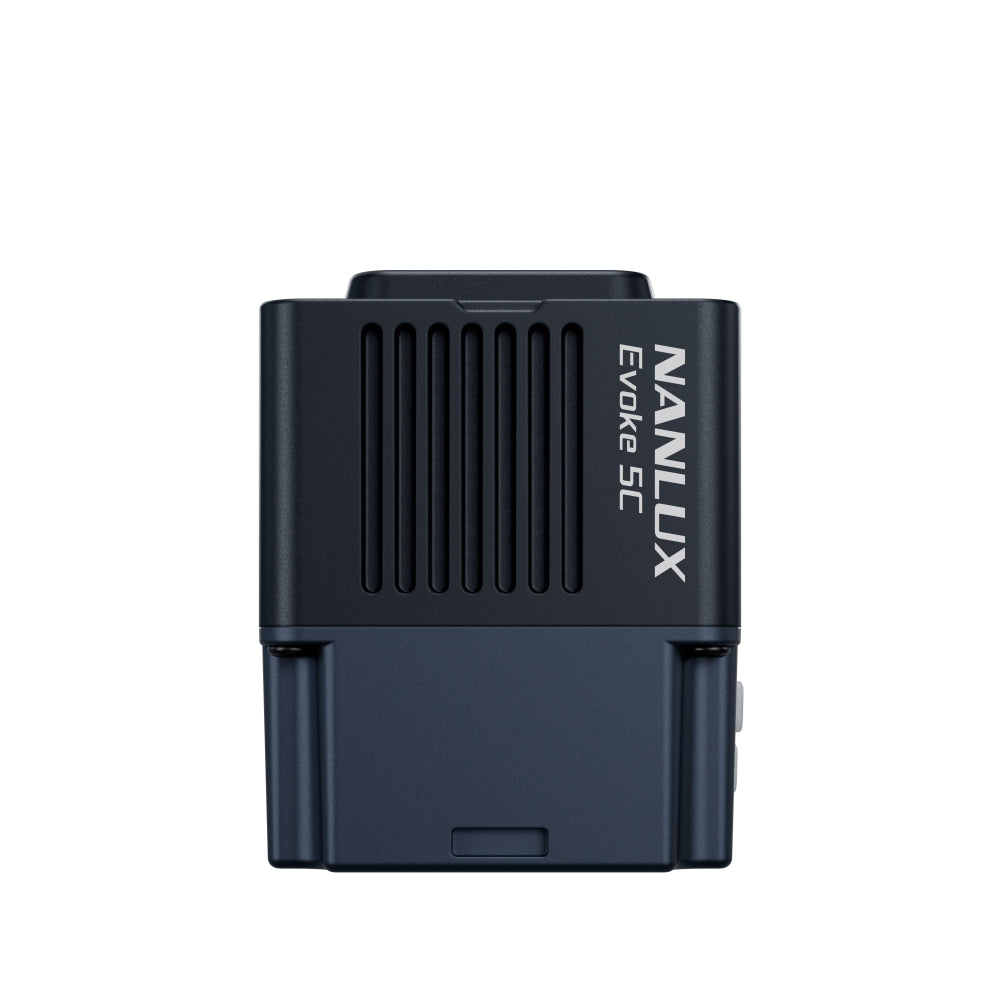

Nanlux Evoke 5C RGB LED Spotlight

Description

The NANLUX Evoke 5C RGB LED Spotlight is an ultra-compact professional full-color LED spotlight designed for filmmakers, cinematographers, photographers, and content creators who need precise, portable lighting in tight spaces. Measuring just 56 × 44 × 45 mm and weighing approximately 160 g, the Evoke 5C can be easily handheld, mounted, rigged, or discreetly integrated into a set as a practical light.

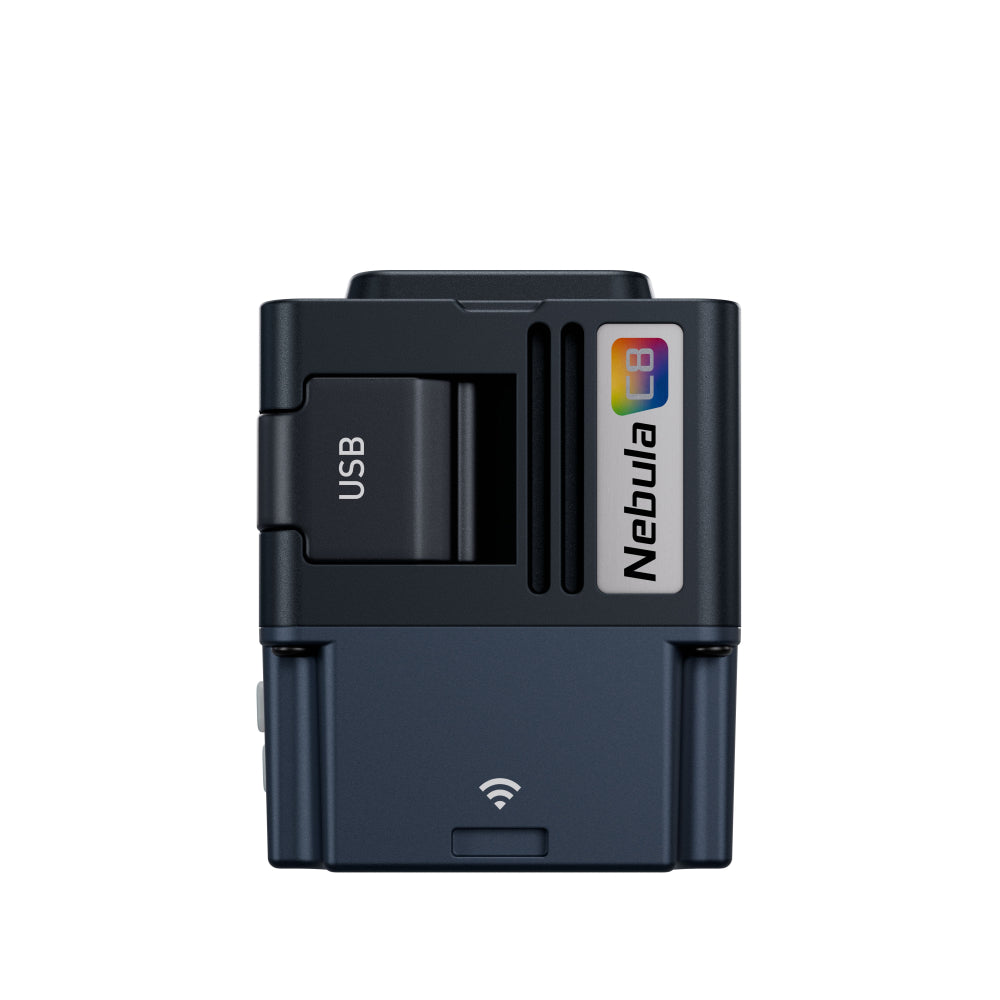

At the heart of the Evoke 5C is the advanced Nebula C8 Light Engine, featuring eight LED color channels—Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo. This enables an exceptionally wide 1000K–20,000K CCT range with G/M ±200 adjustment, providing precise control over color temperature and tint.

The Evoke 5C delivers excellent color reproduction with an average CRI of 98 and TLCI of 98, making it suitable for professional image capture where accurate skin tones and color fidelity are important. It features a 25° beam angle and provides up to 5,970 lux at 0.3 m at 5600K when used without a modifier.

The fixture includes CCT, HSI, RGBW, XY, Gel, and Effect control modes, providing flexible color and lighting control for a wide range of production requirements. It also includes multiple built-in lighting effects such as Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.

Designed for maximum portability, the Evoke 5C features a built-in 3.7V 1300mAh rechargeable battery and can also be powered via USB-C. At full brightness, the built-in battery provides approximately 50 minutes of operation, while lower output settings allow significantly longer runtime.

The Evoke 5C is rated IP67, making it highly resistant to dust and water and suitable for demanding production environments. Optional accessories use a convenient magnetic mounting system, including a Fresnel Lens, Spot Beam Lens, Soft Dome, Snoot, Projection Attachment, and other light-shaping accessories.

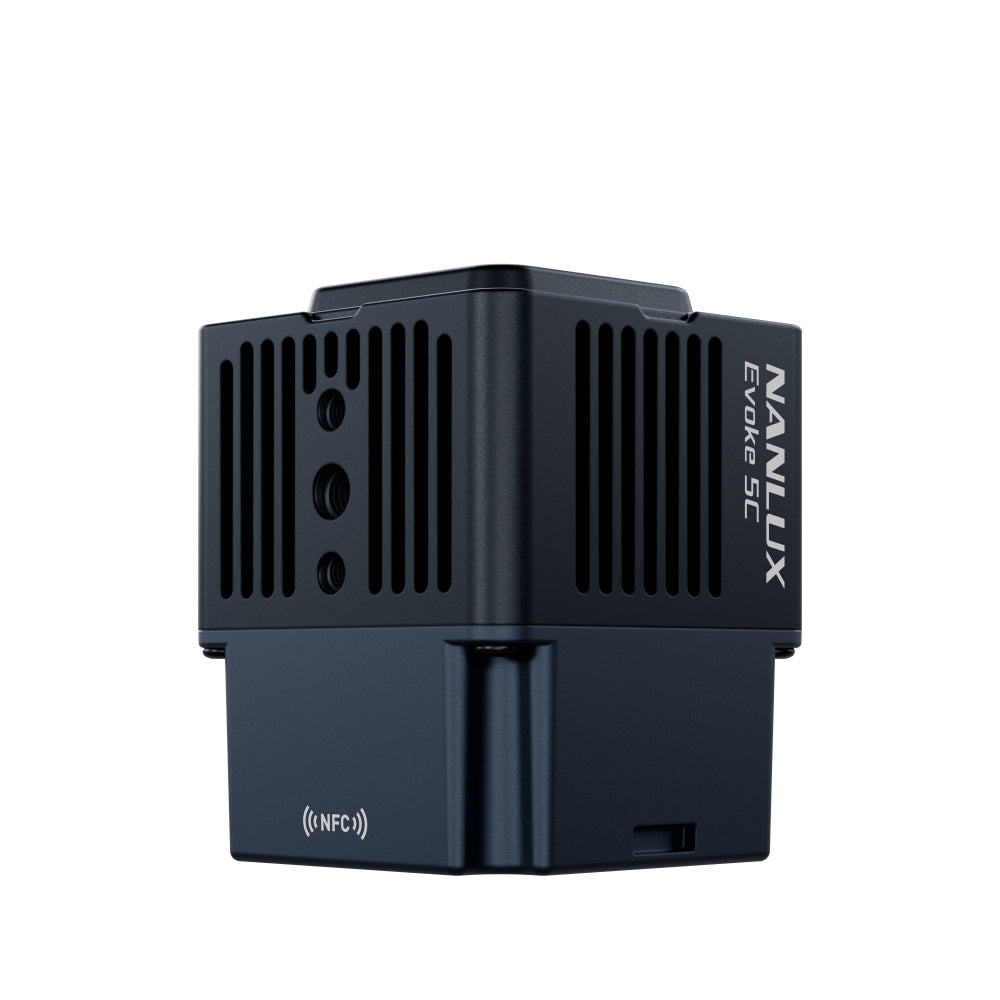

For professional wireless control, the Evoke 5C supports on-board controls, NANLINK App, DMX/RDM, NFC, and LumenRadio CRMX when the optional CRMX module is installed. This makes the fixture suitable for everything from small desktop and macro productions to concealed practical lighting and detailed cinematic accent lighting.

Key Features

• 6W Full-Color LED Spotlight
• Nebula C8 8-Color Light Engine
• Deep Red, Red, Amber, Lime, Green, Cyan, Blue & Indigo LED channels
• 1000K–20,000K CCT range
• G/M ±200 adjustment
• CRI Average 98 / TLCI Average 98
• TM-30 Rf 96 / Rg 100
• 25° beam angle
• Up to 5,970 lux @ 0.3m at 5600K
• 0–100% dimming
• Built-in 3.7V 1300mAh rechargeable battery
• USB-C power input
• Approximately 50 minutes runtime at 100% brightness
• IP67-rated construction
• CCT, HSI, RGBW, XY, Gel & Effect modes
• Multiple built-in lighting effects
• NANLINK App control
• DMX/RDM control
• NFC control
• Optional LumenRadio CRMX control
• Magnetic accessory mounting system
• Compact 56 × 44 × 45 mm body
• Lightweight 160 g design

Suitable Applications

• Cinematography and filmmaking
• Macro photography and videography
• Desktop and tabletop shooting
• Interviews and small-scale productions
• Accent and fill lighting
• Practical lighting integrated into sets
• Product photography
• Music videos and commercials
• Creative RGB lighting effects
• Location and tight-space lighting

Compatible Accessories

The Evoke 5C supports a range of magnetic light-shaping accessories, including:

• Magnetic Fresnel Lens
• Magnetic Spot Beam Lens
• Magnetic Soft Dome
• Magnetic Snoot
• Magnetic Projection Attachment
• Magnetic Barndoor
• Battery Grip
• Optional CRMX Module

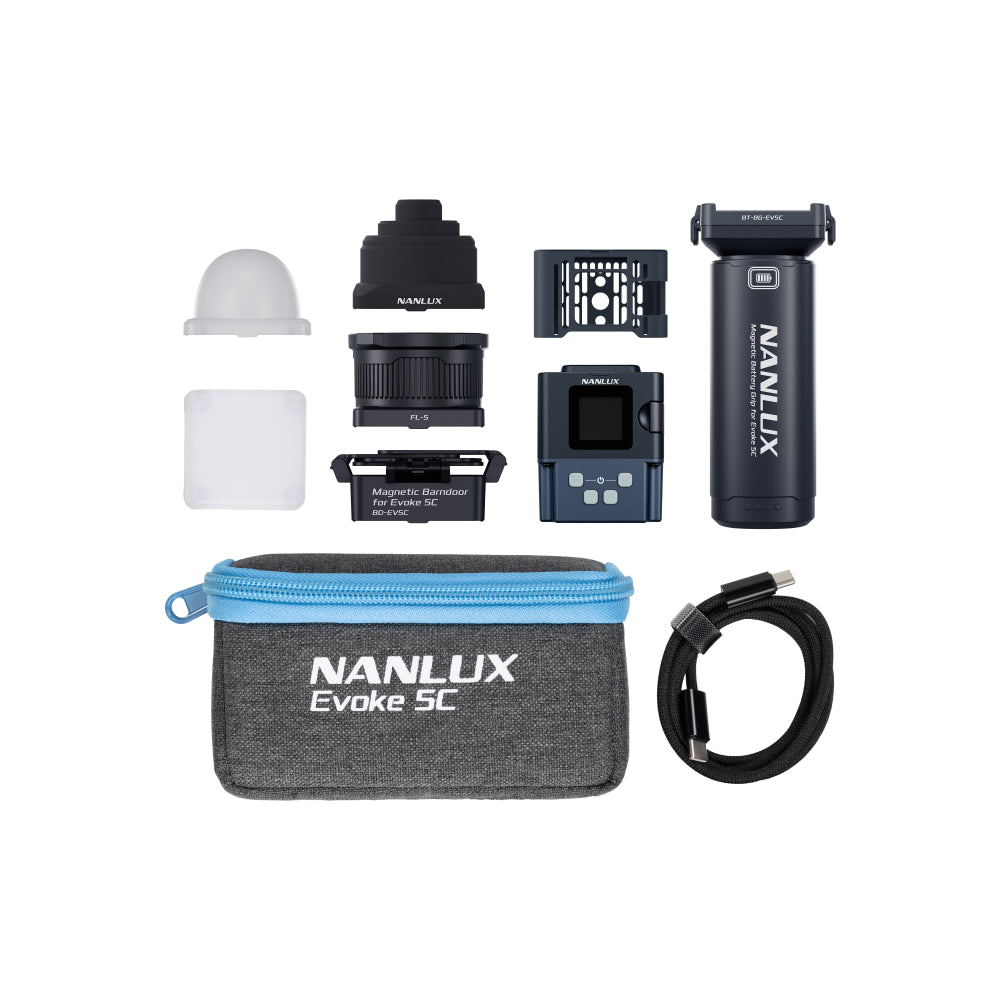

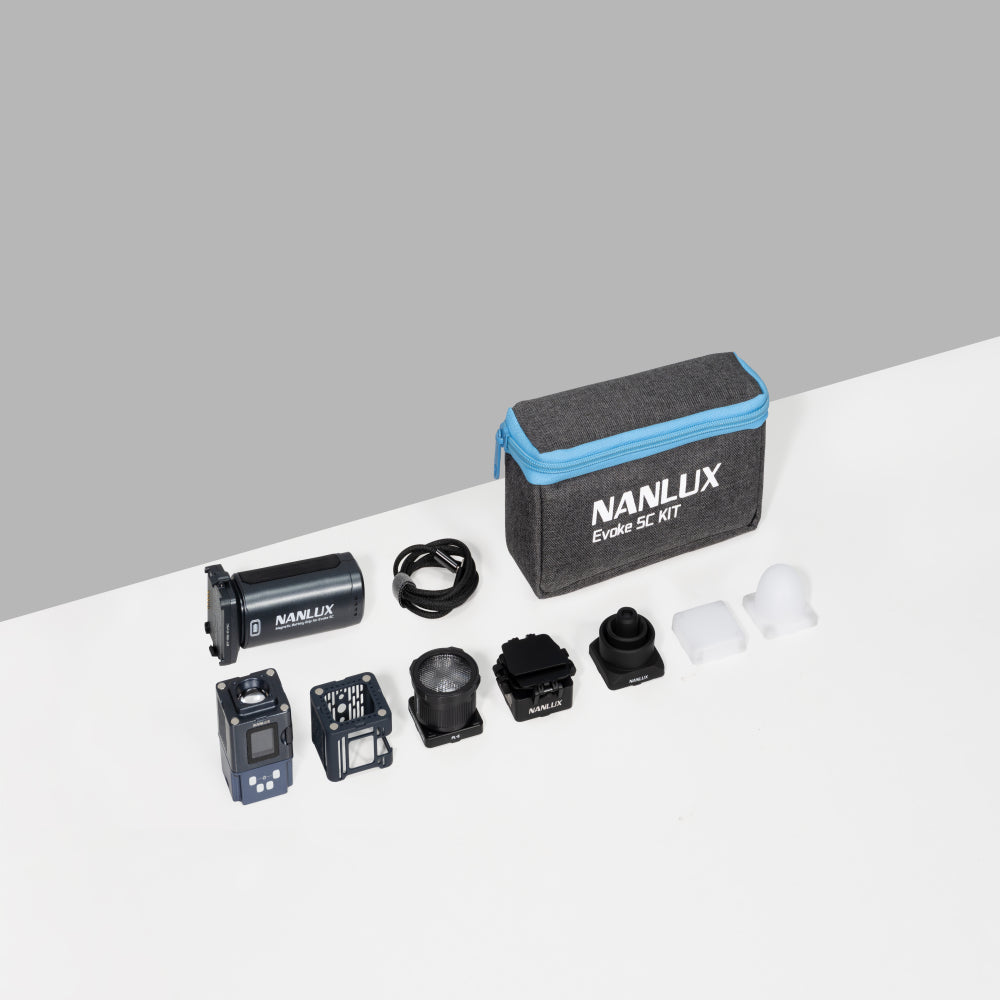

Included - Evoke 5C Kit
