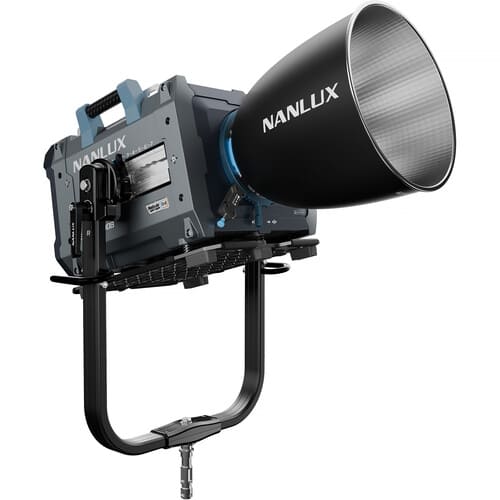

NANLUX Evoke 5000B LED Bi-color Spot Light with Flight Case

Description

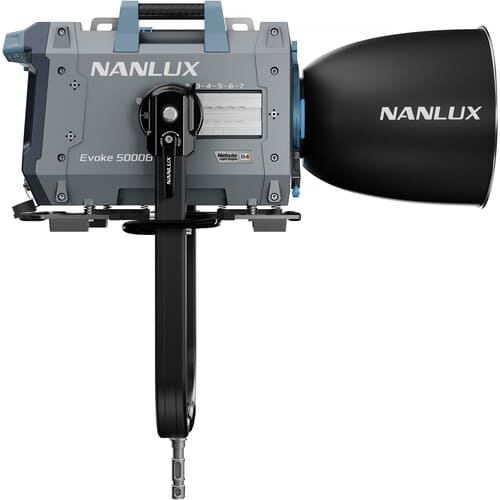

The NANLUX Evoke 5000B LED Bi-Color Spot Light with Flight Case is a professional 5000W high-output bi-color LED spotlight engineered for demanding film, television, broadcast, commercial, event, and studio productions. Designed as an all-in-one fixture, it integrates the light source, control system, and power supply into a robust housing while delivering extremely high output comparable to traditional high-power lighting sources.

The Evoke 5000B features NANLUX's advanced Nebula B4 Light Engine, providing a wide 2700K–6500K color temperature range with ±80 Green/Magenta adjustment. This allows users to accurately match different lighting environments and reduce dependence on additional color-correction gels. The fixture delivers excellent color reproduction with an average CRI 97, TLCI 98, TM-30 Rf 96, TM-30 Rg 102, SSI 85 at 3200K, and SSI 74 at 5600K.

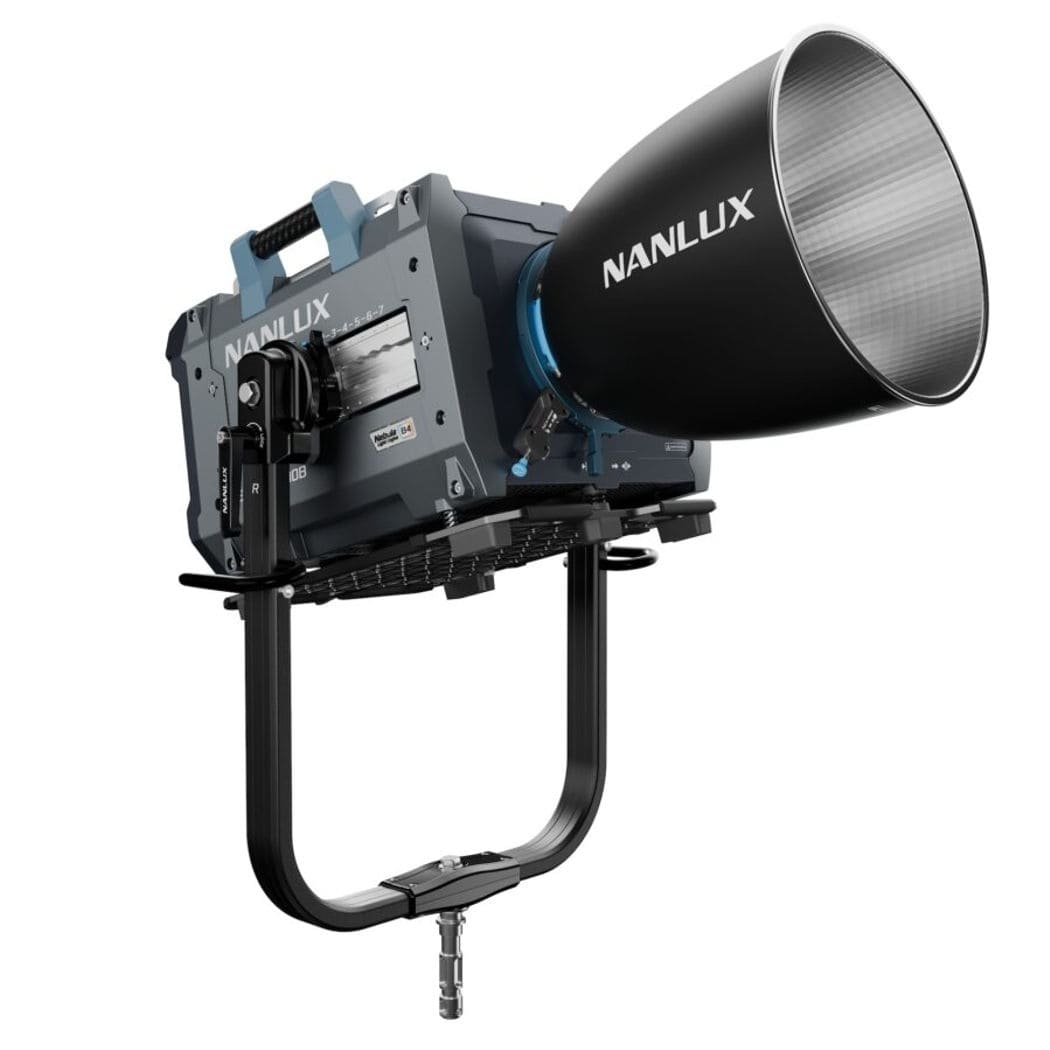

With the included 45° reflector, the Evoke 5000B delivers an impressive 555,250 lux at 1 meter at 5600K & With the included 30° reflector, the Evoke 5000B delivers an impressive 57,000 lux at 5 meter at 5600K, providing the extremely high output required for large sets, studios, outdoor productions, daylight simulation, and long-distance lighting applications. The fixture offers a 95° beam angle without the reflector and precise 0–100% dimming in 0.1% increments for accurate brightness control.

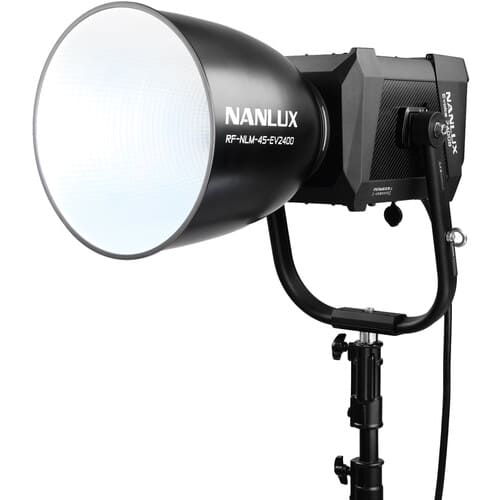

The Evoke 5000B features a professional NL Mount, making it compatible with most accessories from the NANLUX Evoke 2400B ecosystem, including Fresnel lenses, parallel beam reflectors, and softboxes. A dedicated FL-45E Motorized Fresnel Lens is also available, providing a 16°–50° motorized zoom range for precise beam control.

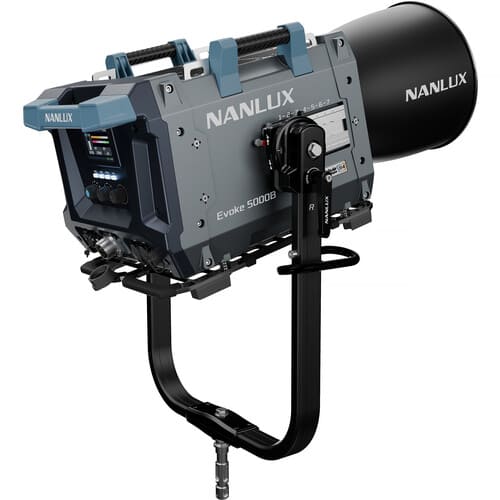

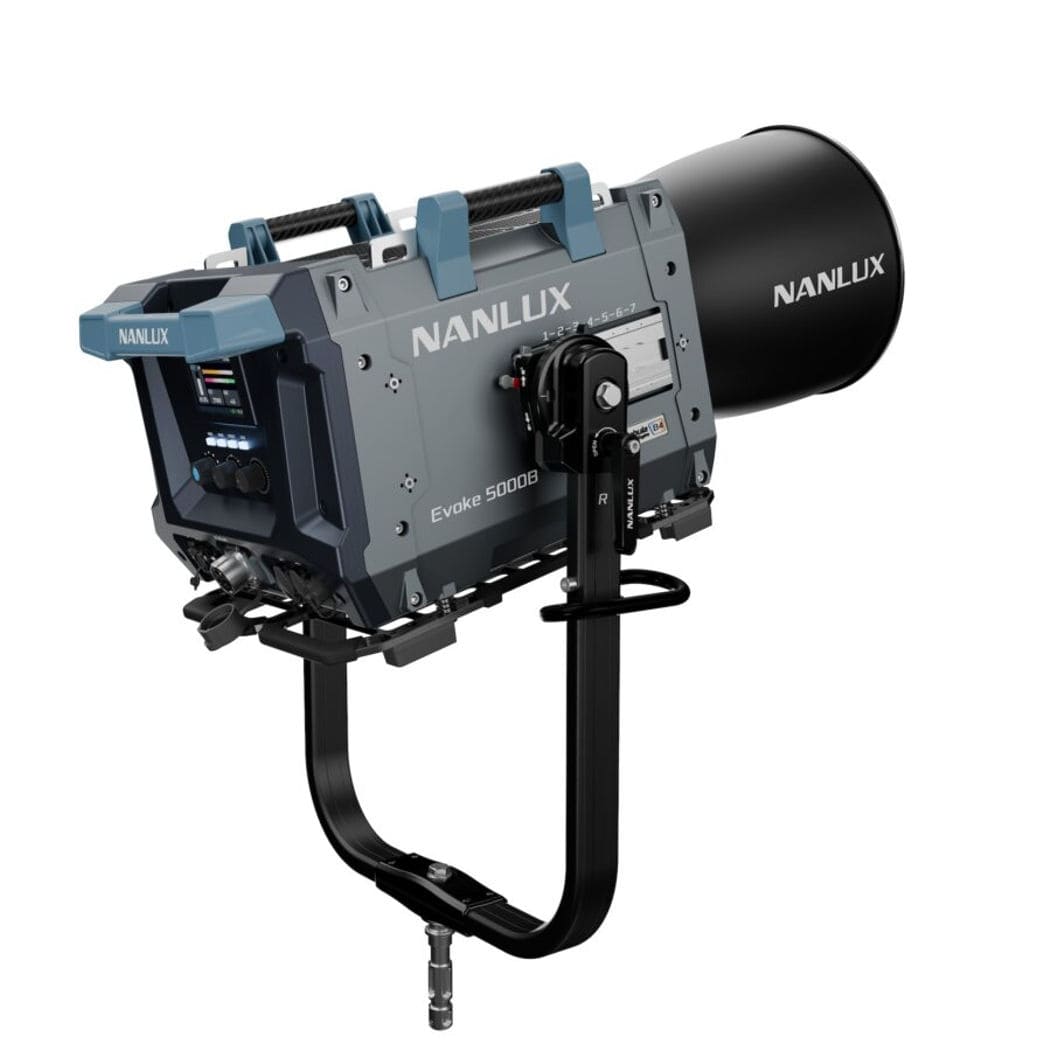

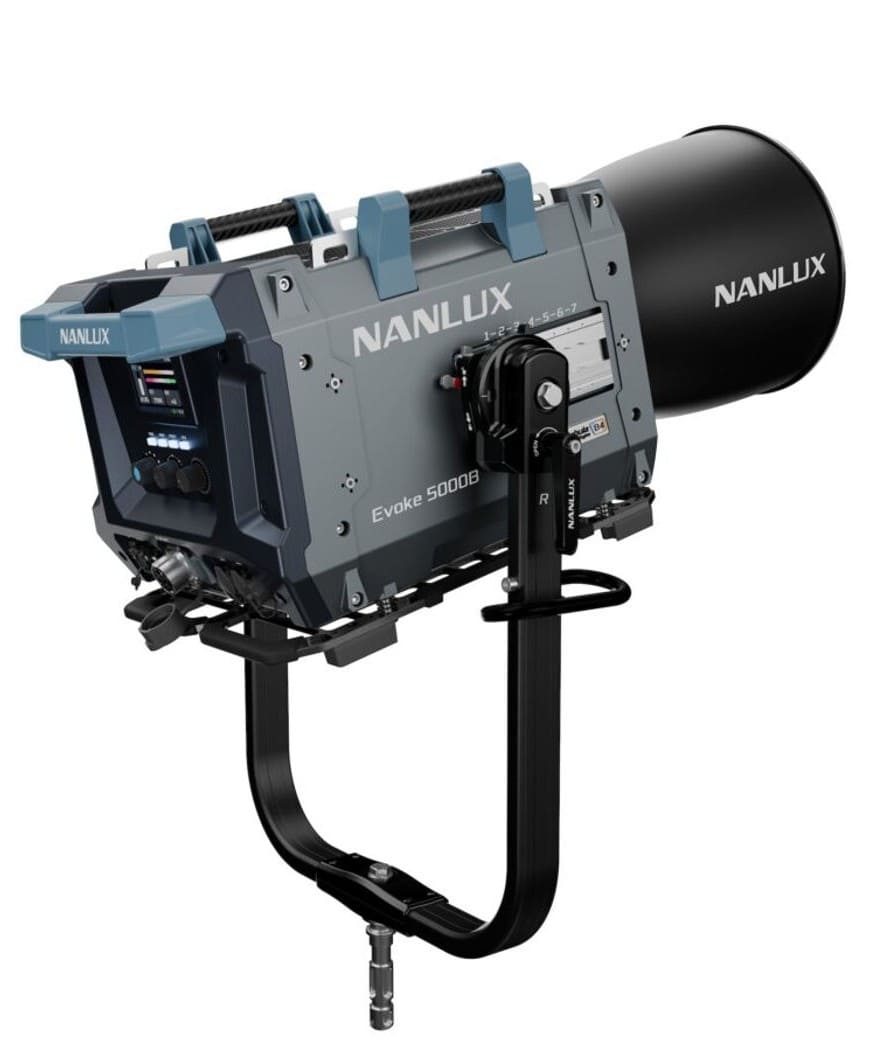

Built for demanding production environments, the fixture uses a high-strength magnesium-alloy construction and an IP66-rated housing, providing protection against dust and water. The all-in-one fixture weighs approximately 43.1 kg, while its balance-adjustment rail, yoke system, skid, and PosiTight mounting system are designed to make rigging and positioning more manageable for such a high-output fixture.

The Evoke 5000B provides comprehensive professional control through on-board controls, NANLINK App 2.0 via Bluetooth, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and the included WC-EXT wired controller. Its 4.3-inch display, three control knobs, and four buttons provide direct access to lighting settings. The fixture also incorporates 12 built-in customizable lighting effects for creative production.

An advanced cooling system provides Smart, Full Speed, Low Speed, Pause, and Off modes. In Smart mode, the cooling system automatically adjusts fan speed according to operating temperature, with operation rated at approximately 44 dB(A). This allows users to balance cooling performance and acoustic requirements on set.

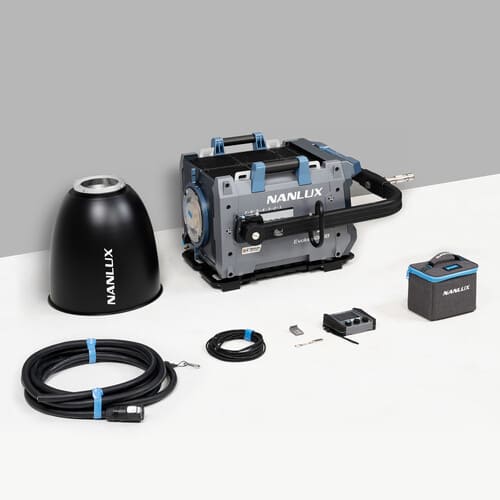

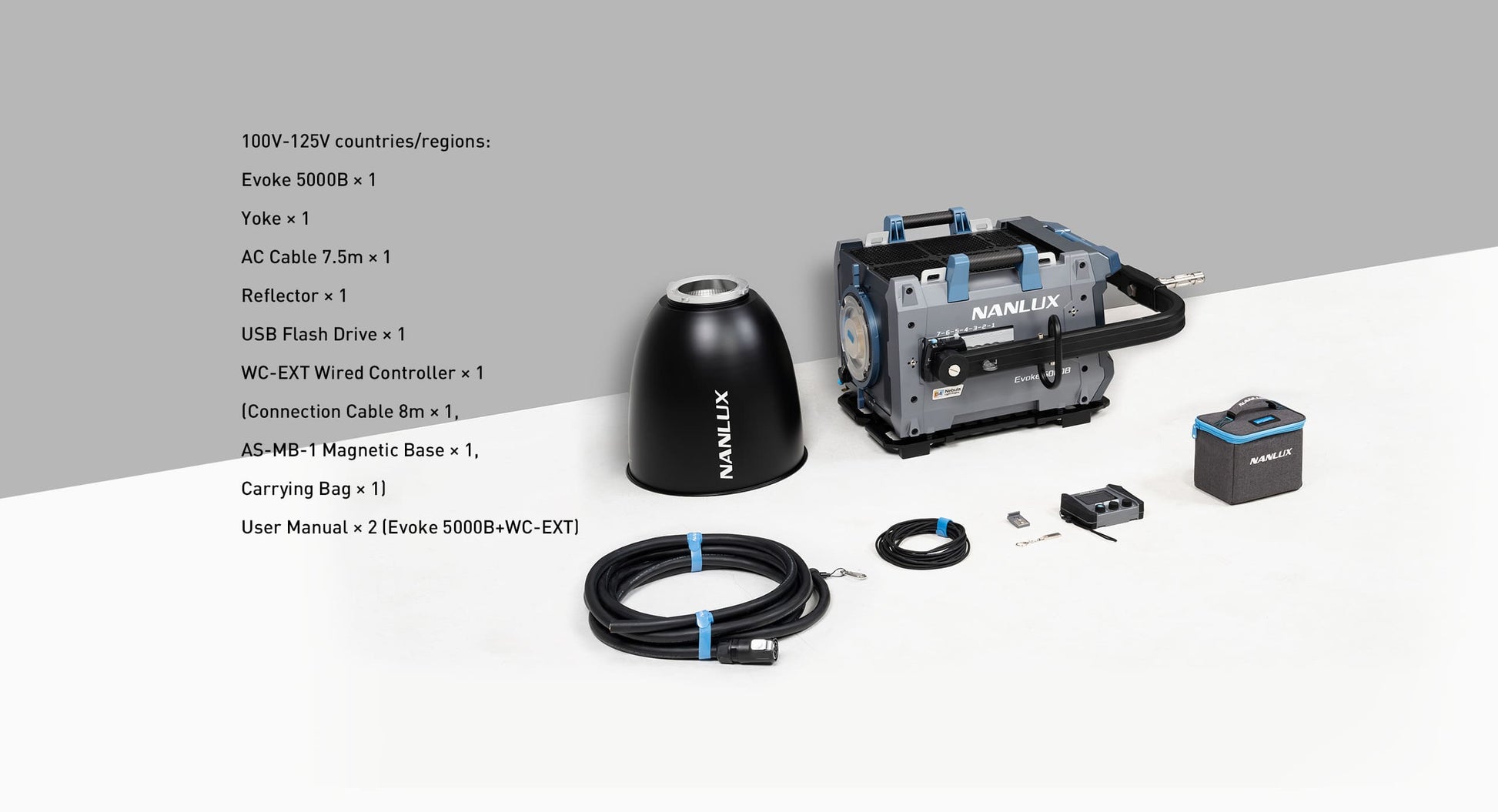

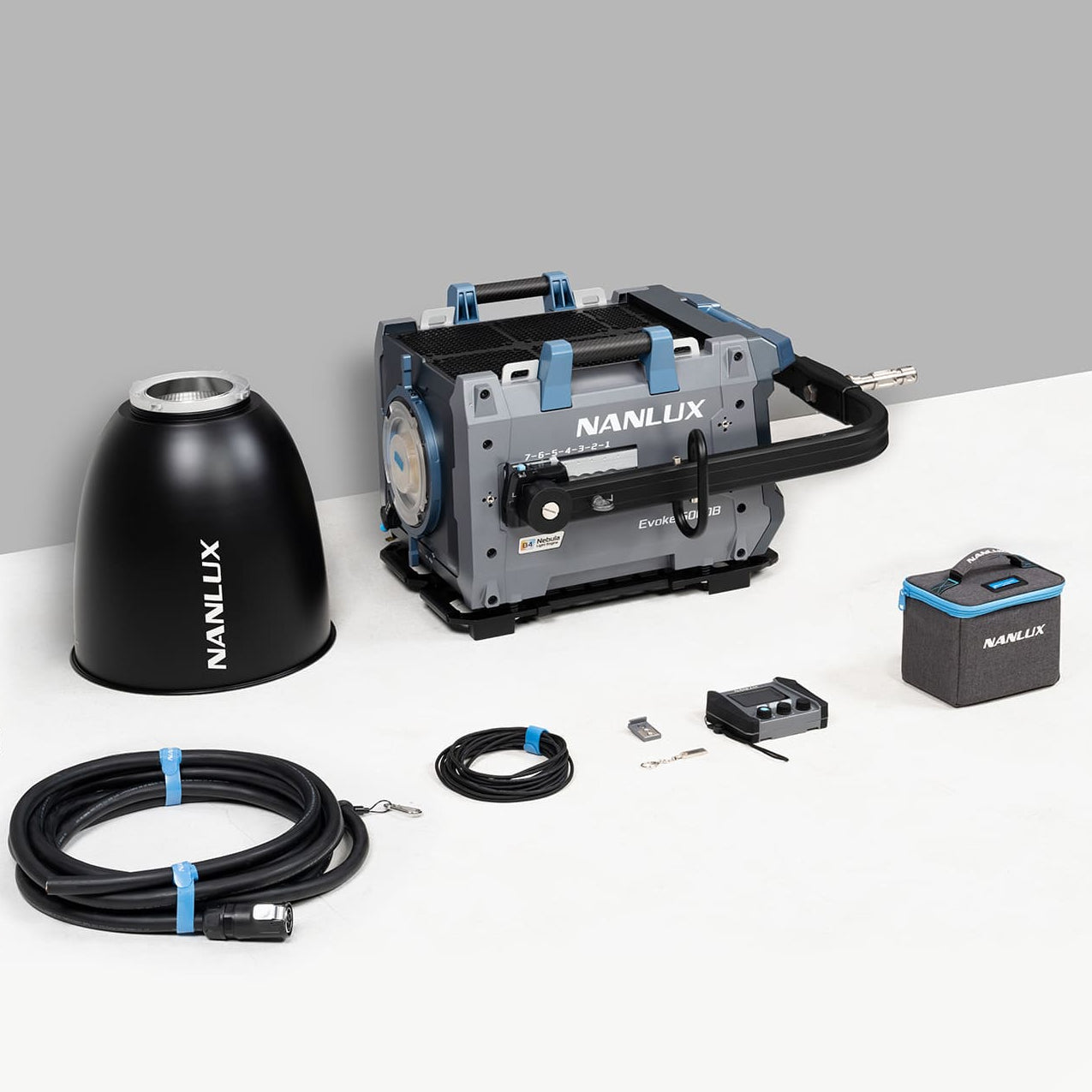

The Flight Case Kit is designed for secure transportation and storage of this large professional fixture. It includes the Evoke 5000B, yoke, reflector, wired controller system, and dedicated flight case, making it suitable for rental operations, touring productions, large studios, and professional location work.

Key Features

• 5000W Rated Power
• Nebula B4 Light Engine
• Adjustable 2700K–6500K CCT
• ±80 Green/Magenta adjustment
• Up to 555,250 lux @ 1m (5600K) with 45° reflector
• 95° beam angle without reflector
• 45° beam angle with included reflector
• CRI 97 / TLCI 98
• TM-30 Rf 96 / Rg 102
• SSI 85 @ 3200K / SSI 74 @ 5600K
• 0–100% dimming in 0.1% increments
• IP66-rated weather-resistant housing
• High-strength magnesium-alloy construction
• Professional NL Mount
• Compatible with most Evoke 2400B NL-Mount accessories
• 12 built-in customizable lighting effects
• On-board control with 4.3-inch display
• NANLINK App 2.0
• DMX/RDM
• LumenRadio CRMX
• Art-Net/sACN
• Included WC-EXT Wired Controller
• Five cooling modes: Smart, Full Speed, Low Speed, Pause and Off
• Ideal for film, television, broadcast, commercial, event, studio and large-scale location productions

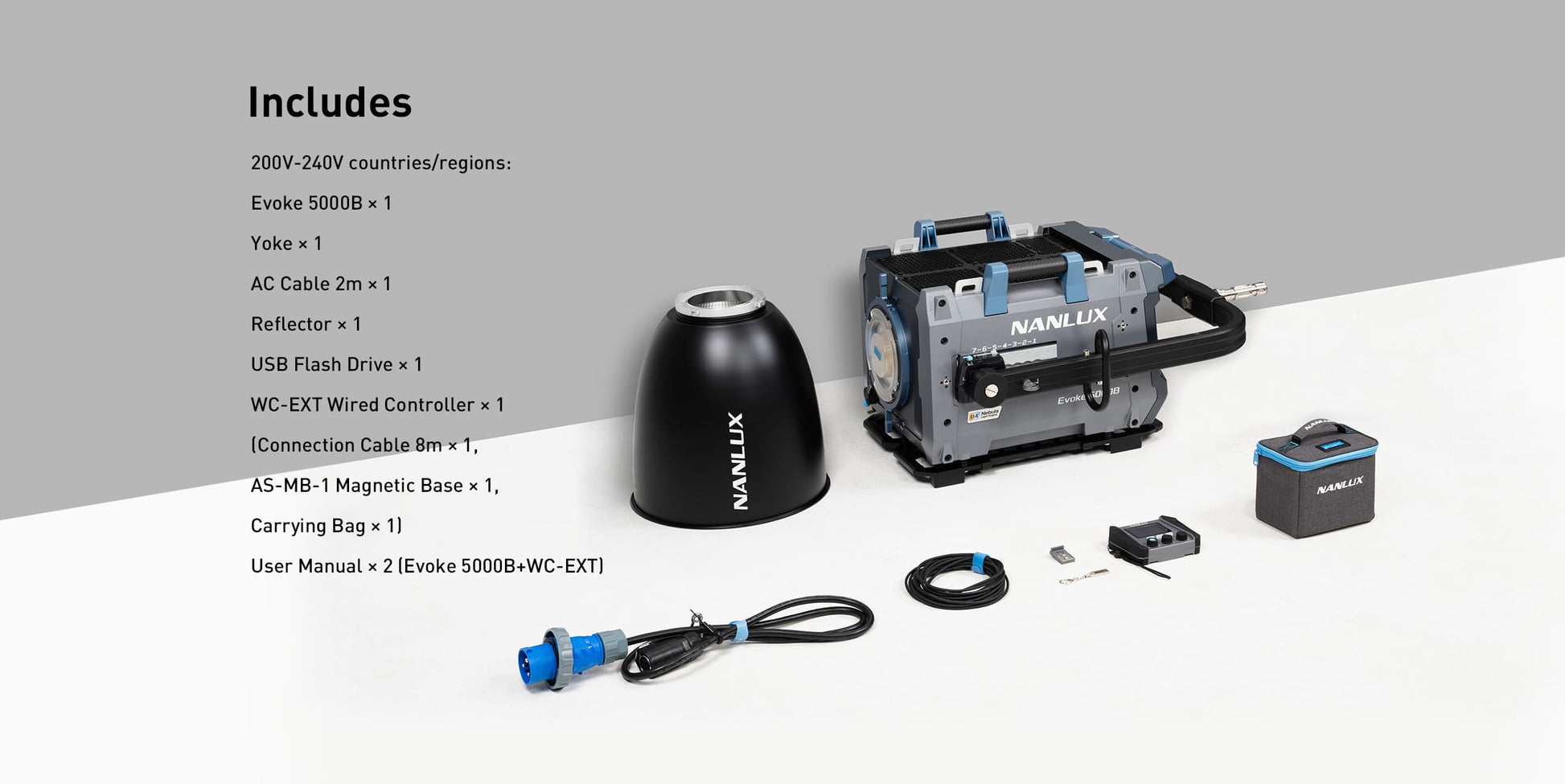

Includes
