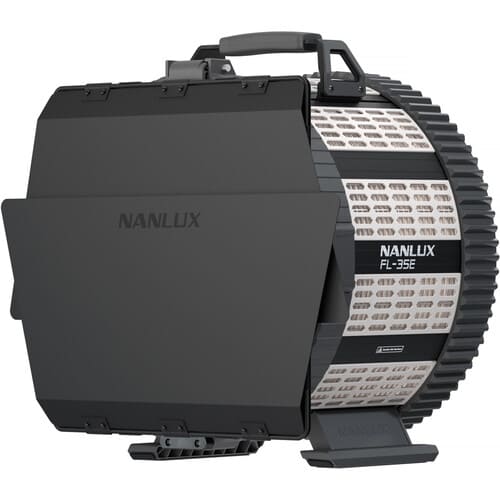

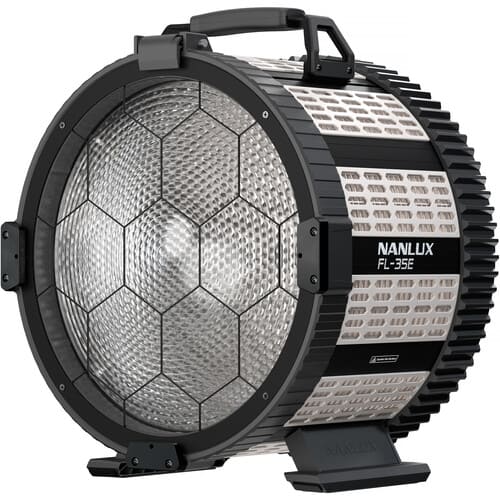

FL 35E Motorised Fresnel Lens 15*-46*

Description

The Nanlux FL-35E Motorized Fresnel Lens 15°-46° is a high-end optical accessory designed to transform your Nanlux Evoke 2400B LED fixture into a versatile spotlight with precise beam control. Featuring a motorized zoom range from 15° to 46°, this Fresnel lens enhances output and allows smooth transition from a tight spotlight to a broader wash without changing optics. With advanced control options and rugged weather-resistant build, it is ideal for professional film, broadcast, studio, and location lighting.

Key Features

• Motorized Beam Angle Adjustment: Allows precise beam angle control from 15° to 46° via motorized zoom — letting you smoothly shift from a narrow spot to a wide flood without swapping modifiers.

• Superior Optical Performance: High-quality Fresnel glass optics ensure beautifully even illumination with well-defined beam edges and enhanced light projection.

• Illumination Boost: When mounted on the Evoke 2400B, the FL-35E can amplify the light output up to approximately 75,700 lux @ 3 m at 15°, providing powerful, usable light for demanding applications.

• Multiple Control Methods: Beam adjustments can be controlled via:

  • On-board buttons on the Fresnel unit

  • The Evoke fixture’s main menu

  • NANLINK App (Android & iOS)

  • DMX/RDM console

  • Wired controller — offering flexible workflow options.

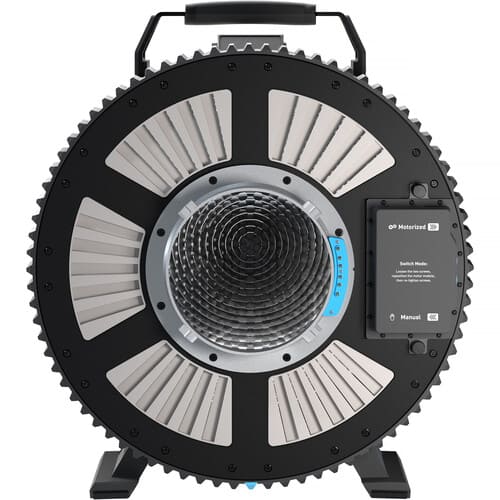

• Manual Adjustment Option: The motor unit can be disengaged to allow manual beam adjustment if preferred.

• Weather-Resistant Design: Shares the IP55 rating with Evoke fixtures, providing strong protection against dust and water — suitable for outdoor and challenging environmental conditions.

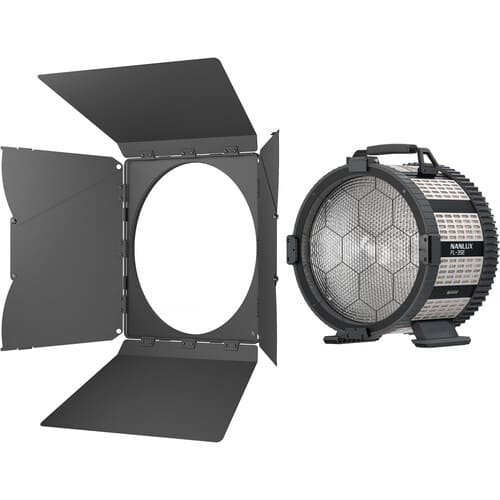

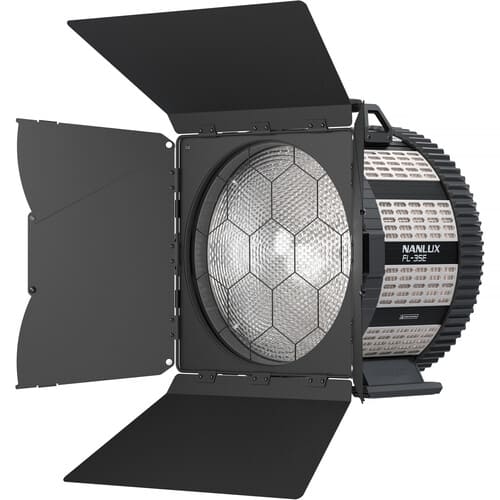

• Integrated Barndoors: Includes a set of barndoors to shape and control the light further at any beam angle.

• Robust & Portable Build: Engineered for professional use with durable construction and designed to withstand frequent transport and rugged production conditions.

• Trolley Case Included: Comes with a trolley case for safe storage and convenient transport between locations.

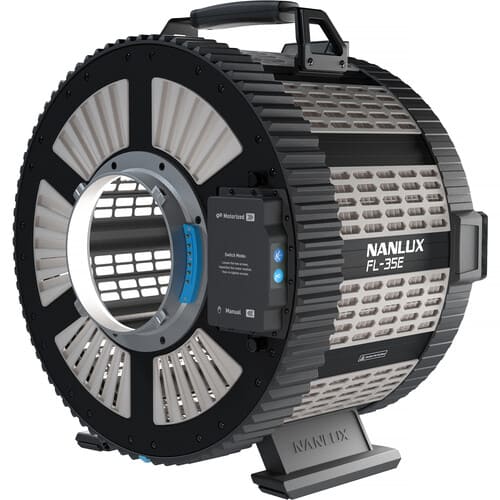

• NL Mount Integration: Attaches directly to the Evoke 2400B’s NL mount with electronic contacts, ensuring secure, seamless electronic communication and effortless accessory recognition.

What’s Included

• 1 × Nanlux FL-35E Motorized Fresnel Lens (15°-46°)

• 1 × Barndoors (non-motorized light-shaping attachment)

• 1 × Trolley Case for storage and transport

• User Manual (instructions & safety information)

• Limited Manufacturer Warranty (typically 3 years)
