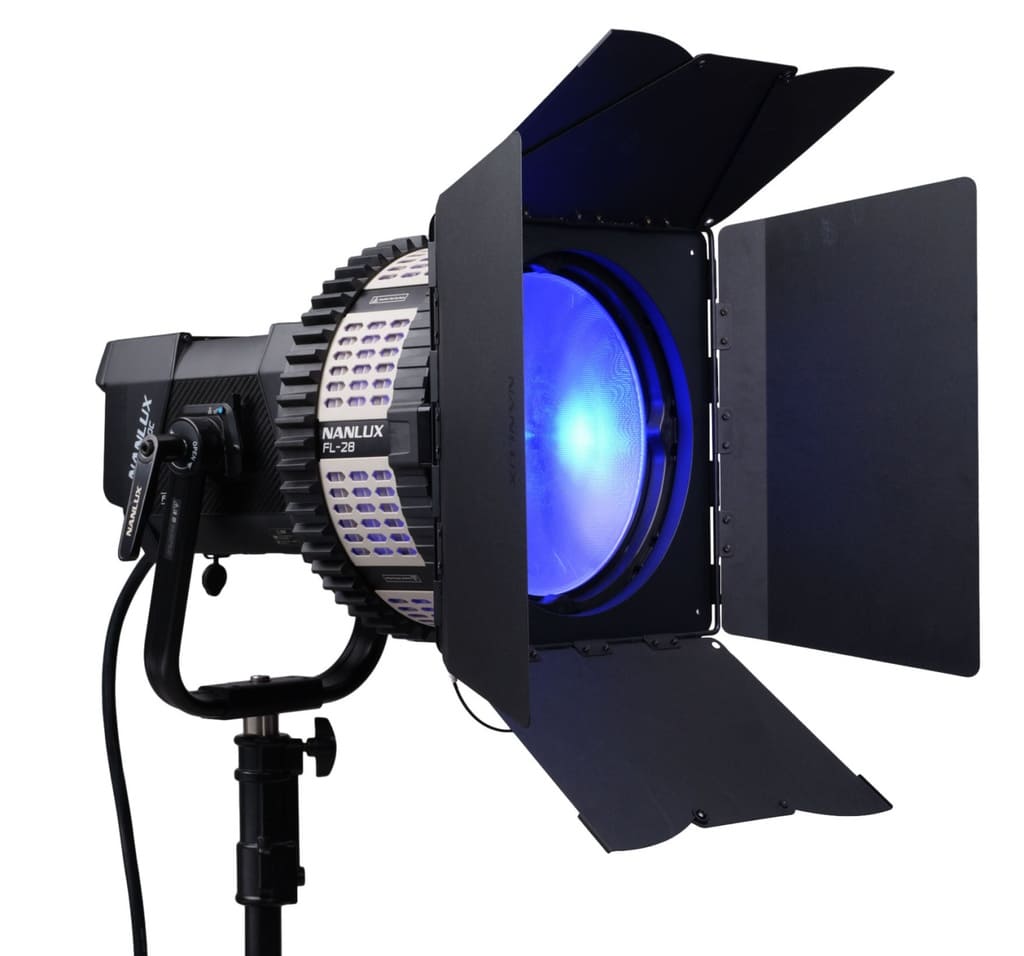

FL -28 Fresnel Lens

Description

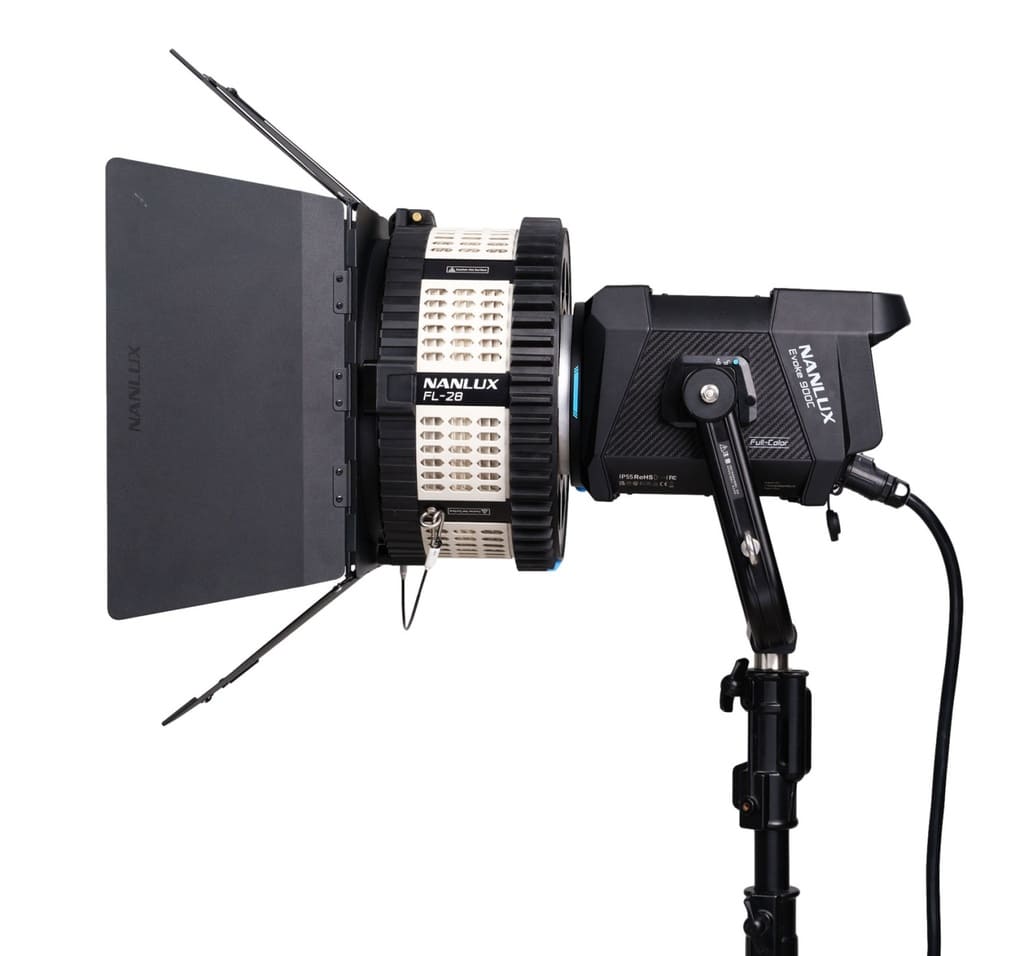

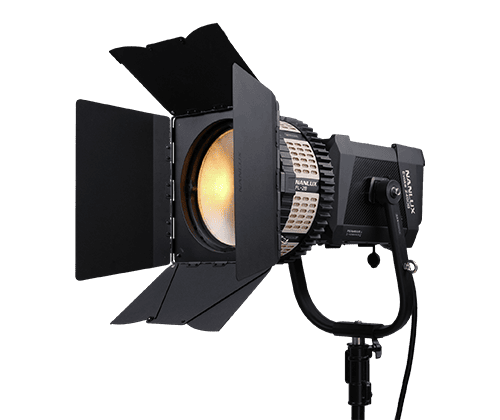

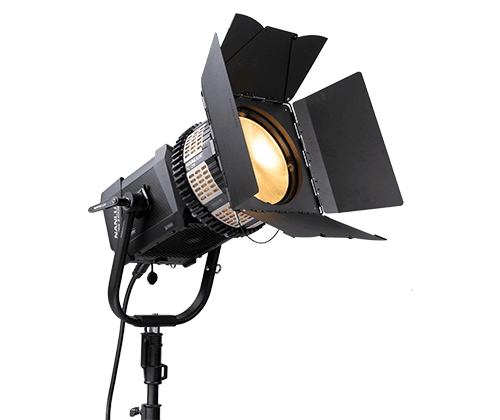

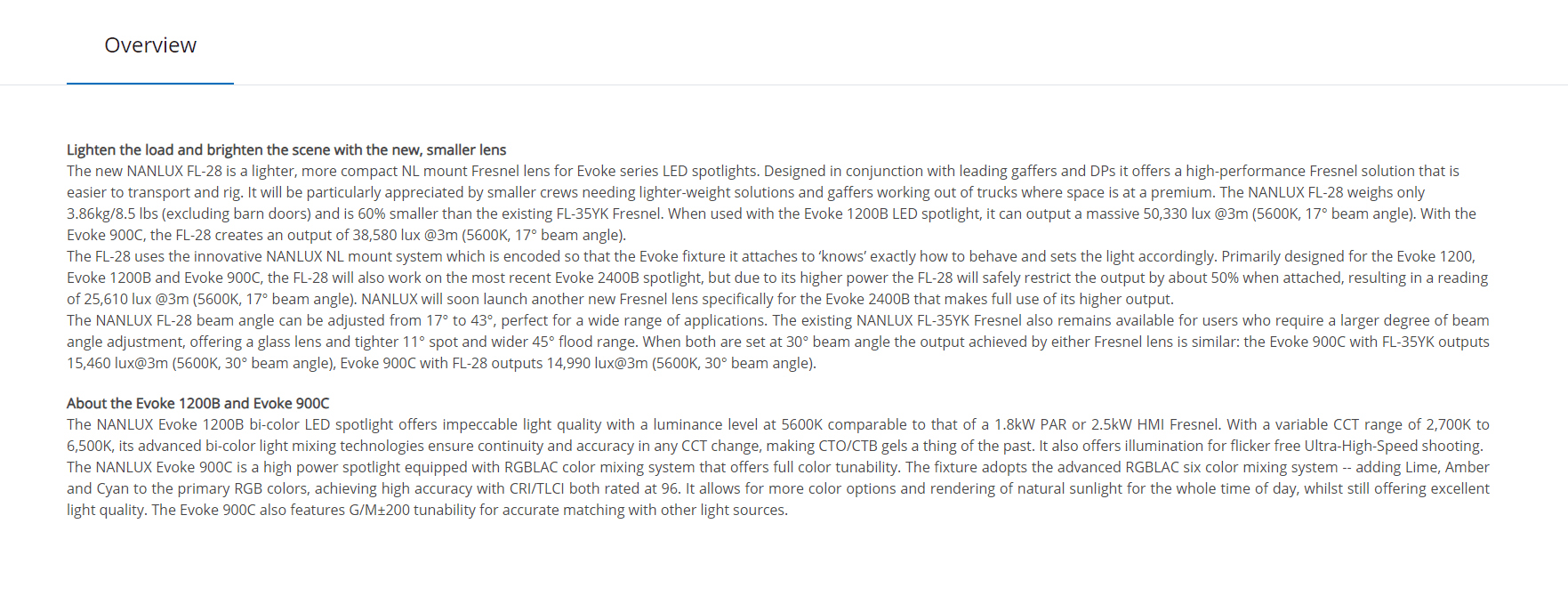

The NANLUX FL-28 Fresnel Lens is a lightweight and compact NL Mount Fresnel lens designed for the NANLUX Evoke series LED spotlights. Developed in collaboration with leading gaffers and Directors of Photography, it provides a high-performance Fresnel solution that is easier to transport and rig, making it particularly suitable for smaller crews and location productions where weight and space are important considerations.

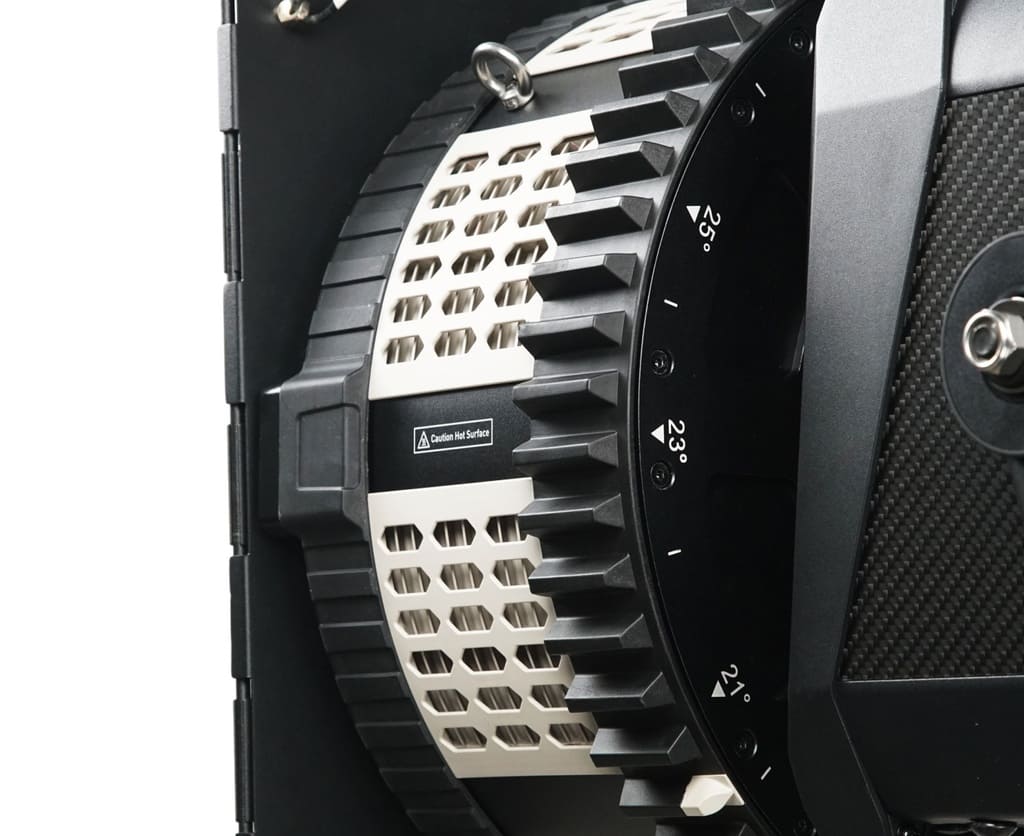

The FL-28 features an adjustable 17°–43° beam angle, allowing users to transition between a narrow, concentrated beam and a wider spread of light. It produces a precise beam with even illumination and well-defined edges, providing greater control for professional film, television, broadcast, studio, and location lighting.

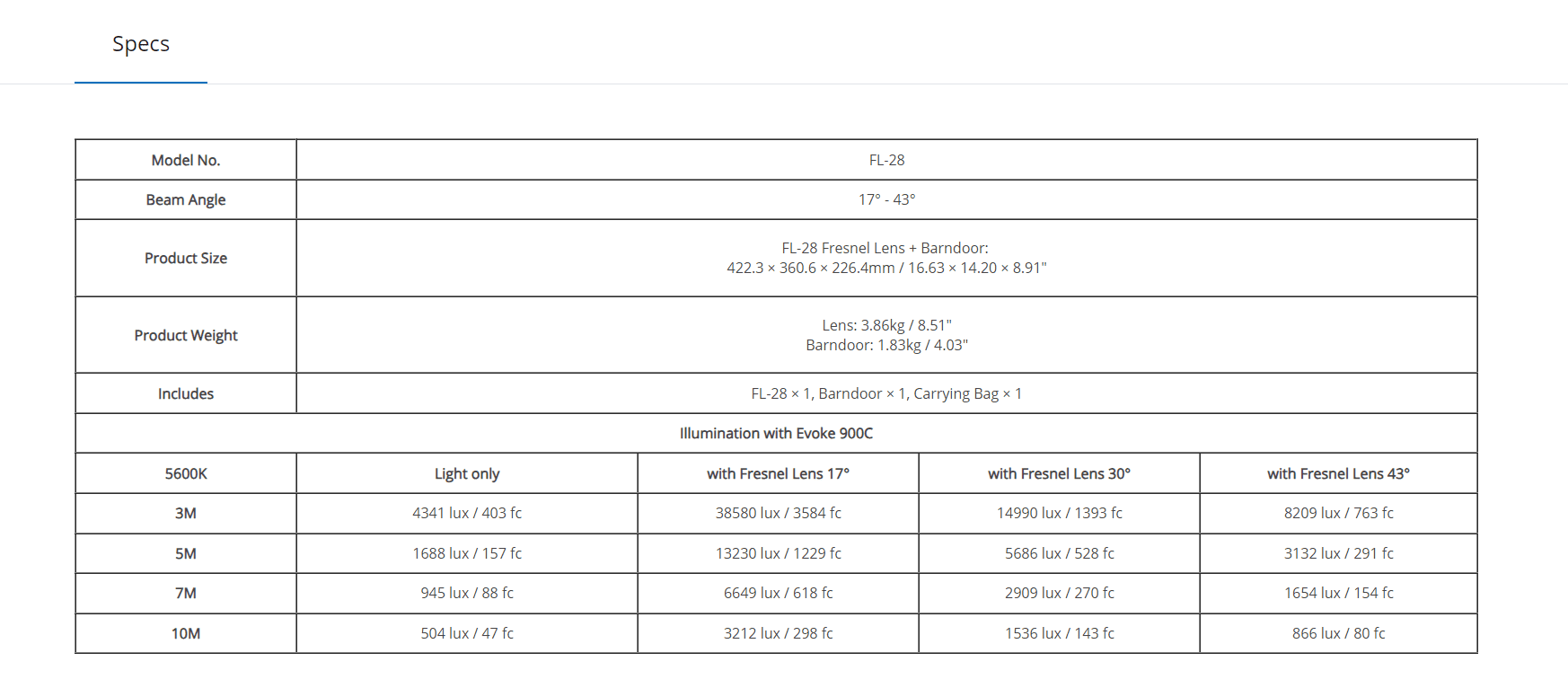

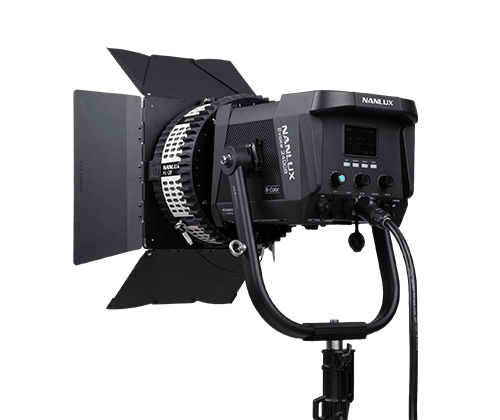

When paired with the NANLUX Evoke 1200B, the FL-28 can deliver up to 50,330 lux at 3 meters (5600K) at the 17° beam angle. With the Evoke 900C, it can produce up to 38,580 lux at 3 meters (5600K) at 17°. The lens uses NANLUX's NL Mount system with electronic contacts, allowing compatible Evoke fixtures to recognize and communicate with the attached accessory.

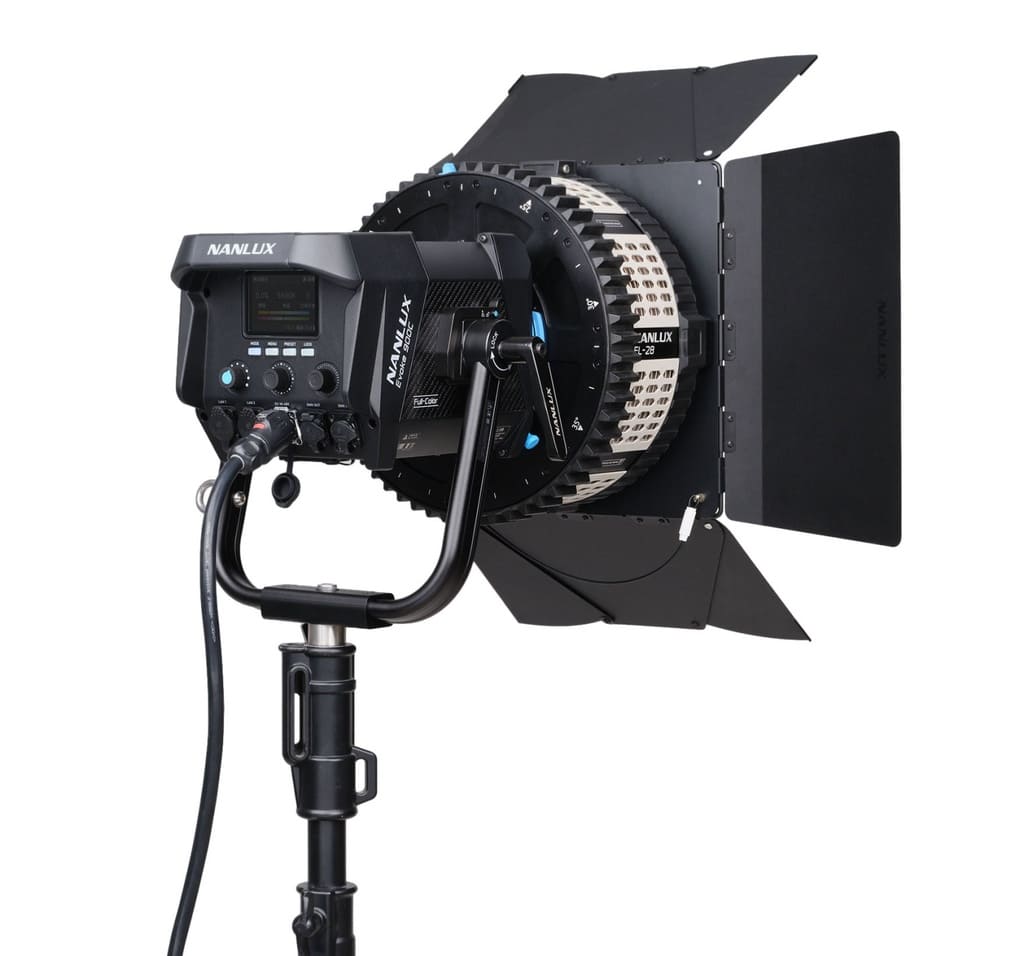

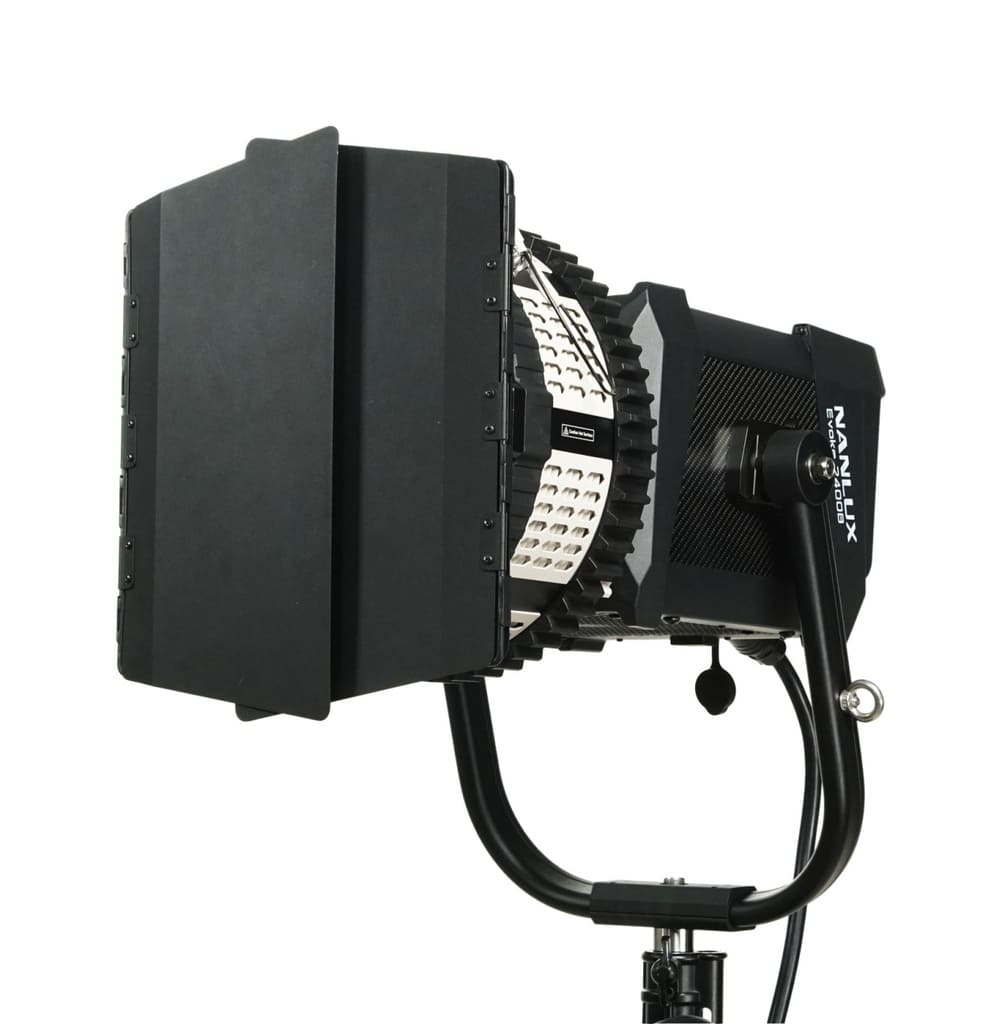

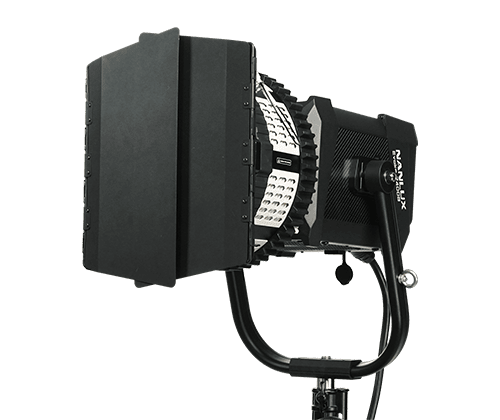

The FL-28 also includes barndoors for additional control over light spill and beam shaping. Its compact construction weighs approximately 3.86 kg excluding barndoors, providing a significantly more portable Fresnel solution for professional lighting crews.

Key Features

• Lightweight and compact NL Mount Fresnel Lens
• Adjustable 17°–43° beam angle
• Designed for NANLUX Evoke series LED spotlights
• Up to 50,330 lux @ 3m, 5600K, 17° with Evoke 1200B
• Up to 38,580 lux @ 3m, 5600K, 17° with Evoke 900C
• Precise beam with even illumination and defined edges
• NL Mount with electronic contacts

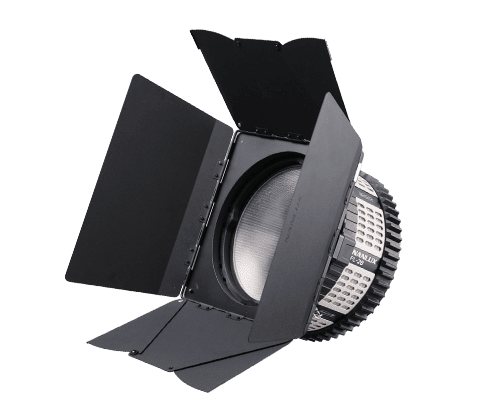

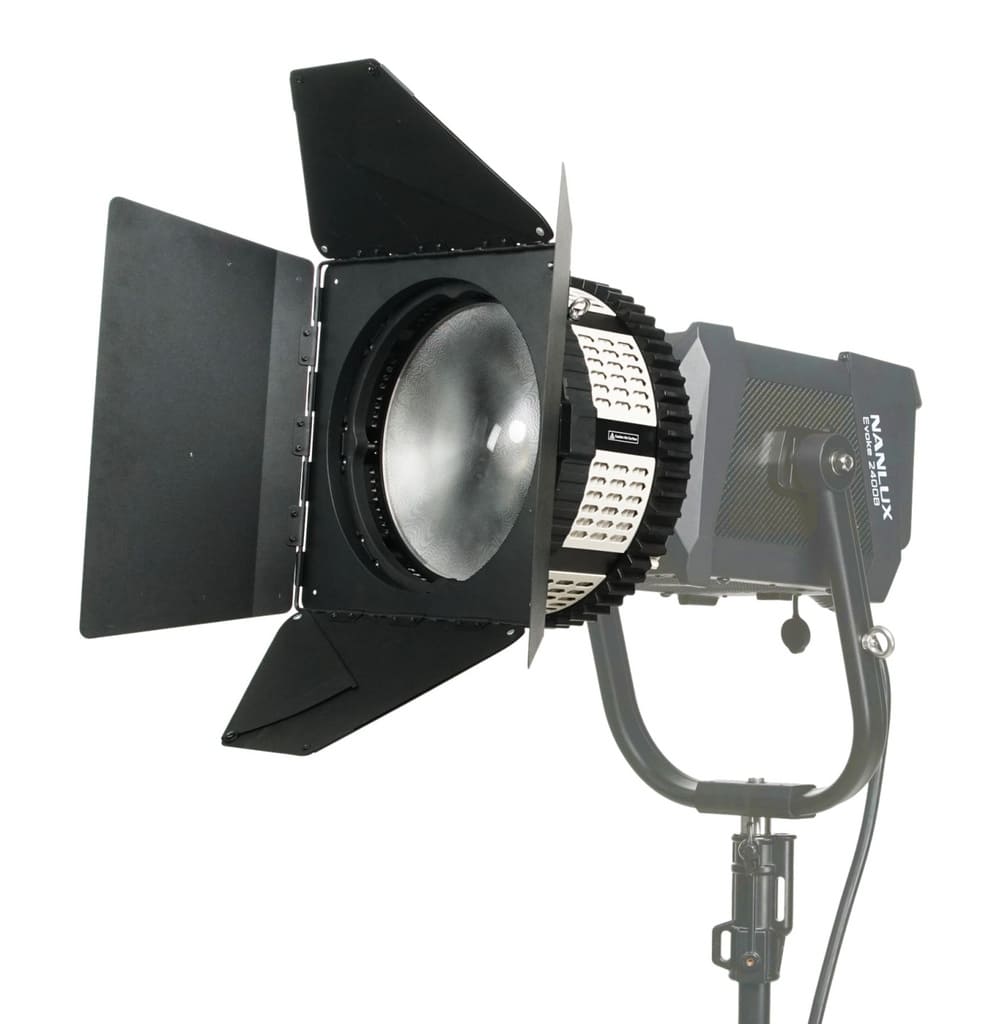

• Includes barndoors for additional light shaping
• Approx. 3.86 kg lens weight excluding barndoors
• Designed for easier transport and rigging
• Suitable for film, television, broadcast, studio and location production

Compatible NANLUX Lights

• NANLUX Evoke 900C
• NANLUX Evoke 1200
• NANLUX Evoke 1200B

Includes

• FL-28 Fresnel Lens × 1
• Barndoors × 1

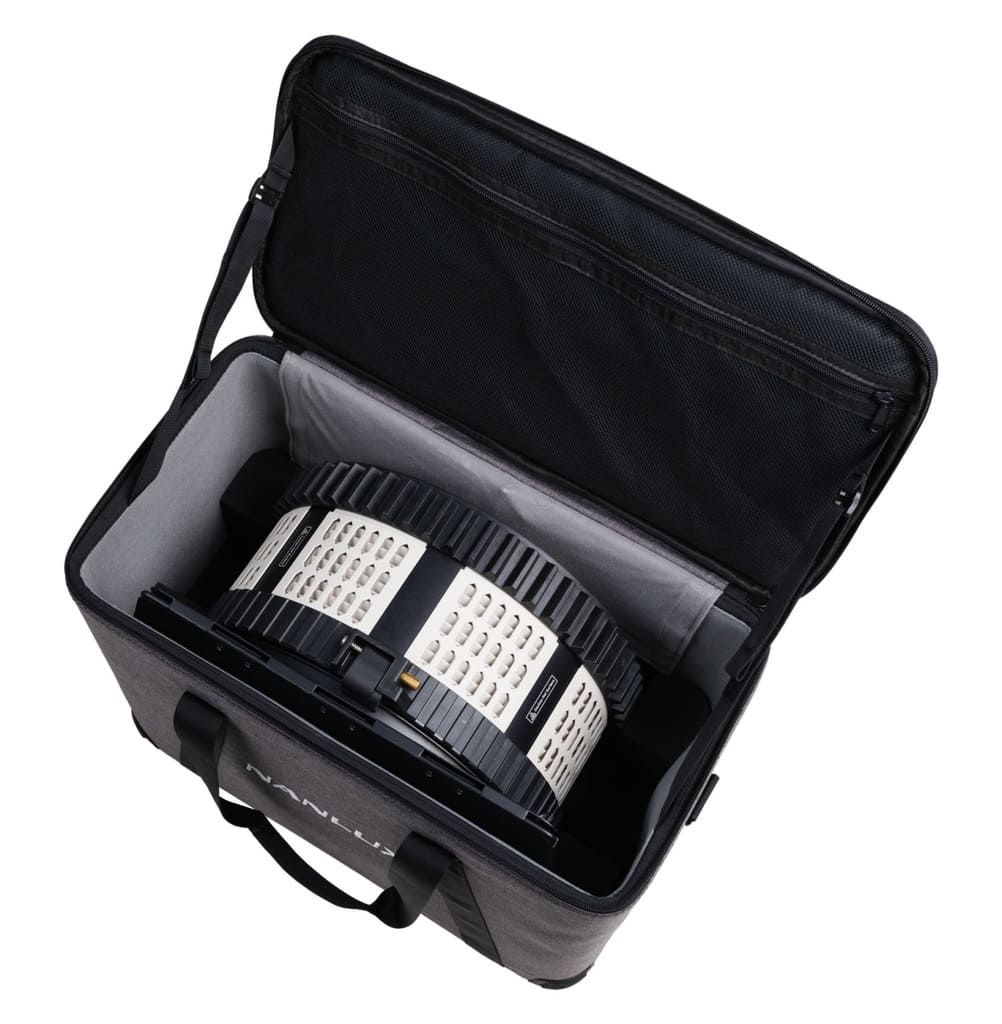

• Trolley Case × 1
