MOSAIC TUBE 4 KIT

Description

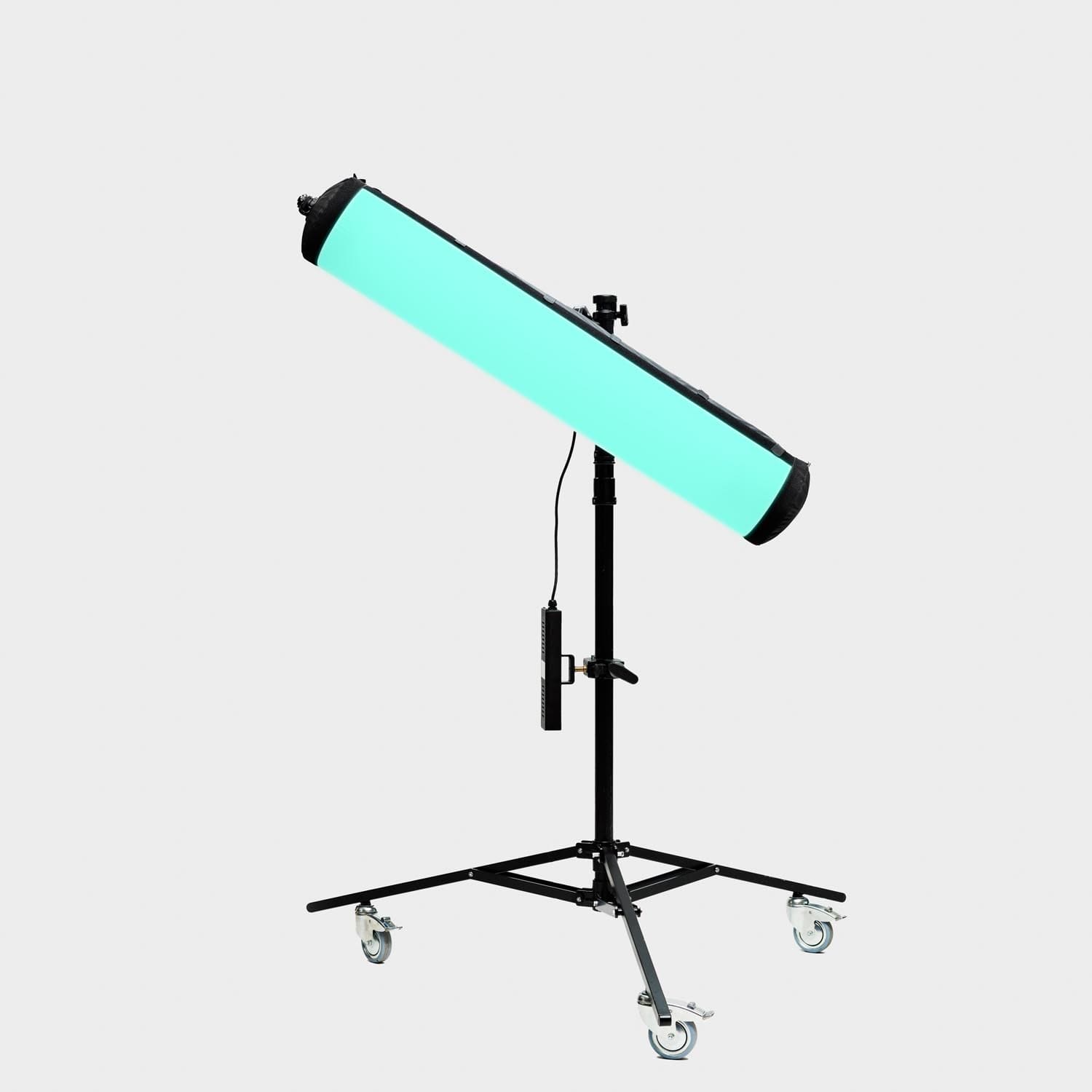

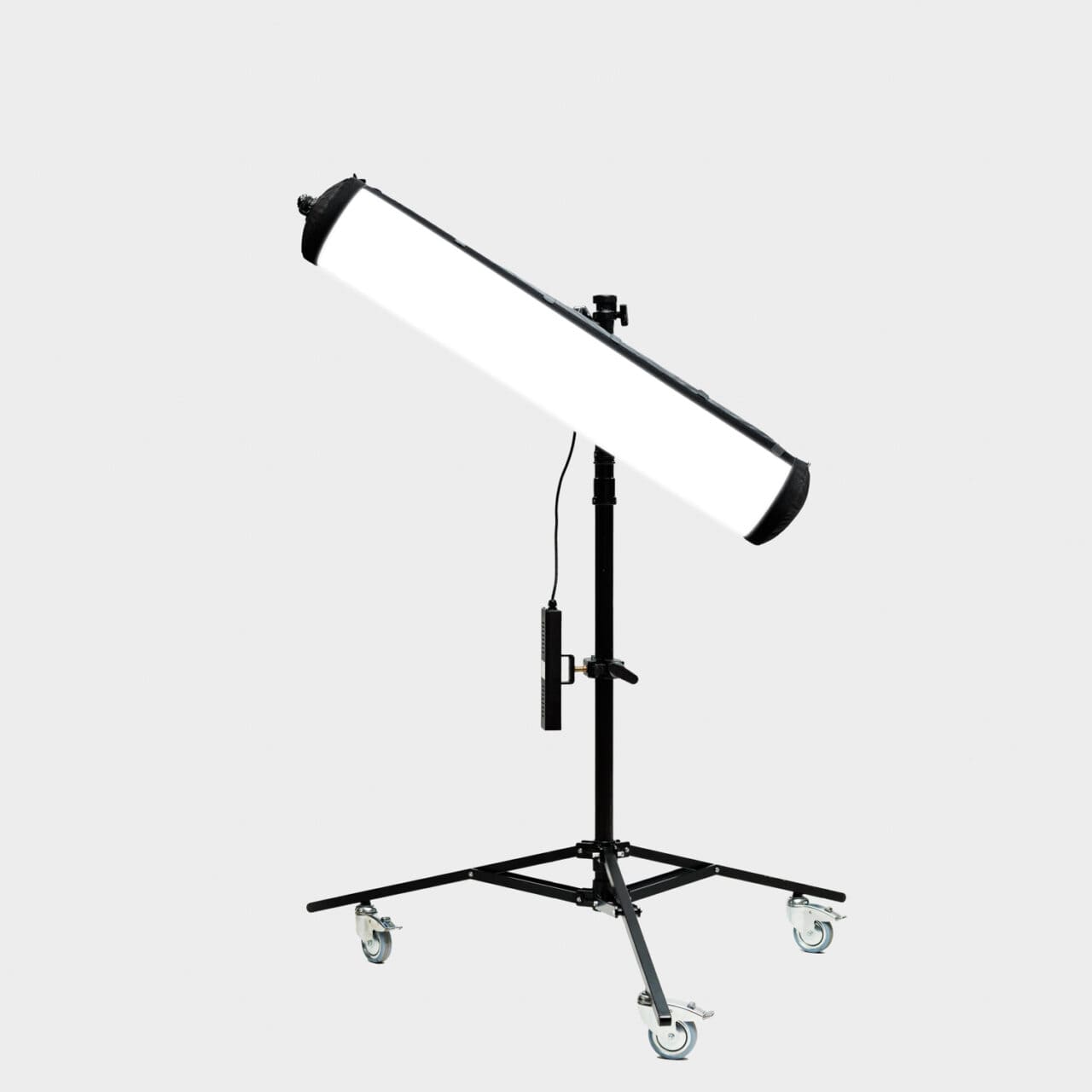

The Aladdin MOSAIC TUBE 4 KIT is a 100 W RGBWW inflatable LED tube lighting system engineered for professional filmmakers, videographers, photographers, and creative lighting designers. This versatile tube light blends high-quality full-color illumination (RGBWW) with an ultra-lightweight, inflatable design, making setup and rigging effortless. It offers wide color temperature range, broad beam spread, and flexible control options — and comes as a complete kit with mounting hardware, dimmer, power accessories, air pump, and a carry case for convenient transport and protection.

Key Features (Point-Wise)

• 100 W RGBWW Light Source: Delivers rich, full-color output with both RGB and white LEDs for creative color effects and versatile illumination.

• Wide Color Temperature Range: Adjustable from 2200 K to 12000 K for warm to cool lighting and seamless integration with ambient or fixture light.

• High Color Accuracy: Excellent color rendering with CRI 95 / TLCI 95, ensuring natural skin tones and accurate colors suited for professional video and photography.

• Flexible Inflatable Tube Design: The 4 ft (≈120 cm) inflatable tube with 20 cm diameter provides soft, even illumination and creative placement options — perfect for fill, accent, or atmospheric lighting.

• Wide Beam Angle: ~140° beam spread produces broad, even coverage without harsh hotspots.

• Lightweight & Portable: LED panel weight ~1 kg and air tube ~1 kg make the system easy to transport and mount in tight spaces or on diverse rigging setups.

• Multi-Control Options: Supports DMX512, built-in LumenRadio wireless, and Bluetooth control — enabling adjustments from consoles or via the free Aladdin app.

• Smooth Dimming (1–100 %): Fine-grain dimming without color shift via the included MOSAIC Wired Dimmer unit, allowing precise light intensity control.

• Inflatable Setup with Pump: Comes with an air pump and inflatable tube with skirt — enabling quick deployment and stable light shaping in any direction.

• Modular MOSAIC System: MOSAIC plug-in compatibility lets you use additional accessories such as extension cables or future modules within the MOSAIC ecosystem.

• Ready-to-Use Complete Kit: Includes all essential mounting and connection accessories for immediate setup on set or location

What’s Included

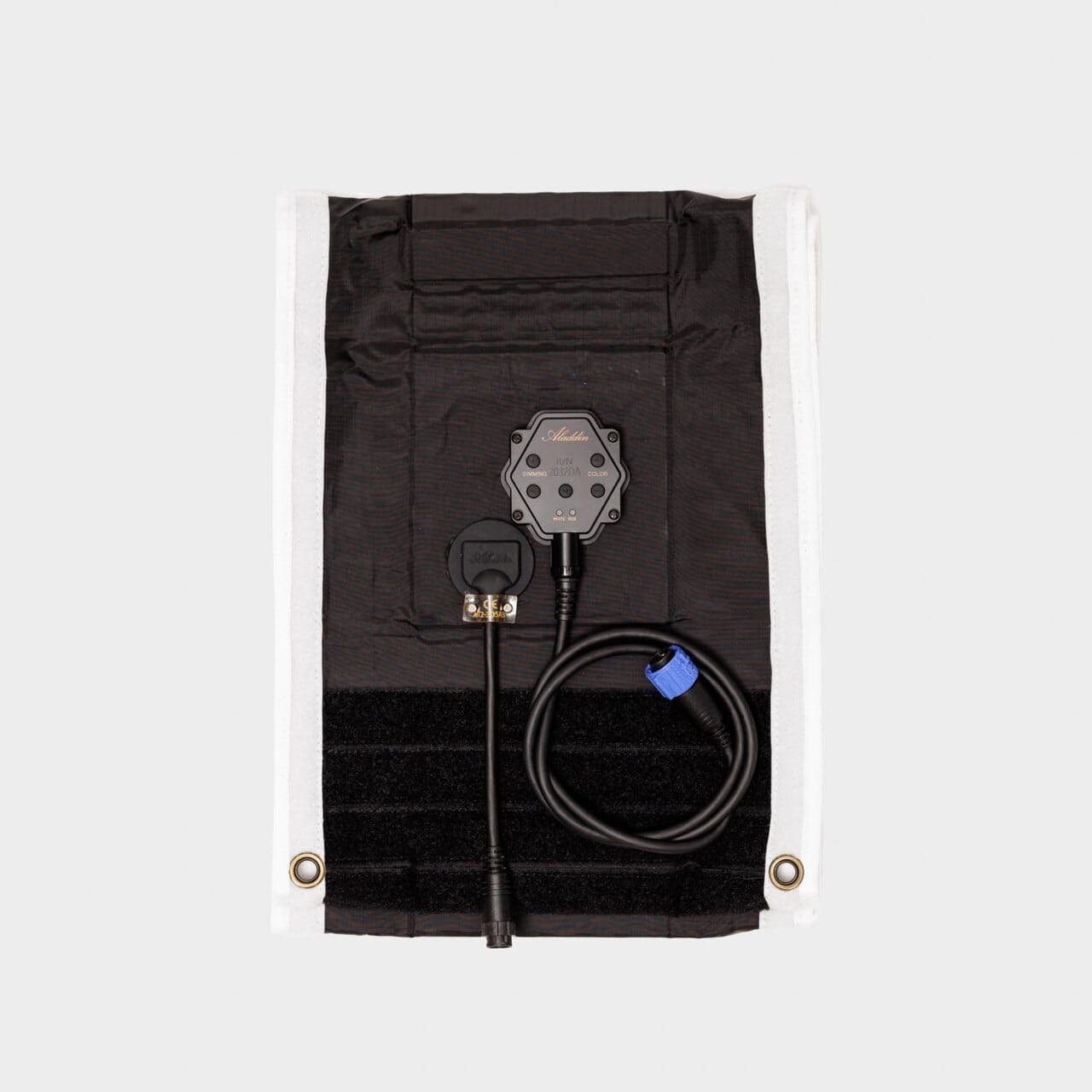

• 1 × MOSAIC TUBE 4 LED Panel — 100 W RGBWW light source

• 1 × Air Tube 4 (w/ skirt) — inflatable light body for diffused illumination

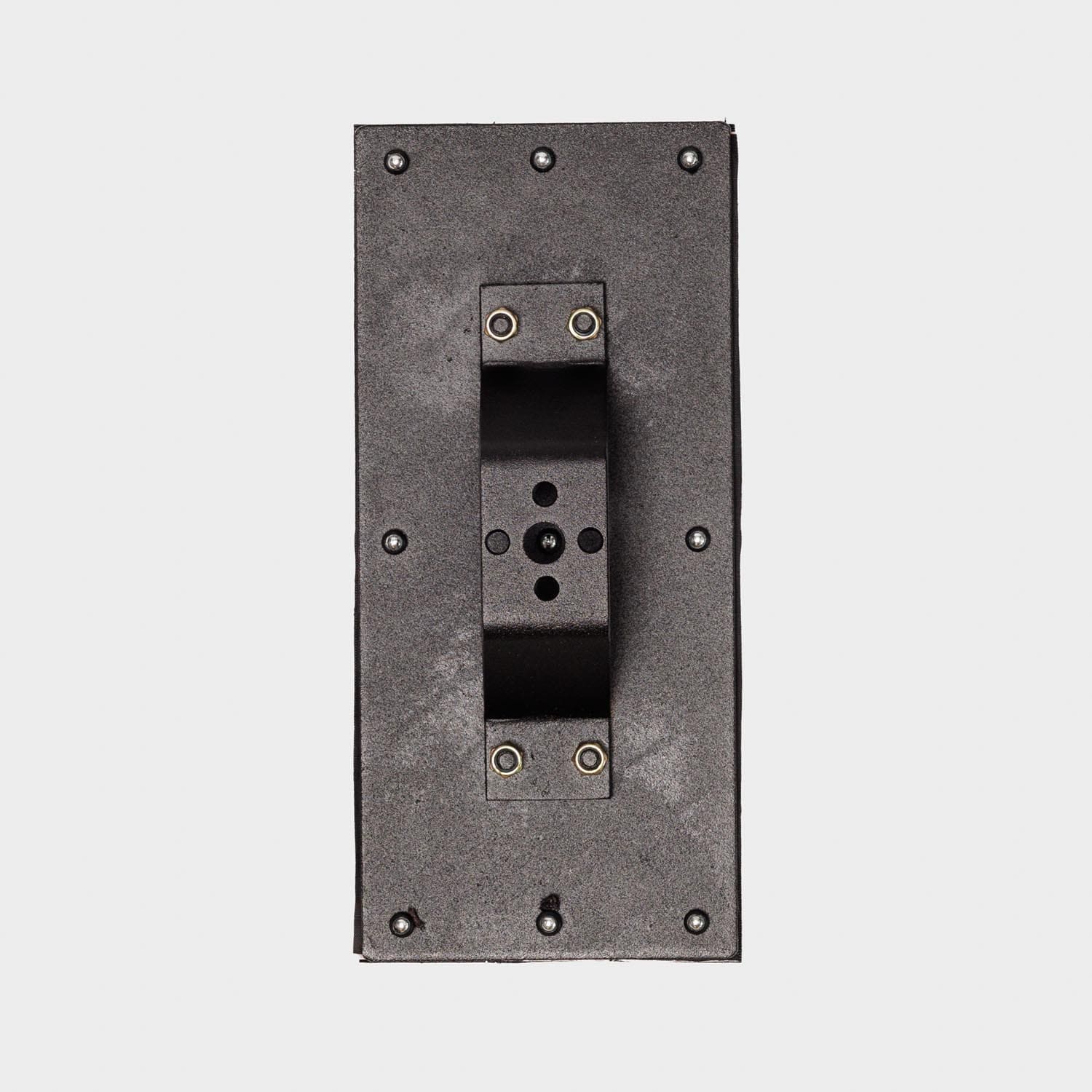

• 1 × Mounting Plate — base for mounting accessories

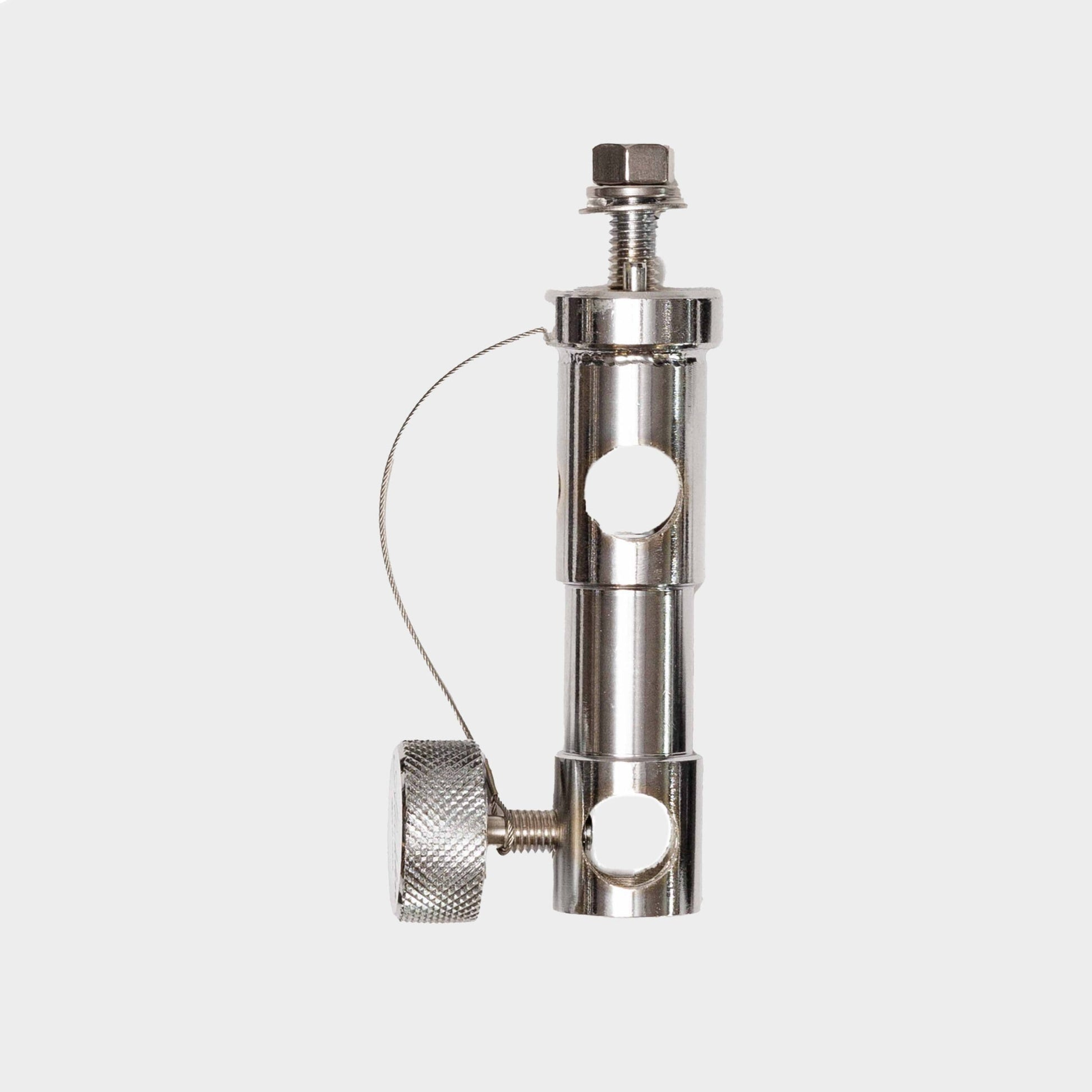

• 1 × Stand Adapter — for mounting on light stands

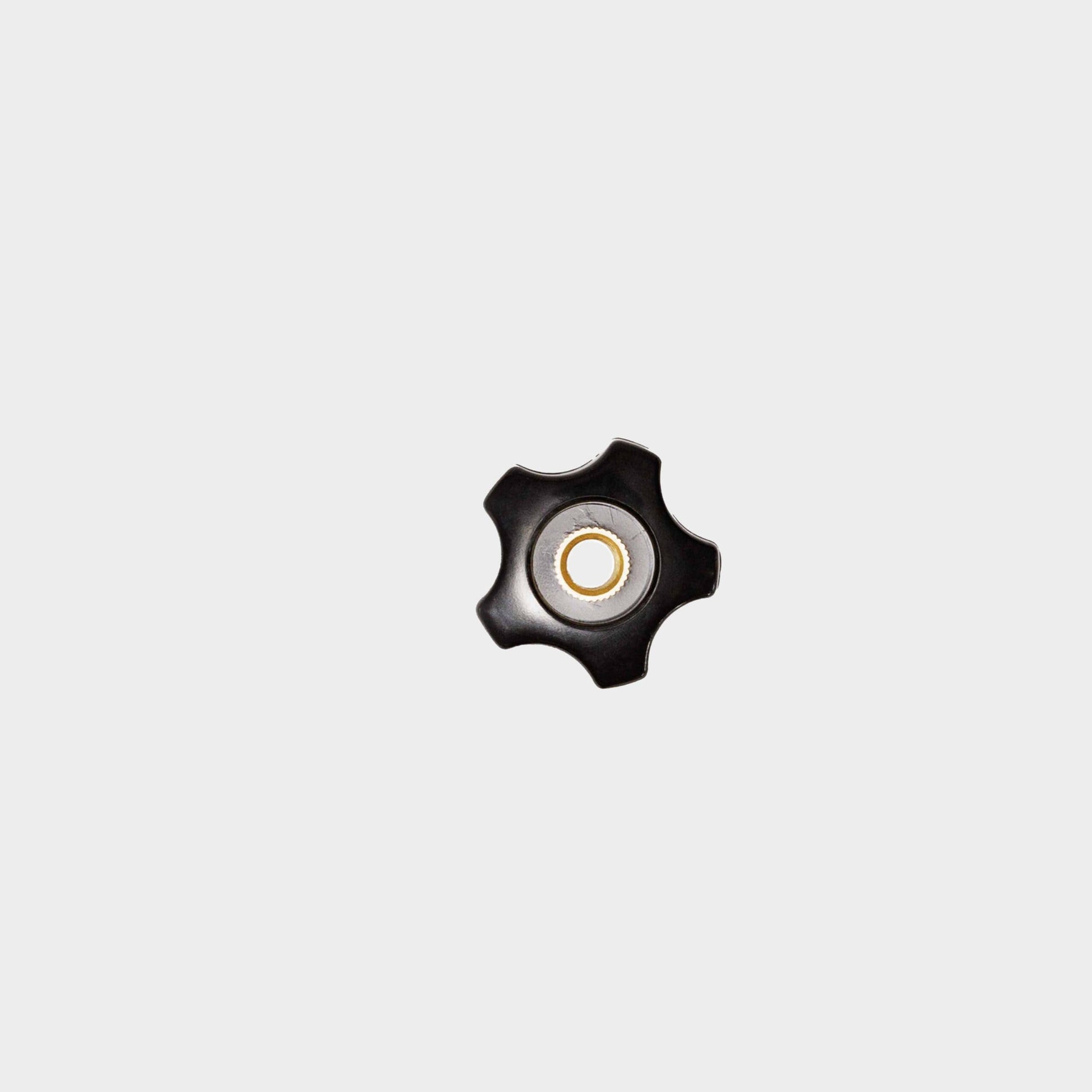

• 1 × Stand Adapter Knob — secure fastener for stand mount

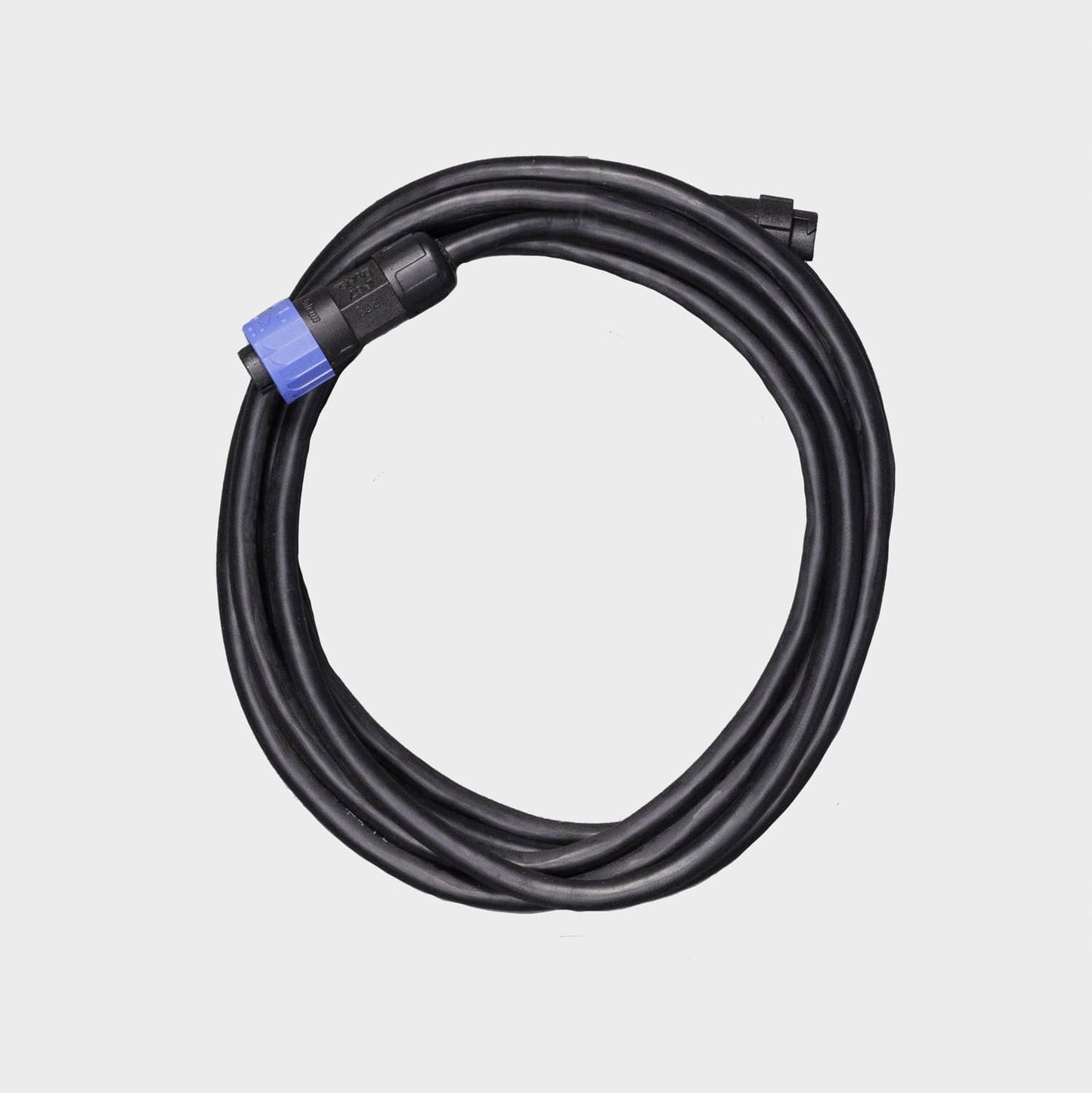

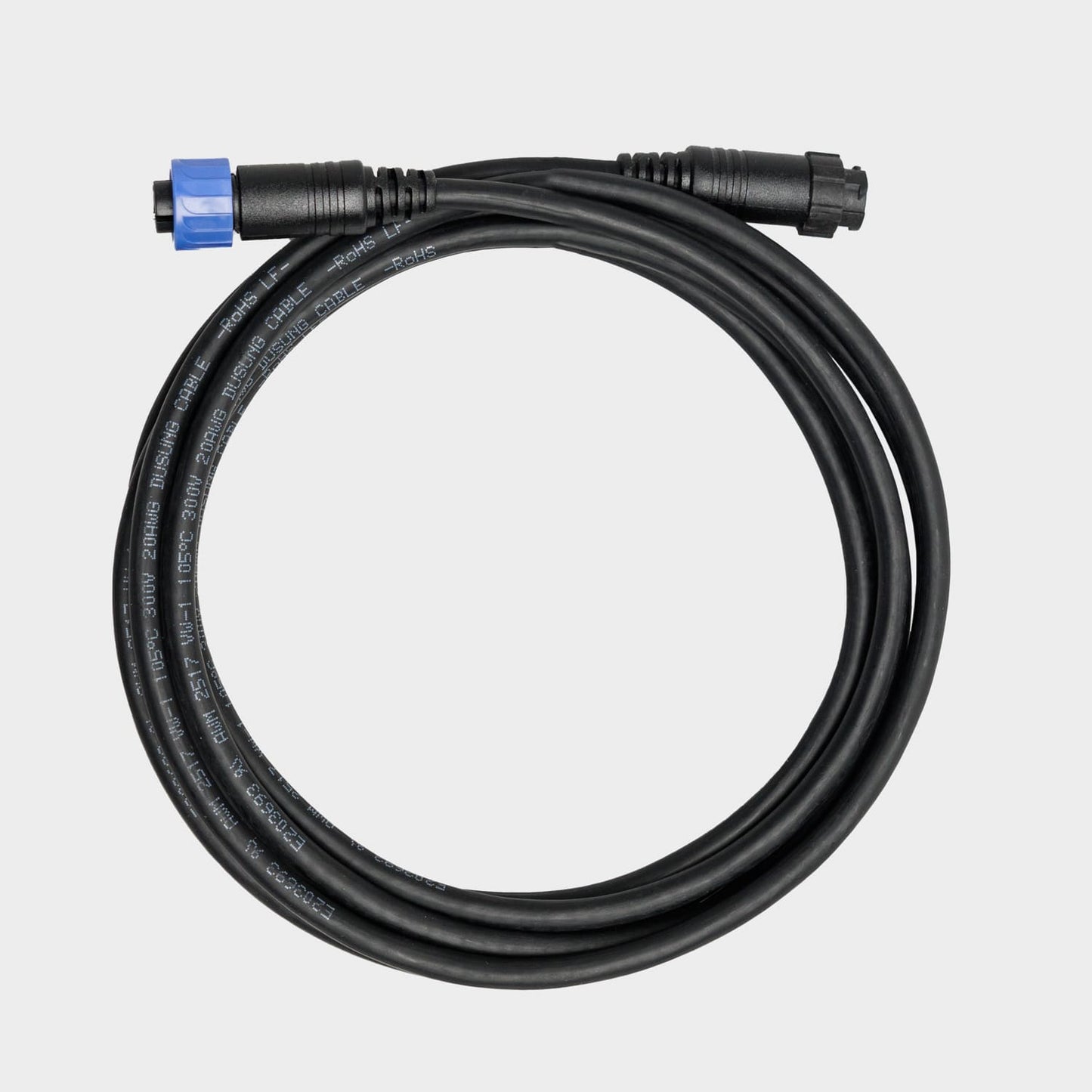

• 1 × Extension Cable (Power) — for PSU connection

• 1 × Extension Cable (Wired Dimmer) — for remote control connection

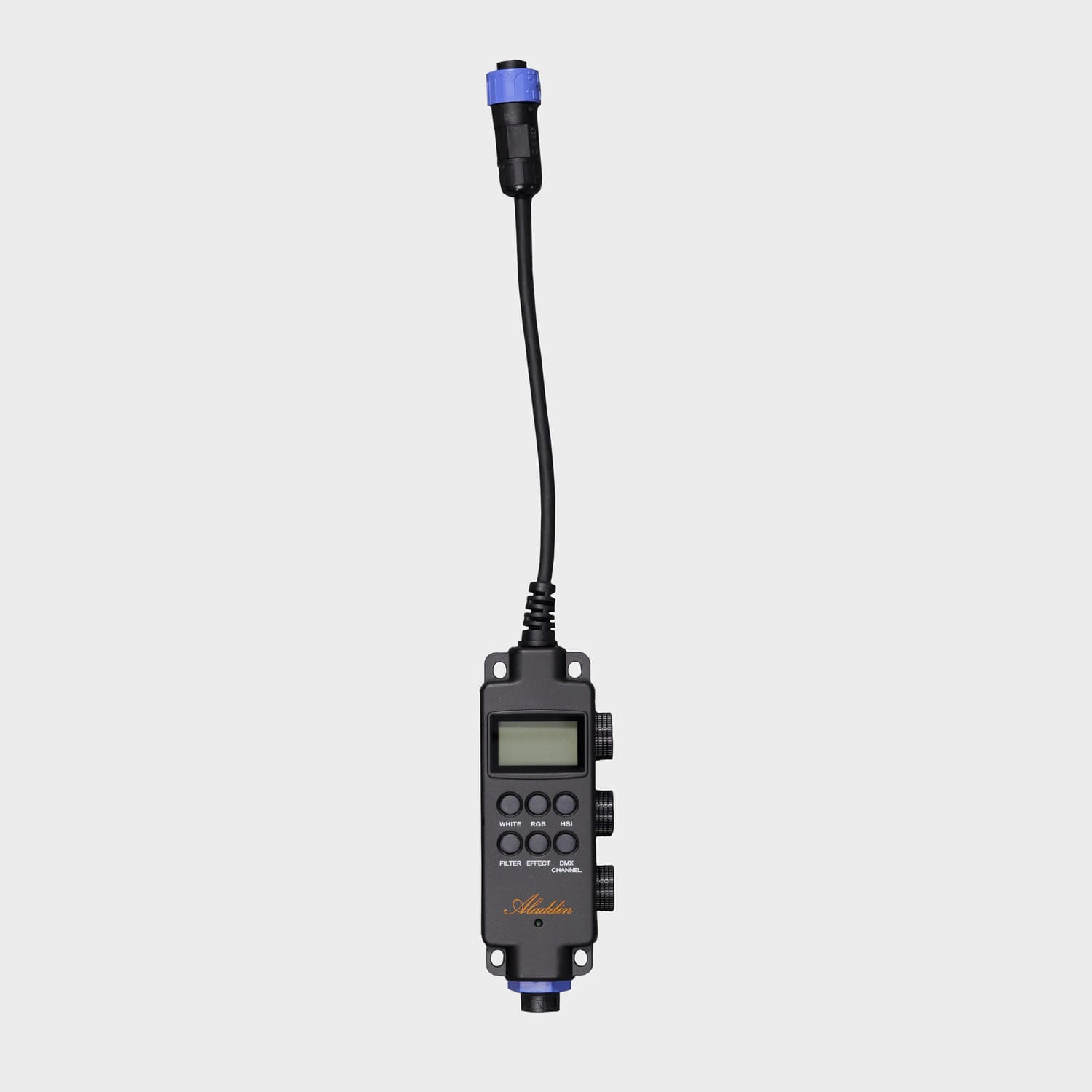

• 1 × MOSAIC Wired Dimmer — with DMX, LumenRadio & manual control

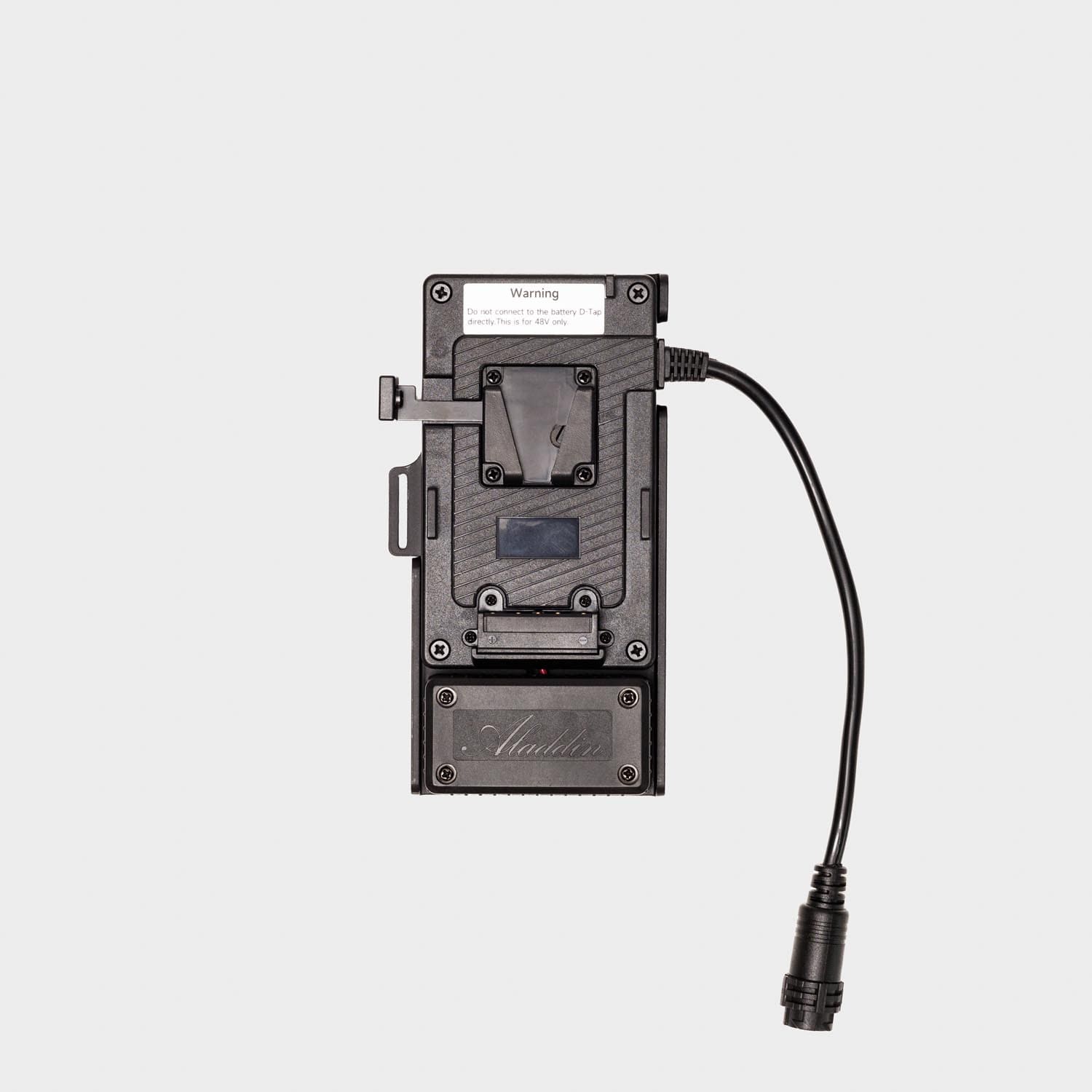

• 1 × V-Mount Plate — battery mount for off-grid power

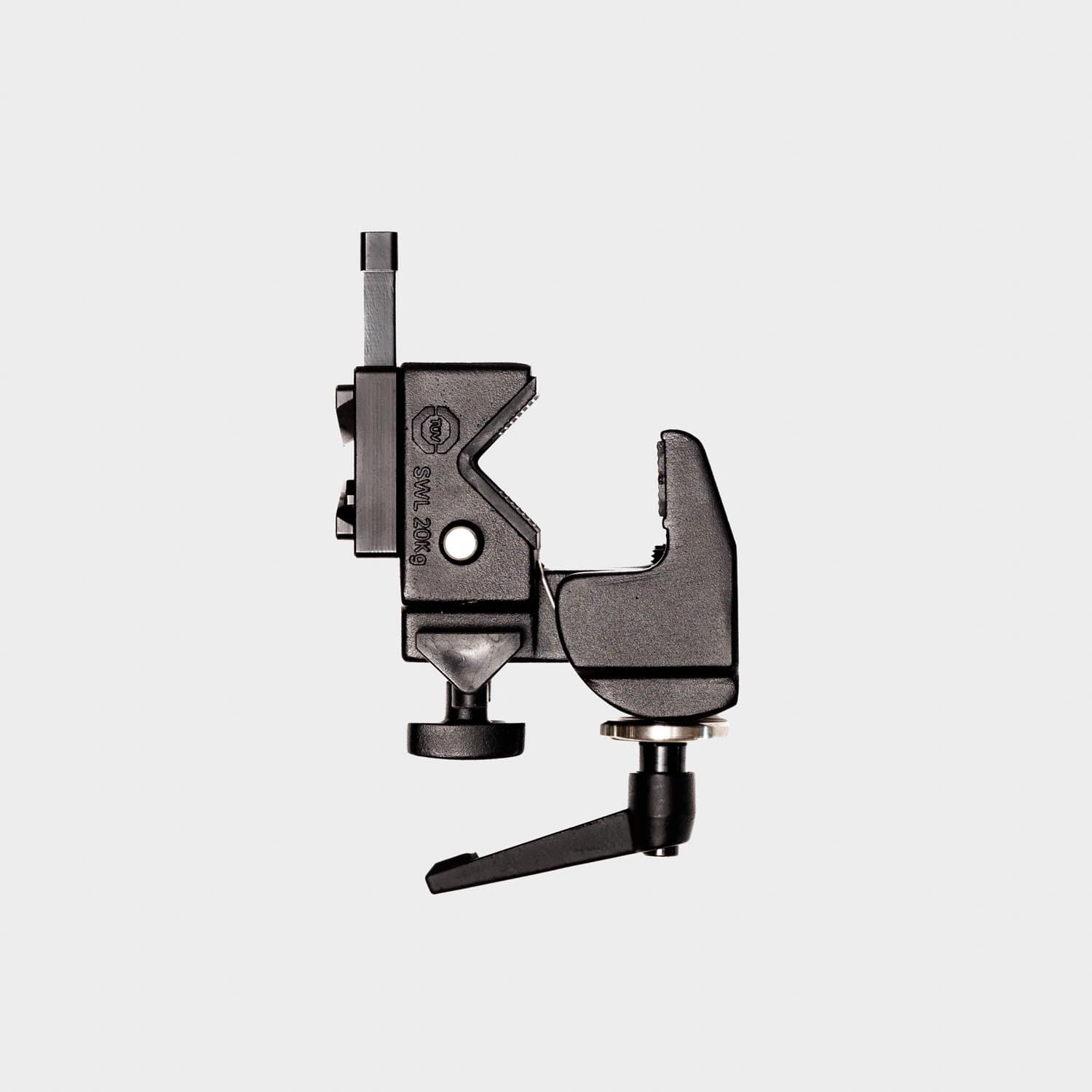

• 1 × V-Mount Clamp — secures V-Mount plate

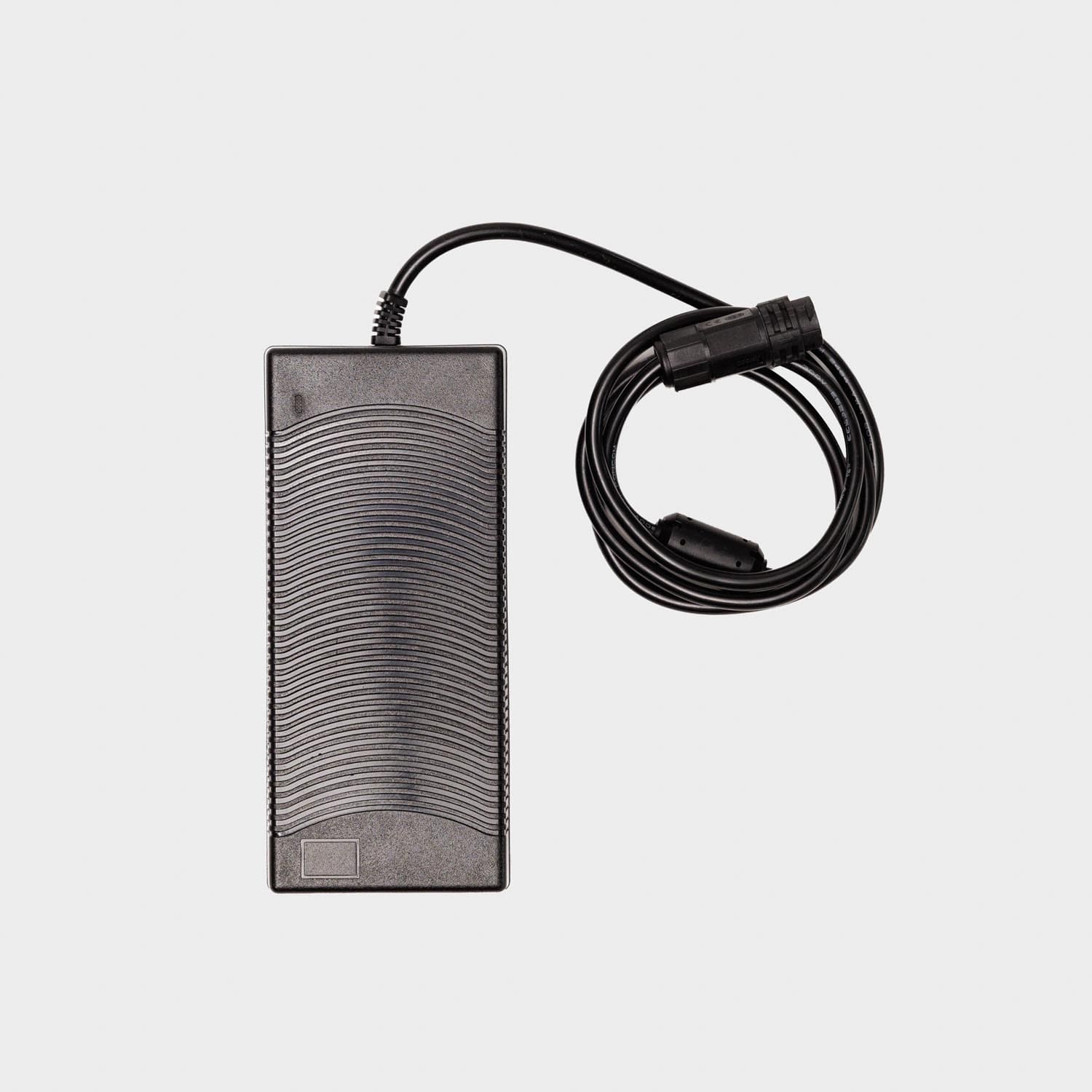

• 1 × AC Adapter — mains power supply

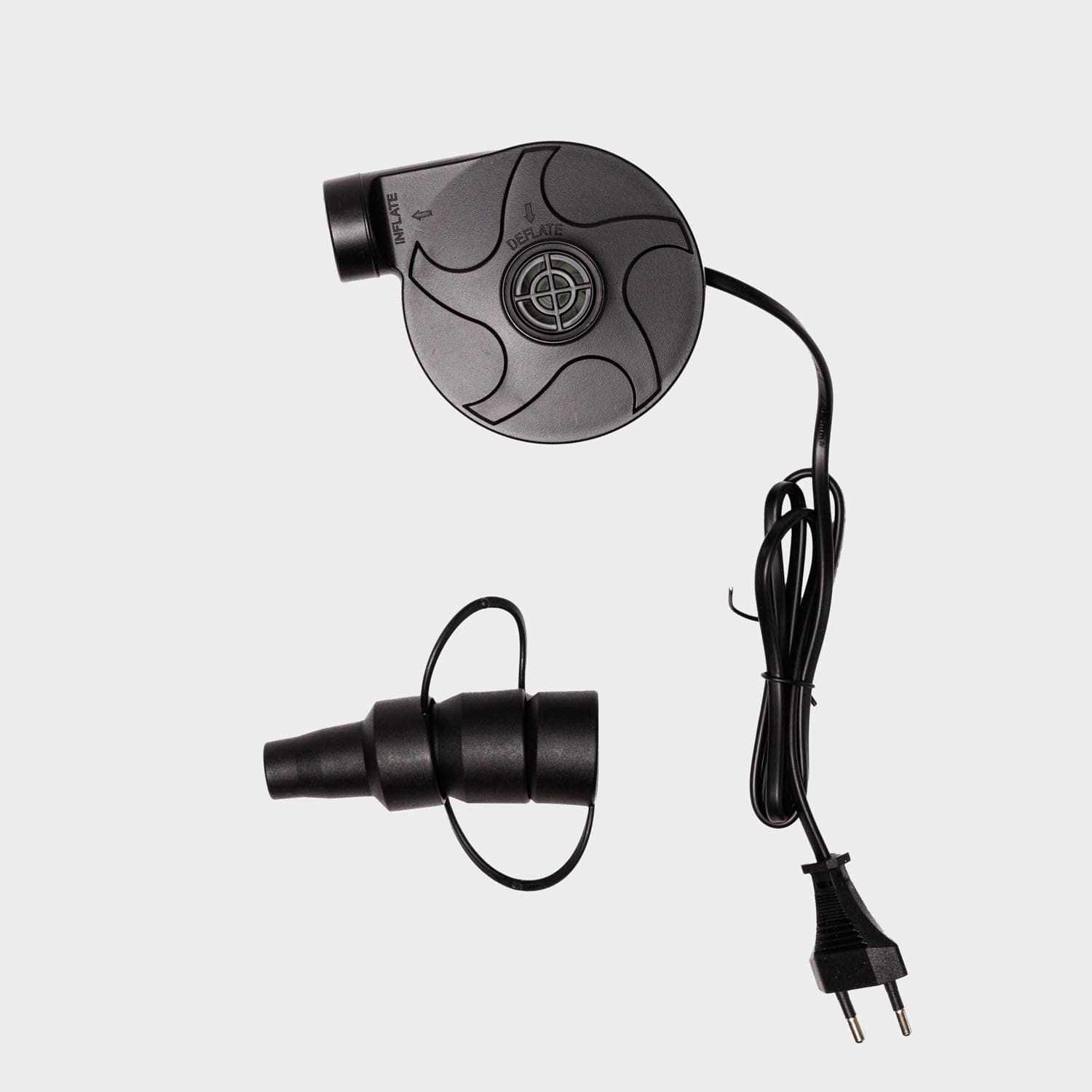

• 1 × Air Pump — inflatable tube setup

• 1 × V-Mount Holder — battery carrier

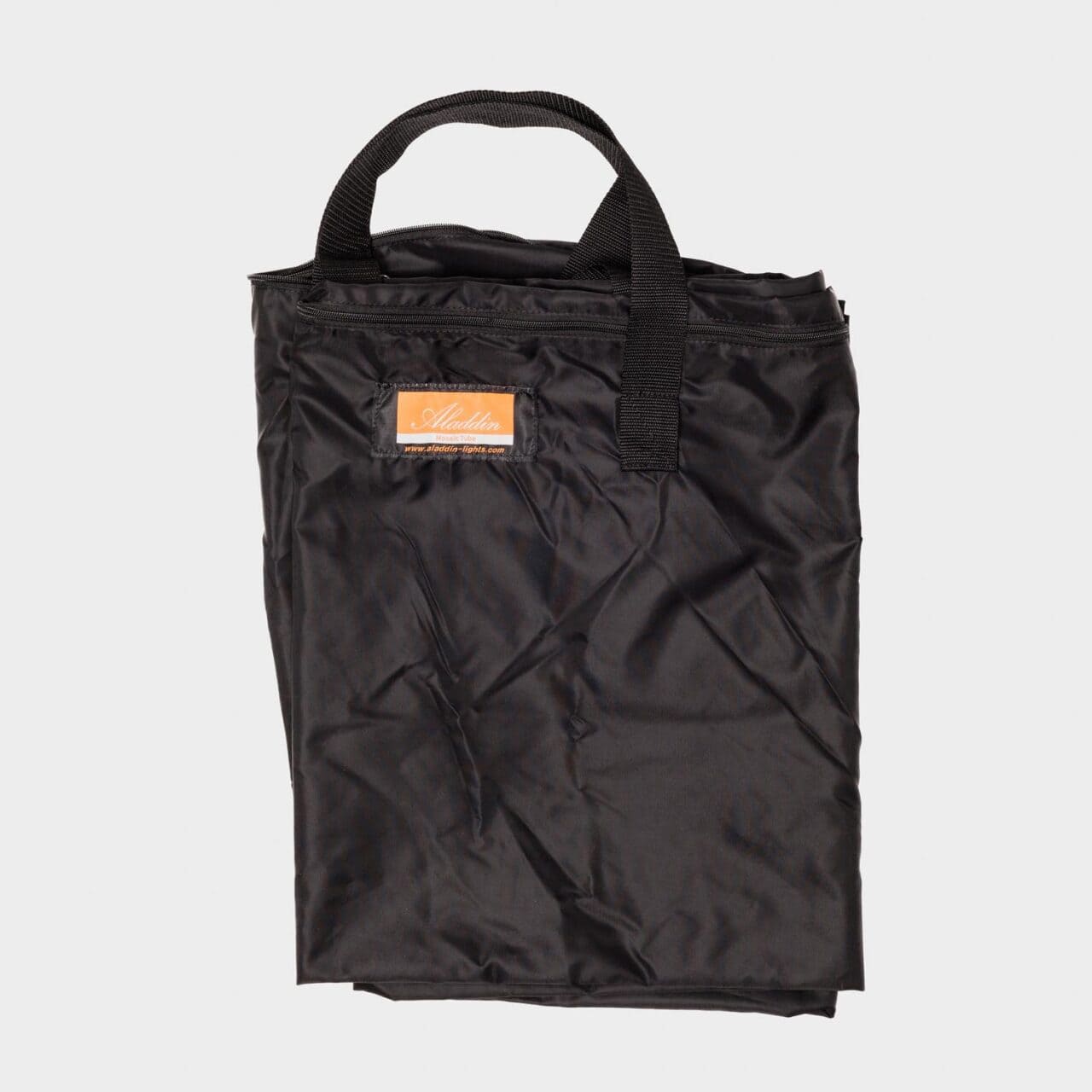

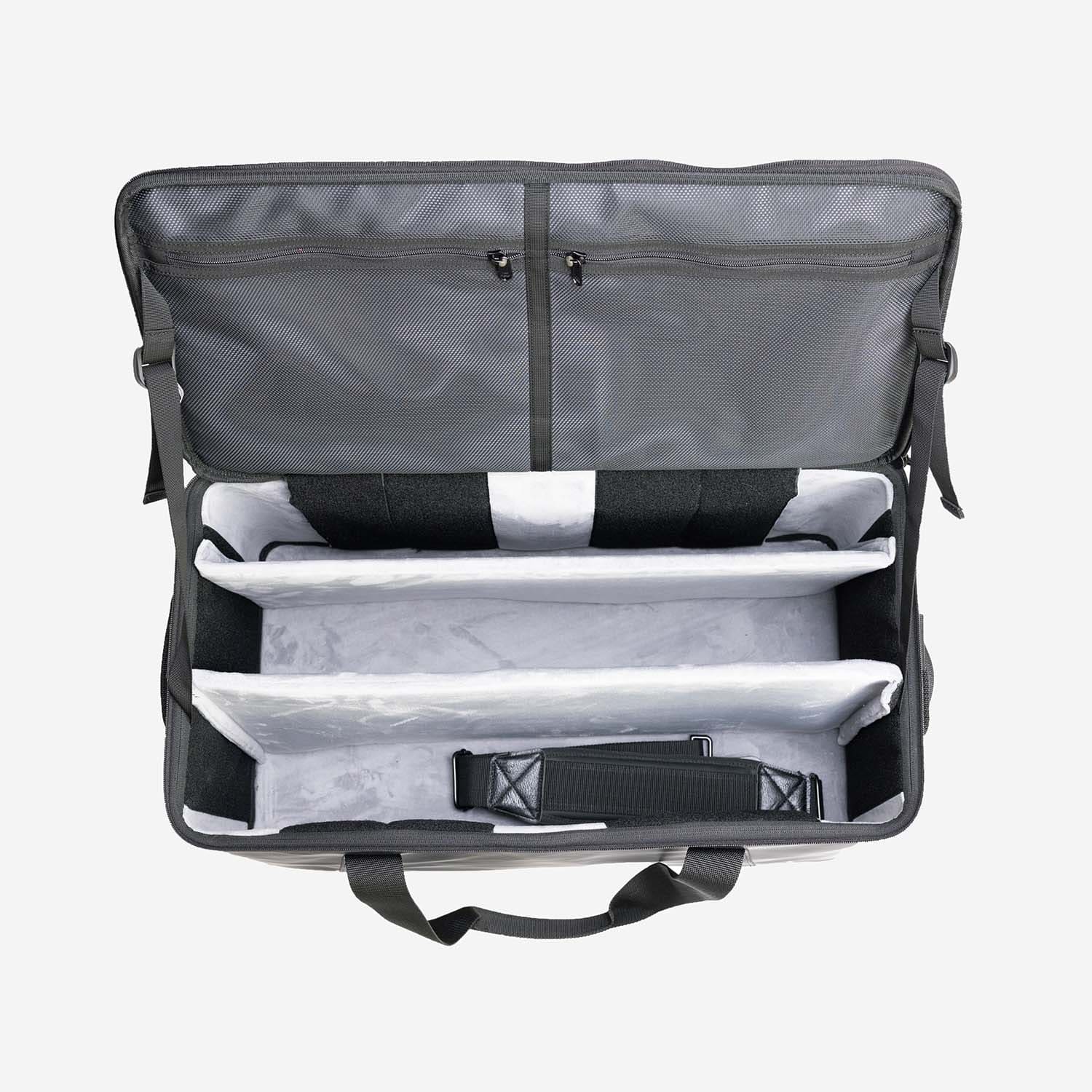

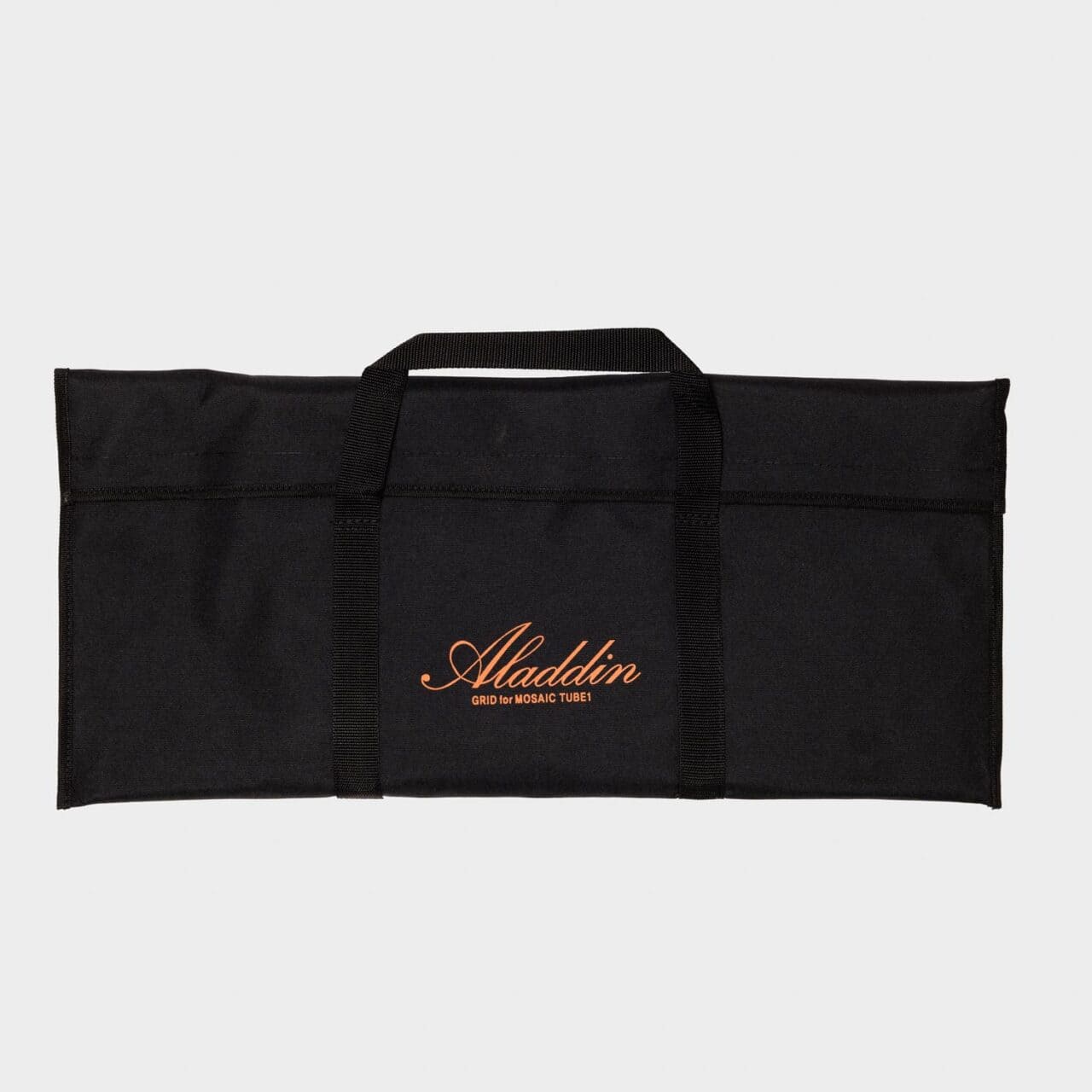

• 1 × Carry Case — protective transport case

Technical Specifications (Quick Reference)

• Light Source Power: 100 W RGBWW LEDs

• Color Temperature: 2200 K – 12000 K

• Color Accuracy: CRI 95 / TLCI 95

• Beam Angle: ~140°

• Input Power: AC/DC 100 – 240 V / 14.8 V

• Dimming: 1 % – 100 % via wired dimmer

• Control: DMX512, LumenRadio Wireless, Bluetooth

• Tube Size: 4 ft (≈120 cm) × Ø 20 cm

• Weights: ~1 kg (LED panel) + ~1 kg (air tube)
