MOSAIC 3X6 Full Kit

Description

The Aladdin MOSAIC 3×6 RGBWW Full Kit is a professional 600 W flexible RGBWW LED lighting system designed for film, broadcast, photography, virtual production, and creative lighting applications. It features a large foldable 89 × 178 cm panel with high color accuracy and advanced control options, packaged with essential accessories — making it ready for versatile use on set or in studio environments.

Key Features (Point-Wise)

• 600 W RGBWW LED Panel: Delivers powerful light output and full RGBWW color mixing for rich hues, tungsten, and daylight performance suitable for cinematic and photography use.

• High Color Accuracy: CRI and TLCI over 95 ensures natural and accurate color reproduction for professional imaging and true-to-life skin tones.

• Wide Color Temperature Range: Adjustable from ~2200 K up to ~12000 K, covering warm and cool lighting needs as well as creative effects.

• Flexible Foldable Design: The panel folds compactly (~40 × 50 cm) for easy transportation and offers multiple mounting possibilities thanks to Velcro and eyelet options.

• Wide Beam Angle: ~140° beam spread provides broad, even illumination across subjects and scenes with minimal hotspots.

• Advanced Control Options: Integrated support for DMX512, built-in LumenRadio wireless, and Bluetooth app control (via the free Aladdin app) lets you adjust brightness and color settings remotely.

• Smooth Dimming: Offers full 1 %–100 % dimming for precise brightness control without color shift.

• Modular MOSAIC System: MOSAIC plug system allows compatibility with additional MOSAIC accessories such as wired dimmers, extensions, and frame modifiers.

• Fast-Changeable LED Compounds: Unique panel design supports replaceable LED compounds, letting you repair only LED segments instead of the entire panel (supported by tutorials).

• Multi-Voltage Operation: Works with AC/DC 100–240 V or 48 V DC inputs for flexible power setups in studio or on location.

• Professional Kit Integration: Designed as a complete solution with all standard rigging and power accessories included for immediate use on set.

What’s Included

Full Kit (M-3X6-KIT):

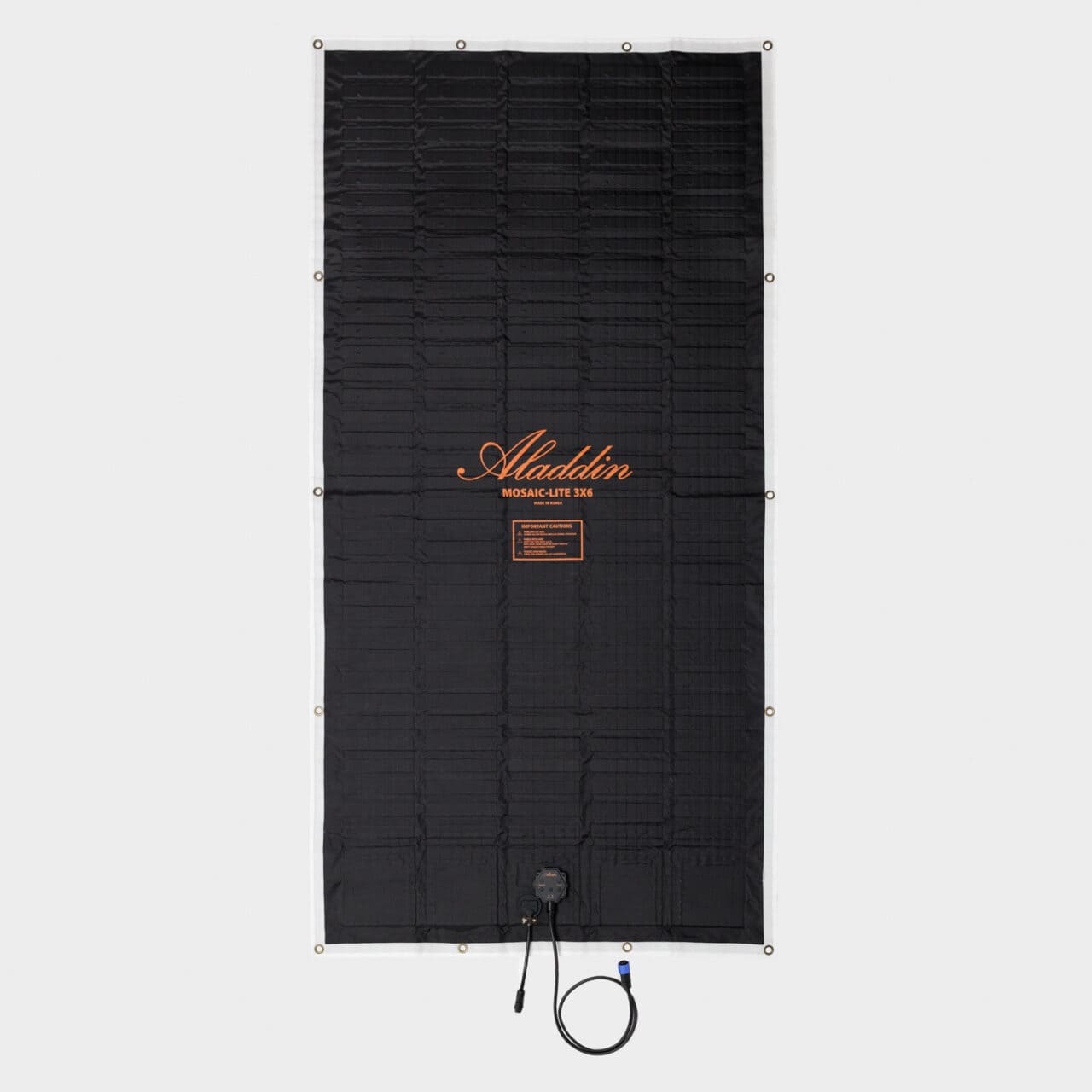

• 1 × MOSAIC 3×6 LED Panel (600 W RGBWW)

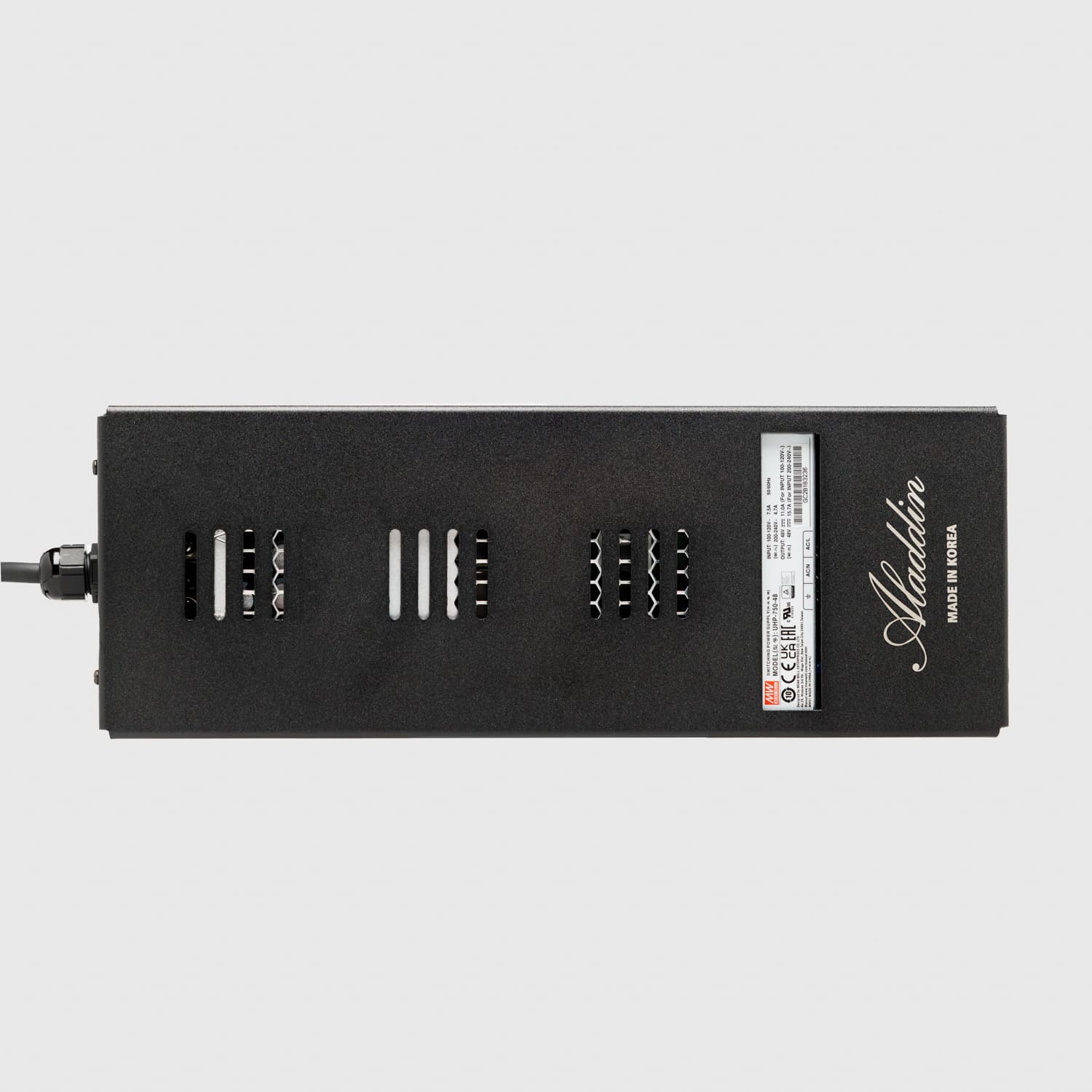

• 1 × MOSAIC 600W Power Supply

• 1 × Power Supply Holder (M-600-ACDC)

• 1 × Power Supply Extension Cable (2 m / 6 ft)

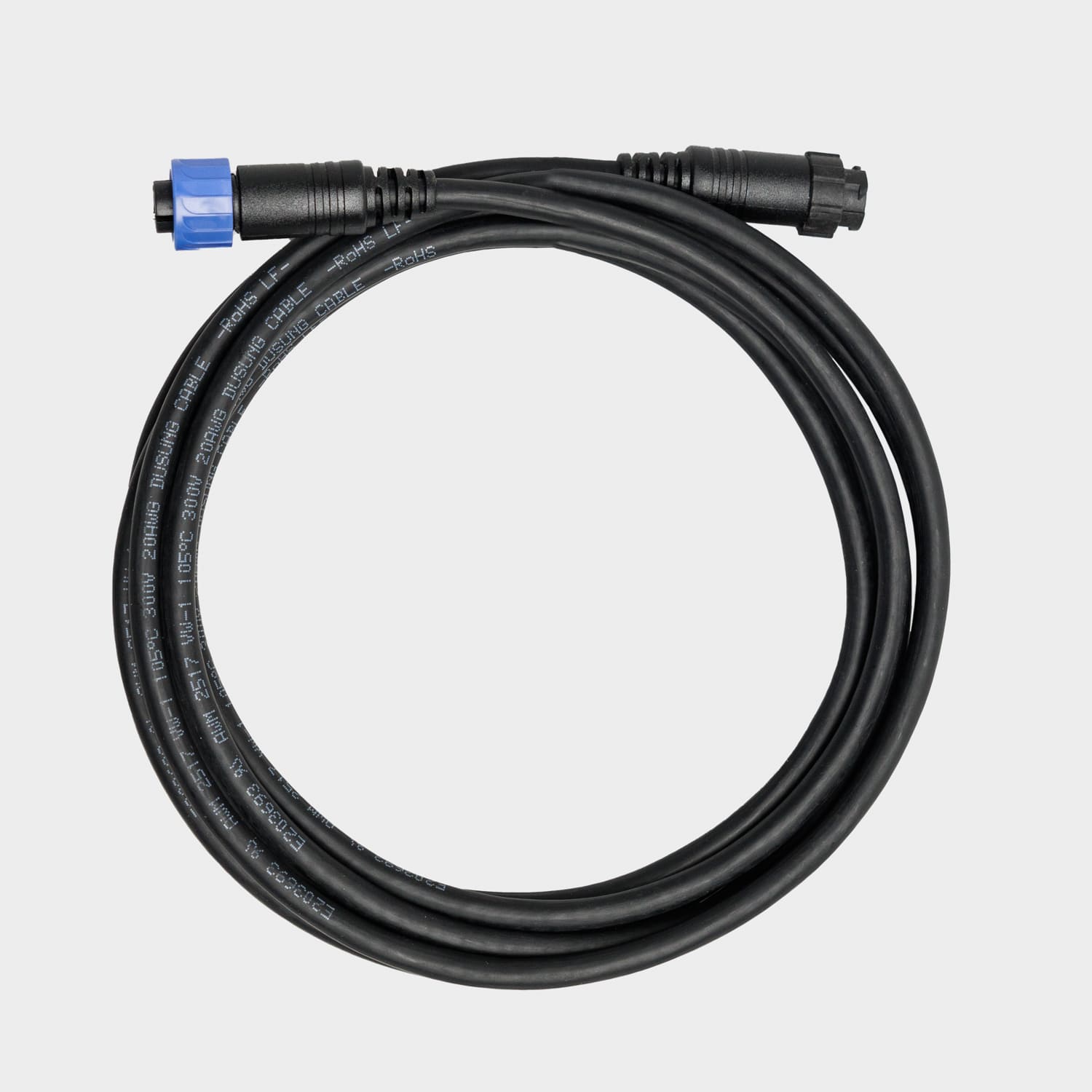

• 1 × MOSAIC Basic Cable (3 m / 9.8 ft)

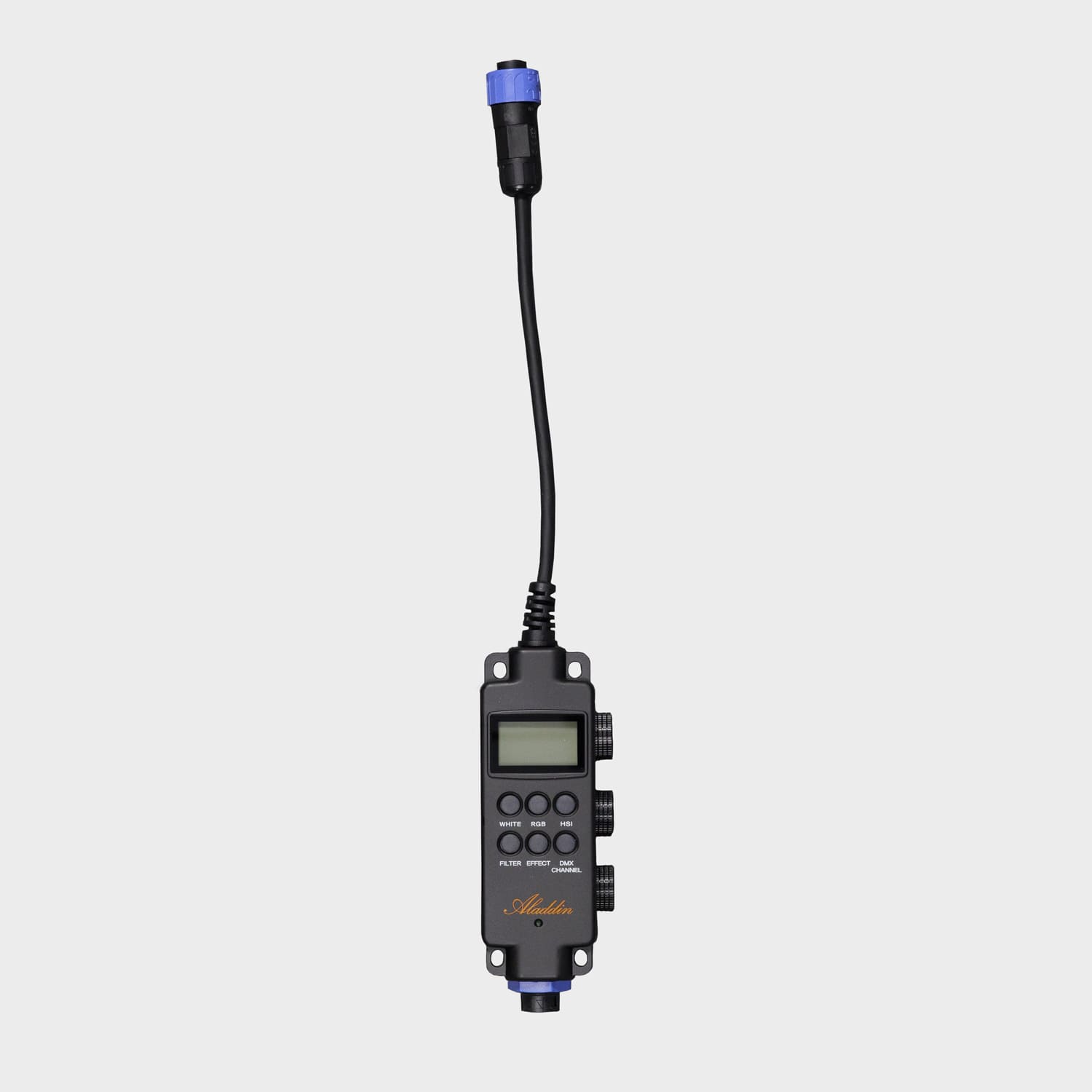

• 1 × MOSAIC Wired Dimmer (with DMX & built-in LumenRadio)

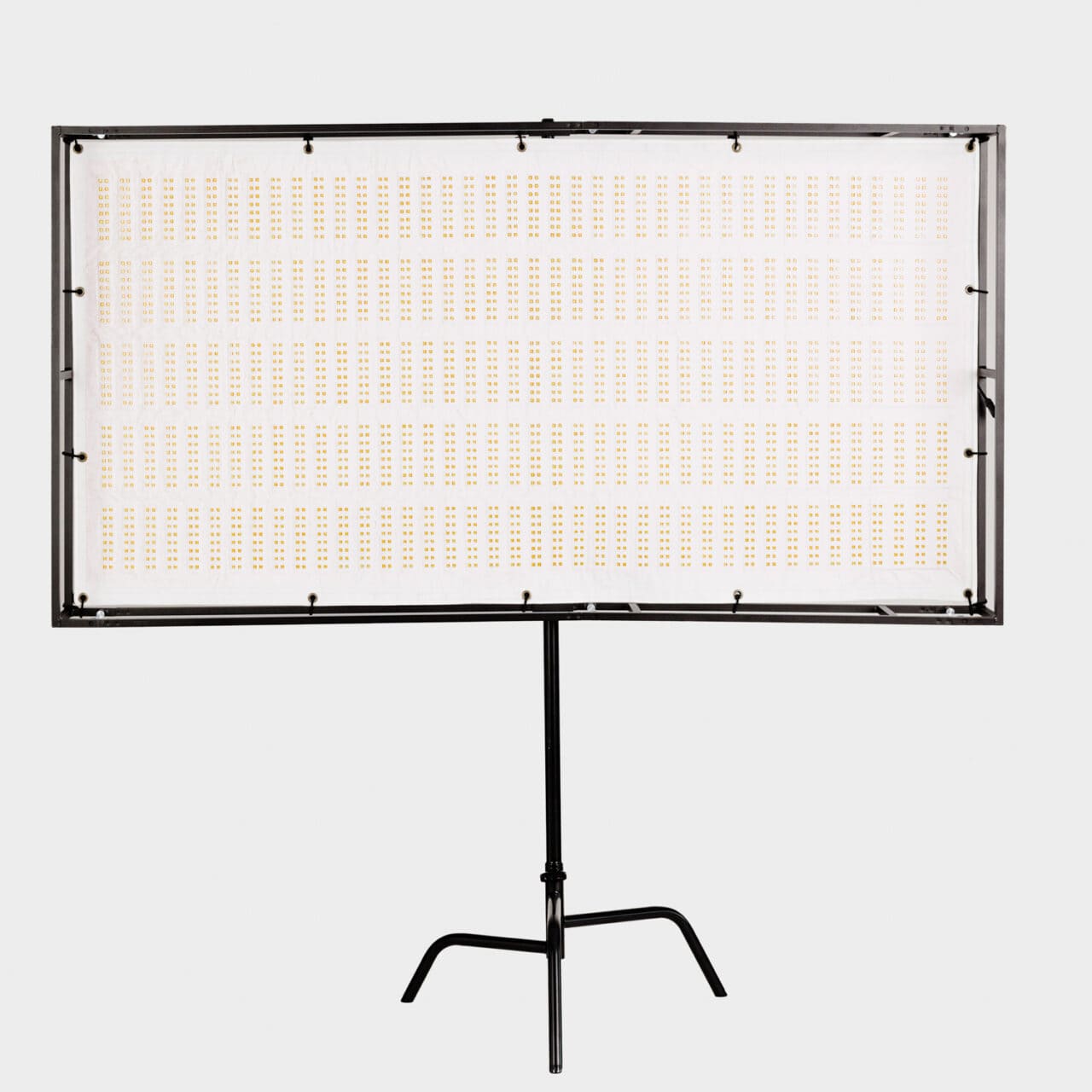

• 1 × MOSAIC 3×6 Frame

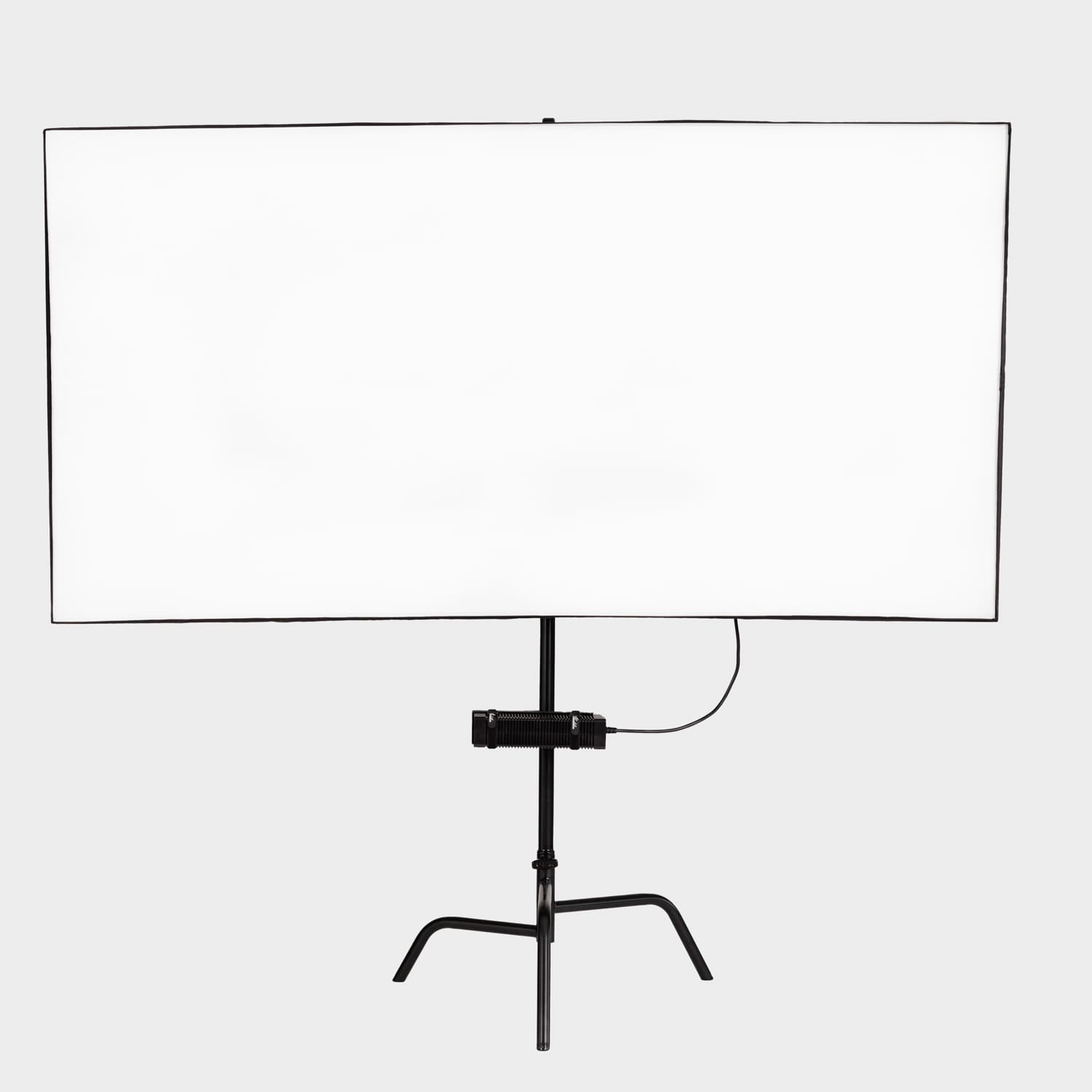

• 1 × Diffuser for Frame

• 1 × Grid for Frame

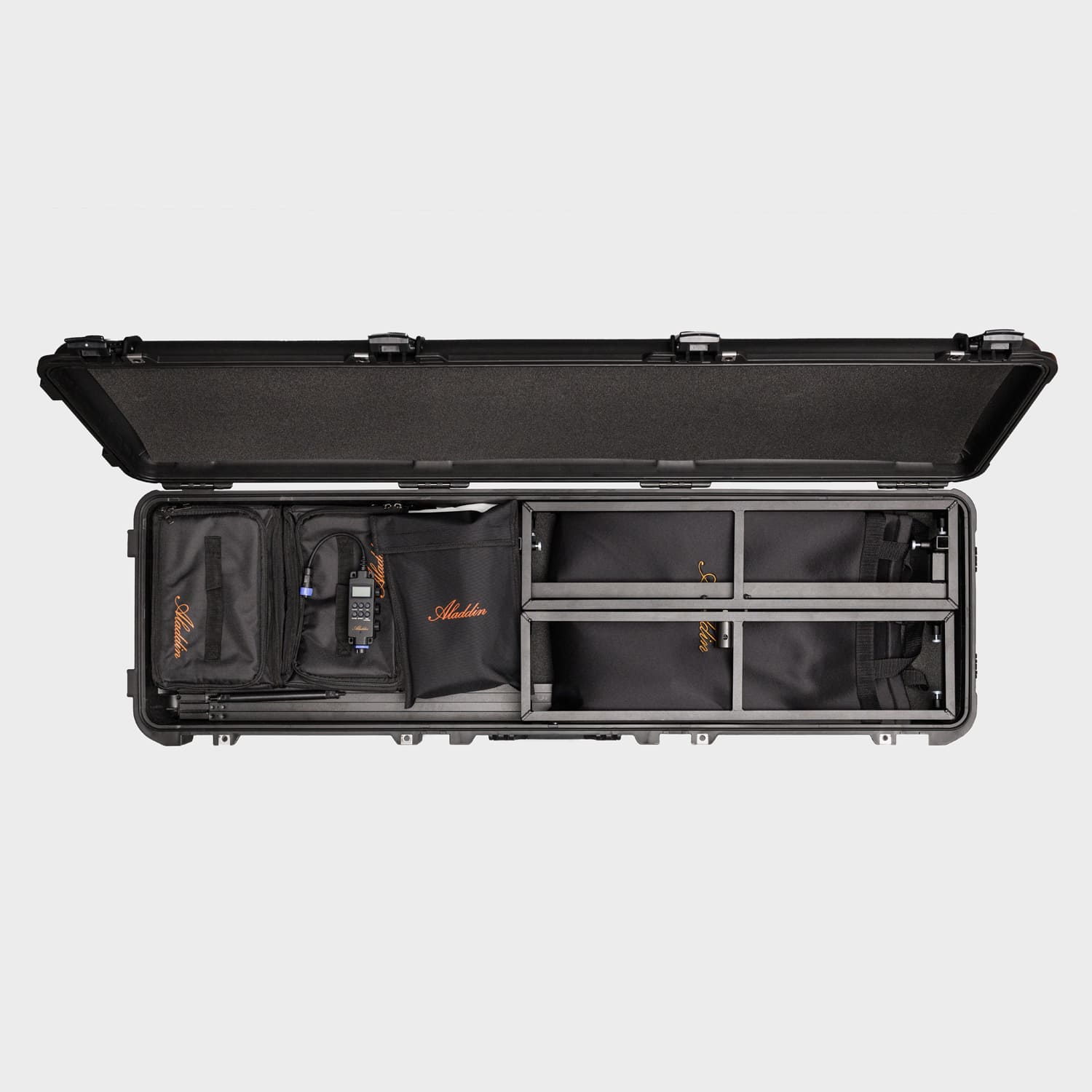

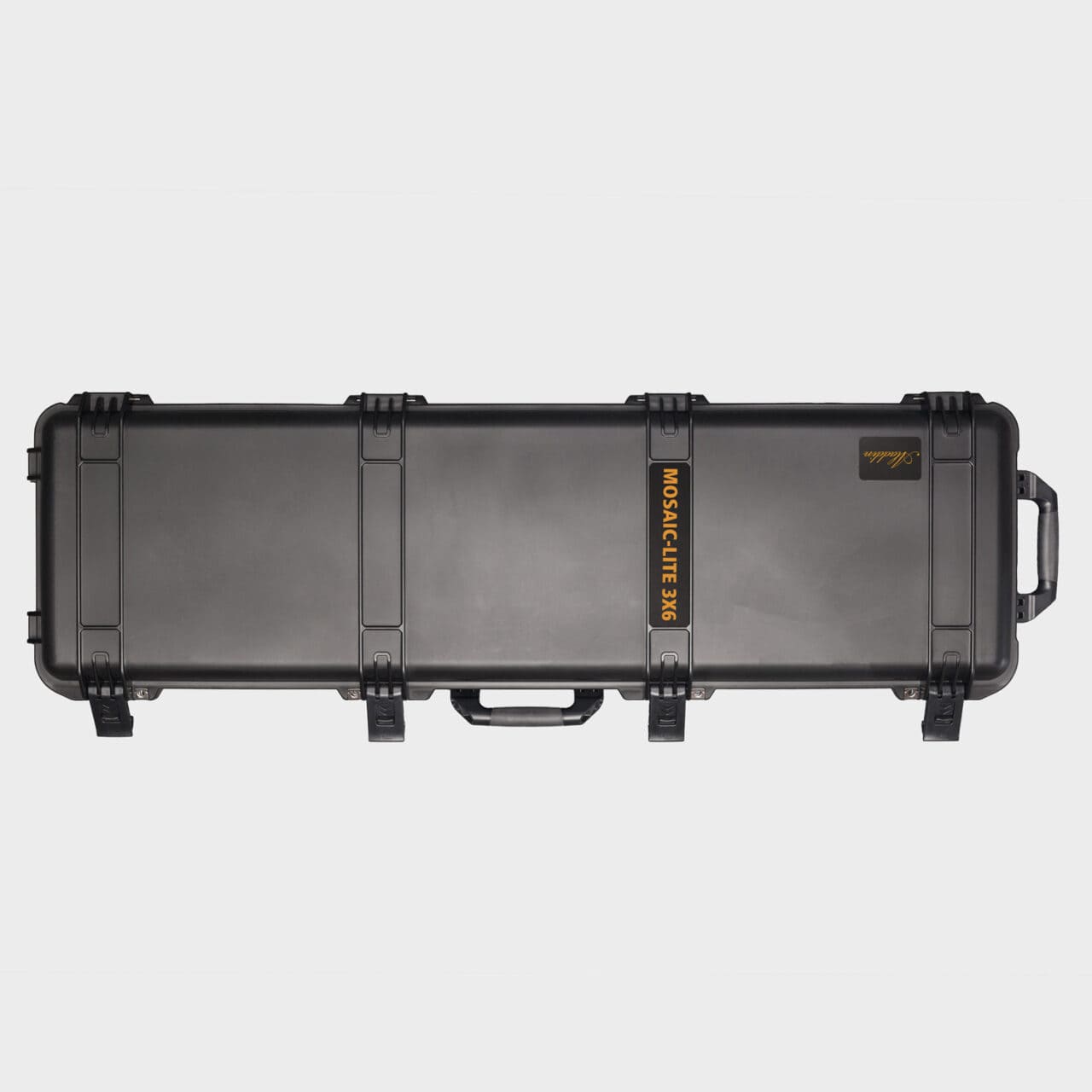

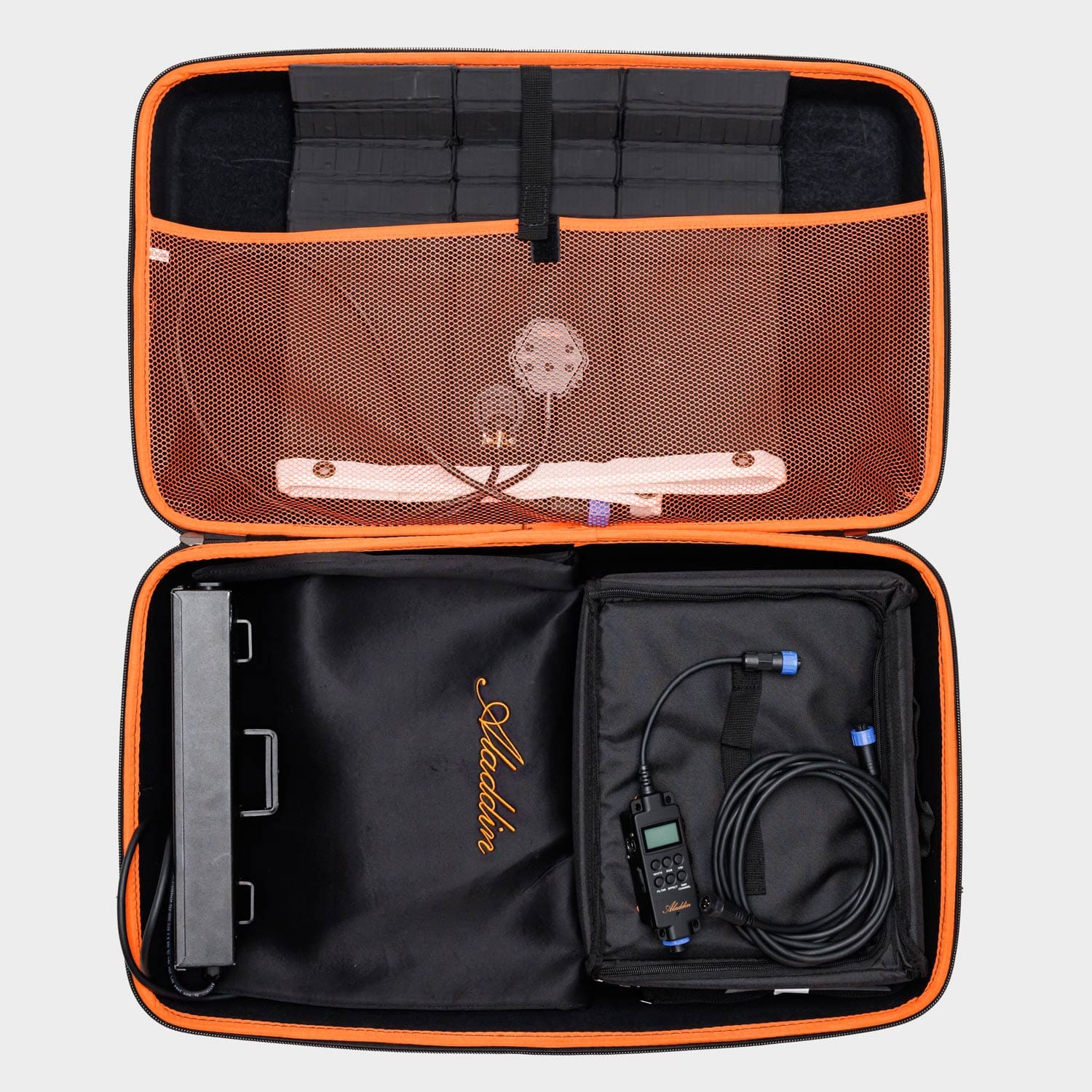

• 1 × MOSAIC Hard Case

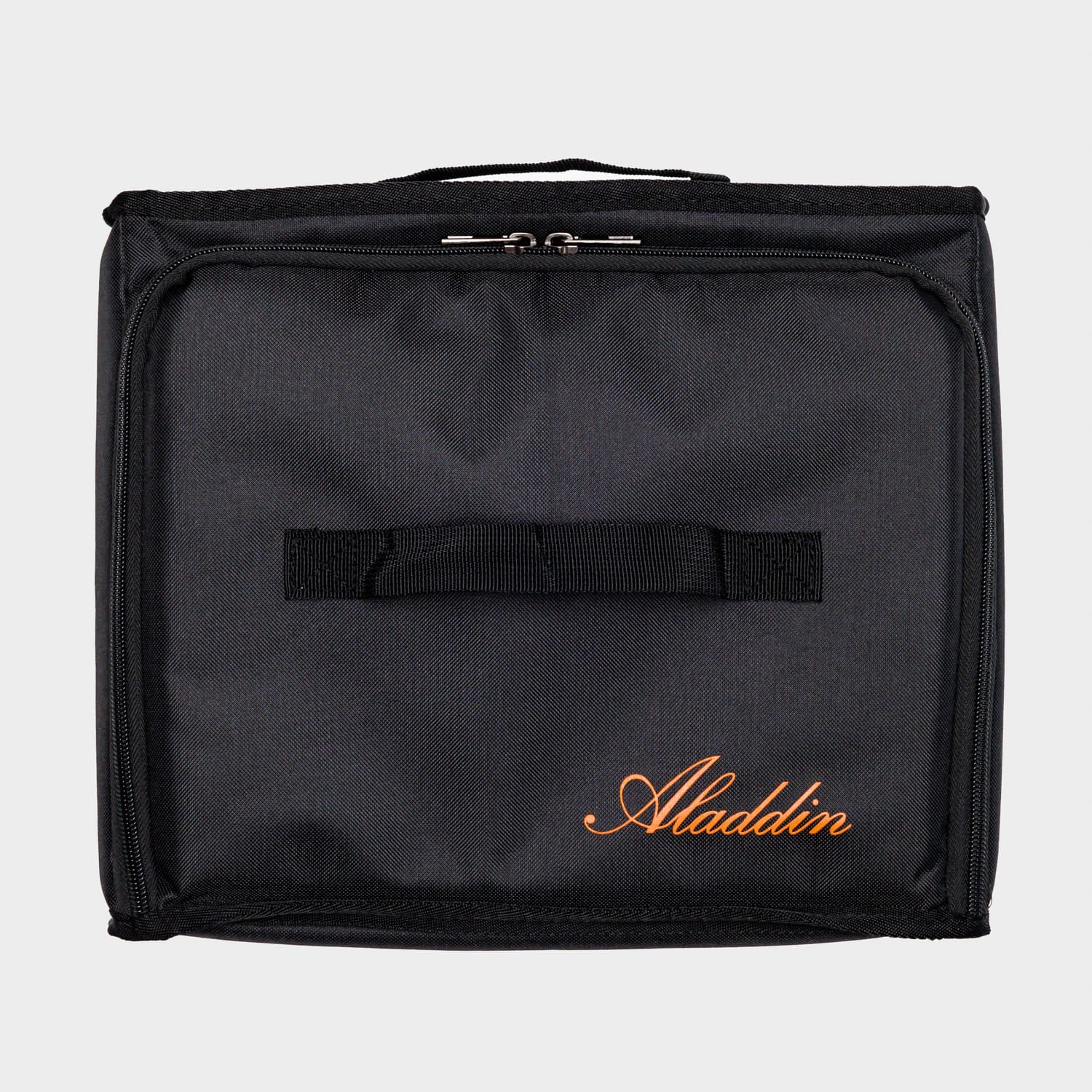

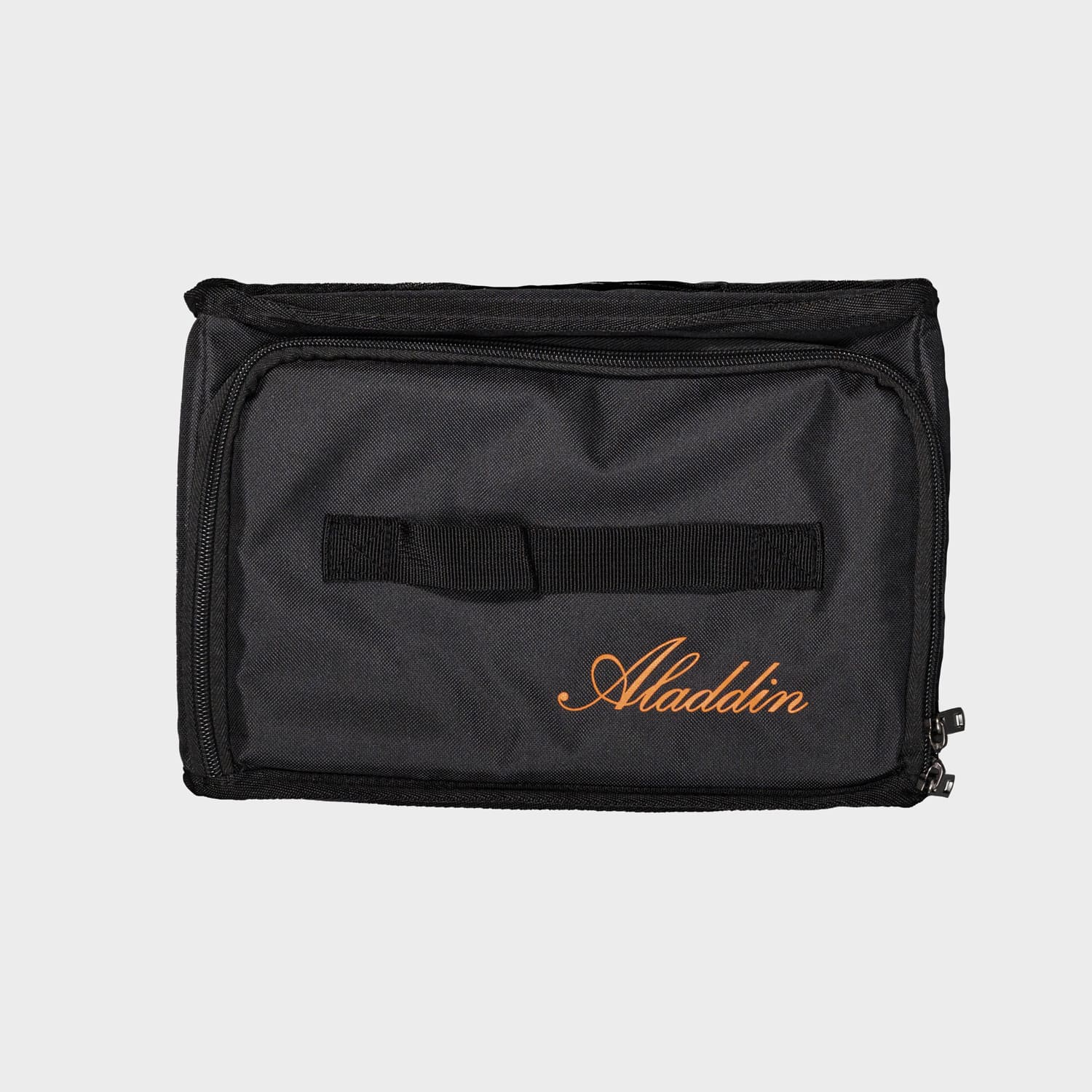

• 2 × Inner Bag (Small)

• 16 × Aladdin Cube (Bungee Balls)

Technical Specifications (Quick Reference)

• Light Source: 600 W RGBWW LEDs

• Color Accuracy: CRI ≥ 95 / TLCI ≥ 95

• Color Temperature: ~2200 K – 12000 K

• Beam Angle: ~140°

• Dimming: 1 % – 100 %

• Connectivity: DMX512 / LumenRadio Wireless / Bluetooth

• Dimensions (Panel Only): 89 × 178 cm (folded 40 × 50 cm)

• Panel Weight: ~4.5 kg

• Frame Dimensions: 95 × 183 × 18 cm

• Full Kit in Case: ~45 × 136 × 19 cm / ~22 kg

• Input Voltage: AC/DC 100–240 V / DC 48 V
