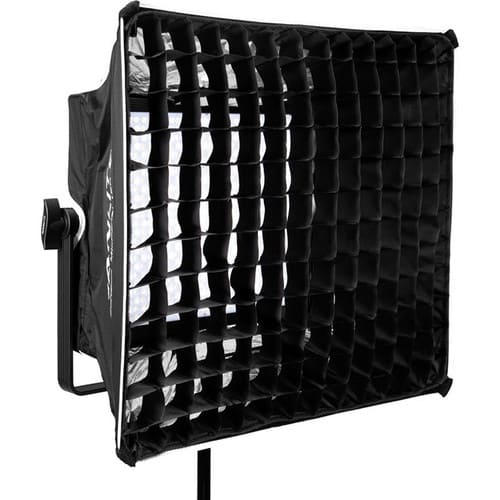

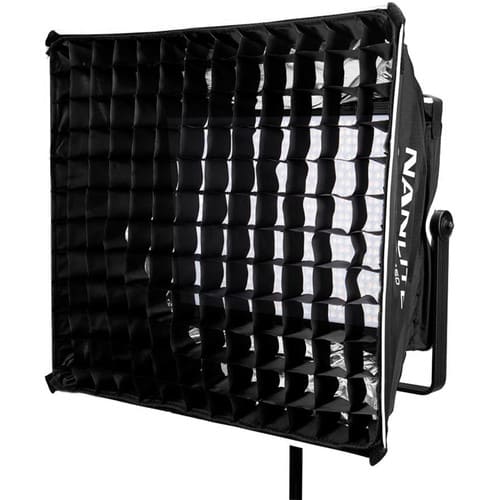

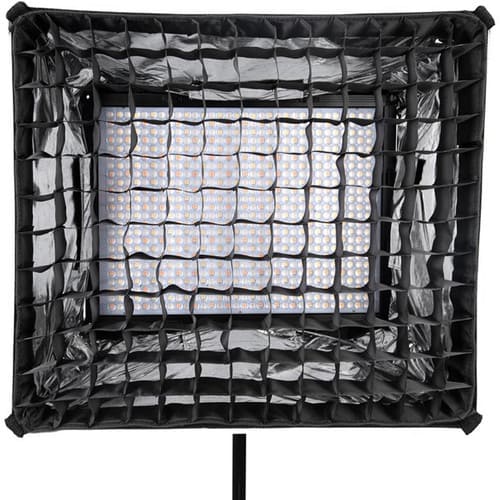

Softbox of MixPanel 150 includes eggcrate

Key Features

• 19 × 16 × 3" RGBWW LED panel

• Three selectable lighting modes in one fixture

• CCT mode with adjustable 2700–7500K range

• Green/magenta shift for precise color correction

• Excellent color accuracy: CRI 98 / TLCI 95 at 5600K

• Smooth 0–100% dimming

• RGB mode offering a wide spectrum of colors and hues

• Operates via AC power or optional V-mount batteries

• Built-in 43-gel preset library

• Nine special lighting effects

• Integrated 5/8" receiver for mounting

Product Description

The Nanlite MixPanel 150 RGBWW LED Panel is a powerful 19 × 16 × 3-inch lighting fixture that combines three distinct light sources into one versatile unit. With the push of a button, it can switch between a traditional multi-LED array for hard light, a diffused SMD LED panel for soft illumination, and a tunable RGB panel for colorful and creative lighting effects.

The MixPanel 150 features an expansive 2700–7500K CCT range, allowing it to blend seamlessly with ambient light, match other fixtures, or support creative lighting designs. Its high CRI of 98 and TLCI of 95 ensure exceptional color accuracy, while green/magenta adjustment and full-range dimming provide precise control for professional results.

Performance & RGB Capabilities

Using advanced 4-in-1 LED technology, the MixPanel 150’s RGB mode delivers access to over 16 million color combinations. The fixture also includes a Boost mode for increased output. In standard hard-light mode, it produces 11,320 lux at 3.28 feet (5600K), increasing to 14,950 lux when Boost mode is activated.

With smooth dimming from 100% to 0%, the MixPanel 150 adapts quickly to any lighting scenario without the need for diffusion or ND filters.

Gel Presets & Special Effects

A built-in 43-gel emulation library includes five CTO, five CTB, and 33 CalColor presets, enabling fast and accurate color matching without physical gels. Additionally, the fixture offers nine adjustable special effects, including Hue Loop, CCT Loop, Flash, Pulse, Storm, Siren, TV, Paparazzi, and Candle/Fire, making it easy to recreate real-world lighting scenarios.

Power & Usability

Designed for both studio and on-location use, the MixPanel 150 supports 100–240V AC power for worldwide compatibility and can also be powered by optional V-mount batteries via its integrated battery plate. An intuitive user interface allows users to save custom presets, ensuring consistent, repeatable lighting setups across productions.
