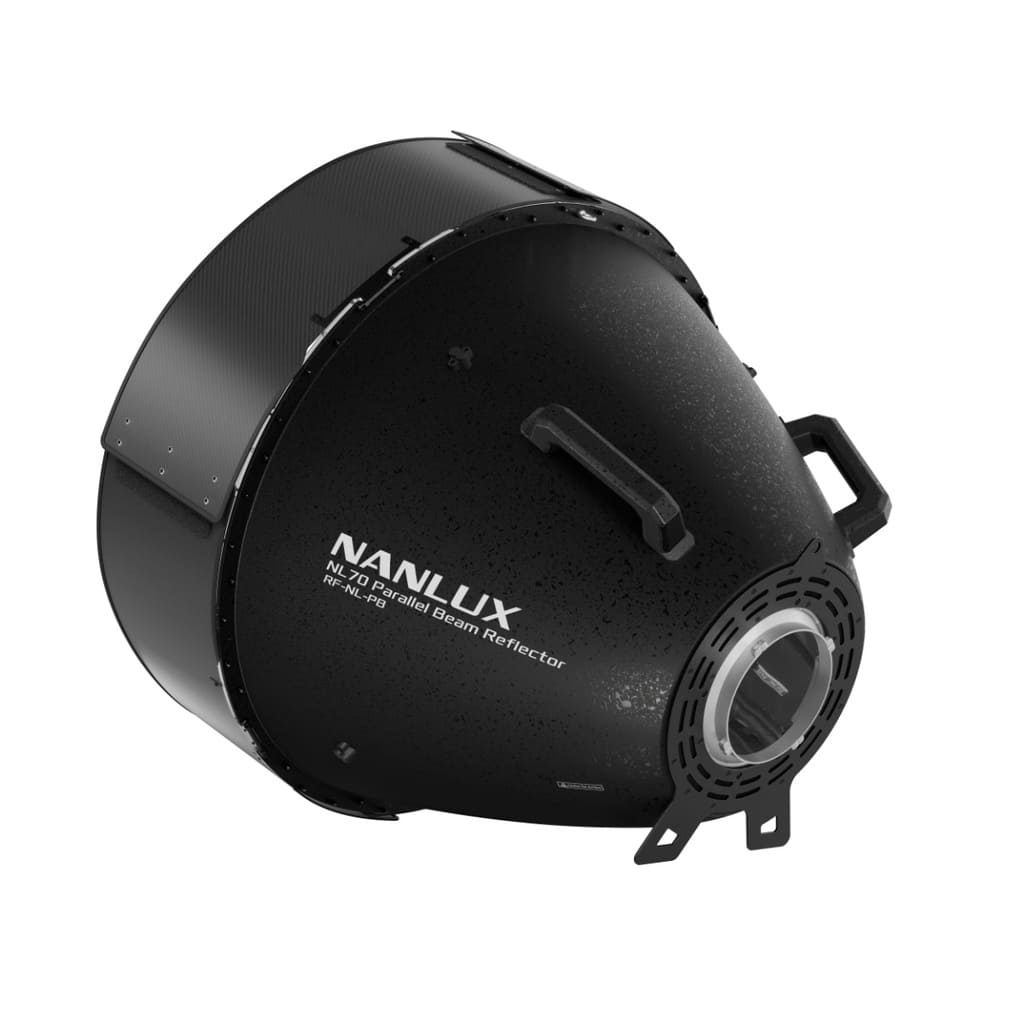

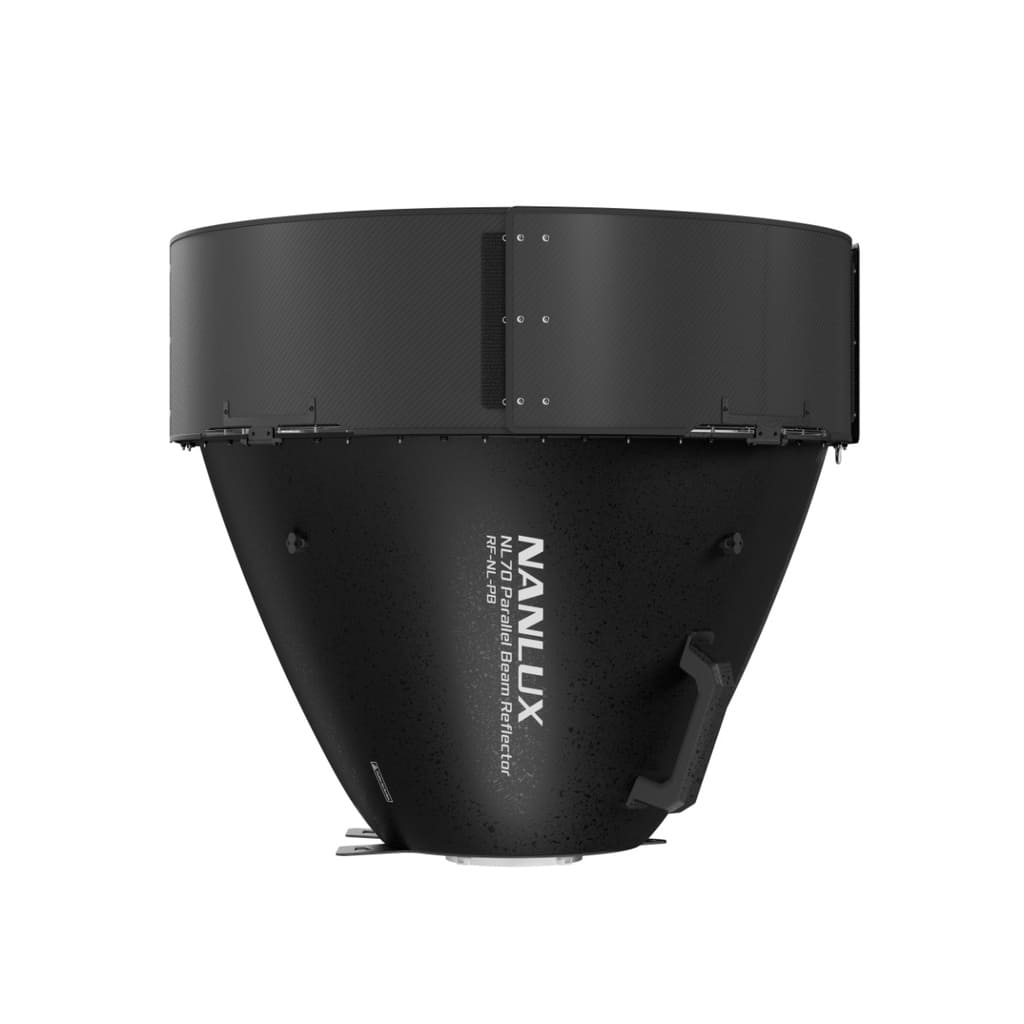

NL70 Parallel Beam Reflector

Description

The Nanlux NL70 Parallel Beam Reflector is a professional-grade light modifier designed to work with Nanlux Evoke series fixtures featuring the NL Mount (including 900C, 1200, 1200B, 2400B, and 5000B). It produces an intense, nearly parallel 6° beam that enhances output, reduces spill light, and extends long-distance illumination — ideal for cinema, broadcast, outdoor, and large-set production scenarios.

Key Features

• 6° Parallel Beam Output: Creates a tightly focused and nearly parallel beam, allowing light to travel further with minimal spread and producing dramatic, long-throw illumination effects.

• Enhanced Light Intensity: When mounted on compatible Evoke fixtures, the reflector can significantly increase usable output — reaching up to ~22,420 lux at 10 m (with Evoke 2400B at 5600K) and substantially higher overall photometrics compared to the bare fixture.

• Improved Beam Control & Reduced Spill: Internal grid optics and the included snoot help reduce unwanted spill light, resulting in a cleaner, more precise beam with minimal stray illumination.

• Carbon Fiber Snoot: Includes a detachable carbon fiber snoot (in four leaves via hook-and-loop fasteners) to further control spill light and refine the beam shape without tools or complex installation.

• NL Mount Compatibility: Securely attaches to Evoke series lights with the NL Mount system, offering easy, reliable mounting and seamless integration with your lighting setup.

• Lightweight and Portable: Designed with optimized materials and structure, the reflector weighs approximately 9.37 kg (20.66 lb) and has a 720 mm / 28.35″ diameter, making it easier to transport and handle on set.

• Weather-Resistant Design: Includes a protective cap and features dust-resistant and weather-tolerant construction, enabling use in challenging environments — from dusty locations to light rain or snow.

• Versatile Production Use: Ideal for simulating sunlight effects, searchlight beams, long-distance architectural lighting, and any scenario needing a clean, powerful parallel beam with minimal light loss.

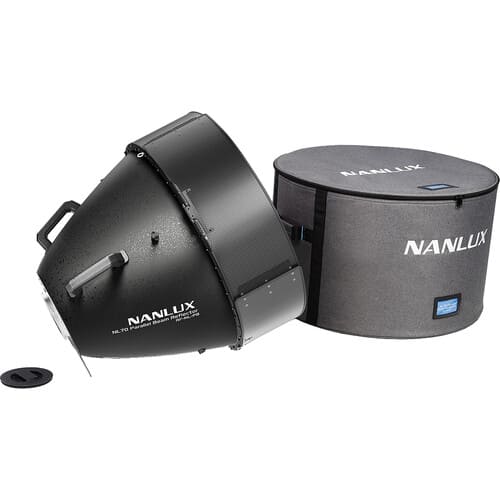

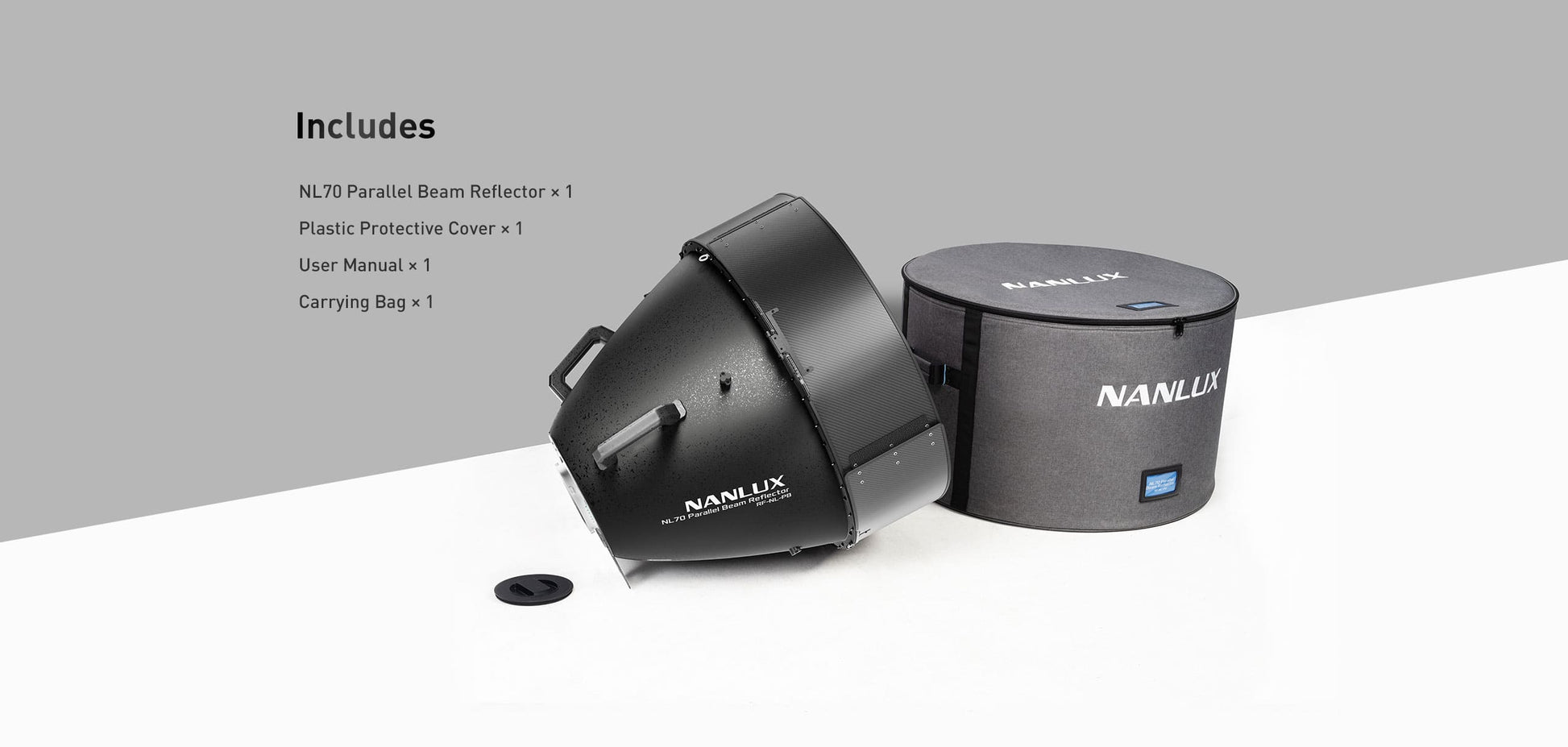

What’s Included

• 1 × NL70 Parallel Beam Reflector (RF-NL-PB)

• 1 × Plastic Protective Cover / Dust Cap

• 1 × Carrying / Transport Bag

• 1 × User Manual (where provided)
  (Product packaging and accessories may vary by retailer.)
