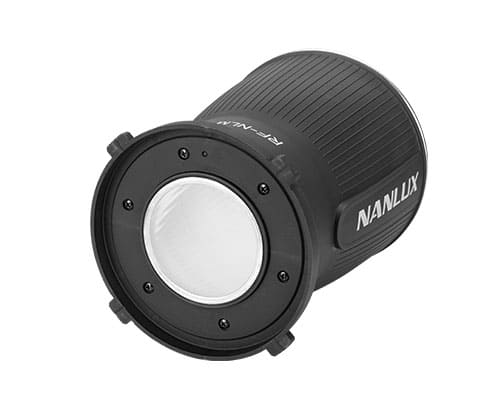

RF-NLM-26/45/60 NL Mount Reflector 26°/45°/60°

Description

The NANLUX NL Mount Reflector is a professional light-shaping accessory designed to provide different beam-spread options for compatible NANLUX Evoke LED spotlights. Available in 26°, 45°, and 60° versions, the reflectors allow users to select the appropriate beam angle according to the required lighting application.

The 26° reflector produces a narrow, directional beam and is well suited for long-throw and selective lighting applications. The 45° reflector provides a medium beam spread for general-purpose lighting and a balanced combination of output and coverage. The 60° reflector creates a wider beam spread for broader illumination while maintaining high output.

The reflectors feature a silver interior designed to efficiently redirect light and maintain a consistent beam. The proprietary NANLUX NL Mount provides secure attachment to compatible fixtures, while the reflector design enables efficient and controlled light output. For the newer Evoke 2400B and 5000B reflectors, electronic contacts allow communication between the reflector and compatible fixture.

Key Features

• Professional NANLUX NL Mount Reflector

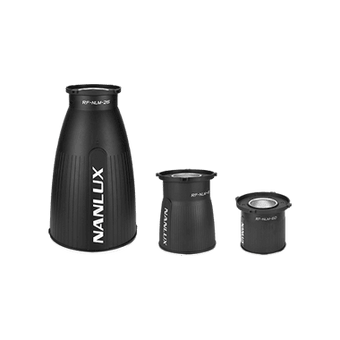

• Available in 26°, 45°, and 60° beam angles
• 26°: narrow beam for long-throw and selective lighting
• 45°: medium beam for general-purpose applications
• 60°: wide beam for broader light coverage
• Silver reflective interior
• Secure NL Mount attachment
• Designed for high-output professional lighting
• Suitable for film, television, broadcast, studio and location production

26° Reflector

The 26° NL Mount Reflector is designed for NANLUX Evoke 1200 and provides a narrow, directional beam for long-distance lighting. B&H lists up to 58,050 lux at 9.8 ft (3 m) with the Evoke 1200.

45° Reflector

The 45° NL Mount Reflector provides a medium beam angle and is intended as an all-around reflector for general lighting applications. For the Evoke 1200, B&H lists approximately 18,460 lux at 9.8 ft (3 m).

60° Reflector

The 60° NL Mount Reflector provides a broader beam spread and is designed for wider coverage. The newer version for the Evoke 2400B and Evoke 5000B uses electronic contacts and increases illuminance by approximately 2.7× on the Evoke 2400B and 2.2× on the Evoke 5000B, compared with the bare light source. and that 60° reflector ~12,460 lux, dramatically increasing usable light compared with the bare head.

Compatibility

26° / 45° / 60° reflectors for Evoke 1200

• NANLUX Evoke 1200

45° / 60° reflectors for newer NL Mount system

• NANLUX Evoke 2400B
• NANLUX Evoke 5000B

Includes

• NL Mount Reflector 26°/60°x1
• Carrying bag x1
• (NL Mount Reflector 45°：included with Evoke 1200/1200B/900C)
