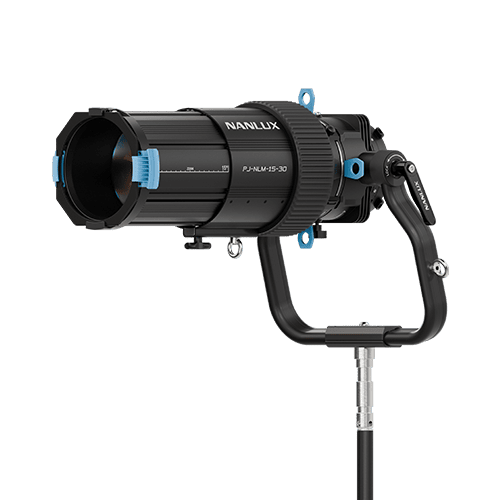

NL Mount Projection Attachment 15-30°

Description

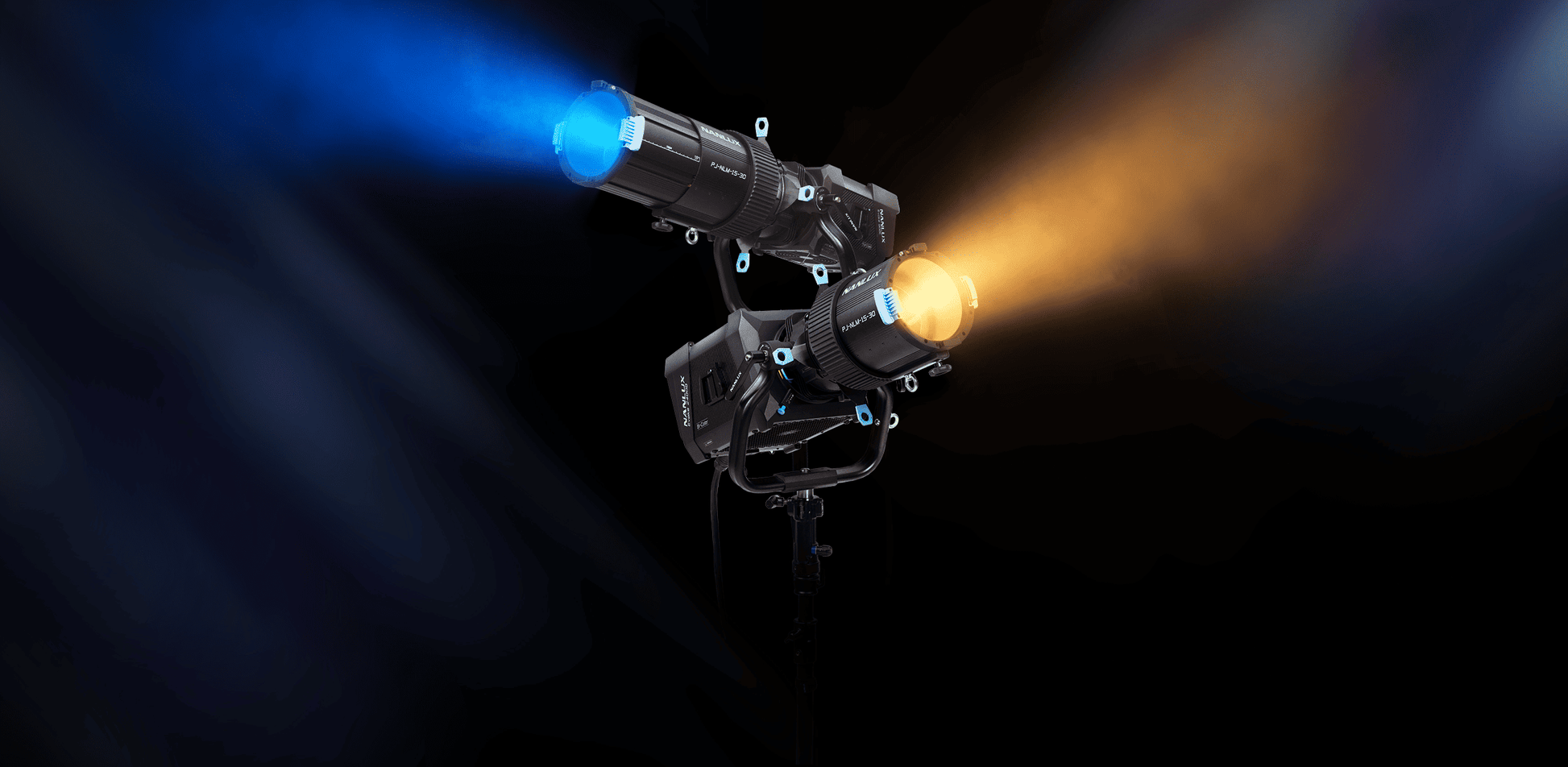

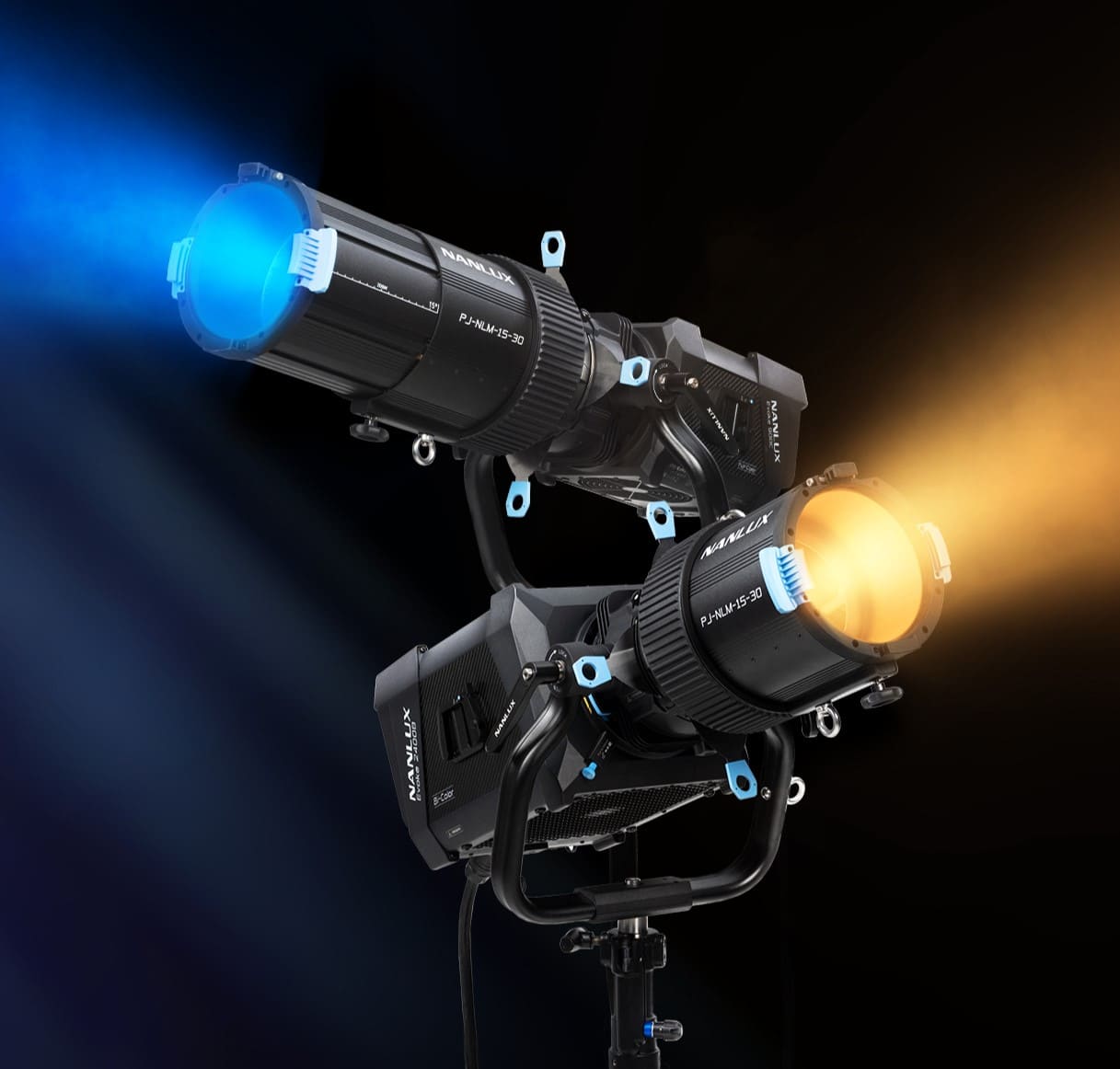

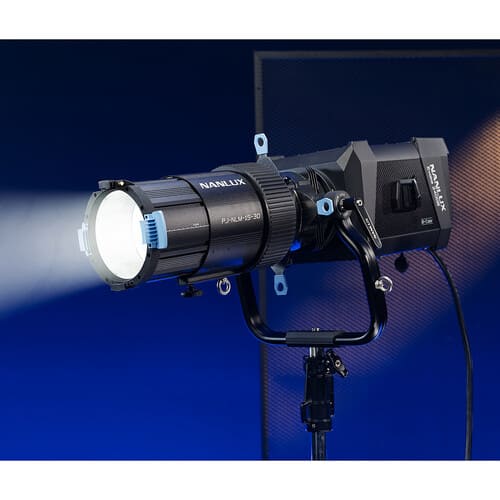

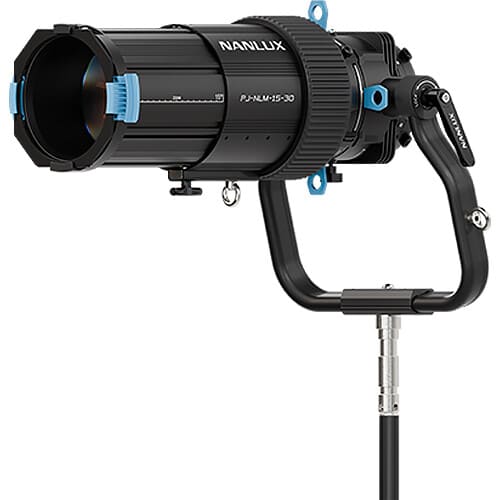

The Nanlux NL Mount Projection Attachment 15–30° (PJ-NLM-15-30) is a professional optical accessory designed to extend and enhance the output and versatility of Nanlux Evoke 900C / 1200 / 1200B / 2400B LED fixtures. It uses a precision optical system with adjustable 15°–30° zoom range, enabling flexible control of beam angle, focus, gobos, and image projection. Built to withstand demanding productions, this projector-grade attachment delivers dramatically increased light output and precise beam shaping while mounting securely via the NL Mount.

Key Features

• Wide Zoom Range (15°–30°): Adjustable beam angle from 15° (tight spot) to 30° (wider projection) without moving the light, delivering flexibility for different lighting effects.

• Precision Optical System: Includes a high-quality aspherical optical lens with anti-reflective coatings that improve light transmission, reduce chromatic aberration and distortion, and deliver excellent beam uniformity (≈78%).

• Increased Light Output: When paired with Evoke fixtures, this projection attachment can produce up to ~7.5× the illuminance compared to the bare light head, resulting in far brighter output for focused projection work.

• Smooth Zoom and Focus: Smooth zoom ring allows precise adjustment of focus and beam spread, making it easy to shape and control your light output.

• 90° Rotatable Lens Barrel: The projector barrel rotates up to 90°, enabling flexible beam orientation without repositioning shutters or gobos.

• Light Shaping Accessories Included: Comes with cutting shutters, an optional iris diaphragm (for round beam shapes), 4 × A-size gobos, gobo holder, and gel frame for creative lighting effects.

• Integrated Offset Yoke: The 15° offset yoke design improves balance and allows larger downward tilt angles when mounted on a stand — providing stability even with heavy attachments.

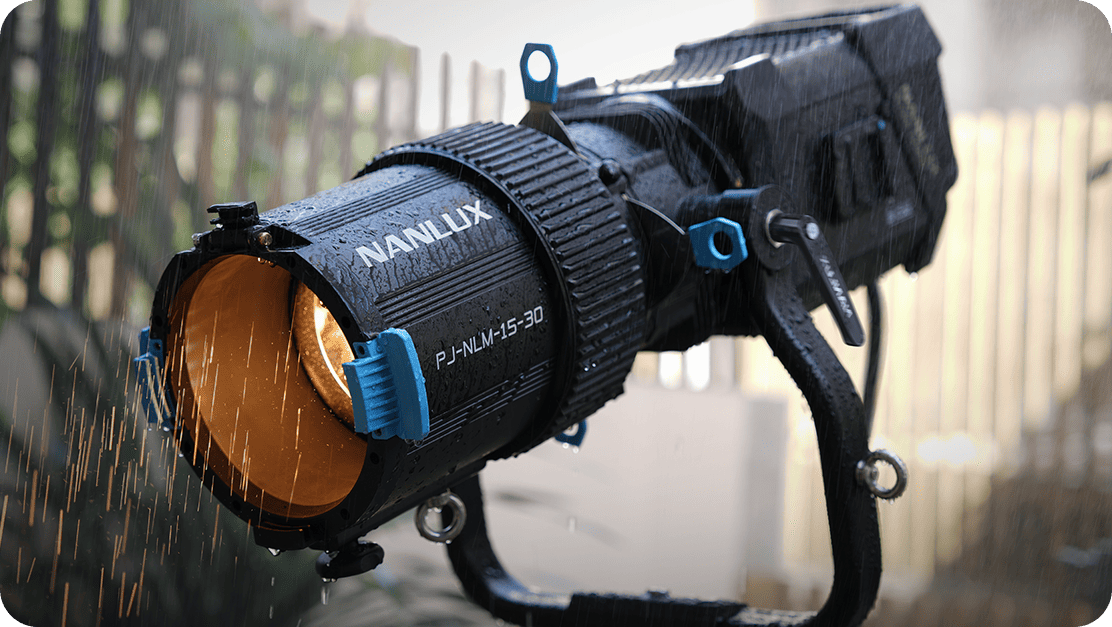

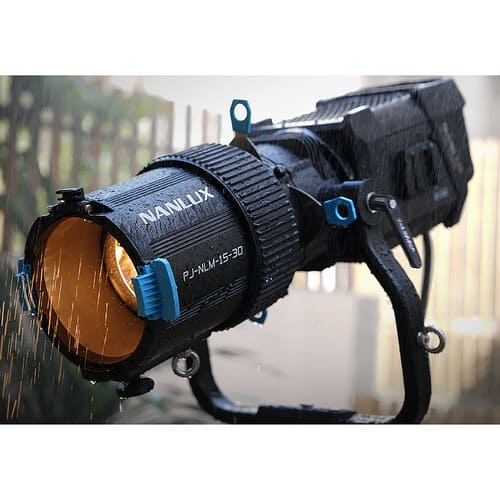

• Durable Construction with Optimized Heat Management: Built from aluminum alloy and durable nylon, with passive cooling via external heat sink fins to maintain performance under extended high-power use.

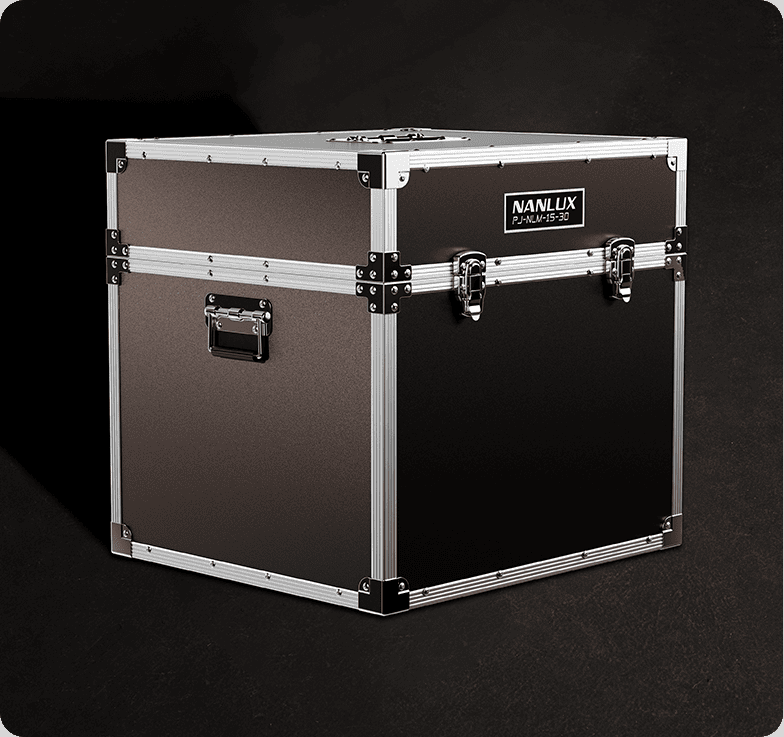

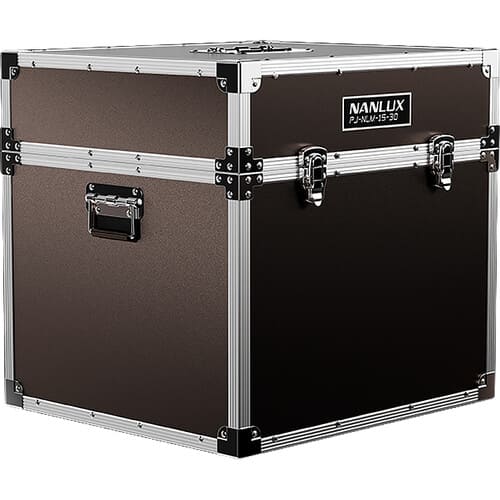

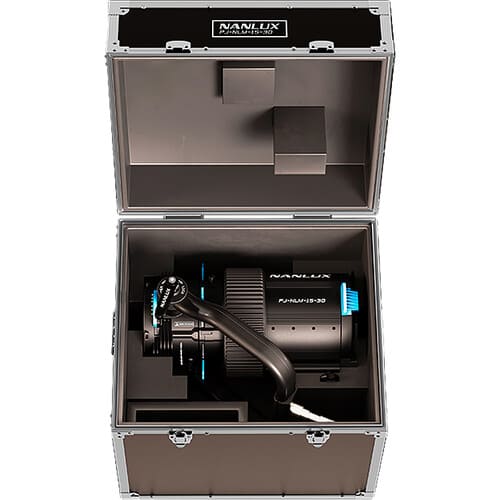

• Portable and Rugged: Designed for frequent transport with a flight case that has impact-resistant corners and internal padding to protect the attachment and accessories.

• NL Mount Compatibility: Mounts securely using the Nanlux NL Mount system for easy integration with Evoke fixtures.

• Protective Covers & Safety Features: Includes front and rear protective plastic covers and eyebolts for attaching a safety cable (not included).

What’s Included

• 1 × NL Mount Projection Attachment (15–30°)

• 1 × Front Protective Cover

• 1 × Rear Protective Cover

• 4 × A-Size Gobos

• 1 × Gobo Holder

• 1 × Gel Frame

• 1 × Rugged Flight Case

• User Manual
