NANLUX YK-E-EVL Motorized Yoke-L for Evoke 5000B & 2400B

Description

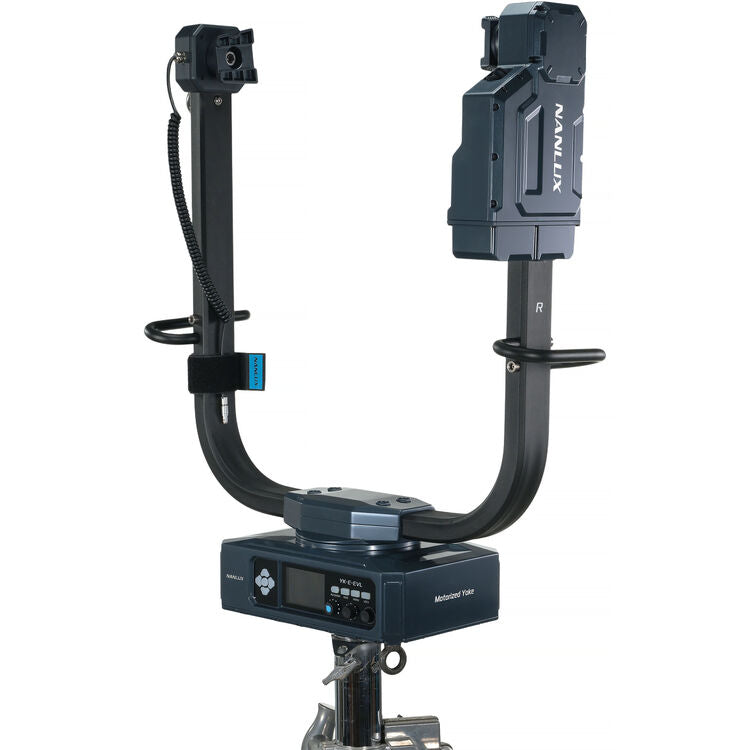

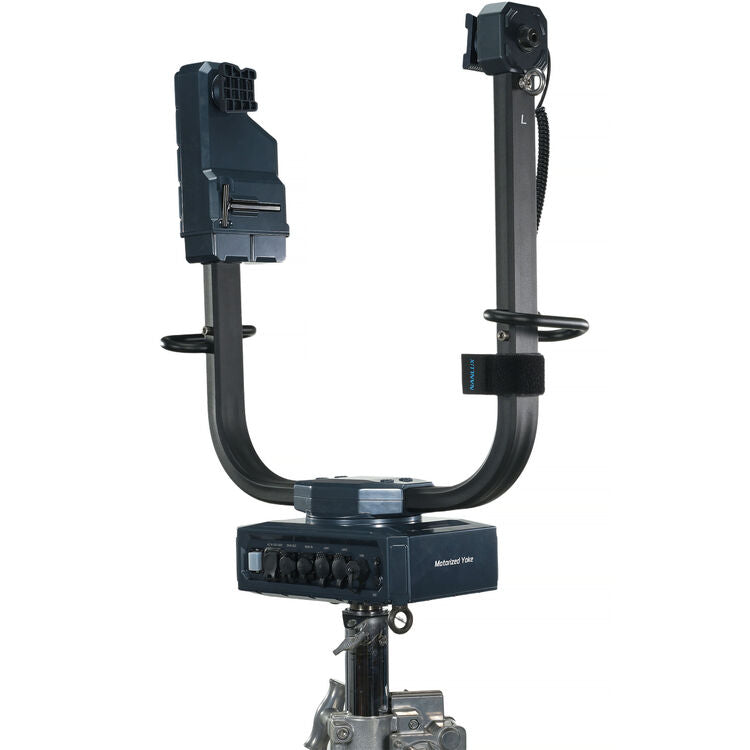

The NANLUX YK-E-EVL Motorized Yoke-L is a professional motorized mounting solution specifically designed for the NANLUX Evoke 5000B and Evoke 2400B LED spotlights. It enables precise and efficient remote control of the fixture's pan and tilt angles, reducing the need for manual repositioning and improving workflow when working with large and heavy lighting setups.

The yoke provides an extensive 540° pan range (±270°) and 270° tilt range (±135°), allowing the fixture to be aimed across a wide area without repeatedly repositioning the stand or truss. Full-range movement takes approximately 47 seconds for pan and 26 seconds for tilt at maximum speed.

A powerful motor system provides up to 40 N·m of tilt torque and 20 N·m of pan torque, while the internal self-locking mechanism helps secure the fixture in position after adjustment and when power is removed. Manual adjustment is also supported when required.

The YK-E-EVL offers comprehensive professional control options. Users can control the yoke directly through its onboard controls and display, through the NANLINK App, or through professional protocols including DMX/RDM, LumenRadio CRMX, and Art-Net/sACN. An optional WC-LM6P-C1 wired controller can also be used for remote operation.

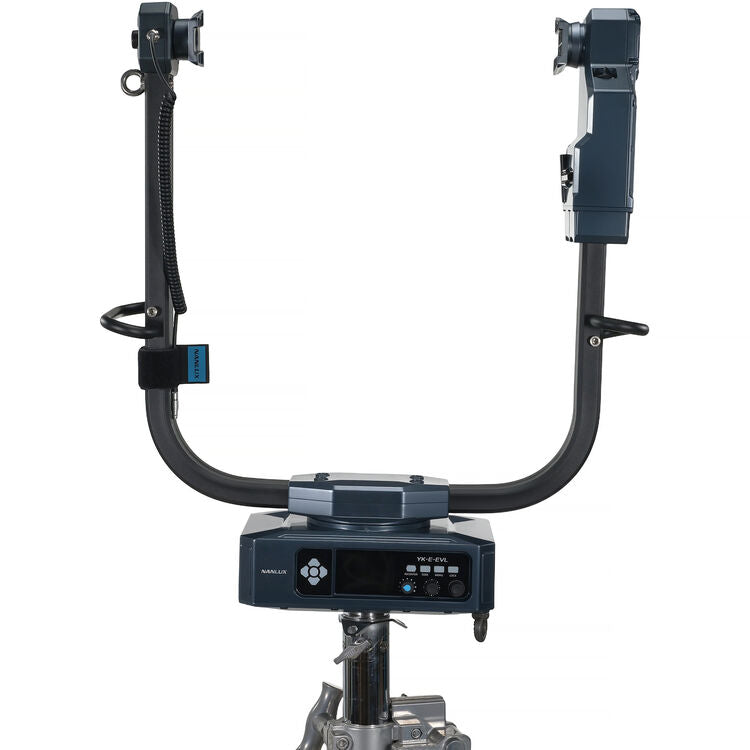

The onboard control system features a 3.5-inch display, nine buttons, and three control knobs, with support for screen rotation, adjustable screen brightness, backlit-button control, and firmware updates. The fixture can also be re-centered to 0° and locked at the selected position.

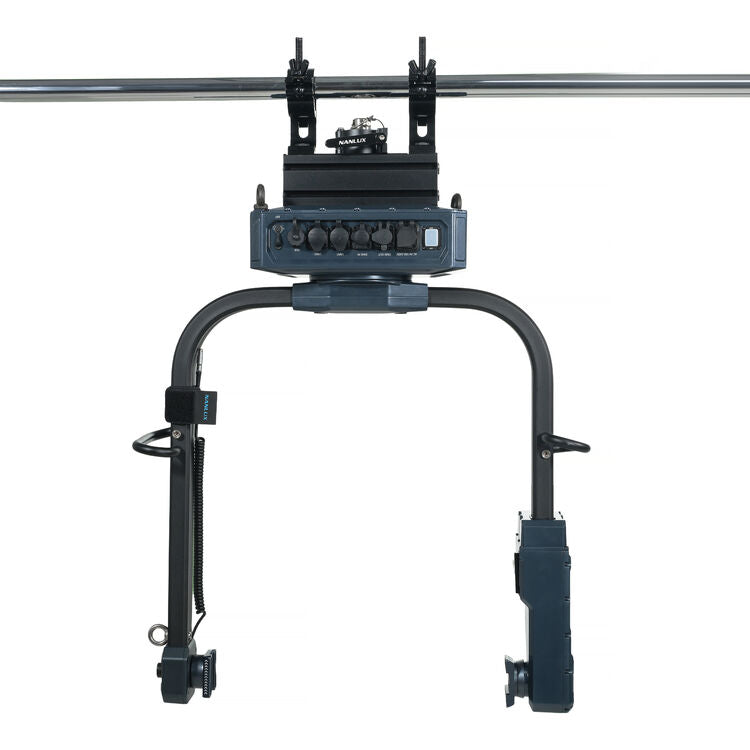

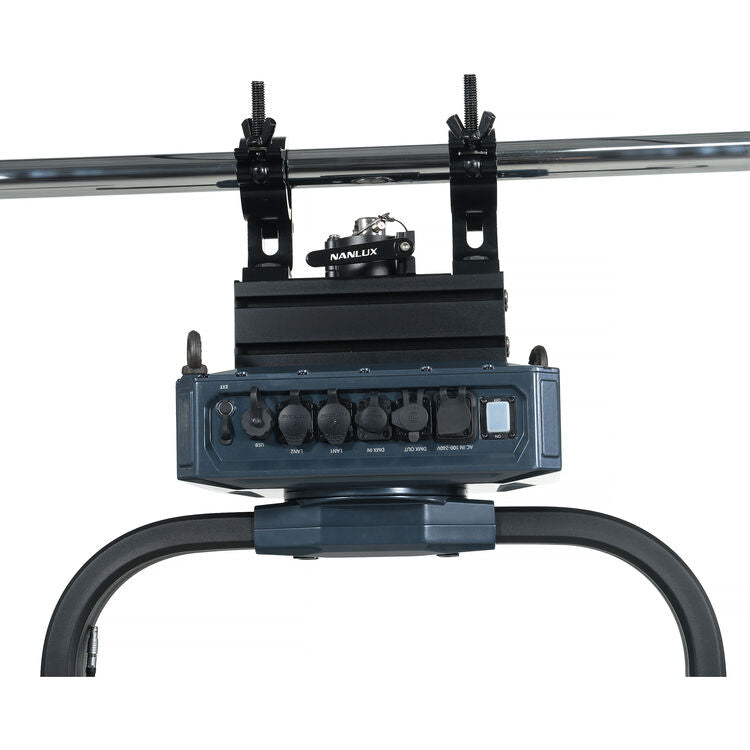

The YK-E-EVL is constructed from magnesium alloy and features an IP66 weather-resistant design, making it suitable for demanding professional studio and outdoor production environments. It can be mounted using a Junior Pin light-stand connection or on compatible trusses using the supplied truss adapter.

Key Features

• Motorized Pan & Tilt Yoke
• Designed specifically for NANLUX Evoke 5000B and Evoke 2400B
• 540° Pan / ±270°
• 270° Tilt / ±135°
• Pan speed up to 11.48°/s
• Tilt speed up to 10.3°/s
• 20 N·m Pan Torque
• Up to 40 N·m Tilt Torque
• Internal self-locking mechanism
• Manual adjustment supported
• 3.5" onboard display
• 9 buttons and 3 control knobs
• Fixture re-centering to 0°
• NANLINK App control
• Bluetooth wireless control
• DMX/RDM
• LumenRadio CRMX
• Art-Net / sACN
• Optional WC-LM6P-C1 Wired Controller
• IP66 weather-resistant
• Magnesium-alloy construction
• Junior Pin mounting
• Compatible with trusses up to approximately 60 mm diameter using the supplied adapter

Compatible Fixtures

• NANLUX Evoke 5000B
• NANLUX Evoke 2400B

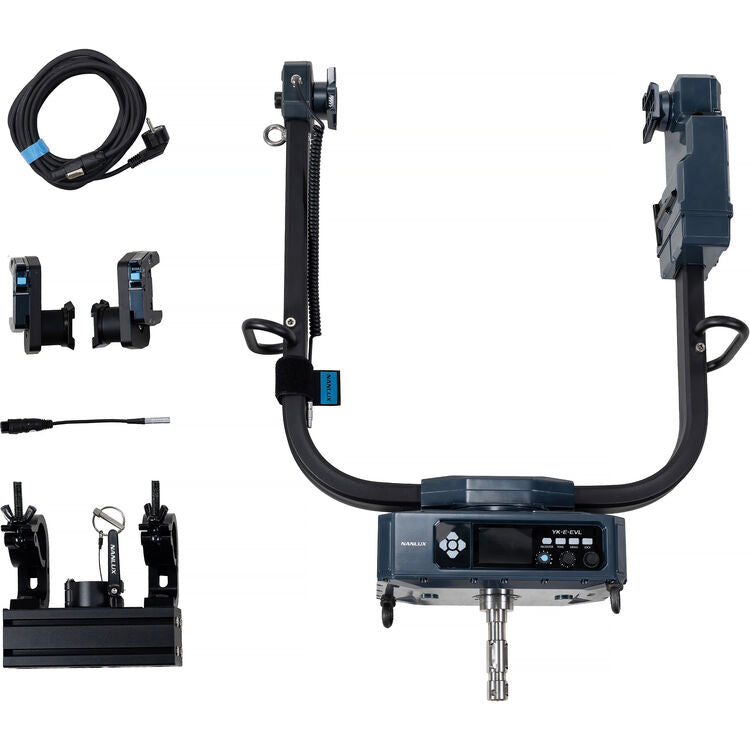

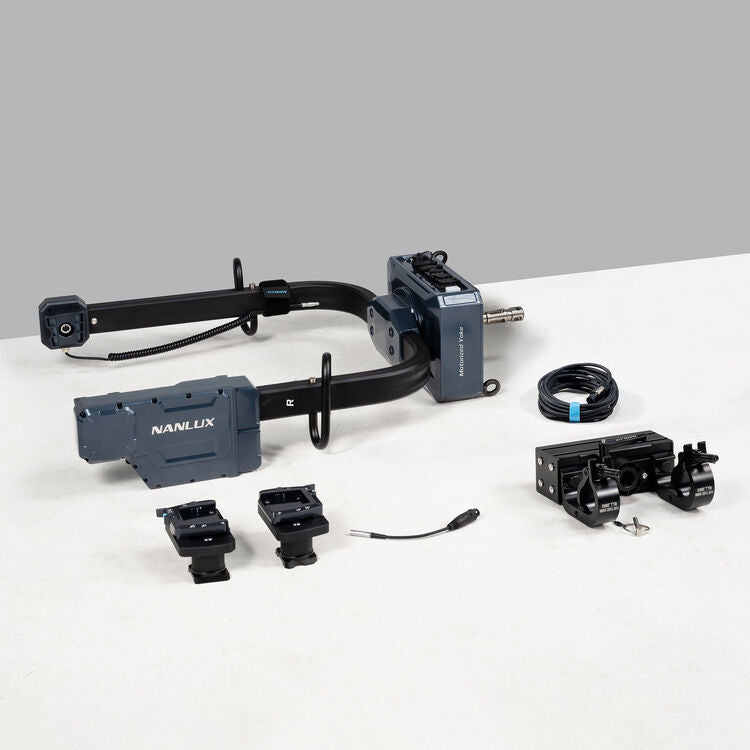

Includes

• NANLUX YK-E-EVL Motorized Yoke-L × 1
• AC Power Cable – 24.7 ft × 1
• Evoke 2400B Quick Release Adapter – Left × 1
• Evoke 2400B Quick Release Adapter – Right × 1
• Evoke 2400B DMX Adapter Cable × 1
• Motorized Yoke Truss Adapter × 1
• Limited 2-Year Manufacturer Warranty
