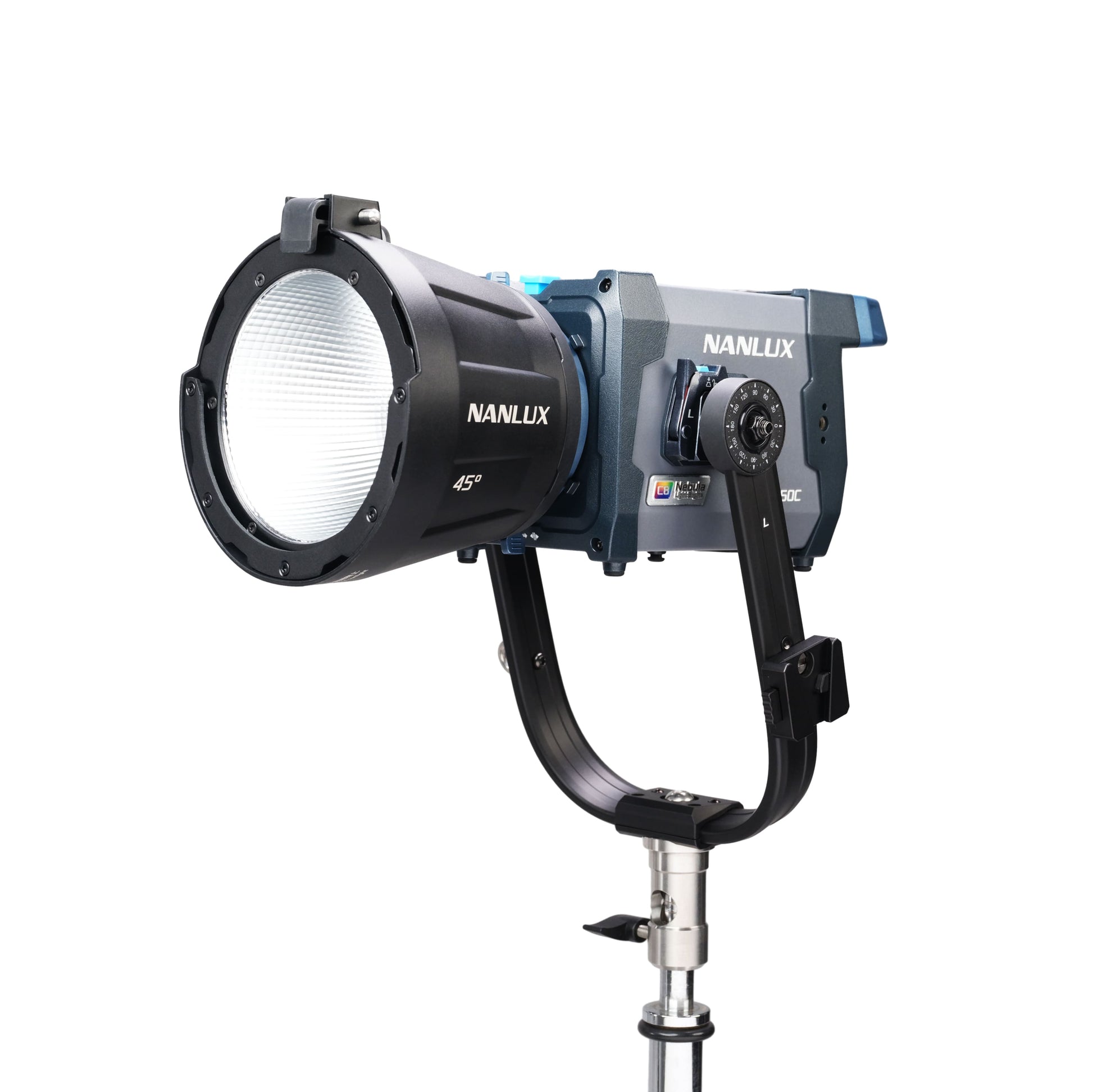

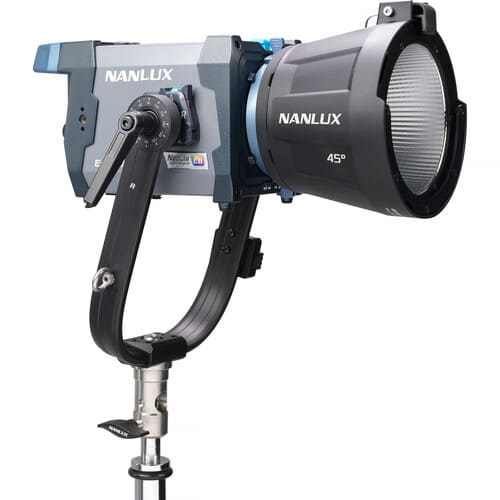

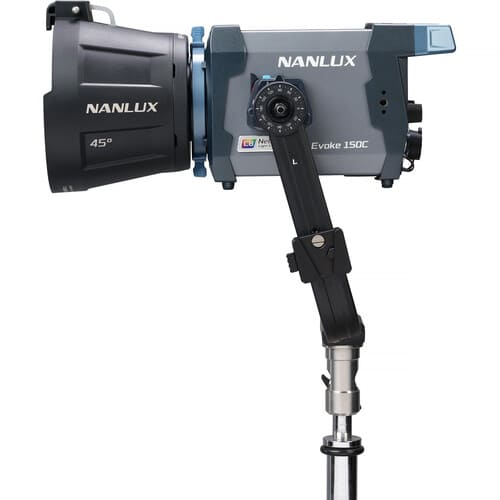

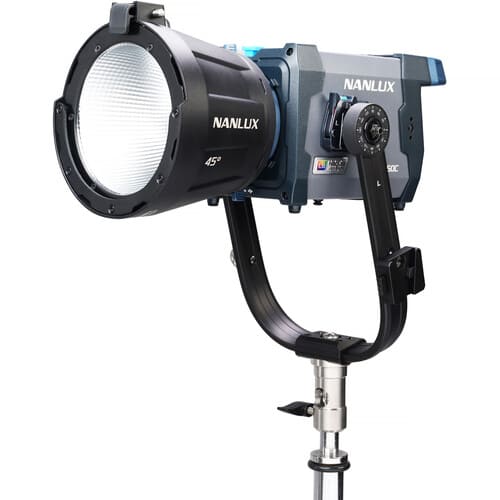

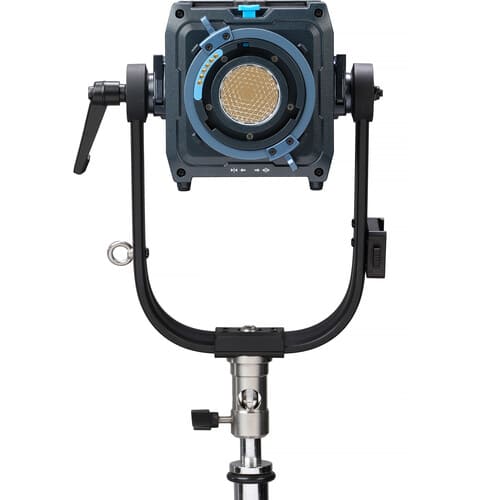

NANLUX Evoke 150C RGB LED Spotlight

Description

The NANLUX Evoke 150C RGB LED Spotlight is a compact, high-performance 150W full-color LED spotlight designed for filmmaking, photography, television, broadcast, commercial production, and content creation. Its all-in-one design eliminates the need for an external ballast, making the fixture easy to transport and suitable for both studio and location work. NANLUX's Nebula C8 eight-color light engine combines Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo LEDs to provide a broad and vivid color palette.

The Evoke 150C offers an exceptionally wide 1000K–20,000K color-temperature range with ±200 Green/Magenta adjustment, giving users precise control over both white light and creative color effects. It supports multiple color modes, including CCT, HSI, RGBW, XY, and Gel, while the Nebula C8 system provides highly saturated and tunable colors for cinematic applications.

For professional image capture, the Evoke 150C delivers CRI 98, TLCI 98, TM-30 Rf 96, and TM-30 Rg 100. With the included 45° reflector, it produces up to 22,230 lux at 1 meter at 5600K; without the reflector, output is approximately 12,160 lux at 1 meter. The fixture provides 0–100% dimming and a 47° unmodified beam angle, while the included reflector creates a 45° beam.

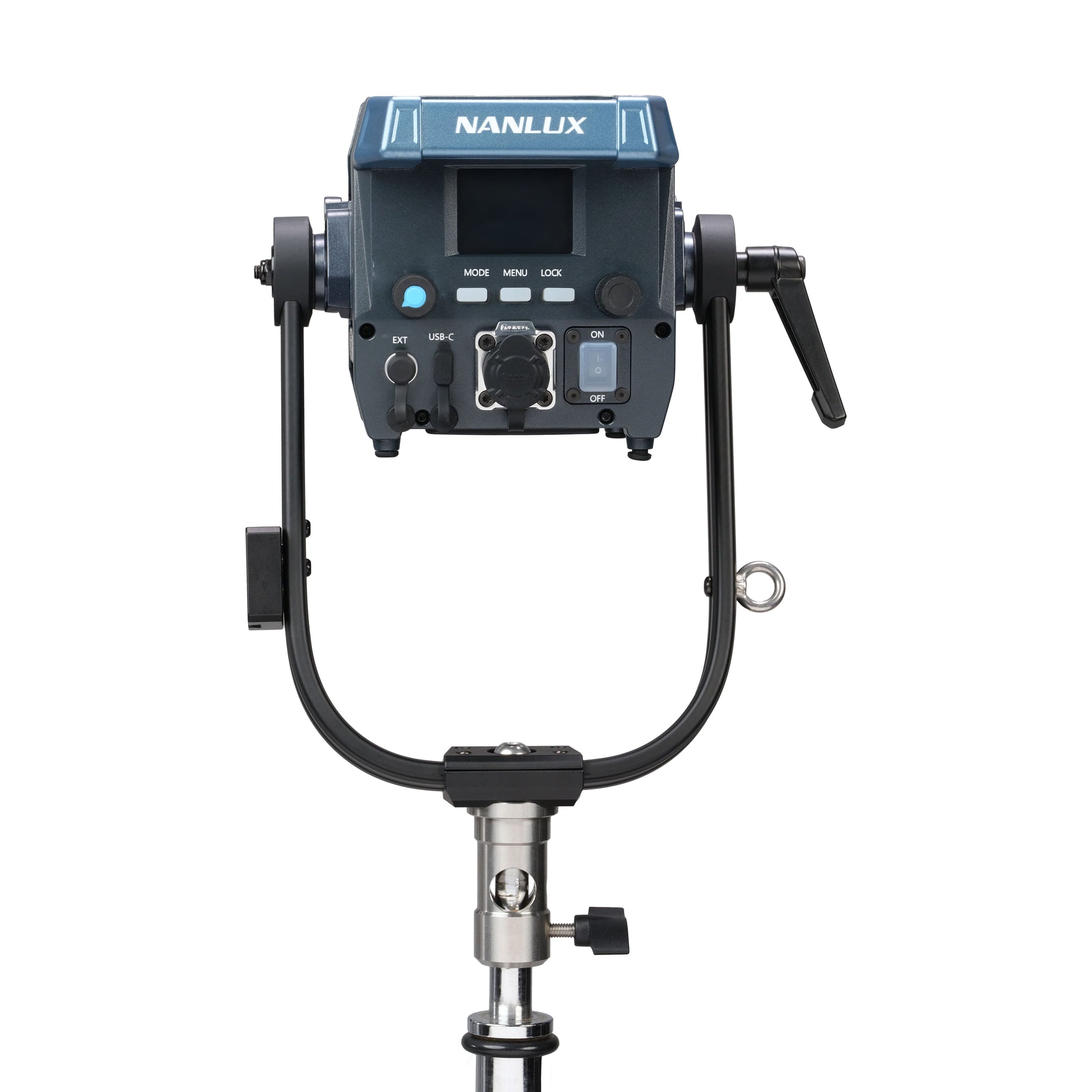

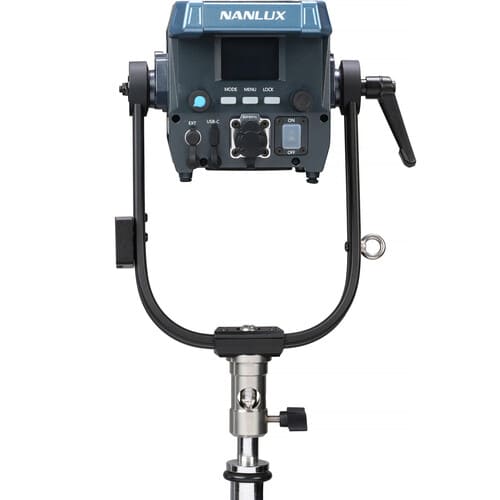

The Evoke 150C uses an FE Mount (FM Mount with electronic contacts), providing compatibility with a range of compatible NANLUX light-shaping accessories. Its professional control options include on-board controls, NANLINK App, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, and wired control. It also features 15 built-in lighting effects for creative lighting applications.

The fixture supports both 100–240V AC and 14.4–28V DC power, and also provides USB-C power input. Its IP66-rated construction provides strong dust and water resistance, making it suitable for demanding studio and outdoor production environments.

Key Features

• 150W Full-Color RGB LED Spotlight
• Nebula C8 eight-color light engine
• Deep Red, Red, Amber, Lime, Green, Cyan, Blue & Indigo LEDs
• 1000K–20,000K CCT range
• ±200 Green/Magenta adjustment
• CRI 98 / TLCI 98
• TM-30 Rf 96 / Rg 100
• Up to 22,230 lux @ 1m (5600K) with 45° reflector
• 12,160 lux @ 1m (5600K) bare fixture
• 0–100% dimming
• 47° unmodified beam angle
• 45° beam angle with included reflector
• FE Mount with electronic contacts
• 15 built-in lighting effects
• NANLINK App control
• DMX/RDM
• LumenRadio CRMX
• Art-Net / sACN
• On-board and wired control
• IP66 dust- and water-resistant construction
• 100–240V AC / 14.4–28V DC operation
• USB-C power input
• Suitable for filmmaking, photography, broadcast, commercial and location production.

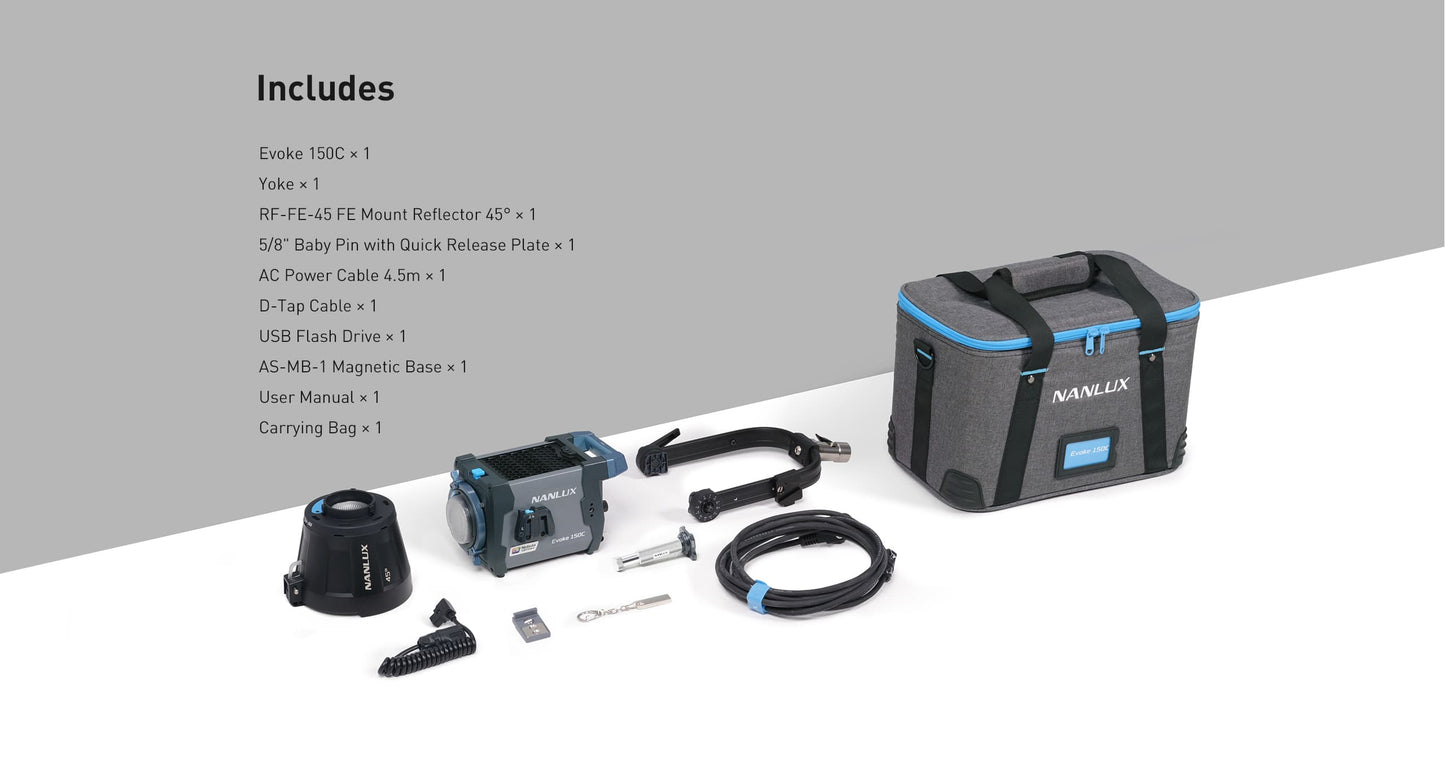

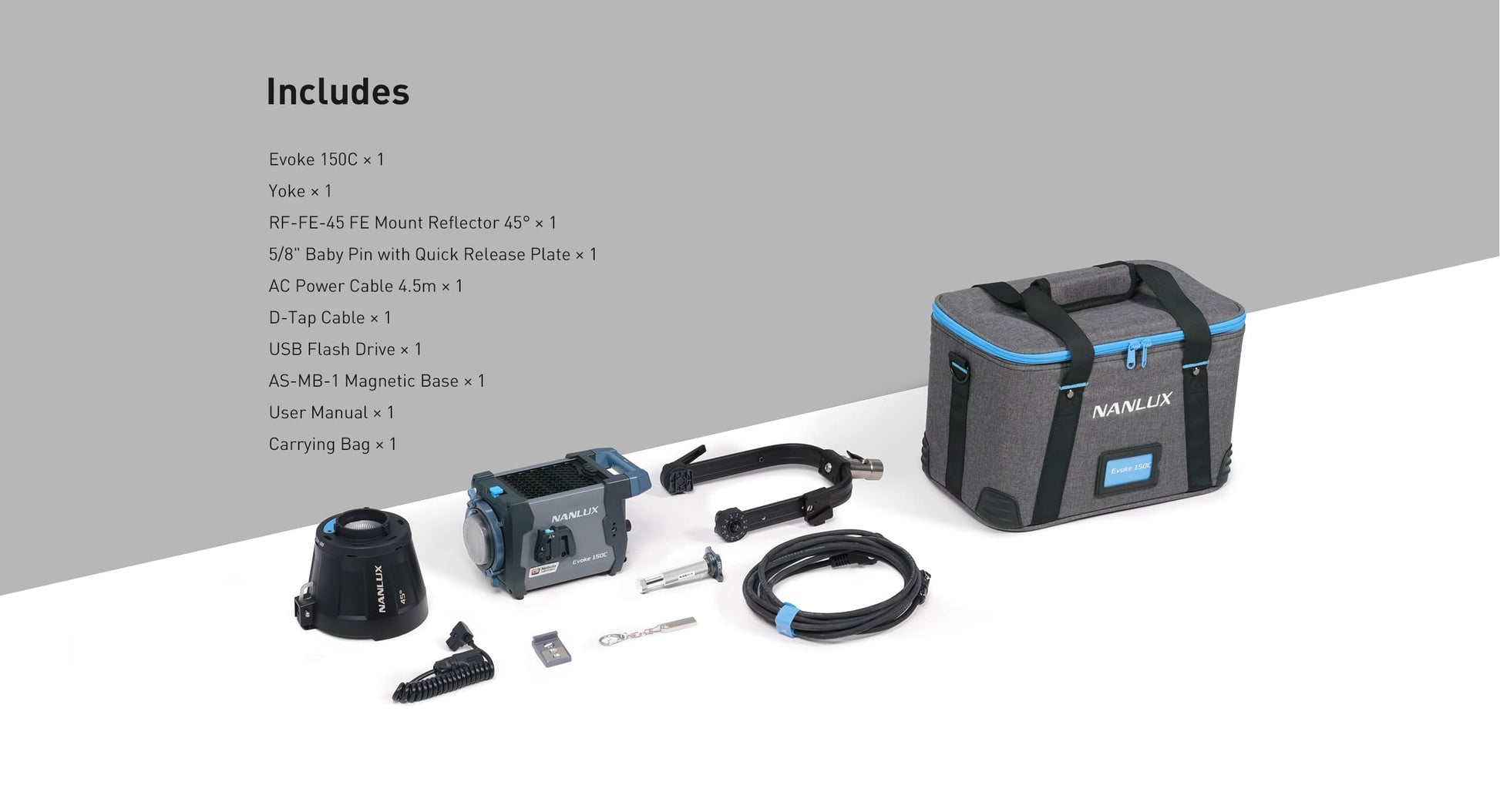

Includes

Evoke 150C × 1
Yoke x 1
RF-FE-45 FE Mount Reflector 45° x 1
5/8" Baby Pin with Quick Release Plate × 1
AC Power Cable 4.5m × 1
D-Tap Cable x 1
USB Flash Drive x 1
AS-MB-1 Magnetic Base × 1
User Manual x 1
Carrying Bag x 1
