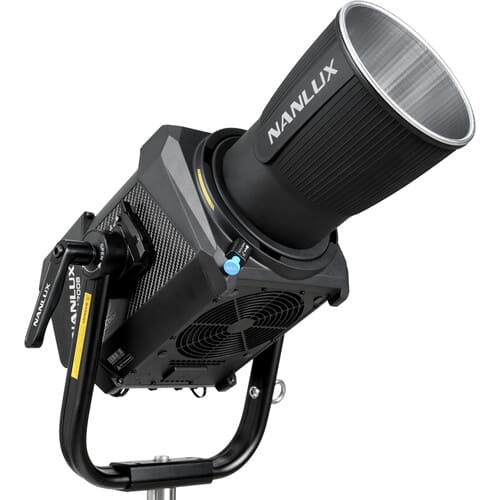

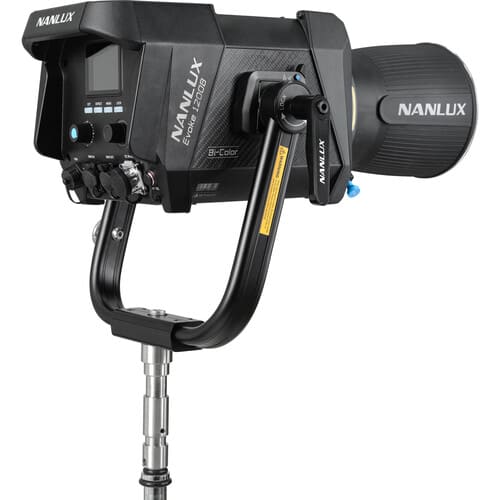

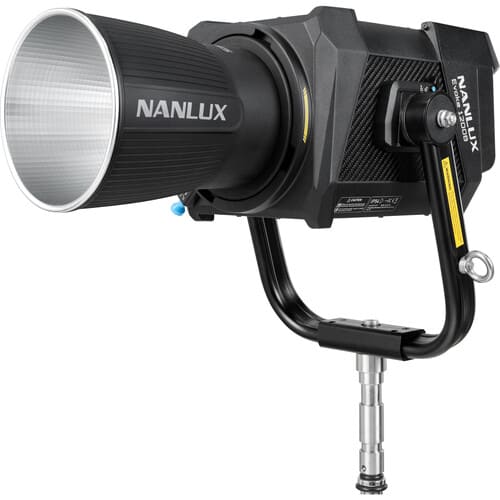

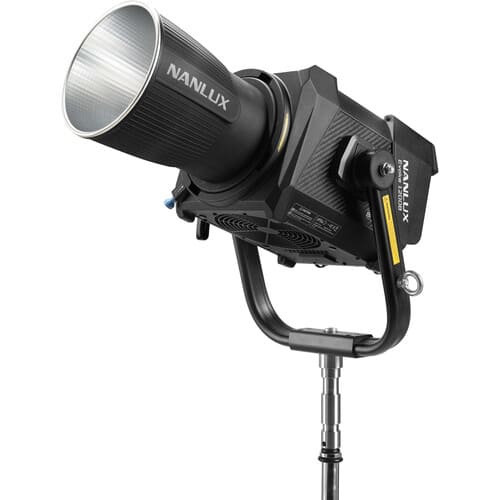

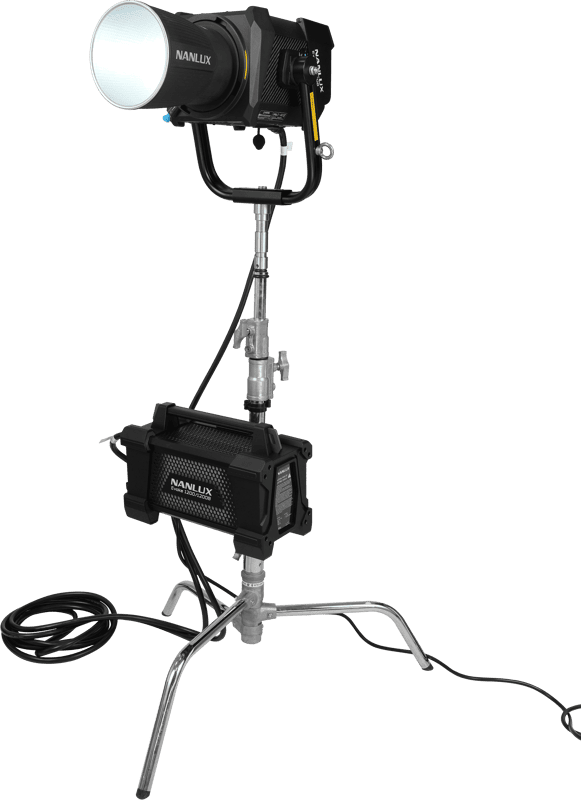

NANLUX Evoke 1200B Bi-Color LED Spot Light with Trolley Case

Description

The NANLUX Evoke 1200B Bi-Color LED Spot Light with Trolley Case is a professional 1200W high-output bi-color LED spotlight designed for film, television, broadcast, studio, commercial, and location productions. It combines powerful output with precise color control and a practical transport solution, making it suitable for demanding professional lighting environments.

The Evoke 1200B features an adjustable 2700K–6500K color temperature range, allowing users to transition smoothly between warm tungsten and daylight-balanced illumination. The fixture is designed to provide accurate color reproduction, with the official NANLUX user manual specifying CRI 96 and TLCI 97.

The light provides 0–100% dimming in 0.1% increments, with multiple dimming curves including Linear, S-Curve, Exponent, and Logarithm. These options allow precise brightness adjustment and smooth control across different production requirements.

With its professional reflector system, the Evoke 1200B can provide a concentrated beam for high-output applications. NANLUX documentation supports a 120° beam angle without a reflector, while compatible 45° reflector configurations provide a more focused beam for long-distance and directional lighting.

The Evoke 1200B uses the professional NL Mount system, allowing compatibility with NANLUX light-shaping accessories and reflectors. This makes the fixture suitable for applications requiring controlled, high-intensity directional illumination as well as broader output.

For professional control, the Evoke 1200B supports on-board control, 2.4GHz wireless control, Bluetooth, NANLINK App, and LumenRadio wireless control. The fixture also supports DMX/RDM control for integration into professional lighting systems.

The Evoke 1200B features an advanced cooling system with selectable operating modes, including a fan-off option for noise-sensitive environments. Its IP54-rated construction provides protection suitable for professional studio and location applications.

The Trolley Case Kit is designed for convenient transportation and storage of the Evoke 1200B and its accessories. This makes the kit particularly suitable for rental companies, production houses, cinematographers, studios, and location lighting crews.

Key Features

• 1200W high-output Bi-Color LED Spotlight
• Adjustable 2700K–6500K color temperature
• Up to 18,570 lux @ 3m (5600K) with 45° reflector
• Official NANLUX manual: CRI 96 / TLCI 97
• 0–100% dimming
• 0.1% dimming increments
• Linear, S-Curve, Exponent, and Logarithm dimming curves
• 120° beam angle without reflector
• Professional NL Mount
• Compatible with NANLUX reflectors and light-shaping accessories
• On-board controls
• NANLINK App control
• Bluetooth
• 2.4GHz wireless
• DMX/RDM
• LumenRadio wireless control
• Built-in special lighting effects
• Selectable cooling modes with fan-off operation
• IP54 protection
• AC 100–240V operation
• Includes dedicated Trolley Case
• Suitable for film, television, broadcast, studio, commercial, and location production

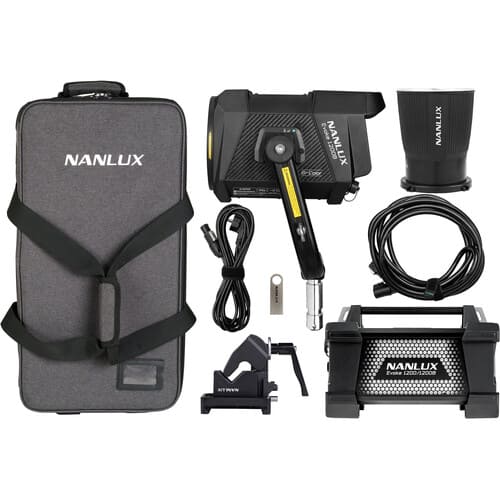

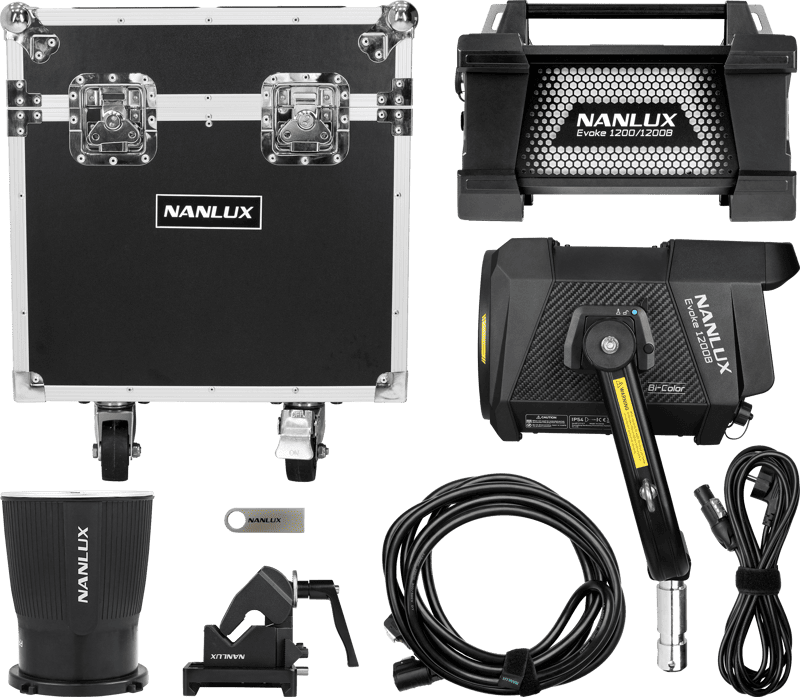

Includes

Evoke 1200B × 1
Yoke x 1

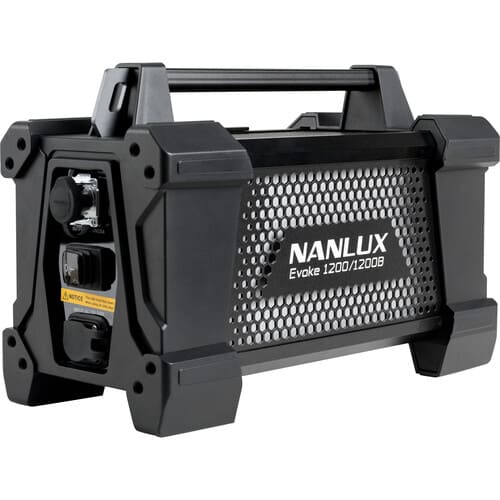

Power Supply x 1
RF-NLM-45 Reflector × 1
WS-RC-C2 Remote Controller × 1
DC Connection Cable 7.5M x 1
AC Power Cable 6M x 1
AS-CP-QR-EV Quick Release Clamp x 1
USB Flash Drive x 1
User Manual x 1
DMX Reference Guide x 1
Thank You Card x 1
