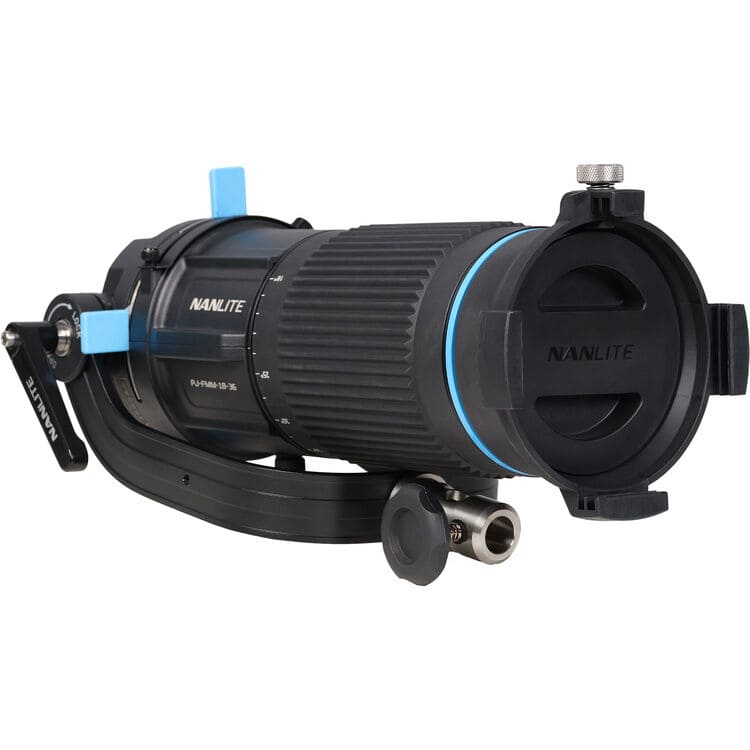

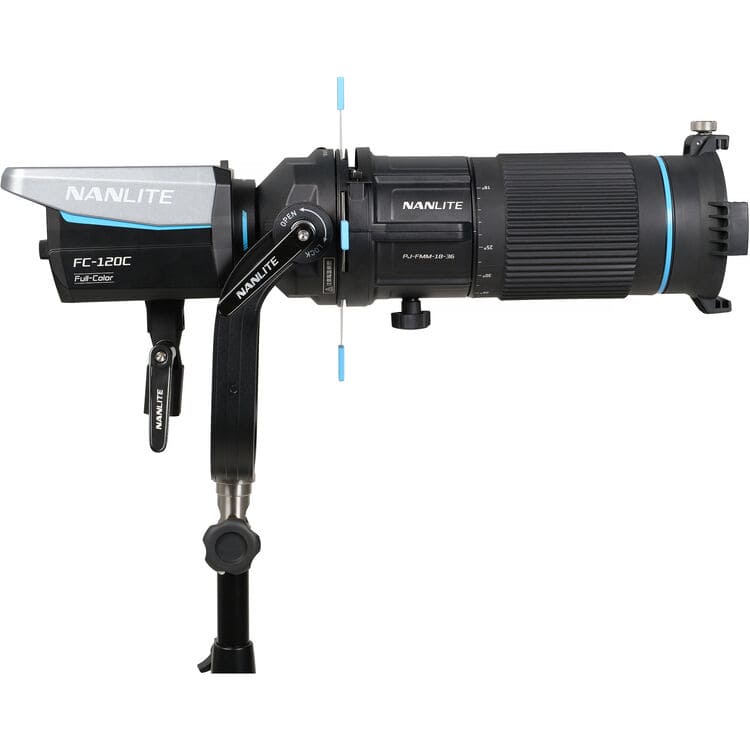

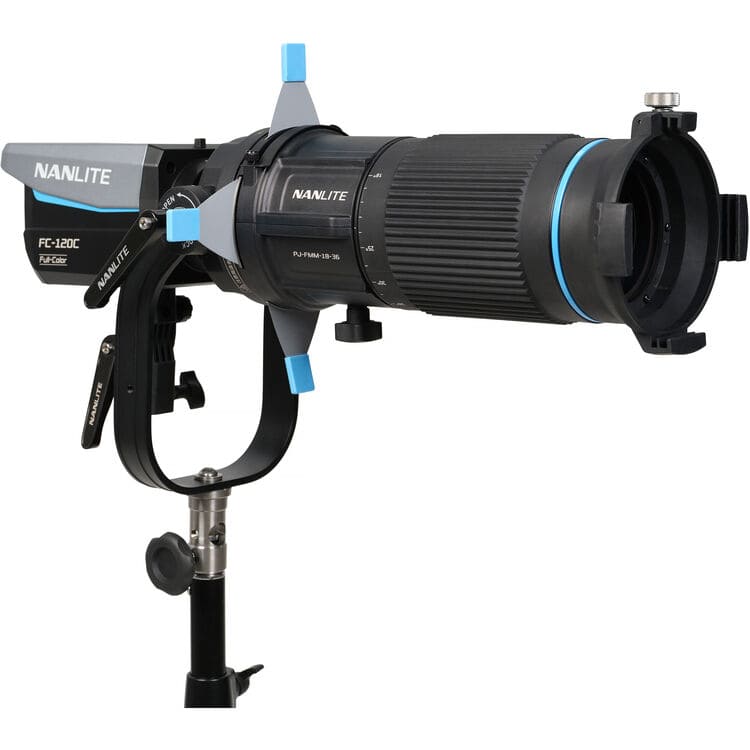

Nanlite Projection Attachment for FM Mount with 18-36° Zoom Lens

Nanlite Projector Mount for Forza – Overview

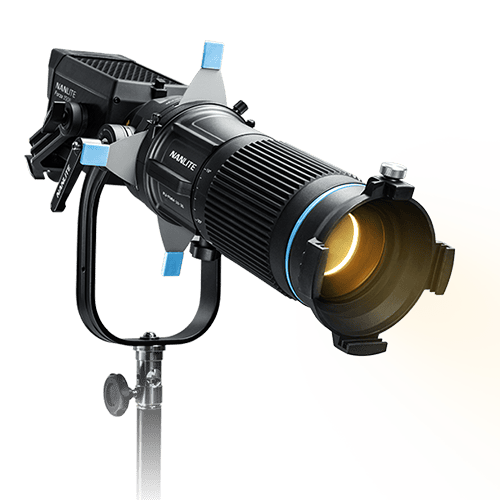

Achieve precise light shaping and controlled zoom performance with the Nanlite Projection Attachment for FM Mount with 18–36° Zoom Lens. Designed for select Forza, FC, and FS series fixtures, this projector mount delivers accurate beam control while enhancing overall illumination through a high-quality optical system.

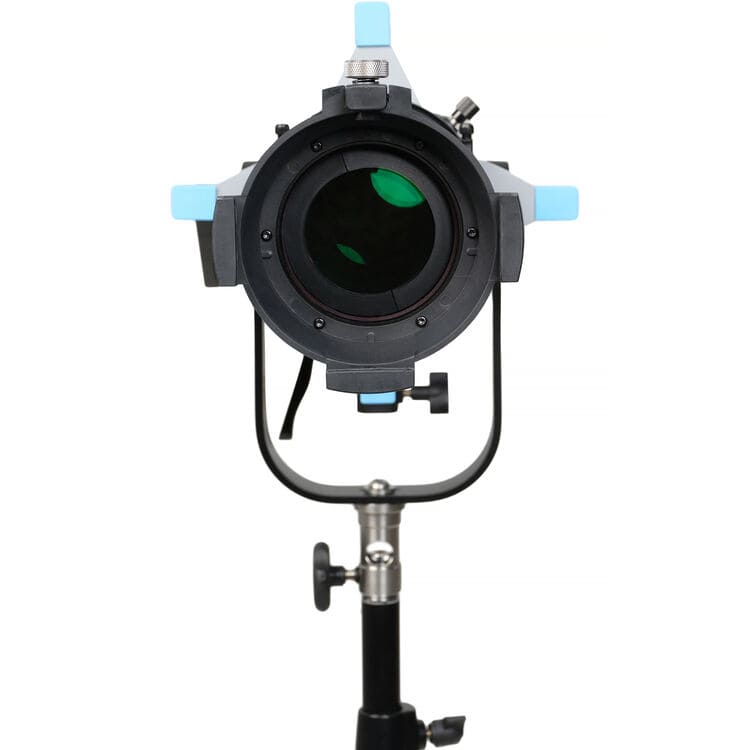

The attachment provides a variable 18–36° beam angle, allowing smooth transitions from spot to flood. Its 360° rotatable lens barrel enables zooming and repositioning without removing gobos or shutters, while a locking tilt handle ensures stable and precise positioning. A curved yoke offers compatibility with optional 1-1/8" and 5/8" light stands, making it suitable for a wide range of professional setups.

Enhanced Control & Performance

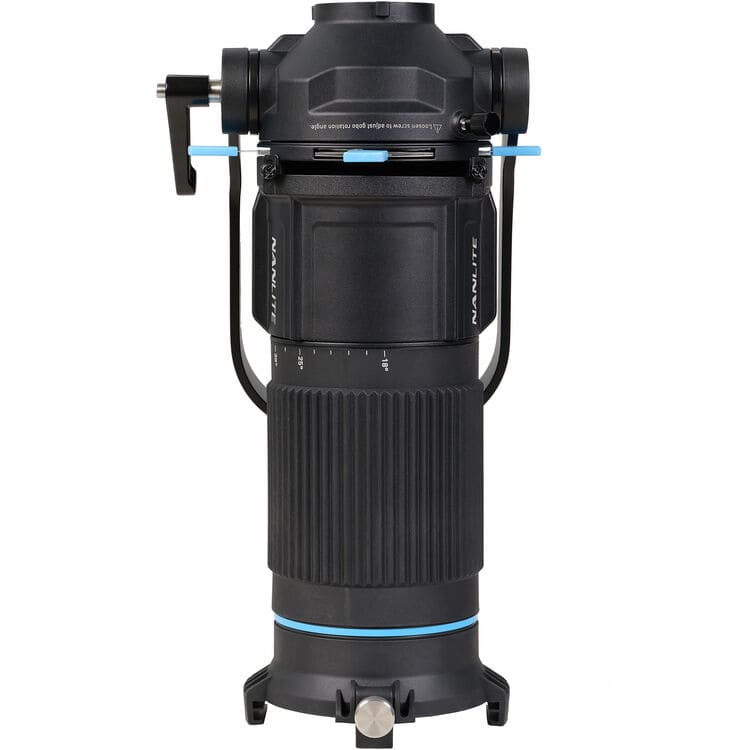

All functions of the PJ-FMM-18-36 projection attachment are designed for fast, intuitive operation on set. The zoom ring allows accurate beam-angle adjustments, while the sliding lens enables precise focusing. This attachment expands the creative potential of compact FM-mount fixtures without compromising light quality or consistency.

Clean, Even Beam Output

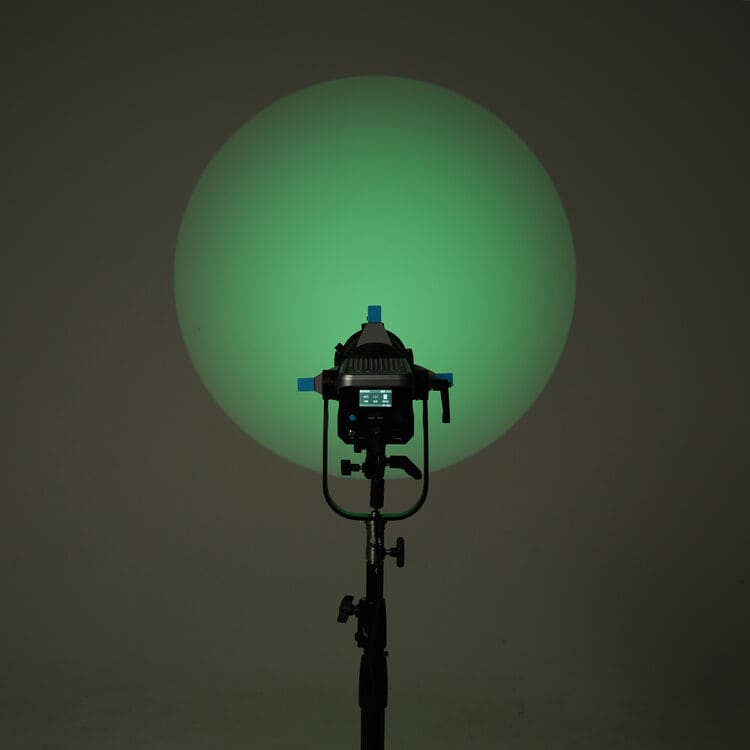

Engineered with a high-precision optical design, the projector delivers uniform illumination, sharp image clarity, and accurate color reproduction. The aspherical lens minimizes distortion, while advanced optical coatings improve light transmission with minimal color shift. A matte-finished inner barrel reduces internal reflections and stray light for cleaner results.

Creative Light Shaping

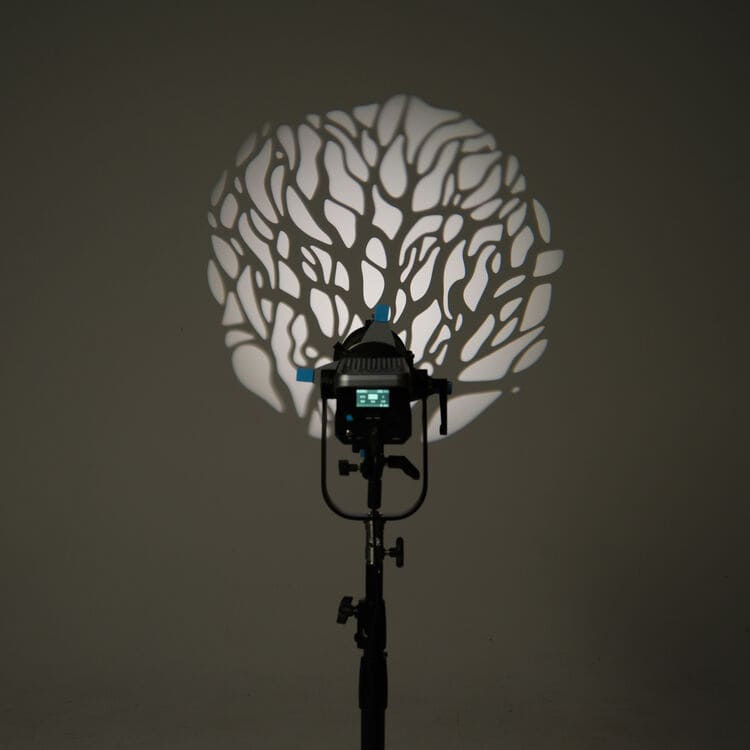

The projection attachment includes a gobo holder, four interchangeable gobos, and a gel frame, enabling advanced light shaping and pattern projection. For even greater control, an optional 18-blade iris is available to further refine beam diameter.

Fixture Compatibility

Compatible with select Nanlite FM-mount fixtures, including:

• Forza: 60 II, 60B II, 60C, 60CR, 150, 150B

• FS: 60B

• FC: 60B, 120B, 120C

Durable & Portable Design

Constructed from aluminum alloy, composite materials, and nylon, the housing ensures efficient heat dissipation, durability, and reliable performance. A padded carry bag is included for safe storage and convenient transport.

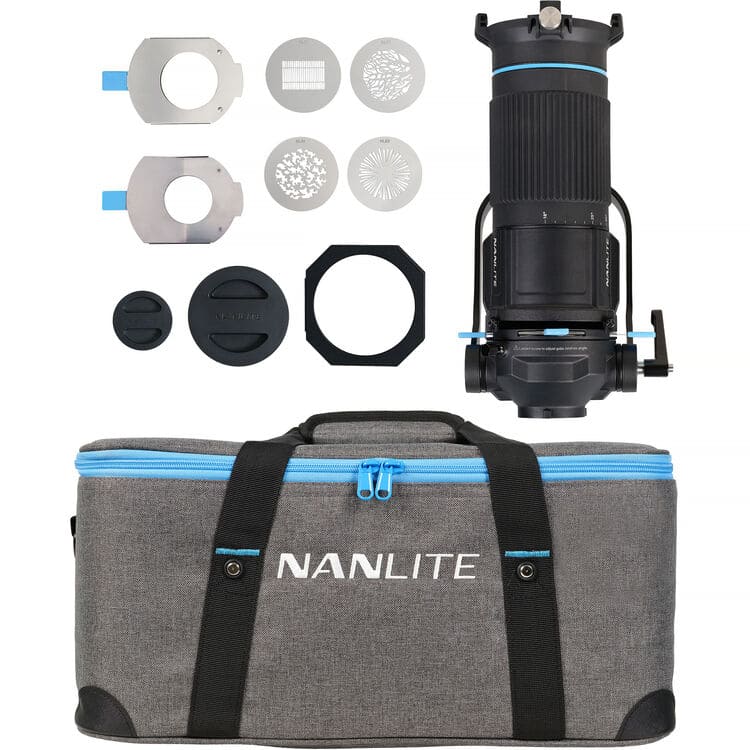

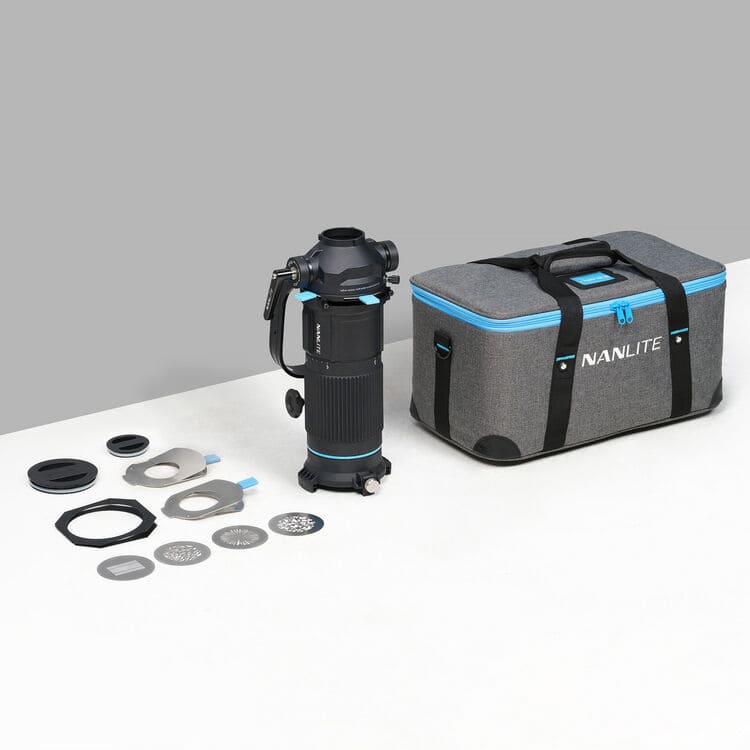

Included Items

• Nanlite Projection Attachment (FM Mount, 18–36° Zoom Lens)

• Gobo Holder

• 4 × Gobos

• Gel Frame

• Front Plastic Protective Cover

• Rear Plastic Protective Cover

• Carry Bag

• 2-Year Limited Manufacturer Warranty

• 1-Year Warranty Extension upon Registration

Specifications

General

• Compatibility:
  Nanlite Forza 60 II / 60B II / 60C / 60CR / 150 / 150B
  FS 60B
  FC 60B / 120B / 120C

Physical

• Mount: FM Mount

• Color: Black / Blue

• Materials: Aluminum Alloy, Composite

• Dimensions:

  • Projection Attachment: 15.15 × 7.55 × 7.52" (38.48 × 19.18 × 19.1 cm)

  • Gobo: 3.1" (78 mm)

  • Gel Frame: 4.96 × 4.96 × 0.12" (12.6 × 12.6 × 0.3 cm)

  • Carry Bag: 18.11 × 9.45 × 9.06" (46 × 24 × 23.01 cm)

• Weight:

  • Projection Attachment: 9.22 lb (4.18 kg)

  • Carry Bag: 5.22 lb (2.37 kg)

Packaging

• Package Weight: 16.25 lb

• Box Dimensions (L × W × H): 18.9 × 11.8 × 10.4 inches
