Nanlite Projection Attachment for Bowens Mount with 36° Lens (PJ-BM-36)

Description

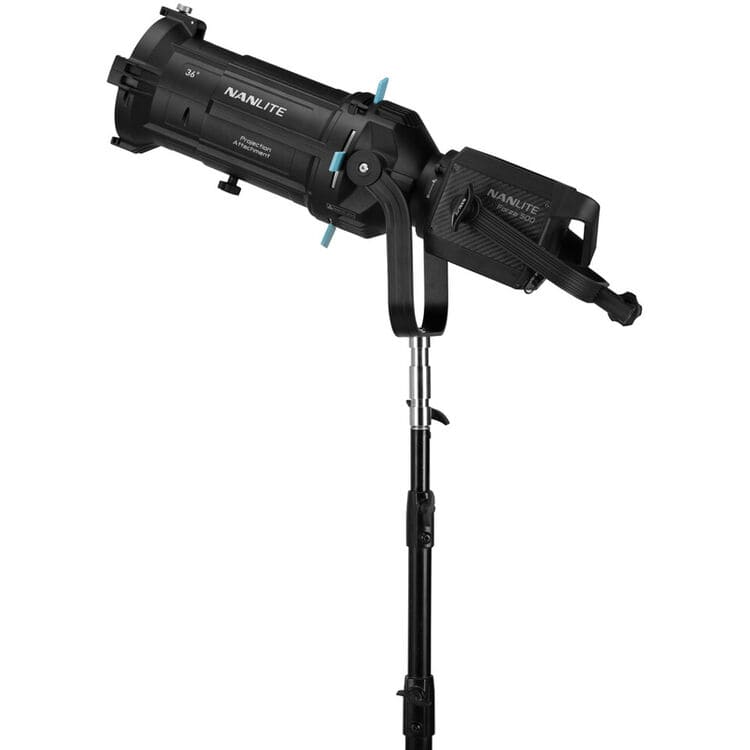

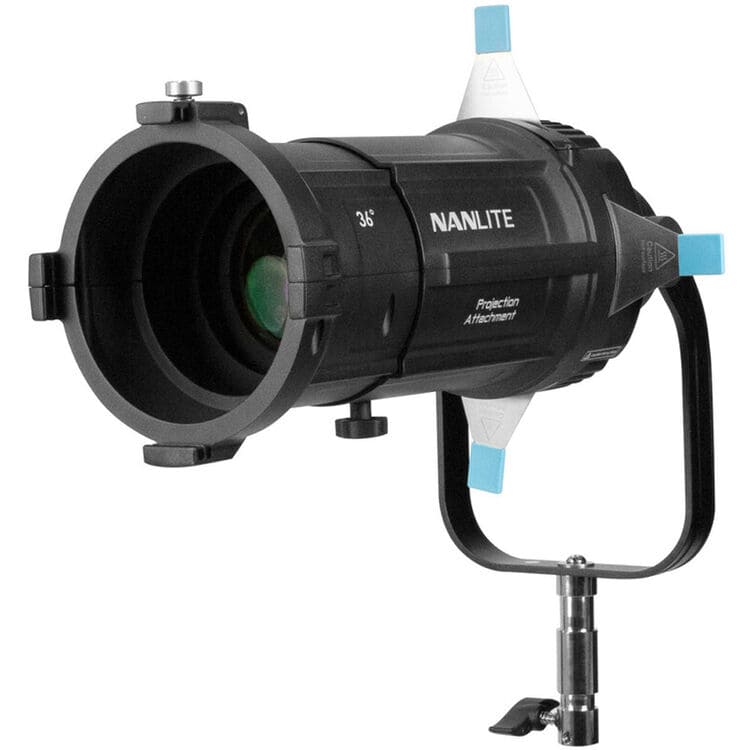

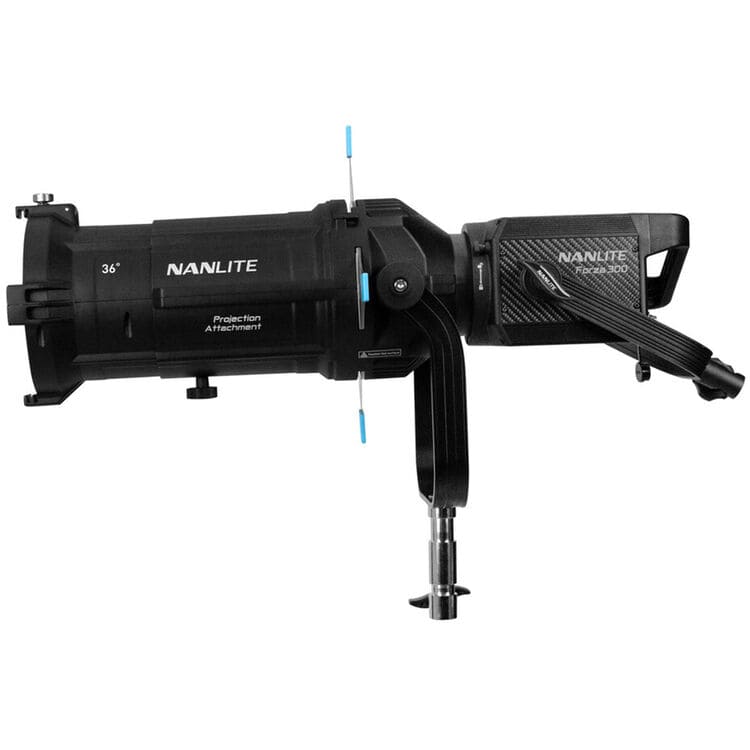

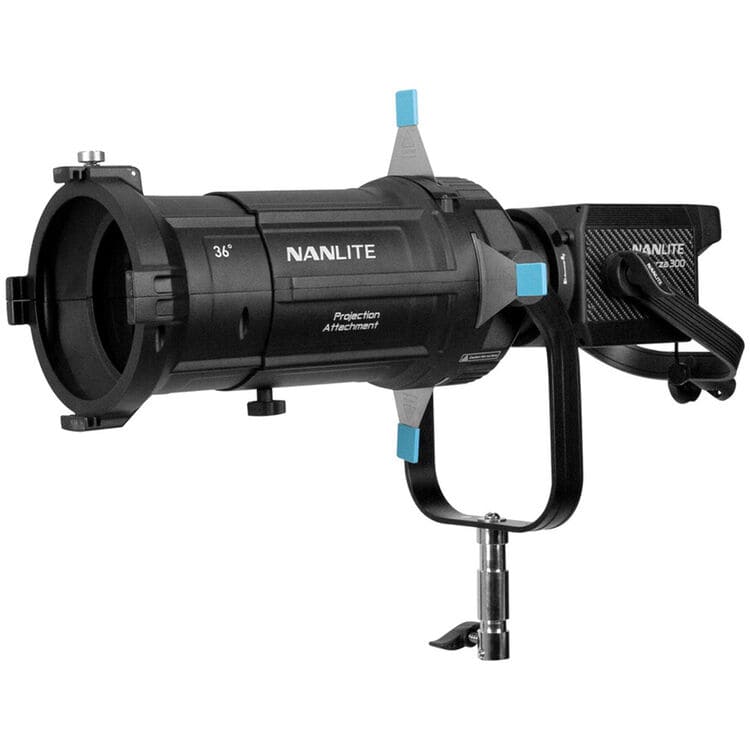

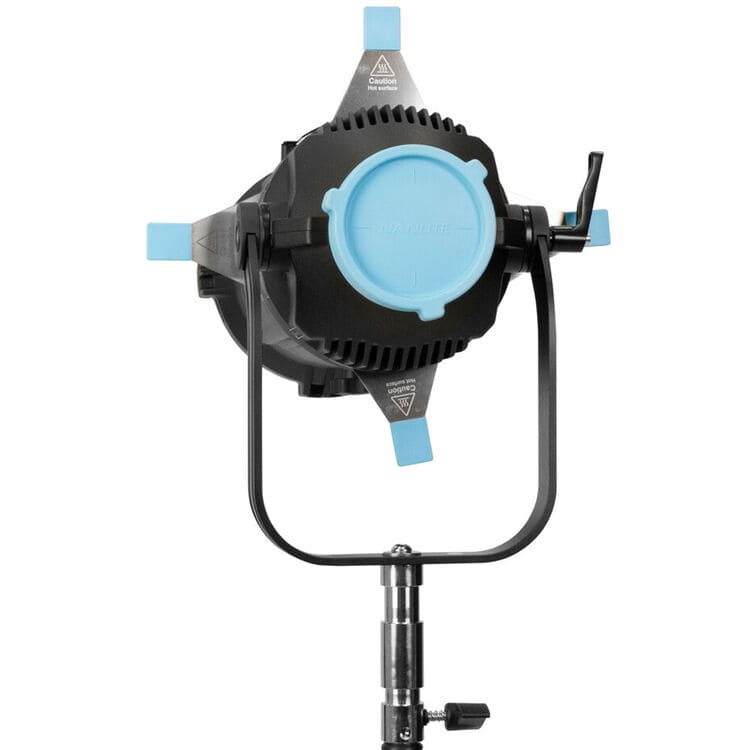

The Nanlite PJ-BM Projection Attachment with 36° Lens for Bowens Mount is a professional optical light-shaping accessory designed to add advanced projection and creative lighting capabilities to compatible Bowens Mount LED fixtures. It allows filmmakers, photographers, and lighting professionals to create precise shapes, patterns, textures, shadows, and shafts of light.

The included 36° lens provides a tight yet versatile beam that is particularly useful in smaller shooting spaces. It can cover large areas of a wall while creating either soft, out-of-focus textures or sharply defined projections. The 36° lens also helps increase the output of the attached light while maintaining a smooth and controlled beam.

The PJ-BM uses carefully designed non-curved optics to minimize aberration and distortion while providing accurate and precise light. Optical coating improves light transmission and color-temperature accuracy, while the internally etched housing helps reduce edge dispersion and fringing.

For creative light shaping, the projection attachment features internal shutters and supports GOBO projection. It includes four B-size GOBOs, a GOBO holder, gel frame, and aperture masks, providing multiple options for controlling and modifying the projected light.

The PJ-BM is constructed with a durable aluminum body and includes a protective flight case for transportation and storage. Its full yoke with a single-sided locking mechanism provides convenient positioning and adjustment during production.

An adjustable iris diaphragm (PJ-BM-AI) is available separately for additional control over the projected beam size. GOBO Set 1 and GOBO Set 2 are also available separately, expanding the creative projection possibilities.

Key Features

• Professional Bowens Mount Projection Attachment
• Includes 36° Projection Lens
• Creates shapes, patterns, textures, shadows, and shafts of light
• 36° beam angle for versatile projection coverage
• Ideal for smaller shooting spaces
• Provides increased light output with a smooth, controlled beam
• Non-curved optics minimize aberration and distortion
• Optical coating improves transmission and color-temperature accuracy
• Internal shutters for precise light shaping
• Supports GOBO projection
• Includes gel frame and aperture masks
• Durable aluminum construction
• Full yoke with single-sided locking mechanism
• Protective flight case included
• Optional PJ-BM-AI Adjustable Iris Diaphragm
• Compatible with additional Nanlite Bowens Mount GOBO Sets

Compatible Nanlite Lights

The PJ-BM is compatible with Bowens Mount fixtures below 800W, including:

• Nanlite Forza 300B II
• Nanlite Forza 500B II
• Nanlite Forza 720
• Nanlite Forza 720B
• Nanlite FS-150B
• Nanlite FS-200B
• Nanlite FS-300B
• Nanlite FS-300C
• Nanlite FC-500B
• Nanlite FC-500C

It can also be used with a wide range of Bowens Mount fixtures from other manufacturers.

Compatible Accessories

• PJ-BM-AI Adjustable Iris Diaphragm
• GOBO Set 1 for Bowens Mount Projector – ASGBBMSET1
• GOBO Set 2 for Bowens Mount Projector – ASGBBMSET2

Specifications

• Beam Angle: 36°
• Mount: Bowens Mount
• Projection Attachment Dimensions: 15.71 × 10.51 × 17.36" (39.9 × 26.7 × 44.1 cm)
• Projection Attachment Weight: 4.2 kg
• 36° Lens Weight: 3.1 kg

Includes

Bowens Mount Projection Attachment without Lens × 1
19° / 36° Lens f × 1
Plastic Protective Cover (front cover) × 1
Plastic Protective Cover (back cover) × 1
GOBO in B size × 4
GOBO Holder × 1
Gel Frame × 1
1/2 Aperture Mask × 1
2/5 Aperture Mask × 1
Flight Case × 1
User Manual × 1
