Nanlite Projection Attachment for Bowens Mount with 19° Lens (PJ-BM-19)

Description

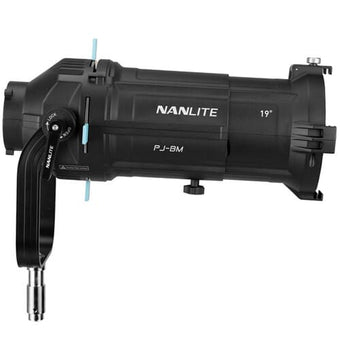

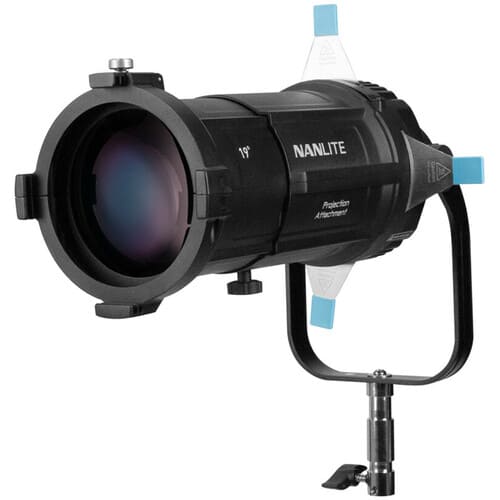

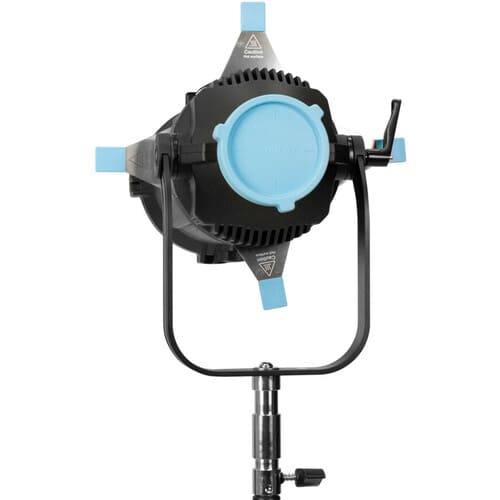

The Nanlite PJ-BM Projection Attachment with 19° Lens for Bowens Mount is a professional optical light-shaping accessory designed for Nanlite and other compatible Bowens Mount LED fixtures. It transforms compatible LED spotlights into a powerful projection system for creating precise shapes, patterns, textures, shadows, and shafts of light.

The included 19° projection lens provides a narrow and concentrated beam, dramatically increasing the output of the attached light while maintaining accurate and precise illumination. This makes it particularly suitable for long-distance projection, sharply defined spot effects, GOBO patterns, and dramatic directional lighting.

The PJ-BM uses carefully designed non-curved optics to minimize aberration and distortion, while optical coating improves light transmission and color-temperature accuracy. The projection attachment also provides a focusable lens system, allowing users to adjust projected images from sharp and defined to softer, more diffused effects.

For creative light shaping, the PJ-BM includes internal shutters, a GOBO holder, gel frame, and aperture masks. Compatible GOBOs can be inserted to project detailed patterns, textures, window effects, foliage, architectural shadows, and other creative backgrounds.

The PJ-BM features a durable aluminum construction and a full yoke with a single-sided locking mechanism for convenient positioning. A protective flight case is included for transportation and storage.

The PJ-BM-AI Adjustable Iris Diaphragm and Bowens Projection Attachment GOBO Sets 1 and 2 are available separately, providing additional control and creative projection options.

Key Features

• Professional Bowens Mount Projection Attachment
• Includes 19° Projection Lens
• 19° beam angle for narrow, concentrated projection
• Dramatically increases light output
• Creates shapes, patterns, textures, shadows, and shafts of light
• Non-curved optics minimize aberration and distortion
• Optical coating improves light transmission and color-temperature accuracy
• Focusable projection lens
• Built-in internal shutters
• Supports GOBO projection
• Includes GOBO holder and gel frame
• Includes 1/2 and 2/5 aperture masks
• Durable aluminum construction
• Full yoke with single-sided locking mechanism
• Protective flight case included
• Optional PJ-BM-AI Adjustable Iris Diaphragm
• Compatible with Nanlite Bowens Mount GOBO Sets

Compatible Nanlite Lights

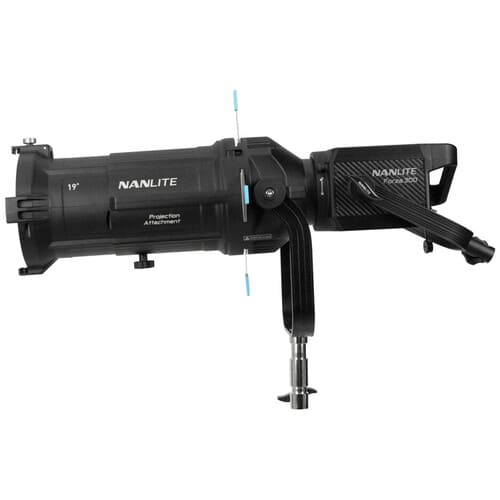

According to the official Nanlite specifications, the PJ-BM is compatible with Bowens Mount fixtures below 800W, including:

• Nanlite Forza 300B II
• Nanlite Forza 500B II
• Nanlite Forza 720
• Nanlite Forza 720B
• Nanlite FS-150B
• Nanlite FS-200B
• Nanlite FS-300B
• Nanlite FS-300C
• Nanlite FC-500B
• Nanlite FC-500C

It can also be used with a wide range of compatible Bowens Mount fixtures from other manufacturers.

Compatible Accessories

• PJ-BM-AI Adjustable Iris Diaphragm
• Bowens Projection Attachment GOBO Set 1 (ASGBBMSET1)
• Bowens Projection Attachment GOBO Set 2 (ASGBBMSET2)
• 36° Interchangeable Lens for Bowens Projection Attachment

Specifications

• Beam Angle: 19°
• Mount: Bowens Mount
• Dimensions: 15.71 × 10.51 × 17.36" (39.9 × 26.7 × 44.1 cm)
• Projection Attachment Weight: 4.2 kg
• 19° Lens Weight: 3.8 kg

Includes

Bowens Mount Projection Attachment without Lens × 1
19° / 36° Lens f × 1
Plastic Protective Cover (front cover) × 1
Plastic Protective Cover (back cover) × 1
GOBO in B size × 4
GOBO Holder × 1
Gel Frame × 1
1/2 Aperture Mask × 1
2/5 Aperture Mask × 1
Flight Case × 1
User Manual × 1
