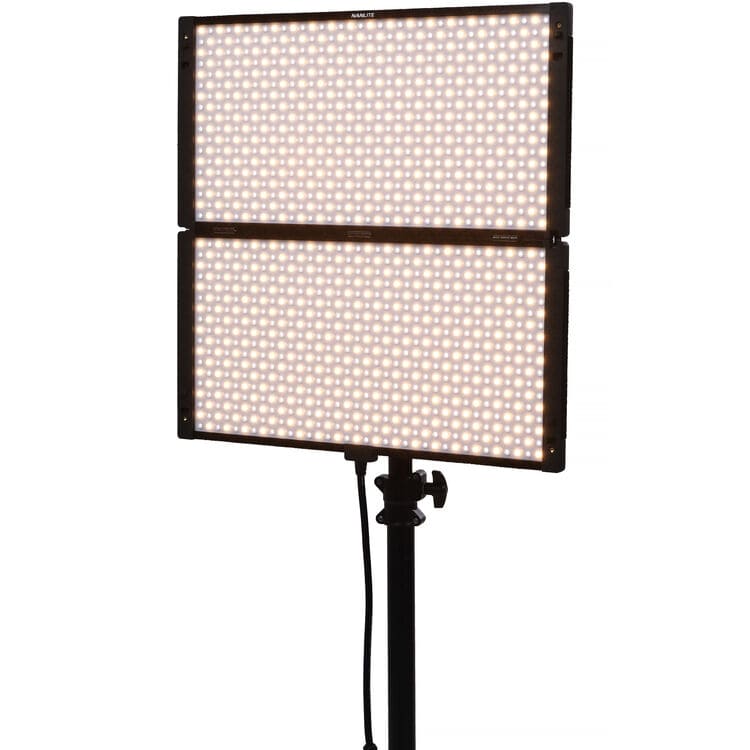

Nanlite PavoSlim 240B LED Bi-color Panel

Description

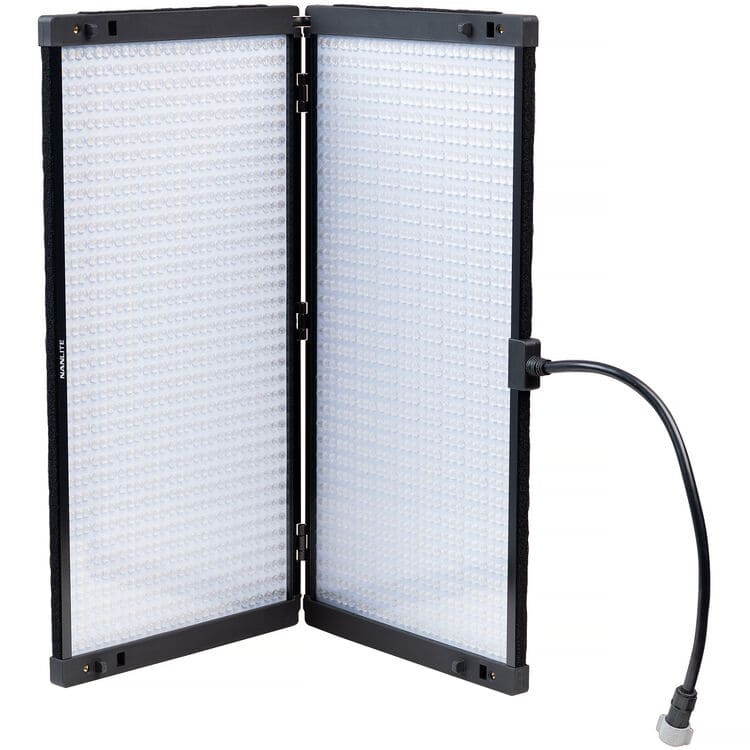

The Nanlite PavoSlim 240B 2×2 Bi-Color LED Panel Light is a powerful yet exceptionally slim and lightweight 260W LED panel designed for professional filmmaking, photography, broadcast, interviews, livestreaming, and content creation. Its unique folding design allows the 2×2 panel to fold down to approximately half its size for convenient transportation and storage, while still providing a large, soft light source when fully opened.

Featuring an adjustable 2700K–7500K bi-color CCT range, the PavoSlim 240B provides precise control from warm tungsten tones to cool daylight illumination. With an average CRI of 95, TLCI of 97, SSI 83 at 3200K, and SSI 73 at 5600K, it delivers accurate color reproduction and natural-looking skin tones. The fixture is also designed for flicker-free performance, including when shooting at high frame rates.

The PavoSlim 240B produces up to 22,990 lux at 1 meter at 5600K, with a 60° beam angle and smooth 0–100% dimming. Its advanced optical system provides strong output from an ultra-slim panel measuring only 1.13" (2.86 cm) thick when unfolded.

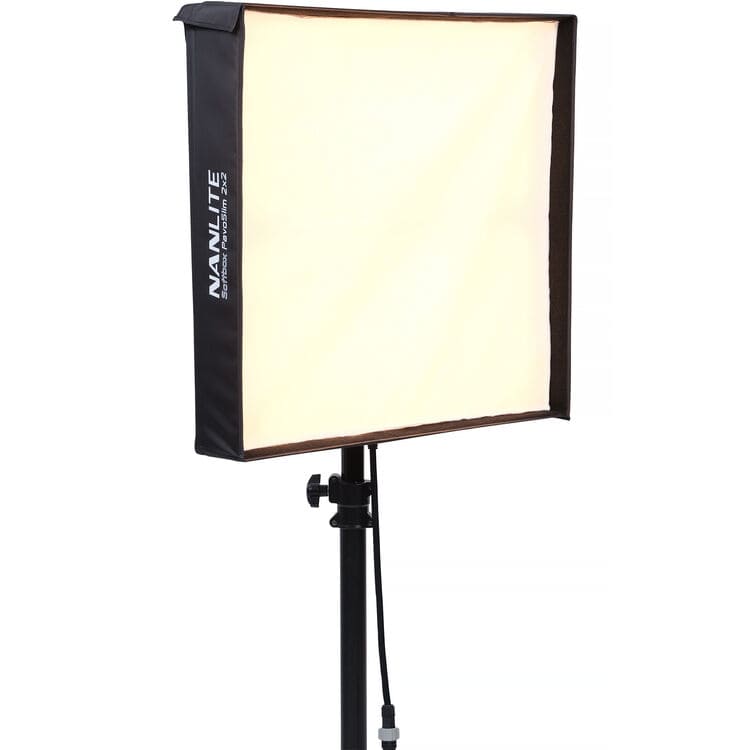

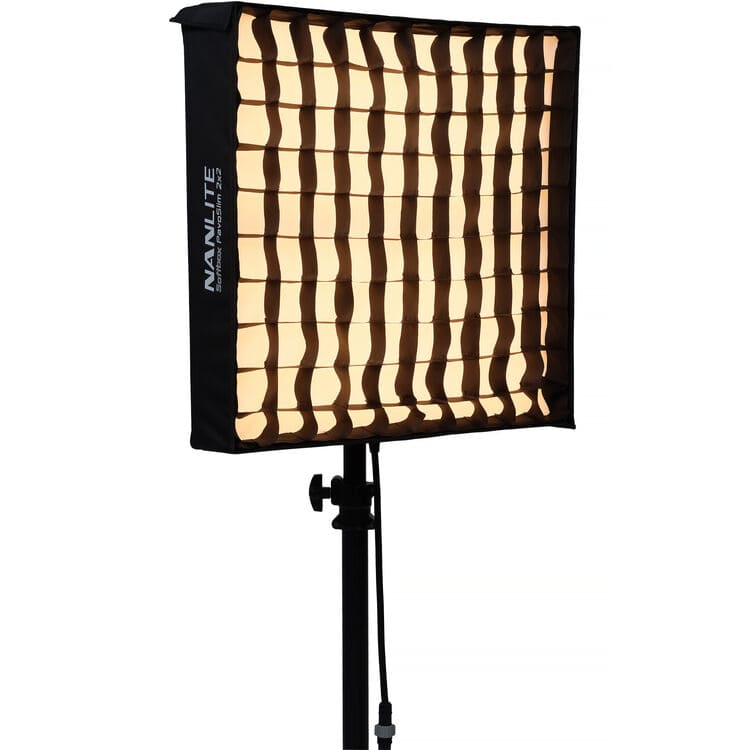

Designed for fast setup and breakdown, the PavoSlim 240B features durable, heat-dissipating metal construction and a fanless design for quiet operation. The included folding softbox, two diffusion options, and Eggcrate Grid can be quickly installed and removed, allowing users to soften and control the light while maintaining an efficient production workflow.

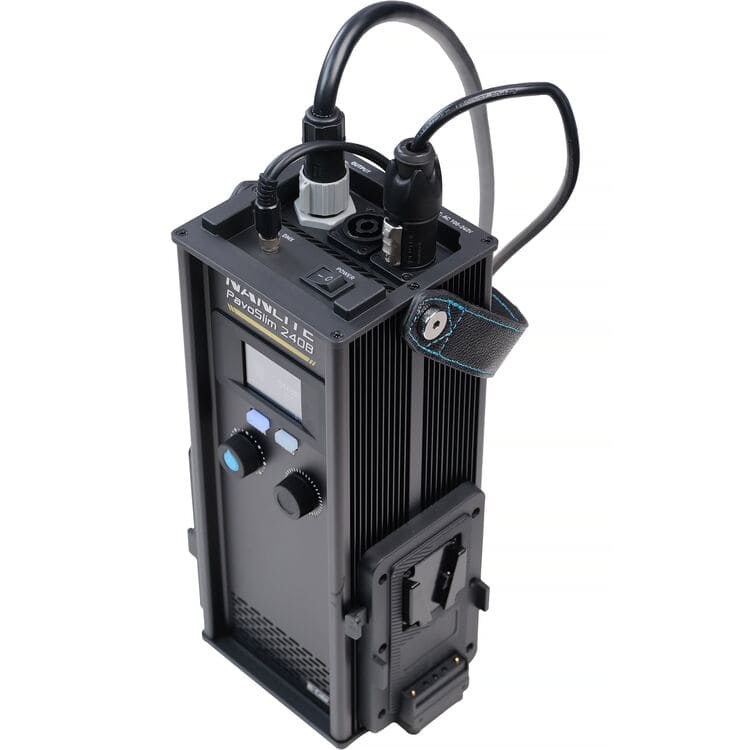

The separate Control Unit provides onboard controls, buttons, knobs, and a display, while its two V-Mount battery plates allow the PavoSlim 240B to operate from batteries for location shooting. The panel can also operate continuously from AC power.

For professional lighting control, the PavoSlim 240B supports Bluetooth through the NANLINK App, DMX/RDM, 2.4GHz wireless control, and compatibility with the FC PowerController. It also features 12 built-in lighting effects, including CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion, and Welding.

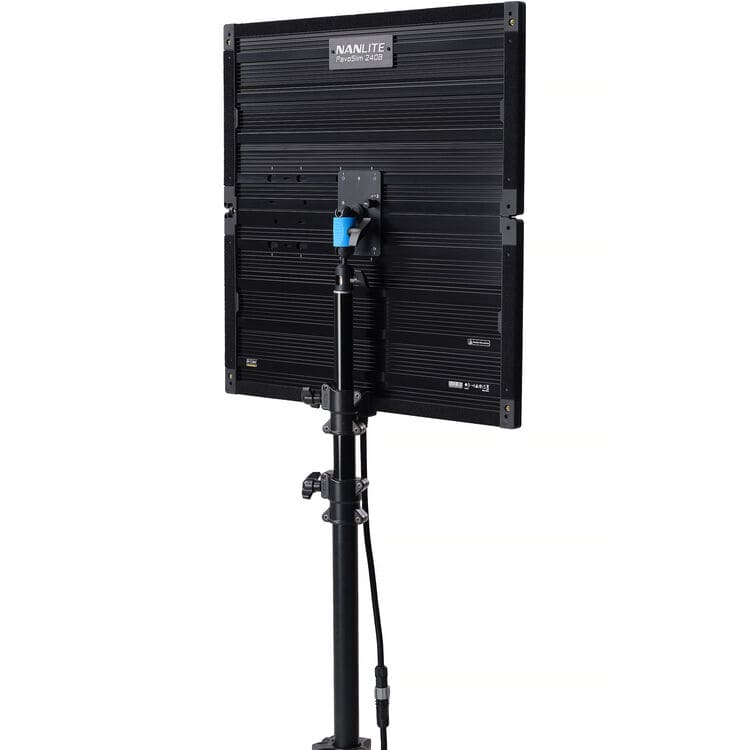

The PavoSlim 240B features a versatile mounting system with multiple rear mounting points and an included Swivel Holder, allowing the panel to be positioned at a wide range of angles. Its folding design, compact carrying case, and included accessories make it particularly suitable for productions where portability, fast setup, and high output are important.

Key Features

• 260W Rated Power
• 2×2 Bi-Color LED Panel
• Folds down to approximately 2×1 size for storage and transport
• Ultra-slim 1.13" (2.86 cm) thickness
• Adjustable 2700K–7500K CCT range
• Up to 22,990 lux @ 1m (5600K)
• 60° beam angle
• CRI Average 95 / TLCI Average 97
• SSI 83 (3200K) / SSI 73 (5600K)
• TM-30 Rf 95 / Rg 102
• 0–100% smooth dimming
• Fanless operation for quiet productions
• 12 built-in lighting effects
• Built-in controls and display
• Bluetooth / NANLINK App control
• DMX/RDM control
• 2.4GHz wireless control
• FC PowerController compatible
• AC and dual V-Mount battery operation
• Includes folding Softbox, 2 Diffusers, and Eggcrate Grid
• Ideal for filmmaking, photography, broadcast, interviews, livestreaming, and content creation

Includes

PavoSlim 240B × 1
Control Unit × 1
Universal Holder × 1
DC Connection Cable 5M × 1
AC Power Cable 4.5M × 1
Softbox × 1
Diffuser × 2 (Lite Diffuser × 1+Standard Diffuser × 1)
Eggcrate × 1
Carrying Bag × 1
User Manual × 1
