MixPanel 60 RGBWW LED Panel

Key Features

• Compact 17 × 14 × 3" LED panel

• Three selectable light modes in one fixture

• CCT mode with adjustable 2700–7500K

• Green/magenta shift for fine color tuning

• High color accuracy: CRI 98 / TLCI 95 at 5600K

• Smooth 0–100% dimming

• RGB mode for millions of color options

• Operates via AC power or optional batteries

• Built-in library of 43 popular gel presets

• Nine special lighting effects

Product Overview

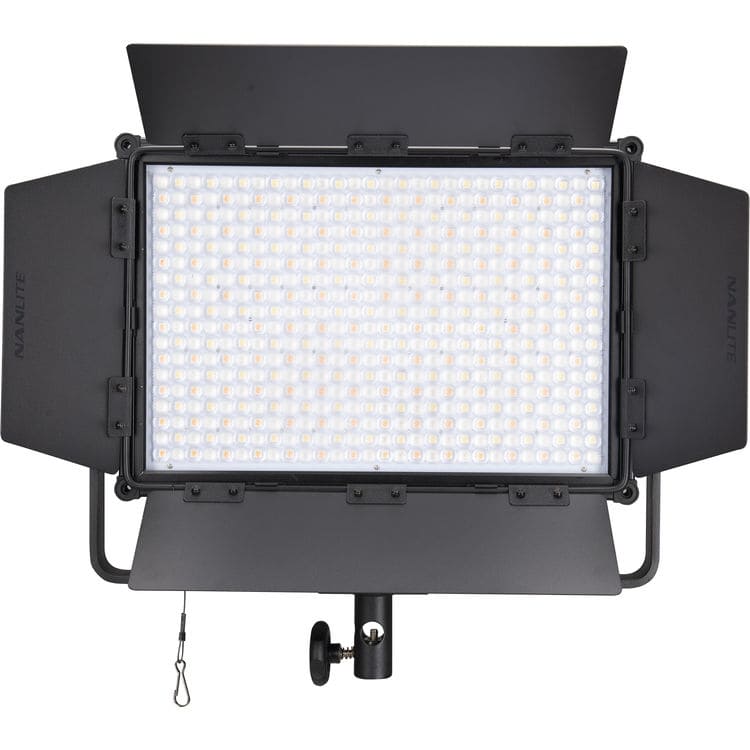

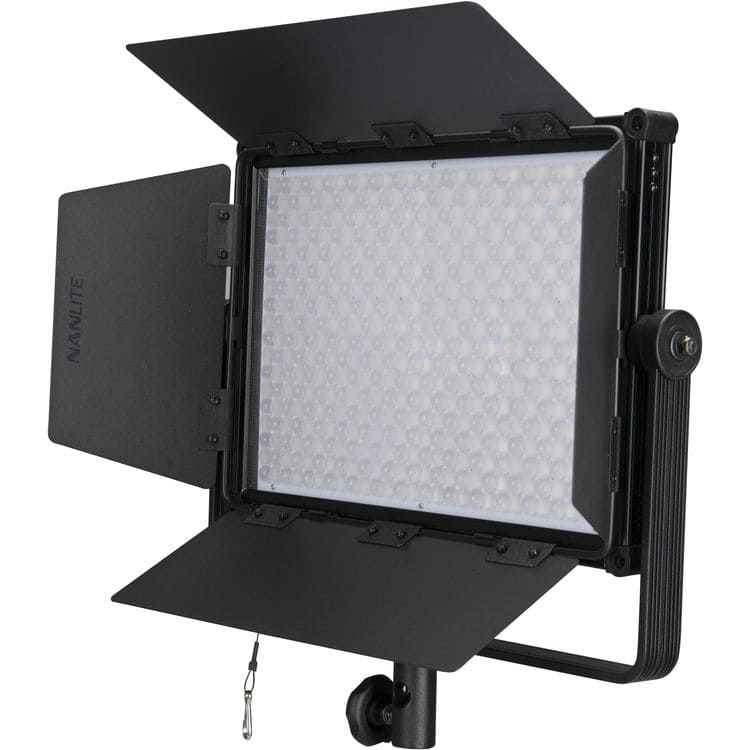

The Nanlite MixPanel 60 RGBWW LED Panel is a versatile 17 × 14 × 3-inch lighting solution that combines three distinct light sources in a single fixture. With the push of a button, it can switch between a traditional multi-LED panel for hard light, a diffused SMD LED panel for soft illumination, and a tunable RGB panel for vibrant, creative effects.

Featuring a wide 2700–7500K color temperature range, the MixPanel 60 easily matches ambient lighting, integrates with other fixtures, or enables expressive lighting styles. Its exceptional CRI of 98 and TLCI of 95 ensure accurate color reproduction, while green/magenta adjustment and 0–100% dimming provide precise control over output and tone.

Advanced RGB & Output Performance

The MixPanel 60’s RGB mode utilizes advanced 4-in-1 LED technology to generate over 16 million color combinations, offering extensive creative flexibility. The fixture also includes a Boost mode for increased brightness. In standard hard-light mode, it delivers 4,980 lux at 3.28 feet (5600K), which increases to 6,600 lux when Boost mode is engaged. Full-range dimming allows quick exposure adjustments without the need for ND filters or diffusion.

Gel Presets & Lighting Effects

A built-in 43-gel emulation library provides five CTO, five CTB, and 33 CalColor presets, enabling fast color matching without physical gels. Additionally, the MixPanel 60 includes nine customizable special effects, such as Hue Loop, CCT Loop, Flash, Pulse, Storm, Siren, TV, Paparazzi, and Candle/Fire, ideal for simulating real-world lighting scenarios.

Power & Usability

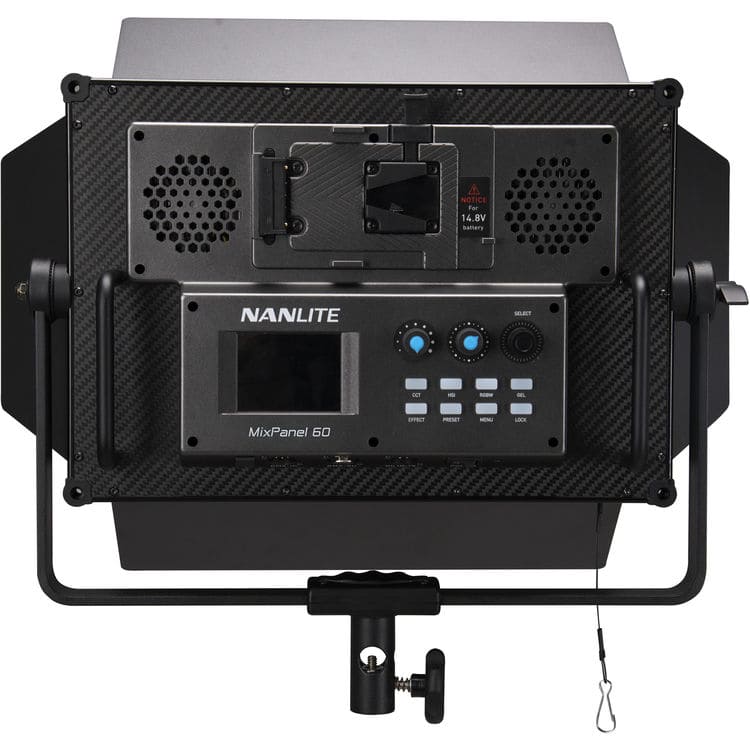

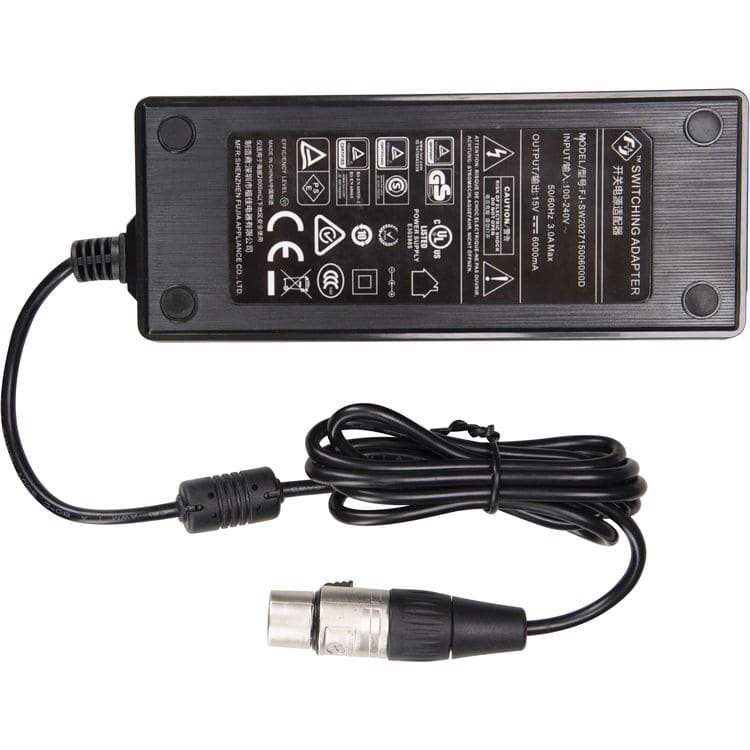

Designed for both studio and location use, the MixPanel 60 supports 100–240V AC power for worldwide compatibility and can also operate on optional V-mount batteries for complete mobility. Its intuitive user interface allows quick adjustments, preset saving, and repeatable lighting setups, making it efficient and reliable for professional workflows.
